Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#123931) — 327 parça

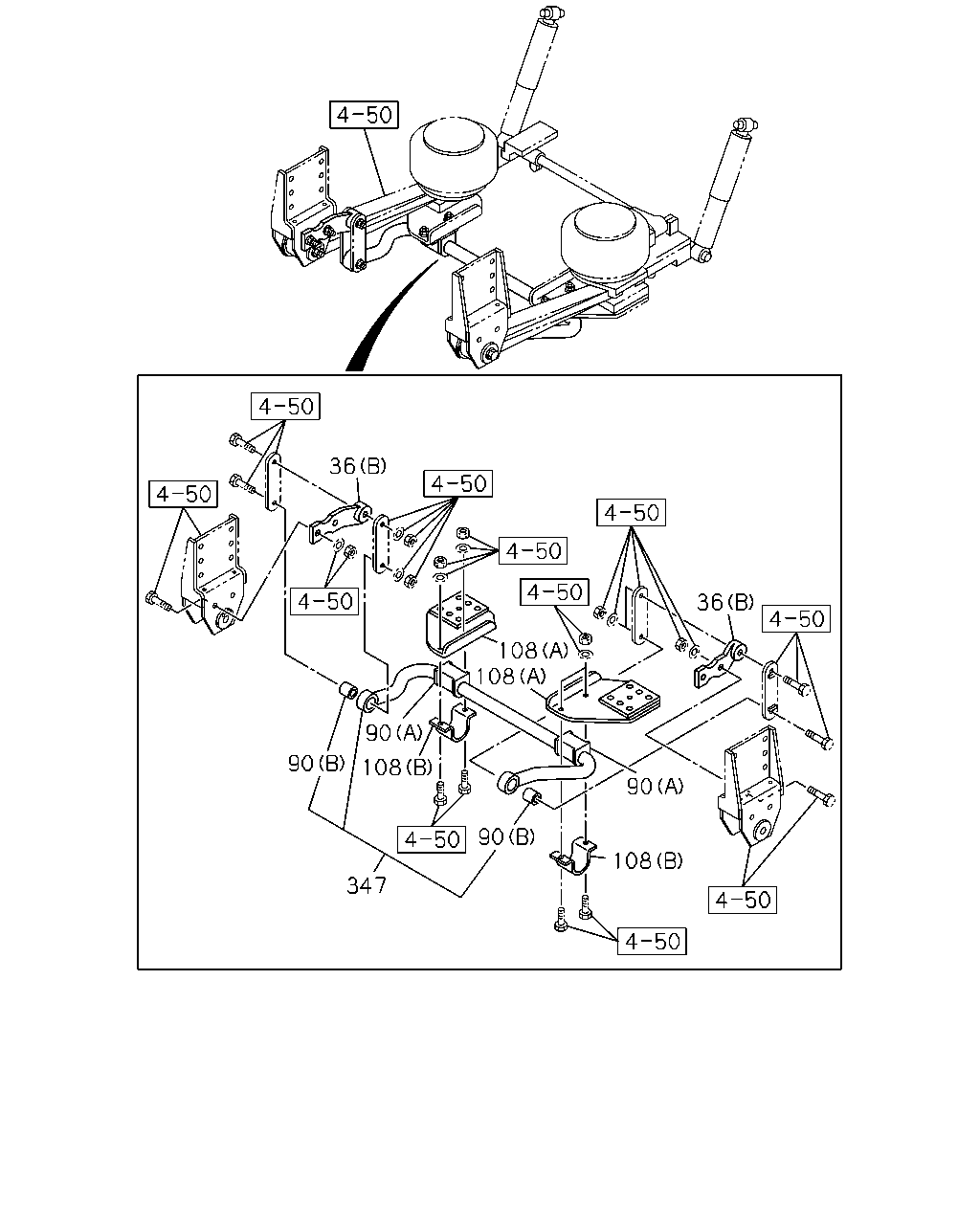

36 108 108 90 90 108 347 90 108 90 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	ARM; KNUCKLE (B)	8-98234-864-0	02	1	1312-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1307-1311		●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1312-1402	●	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1403-1403		●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1404-	●	●
90	BUSHING; RUBBER,STAB BAR (A)	8-98234-957-0	02	1	1312-	●
90	BUSHING; RUBBER,STAB BAR (B)	8-98249-260-0	02	1	1312-	●
108	CAP (A)	8-98234-853-1	01	1	1312-	●
108	CAP (A)	8-98234-854-1	01	1	1312-	●
108	CAP (B)	8-98234-860-0	02	1	1312-	●
347	STABILIZER BAR ASM	8-98234-865-0	01	1	1312-	●

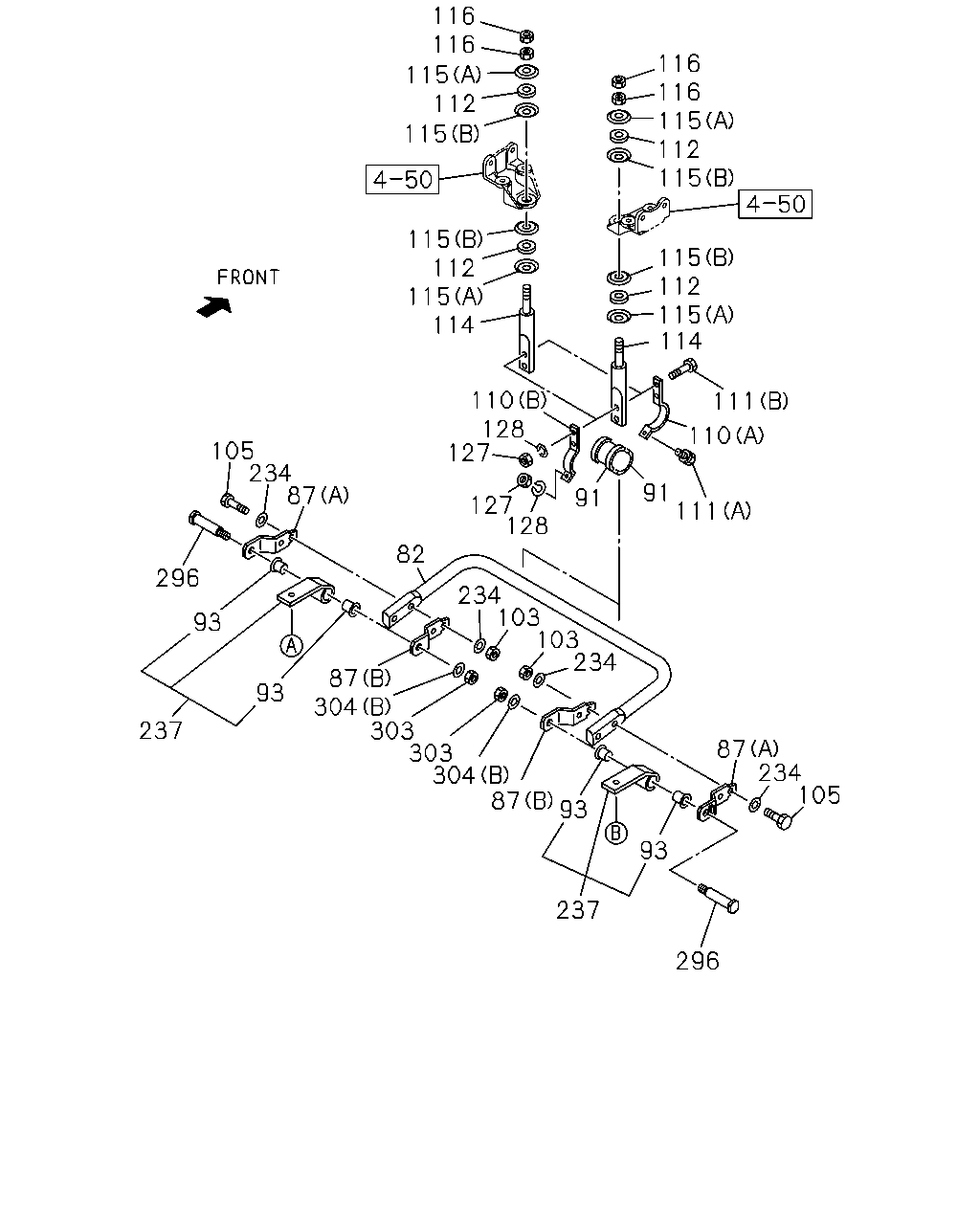

116 116 115 112 115 115 112 115 114 110 128 127 127 128 91 91 111 110 111 114 115 112 115 115 112 115 116 116 105 234 87 296 93 237 93 87 304 303 303 304 87 93 93 237 296 105 234 87 234 103 103 234 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP	8-98221-207-0	01	1	1307-		●
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1307-		●
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1307-		●
91	BUSHING; RUBBER,STAB BAR	1-51779-115-1	04	1	1307-		●
93	BUSHING; STABILIZER	1-51689-015-3	04	1	1307-		●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	1307-		●
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	1307-		●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	1307-		●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	1307-		●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	1307-		●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	1307-		●
112	BUSHING; ROD	9-51631-039-0	04	1	1307-		●
114	ROD; STAB BAR	1-51773-083-2	02	1	1307-		●
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	1307-		●
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	1307-		●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	1307-		●
127	NUT; CLAMP M12	0-91110-512-0	06	1	1307-		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1307-		●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	1307-		●
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	1307-		●
296	PIN; STAB	1-51682-136-2	02	1	1307-		●
303	NUT; PIN M20	0-91110-520-0	02	1	1307-		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1307-1311		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1312-1402	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1403-1403		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1404-	●	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1307-		●

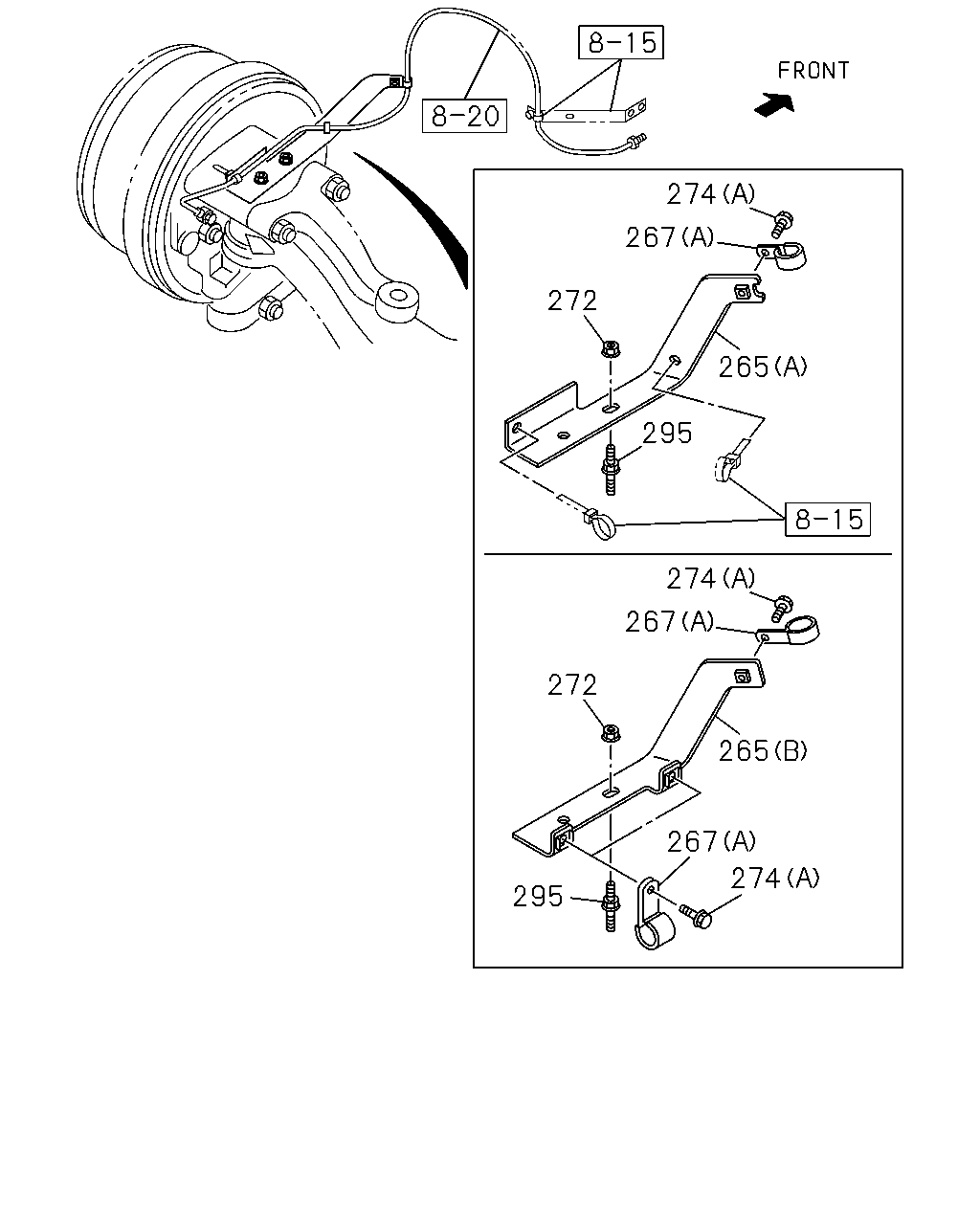

274 267 272 265 295 274 267 272 265 267 274 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (A)	8-98192-181-0	01	1	1307-1307		●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98245-990-0	01	1	1307-1311		●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98245-990-0	01	1	1312-1402	●	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98245-990-0	01	1	1403-1403		●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98245-990-0	01	1	1404-	●	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (A)	8-98192-180-0	01	1	1307-1307		●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98245-989-0	01	1	1307-1311		●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98245-989-0	01	1	1312-1402	●	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98245-989-0	01	1	1403-1403		●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98245-989-0	01	1	1404-	●	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16	0-95235-025-0	09	1	1404-	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	01	1	1404-	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16	0-95235-025-0	09	1	1312-1402	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	01	1	1312-1402	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16	0-95235-025-0	03	1	1307-		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	02	1	1307-1307		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	06	1	1307-1311		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	06	1	1312-1402	●	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	06	1	1403-1403		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	06	1	1404-	●	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (B) ID=11X2 L=16	0-95325-025-0	01	1	1307-1404		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (B) ID=11X2 L=20	0-95325-035-0	01	1	1405-		●
272	NUT; CLIP ANTILOCK BRAKE SYSTEM<BFA> M10 FLANGE	0-91180-110-0	04	1	1307-1311		●
272	NUT; CLIP ANTILOCK BRAKE SYSTEM<BFA> M10 FLANGE	0-91180-110-0	04	1	1312-1402	●	●
272	NUT; CLIP ANTILOCK BRAKE SYSTEM<BFA> M10 FLANGE	0-91180-110-0	04	1	1403-1403		●
272	NUT; CLIP ANTILOCK BRAKE SYSTEM<BFA> M10 FLANGE	0-91180-110-0	04	1	1404-	●	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (B) M8X10 FLANGE	0-28050-810-0	09	1	1404-	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	02	1	1404-	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (B) M8X10 FLANGE	0-28050-810-0	09	1	1312-1402	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	02	1	1312-1402	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (B) M8X10 FLANGE	0-28050-810-0	04	1	1307-		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1307		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	06	1	1307-1311		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	06	1	1312-1402	●	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	06	1	1403-1403		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	06	1	1404-	●	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1307-1311		●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1312-1402	●	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1403-1403		●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1404-	●	●

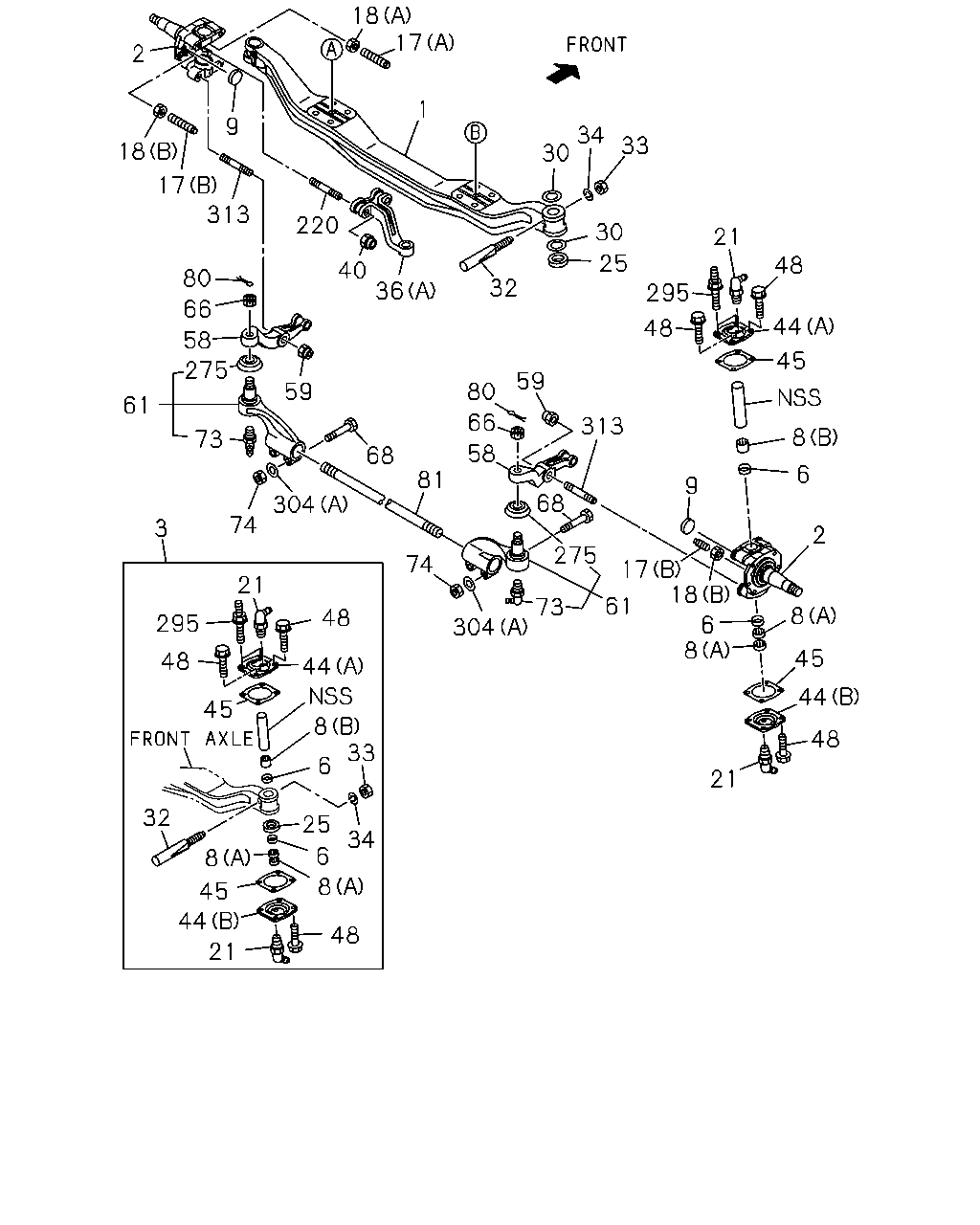

2 18 313 80 17 9 220 40 36 66 58 275 73 61 59 68 81 304 74 74 3 21 48 44 8 33 6 25 34 6 8 48 8 45 44 32 295 48 45 58 66 80 59 313 68 275 17 61 18 6 8 304 73 21 9 48 44 45 8 2 6 8 45 44 48 21 295 48 1 18 17 30 34 33 30 25 32 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	8-98208-219-0	01	1	1404-	●
1	AXLE; FRT	8-98208-219-0	01	1	1312-1402	●
1	AXLE; FRT	1-43111-177-4	01	1	1307-		●
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1307-1311		●
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1312-1402	●	●
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1403-1403		●
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1404-	●	●
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1307-1311		●
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1312-1402	●	●
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1403-1403		●
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1404-	●	●
3	KING PIN SET	1-87831-349-2	02	1	1307-1311		●
3	KING PIN SET	1-87831-349-2	02	1	1312-1402	●	●
3	KING PIN SET	1-87831-349-2	02	1	1403-1403		●
3	KING PIN SET	1-87831-349-3	02	1	1404-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1307-1311		●
6	SEAL; KING PIN	9-09926-024-0	04	1	1312-1402	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1403-1403		●
6	SEAL; KING PIN	9-09926-024-0	04	1	1404-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1307-1311		●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1312-1402	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1403-1403		●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1404-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1307-1311		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1312-1402	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1403-1403		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1404-	●	●
9	PLUG; KNUCKLE EXC. ANTILOCK BRAKE SYSTEM<BFA> OD=22	1-09600-011-2	02	1	1307-1311		●
9	PLUG; KNUCKLE EXC. ANTILOCK BRAKE SYSTEM<BFA> OD=22	1-09600-011-2	02	1	1312-1402	●	●
9	PLUG; KNUCKLE EXC. ANTILOCK BRAKE SYSTEM<BFA> OD=22	1-09600-011-2	02	1	1403-1403		●
9	PLUG; KNUCKLE EXC. ANTILOCK BRAKE SYSTEM<BFA> OD=22	1-09600-011-2	02	1	1404-	●	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1307-1311		●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1312-1402	●	●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1403-1403		●
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1404-	●	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1307-1311		●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1312-1402	●	●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1403-1403		●
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1404-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1307-1311		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1312-1402	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1403-1403		●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1404-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1307-1311		●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1312-1402	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1403-1403		●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1404-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1307-1311		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1312-1402	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1403-1403		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1404-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1307-1311		●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1312-1402	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1403-1403		●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1404-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1307-1311		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1312-1402	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1403-1403		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1404-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1307-1311		●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1312-1402	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1403-1403		●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1404-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1307-1311		●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1312-1402	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1403-1403		●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1404-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1307-1311		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1312-1402	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1403-1403		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1404-	●	●
36	ARM; KNUCKLE (B)	8-98234-864-0	02	1	1312-	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1307-1311		●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1312-1402	●	●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1403-1403		●
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1404-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1307-1311		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1312-1402	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1403-1403		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1404-	●	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1307-1311		●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1312-1402	●	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1403-1403		●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1404-	●	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1307-1311		●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1312-1402	●	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1403-1403		●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1404-	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1307-1311		●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1312-1402	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1403-1403		●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1404-	●	●
48	BOLT; COVER ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE	0-28751-025-0	12	1	1307-1311		●
48	BOLT; COVER ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE	0-28751-025-0	12	1	1312-1402	●	●
48	BOLT; COVER ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE	0-28751-025-0	12	1	1403-1403		●
48	BOLT; COVER ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE	0-28751-025-0	12	1	1404-	●	●
48	BOLT; COVER EXC. ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE	0-28751-025-0	16	1	1307-1311		●
48	BOLT; COVER EXC. ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE	0-28751-025-0	16	1	1312-1402	●	●
48	BOLT; COVER EXC. ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE	0-28751-025-0	16	1	1403-1403		●
48	BOLT; COVER EXC. ANTILOCK BRAKE SYSTEM<BFA> M10X25 FLANGE	0-28751-025-0	16	1	1404-	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1307-1311		●
58	ARM; TIE ROD	1-43134-049-4	01	1	1312-1402	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1403-1403		●
58	ARM; TIE ROD	1-43134-049-4	01	1	1404-	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1307-1311		●
58	ARM; TIE ROD	1-43135-049-4	01	1	1312-1402	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1403-1403		●
58	ARM; TIE ROD	1-43135-049-4	01	1	1404-	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1307-1311		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1312-1402	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1403-1403		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1404-	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-1311		●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1312-1402	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1403-1403		●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1404-	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-1311		●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1312-1402	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1403-1403		●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1404-	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1307-1311		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1312-1402	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1403-1403		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1404-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1307-1311		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1312-1402	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1403-1403		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1404-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1307-1311		●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1312-1402	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1403-1403		●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1404-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1307-1311		●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1312-1402	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1403-1403		●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1404-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1307-1311		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1312-1402	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1403-1403		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1404-	●	●
81	ROD; TIE	8-98105-064-0	01	1	1307-1311		●
81	ROD; TIE	8-98105-064-0	01	1	1312-1402	●	●
81	ROD; TIE	8-98105-064-0	01	1	1403-1403		●
81	ROD; TIE	8-98105-064-0	01	1	1404-	●	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1307-1311		●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1312-1402	●	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1403-1403		●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1404-	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-1311		●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1312-1402	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1403-1403		●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1404-	●	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1307-1311		●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1312-1402	●	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1403-1403		●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM<BFA> M10X20,M10X26 L=56	8-98010-334-0	04	1	1404-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1307-1311		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1312-1402	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1403-1403		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1404-	●	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	1307-		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1307-1311		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1312-1402	●	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1403-1403		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1404-	●	●

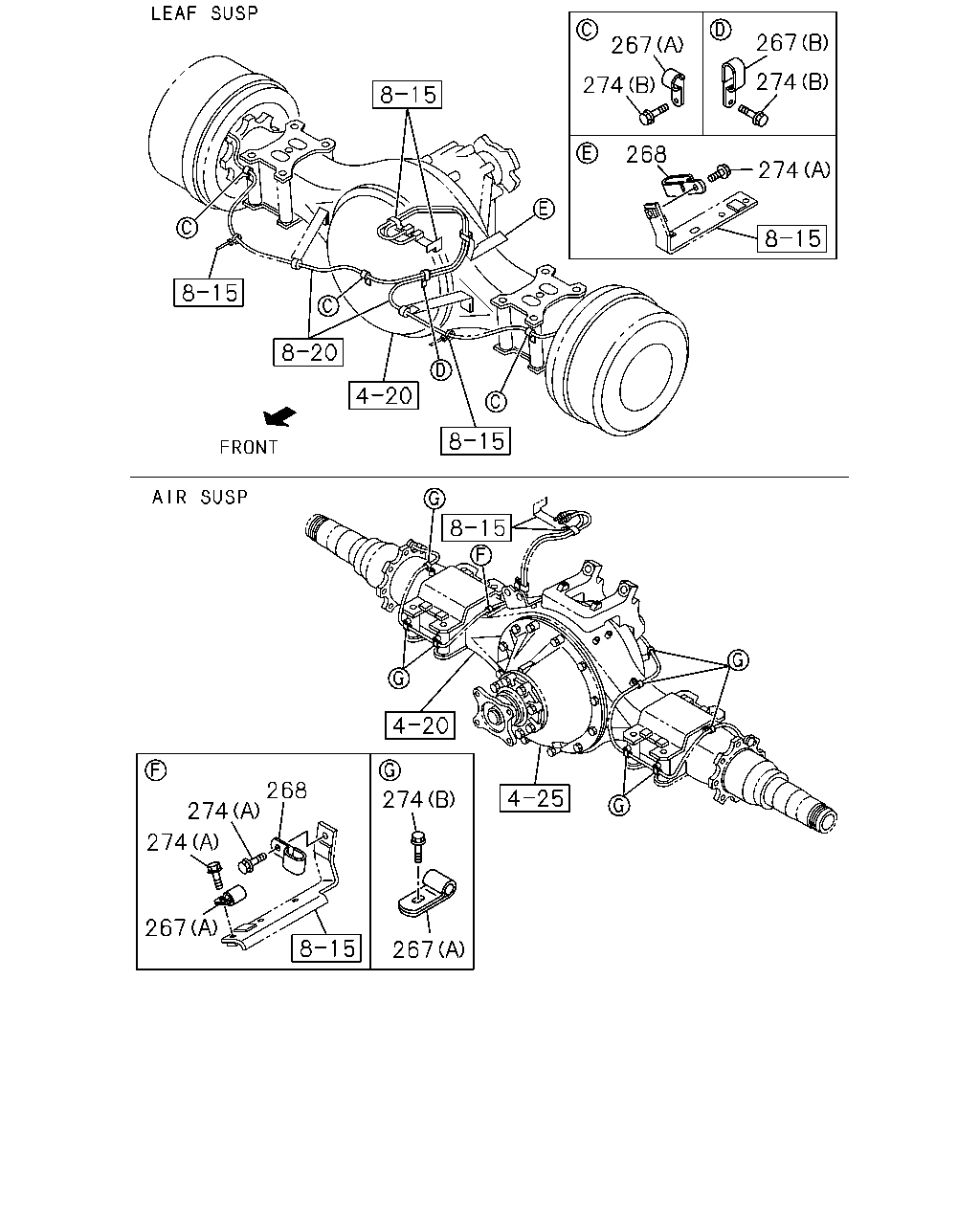

267 274 268 267 274 274 268 274 267 274 274 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16	0-95235-025-0	09	1	1404-	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	01	1	1404-	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16	0-95235-025-0	09	1	1312-1402	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	01	1	1312-1402	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16	0-95235-025-0	03	1	1307-		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	02	1	1307-1307		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	06	1	1307-1311		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	06	1	1312-1402	●	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	06	1	1403-1403		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=20	0-95235-035-0	06	1	1404-	●	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (B) ID=11X2 L=16	0-95325-025-0	01	1	1307-1404		●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (B) ID=11X2 L=20	0-95325-035-0	01	1	1405-		●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> ID=11X2 L=20	0-95325-035-0	01	1	1307-1311		●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> ID=11X2 L=20	0-95325-035-0	01	1	1312-1402	●	●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> ID=11X2 L=20	0-95325-035-0	01	1	1403-1403		●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> ID=11X2 L=20	0-95325-035-0	01	1	1404-	●	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (B) M8X10 FLANGE	0-28050-810-0	09	1	1404-	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	02	1	1404-	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (B) M8X10 FLANGE	0-28050-810-0	09	1	1312-1402	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	02	1	1312-1402	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (B) M8X10 FLANGE	0-28050-810-0	04	1	1307-		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1307		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	06	1	1307-1311		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	06	1	1312-1402	●	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	06	1	1403-1403		●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE	0-28050-816-0	06	1	1404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
