4-01 — PROPELLER SHAFT (#123930) — 59 parça

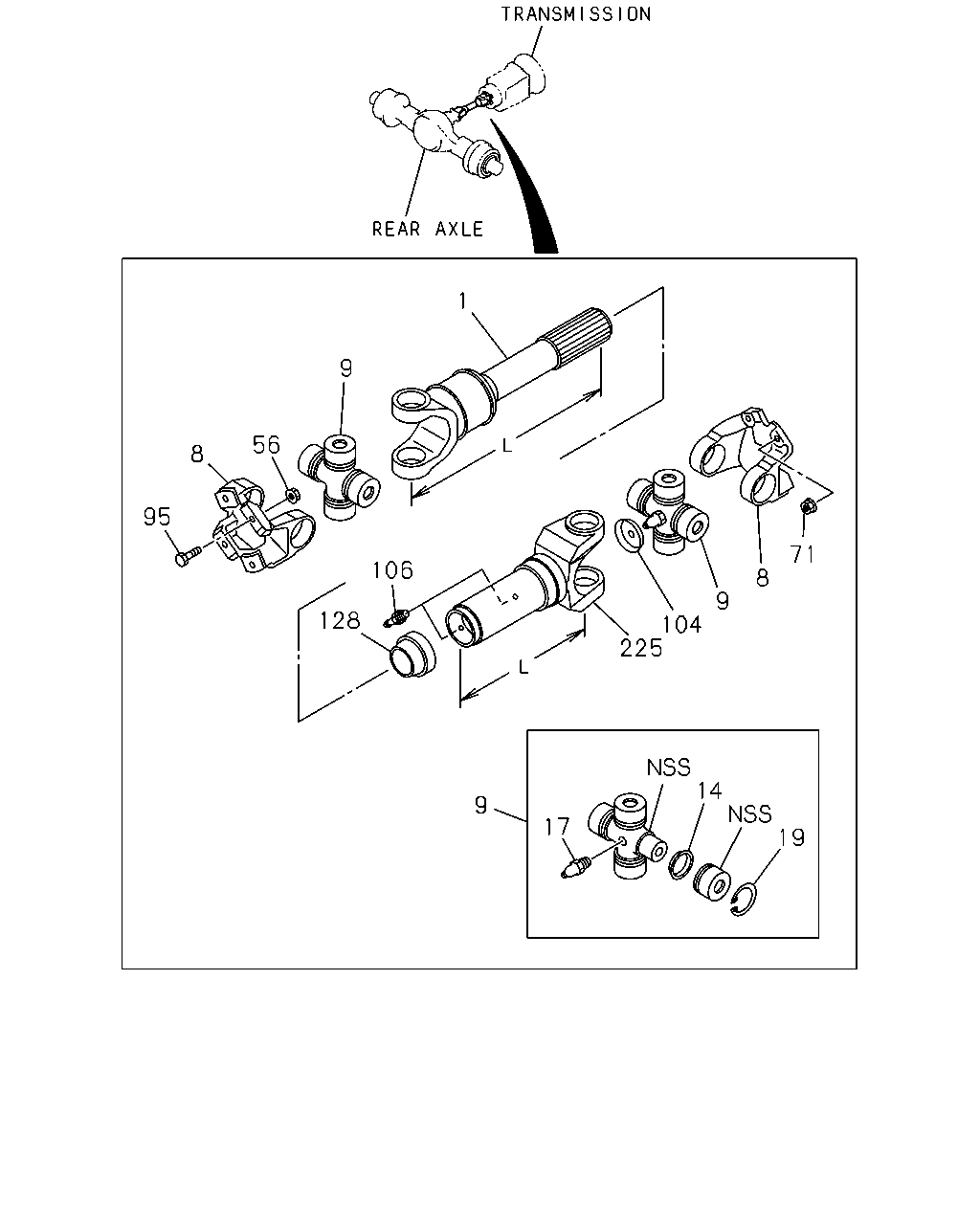

56 9 1 8 95 128 106 225 9 104 8 71 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP L=500	1-37125-385-0	01	1	1307-1402
1	SHAFT; PROP P115 PROP SHAFT<C5X> L=500	1-37125-385-0	01	1	1403-
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	1307-1402
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X>	1-37211-084-0	02	1	1403-
9	JOURNAL ASM; PROP SHAFT P80W PROP SHAFT<C2U>	1-37300-088-0	01	1	1403-
9	JOURNAL ASM; PROP SHAFT	1-37300-112-0	02	1	1307-1402
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X>	1-37300-112-0	02	1	1403-
14	COVER; DUST,SPIDER P80W PROP SHAFT<C2U>	1-37249-130-0	08	1	1403-
14	COVER; DUST,SPIDER	1-37249-133-0	08	1	1307-1402
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X>	1-37249-133-0	08	1	1403-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1307-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	1307-1402
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT<C5X> T=2.2	1-09587-103-1	08	1	1403-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	1307-1402
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT<C5X> T=2.17	1-09587-107-0	08	1	1403-
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1307-1402
56	NUT; YOKE P115 PROP SHAFT<C5X> M14 FLANGE	8-97365-444-0	04	1	1403-
71	NUT; YOKE P80W PROP SHAFT<C2U> M12	0-91110-512-0	04	1	1403-
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1307-1402
71	NUT; YOKE P115 PROP SHAFT<C5X> M14 FLANGE	8-97365-444-0	04	1	1403-
95	BOLT; YOKE,FINAL P80W PROP SHAFT<C2U> M12X45	8-98036-382-0	04	1	1403-
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1307-1402
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M14X50	1-09000-645-0	04	1	1403-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1307-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P80W PROP SHAFT<C2U> PT1/8 STRAIGHT	0-90301-410-0	01	1	1403-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	02	1	1307-1402
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> PT1/8 STRAIGHT	0-90301-410-0	02	1	1403-
128	SEAL; SLEEVE P80W PROP SHAFT<C2U>	1-37247-023-0	01	1	1403-
128	SEAL; SLEEVE	1-37247-020-0	01	1	1307-1402
128	SEAL; SLEEVE P115 PROP SHAFT<C5X>	1-37247-020-0	01	1	1403-
225	YOKE; SLEEVE,PROP SHAFT L=339	1-37241-140-0	01	1	1307-1402
225	YOKE; SLEEVE,PROP SHAFT P115 PROP SHAFT<C5X> L=339	1-37241-140-0	01	1	1403-

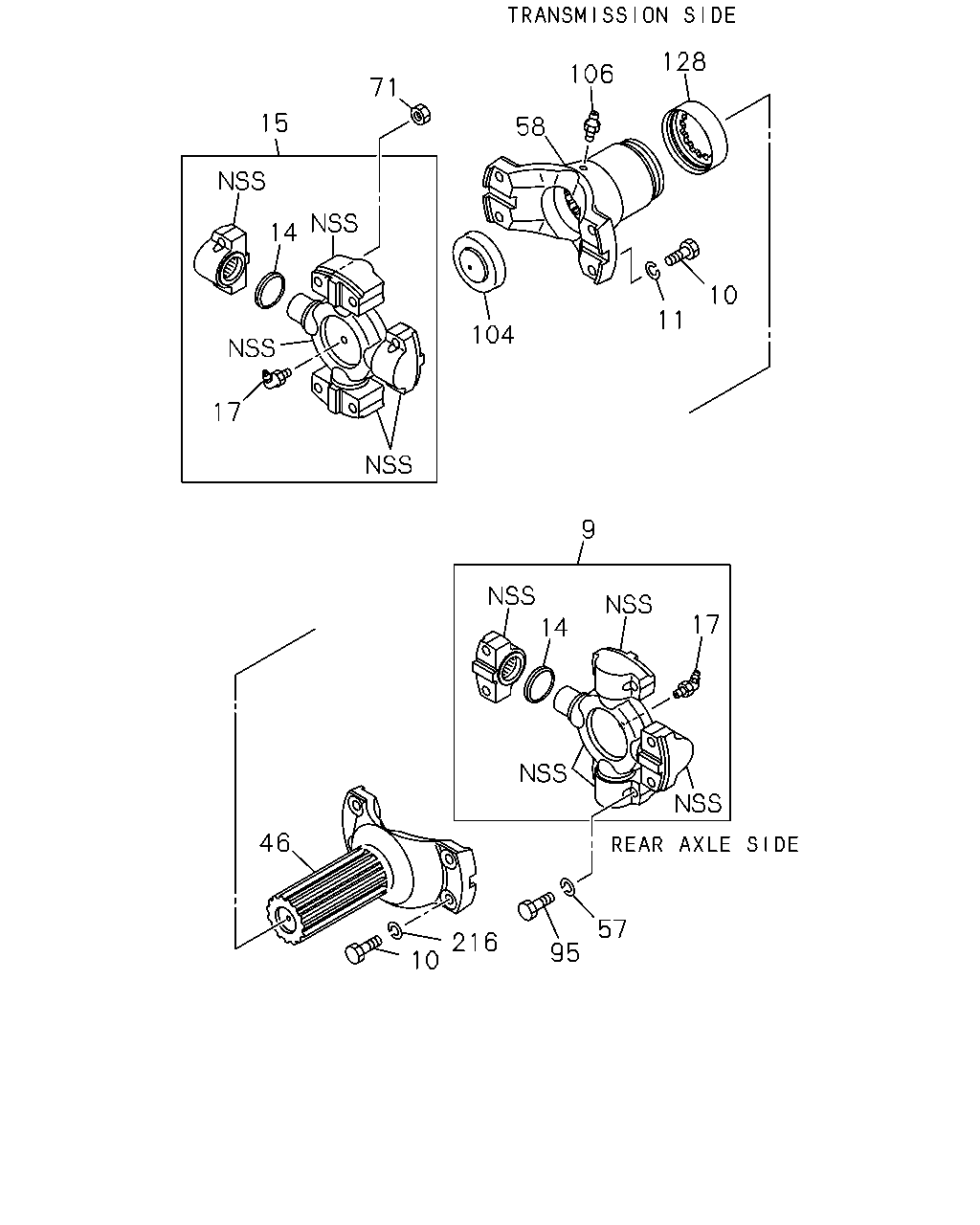

128 106 58 104 11 10 71 15 14 17 9 17 14 57 95 216 10 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	JOURNAL ASM; PROP SHAFT P80W PROP SHAFT<C2U>	1-37300-088-0	01	1	1403-
9	JOURNAL ASM; PROP SHAFT	1-37300-112-0	02	1	1307-1402
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X>	1-37300-112-0	02	1	1403-
10	BOLT; UJT P80W PROP SHAFT<C2U> M12X45	8-98036-382-0	08	1	1403-
11	WASHER; LK,UNIVERSAL,PROP SHAFT P80W PROP SHAFT<C2U> ID=12.2	0-91510-612-0	04	1	1403-
14	COVER; DUST,SPIDER P80W PROP SHAFT<C2U>	1-37249-130-0	08	1	1403-
14	COVER; DUST,SPIDER	1-37249-133-0	08	1	1307-1402
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X>	1-37249-133-0	08	1	1403-
15	UNIVERSAL CENTER P80W PROP SHAFT<C2U>	1-37300-096-0	01	1	1403-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1307-
46	FLANGE; SPLINED,PROP SHAFT,1ST P80W PROP SHAFT<C2U> L=220	1-37171-110-0	01	1	1403-
57	WASHER; LK,YOKE P80W PROP SHAFT<C2U> ID=12.2	0-91510-612-0	04	1	1403-
58	FLANGE; SPLINED P80W PROP SHAFT<C2U>	1-37245-361-0	01	1	1403-
71	NUT; YOKE P80W PROP SHAFT<C2U> M12	0-91110-512-0	04	1	1403-
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1307-1402
71	NUT; YOKE P115 PROP SHAFT<C5X> M14 FLANGE	8-97365-444-0	04	1	1403-
95	BOLT; YOKE,FINAL P80W PROP SHAFT<C2U> M12X45	8-98036-382-0	04	1	1403-
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1307-1402
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M14X50	1-09000-645-0	04	1	1403-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1307-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P80W PROP SHAFT<C2U> PT1/8 STRAIGHT	0-90301-410-0	01	1	1403-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	02	1	1307-1402
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> PT1/8 STRAIGHT	0-90301-410-0	02	1	1403-
128	SEAL; SLEEVE P80W PROP SHAFT<C2U>	1-37247-023-0	01	1	1403-
128	SEAL; SLEEVE	1-37247-020-0	01	1	1307-1402
128	SEAL; SLEEVE P115 PROP SHAFT<C5X>	1-37247-020-0	01	1	1403-
216	WASHER; LK,UJT P80W PROP SHAFT<C2U> ID=12.2	0-91510-612-0	04	1	1403-
