3-78 — FIXING PARTS; AIR PIPING (#123929) — 120 parça

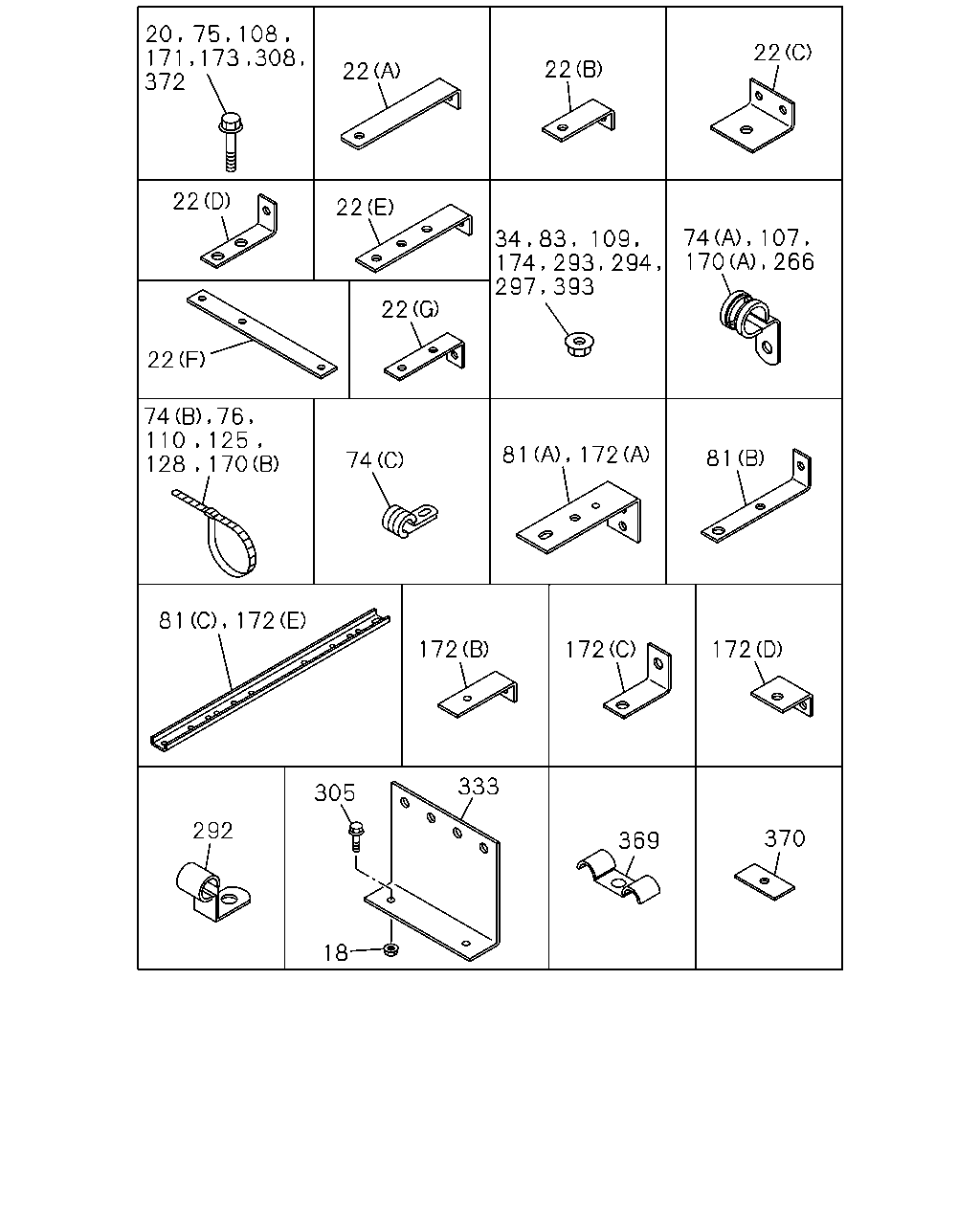

çizim 365887
20 108 75 171 173 308 372 22 22 22 107 74 266 170 81 172 370 369 333 305 18 292 81 172 172 81 74 170 128 125 76 110 74 22 22 22 22 172 172 393 297 294 293 174 109 83 34
BalonParca AdiParca NoAdetTipApplied Date A B
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1312- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1307-1311 ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1312- ● ●
22 BRACKET; CLIP
BUS BODY REAR OVERHANG<YK4> (G) 		1-82699-318-0 01 1 1404- ● ●
22 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 1312- ●
22 BRACKET; CLIP
(F) L=229 		1-47478-993-0 01 1 1312- ●
22 BRACKET; CLIP
(A) L=145 		1-47475-655-0 01 1 1307- ●
22 BRACKET; CLIP
(B) L=65 		1-47477-713-0 01 1 1307- ●
22 BRACKET; CLIP
(C) 		1-47478-422-0 01 1 1307-1311 ●
22 BRACKET; CLIP
(C) 		1-47478-422-0 01 1 1312- ● ●
22 BRACKET; CLIP
(E) L=135 		1-47478-729-0 01 1 1307-1311 ●
22 BRACKET; CLIP
(E) L=135 		1-47478-729-0 01 1 1312- ● ●
22 BRACKET; CLIP
(D) 		1-47478-901-0 01 1 1307-1311 ●
22 BRACKET; CLIP
(D) 		1-47478-901-0 01 1 1312-1403 ● ●
22 BRACKET; CLIP
EXC. BUS BODY REAR OVERHANG<YK4> (D) 		8-98259-391-0 01 1 1404- ● ●
22 BRACKET; CLIP
(E) L=150 		8-98108-503-0 01 1 1307-1311 ●
22 BRACKET; CLIP
(E) L=150 		8-98108-503-0 01 1 1312-1403 ● ●
22 BRACKET; CLIP
EXC. BUS BODY REAR OVERHANG<YK4> (E) L=150 		8-98108-503-0 01 1 1404- ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
74 CLIP; NYLON TUBE
EXC. BUS BODY REAR OVERHANG<YK4> (B) L=250 		1-09707-126-0 13 1 1404-1404 ●
74 CLIP; NYLON TUBE
EXC. BUS BODY REAR OVERHANG<YK4> (C) ID=27 L=26 		8-98096-216-0 01 1 1404- ● ●
74 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 18 1 1312-1403 ●
74 CLIP; NYLON TUBE
BUS BODY REAR OVERHANG<YK4> (B) L=250 		1-09707-126-0 16 1 1404-1404 ●
74 CLIP; NYLON TUBE
BUS BODY REAR OVERHANG<YK4> (B) L=250 		1-09707-126-0 18 1 1405- ●
74 CLIP; NYLON TUBE
(A) ID=39 H=28 L=32 		1-09701-263-0 01 1 1307-1311 ●
74 CLIP; NYLON TUBE
(A) ID=39 H=28 L=32 		1-09701-263-0 01 1 1312- ● ●
74 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 13 1 1307-1403 ●
74 CLIP; NYLON TUBE
BUS BODY REAR OVERHANG<YK4> (B) L=250 		1-09707-126-0 11 1 1404-1404 ●
74 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 13 1 1405- ●
74 CLIP; NYLON TUBE
(C) ID=27 L=26 		8-98096-216-0 01 1 1307-1311 ●
74 CLIP; NYLON TUBE
(C) ID=27 L=26 		8-98096-216-0 01 1 1312-1403 ● ●
74 CLIP; NYLON TUBE
BUS BODY REAR OVERHANG<YK4> (C) ID=27 L=26 		8-98096-216-0 02 1 1404- ● ●
75 BOLT; CLIP
EXC. BUS BODY REAR OVERHANG<YK4> M8X25 FLANGE 		0-28650-825-0 03 1 1404-1404 ● ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1307-1311 ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1312-1403 ● ●
75 BOLT; CLIP
BUS BODY REAR OVERHANG<YK4> M8X25 FLANGE 		0-28650-825-0 02 1 1404-1404 ● ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1405- ● ●
76 CLIP; NYLON TUBE
EXC. BUS BODY REAR OVERHANG<YK4> L=250 		1-09707-126-0 05 1 1405- ● ●
76 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 13 1 1312- ●
76 CLIP; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 11 1 1312- ●
76 CLIP; NYLON TUBE
L=250 		1-09707-126-0 05 1 1307-1311 ●
76 CLIP; NYLON TUBE
L=250 		1-09707-126-0 05 1 1312-1404 ● ●
76 CLIP; NYLON TUBE
BUS BODY REAR OVERHANG<YK4> L=250 		1-09707-126-0 03 1 1405- ● ●
76 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 08 1 1307- ●
76 CLIP; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 07 1 1307- ●
81 BRACKET; CLIP
(A) 		1-47471-254-0 02 1 1307-1311 ●
81 BRACKET; CLIP
(A) 		1-47471-254-0 02 1 1312- ● ●
81 BRACKET; CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 1307-1311 ●
81 BRACKET; CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 1312- ● ●
81 BRACKET; CLIP
(C) 		8-98191-516-0 01 1 1307-1311 ●
81 BRACKET; CLIP
(C) 		8-98191-516-0 01 1 1312- ● ●
83 NUT; CLIP
EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 02 1 1404- ● ●
83 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
83 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1312-1403 ● ●
83 NUT; CLIP
BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 03 1 1404- ● ●
107 CLIP; NYLON TUBE
ID=39 H=28 L=32 		1-09701-263-0 02 1 1307-1311 ●
107 CLIP; NYLON TUBE
ID=39 H=28 L=32 		1-09701-263-0 02 1 1312- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1307-1311 ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1312- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1312- ● ●
110 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 01 1 1307-1311 ●
110 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 01 1 1312- ● ●
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 02 1 1307-1311 ●
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 02 1 1312- ● ●
125 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 1307-1311 ●
125 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 1312- ● ●
128 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 01 1 1307-1311 ●
128 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 01 1 1312- ● ●
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 04 1 1312- ●
170 CLIP; NYLON TUBE
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307-1311 ●
170 CLIP; NYLON TUBE
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1312- ● ●
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 08 1 1307-1311 ●
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 08 1 1312- ● ●
171 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1307-1311 ●
171 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1312- ● ●
172 BRACKET; TUBE CLIP
(A) 		1-47471-254-0 10 1 1307-1311 ●
172 BRACKET; TUBE CLIP
(A) 		1-47471-254-0 10 1 1312- ● ●
172 BRACKET; TUBE CLIP
(B) L=68 		1-47475-525-0 01 1 1307-1311 ●
172 BRACKET; TUBE CLIP
(B) L=68 		1-47475-525-0 01 1 1312- ● ●
172 BRACKET; TUBE CLIP
(C) L=40 		1-47478-410-0 01 1 1307-1311 ●
172 BRACKET; TUBE CLIP
(C) L=40 		1-47478-410-0 01 1 1312- ● ●
172 BRACKET; TUBE CLIP
(D) 		1-47478-422-0 03 1 1307-1311 ●
172 BRACKET; TUBE CLIP
(D) 		1-47478-422-0 03 1 1312- ● ●
172 BRACKET; TUBE CLIP
(E) 		8-98191-516-0 05 1 1307-1311 ●
172 BRACKET; TUBE CLIP
(E) 		8-98191-516-0 05 1 1312- ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 15 1 1307-1311 ●
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 15 1 1312- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 23 1 1307-1311 ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 23 1 1312- ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 38 1 1307-1311 ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 38 1 1312- ● ●
266 CLIP; NYLON TUBE
ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307-1311 ●
266 CLIP; NYLON TUBE
ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1312- ● ●
292 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 1307-1311 ●
292 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 1312- ● ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
294 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
294 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1307-1311 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1312- ● ●
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-1311 ●
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1312- ● ●
308 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1311 ●
308 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 1312- ● ●
333 BRACKET; BRK AIR PIPE 8-98191-665-0 01 1 1307-1311 ●
333 BRACKET; BRK AIR PIPE 8-98191-665-0 01 1 1312- ● ●
369 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1307-1311 ●
369 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1312- ● ●
370 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 1307-1311 ●
370 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 1312- ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1307-1311 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1312- ● ●
372 BOLT; CLIP BRKT
M8X40 FLANGE 		0-28650-840-0 04 1 1307-1311 ●
372 BOLT; CLIP BRKT
M8X40 FLANGE 		0-28650-840-0 04 1 1312- ● ●
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
