3-77 — BRAKE PIPING; AIR,REAR (#123928) — 48 parça

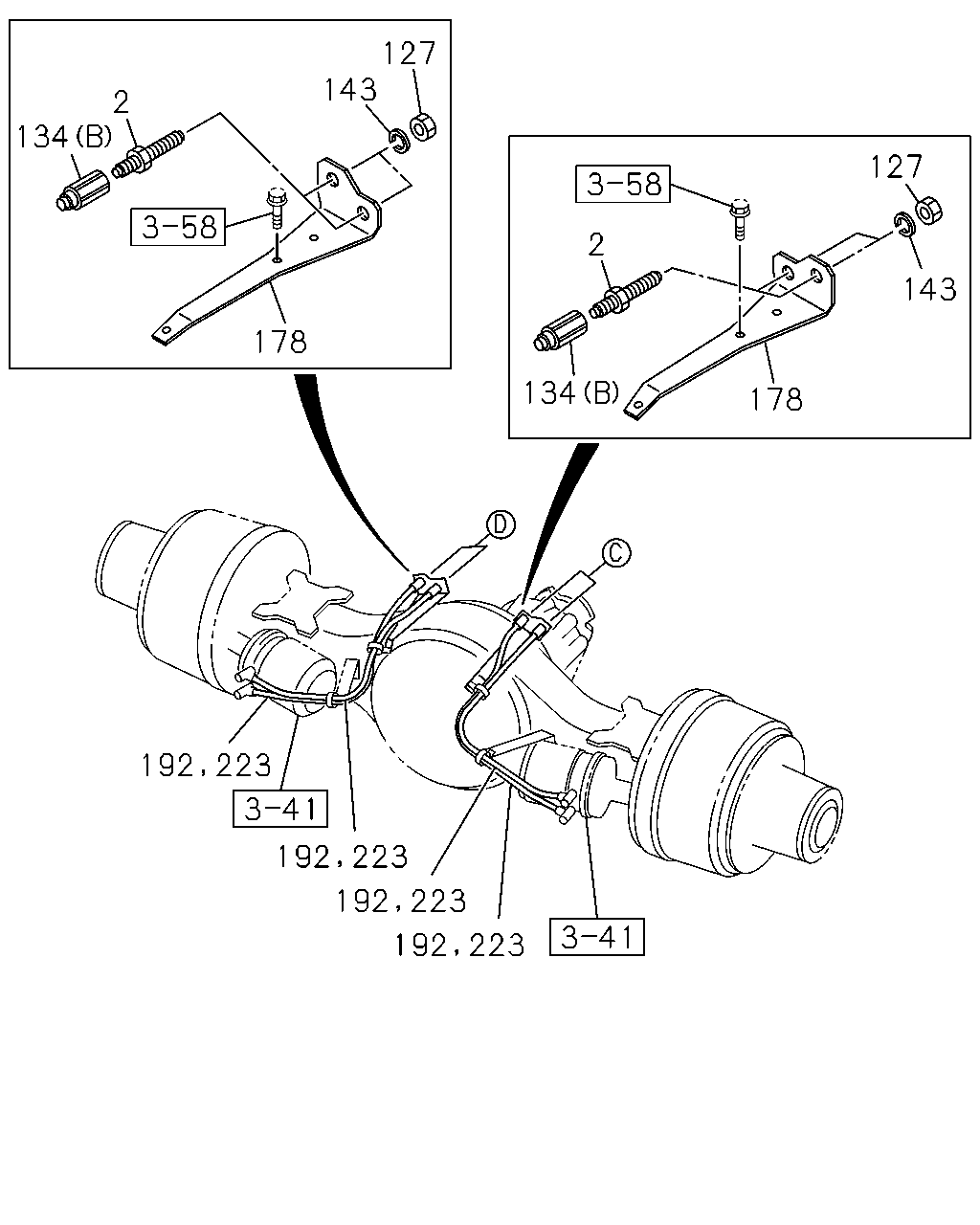

çizim 364406
134 2 143 127 178 134 2 178 143 127 192 223 192 223 192 223 192 223
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 04 1 1307-1311 ●
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 04 1 1312- ● ●
127 NUT; UNION
M16 		0-91111-516-0 04 1 1307-1311 ●
127 NUT; UNION
M16 		0-91111-516-0 04 1 1312- ● ●
134 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 04 1 1307-1311 ●
134 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 04 1 1312- ● ●
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 04 1 1307-1311 ●
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 04 1 1312- ● ●
134 CONNECTOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1307-1311 ●
134 CONNECTOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1312- ● ●
134 CONNECTOR
(D) 		1-09661-745-0 01 1 1307-1311 ●
134 CONNECTOR
(D) 		1-09661-745-0 01 1 1312- ● ●
134 CONNECTOR
ANTILOCK BRAKE SYSTEM<BFA> (E) PT3/8 		1-09664-210-0 01 1 1307-1311 ●
134 CONNECTOR
ANTILOCK BRAKE SYSTEM<BFA> (E) PT3/8 		1-09664-210-0 01 1 1312- ● ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 04 1 1307-1311 ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 04 1 1312- ● ●
178 BRACKET; UNION 8-98031-034-1 01 1 1307-1311 ●
178 BRACKET; UNION 8-98031-034-1 01 1 1312- ● ●
178 BRACKET; UNION 8-98191-236-0 01 1 1307-1311 ●
178 BRACKET; UNION 8-98191-236-0 01 1 1312- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1307- ● ●

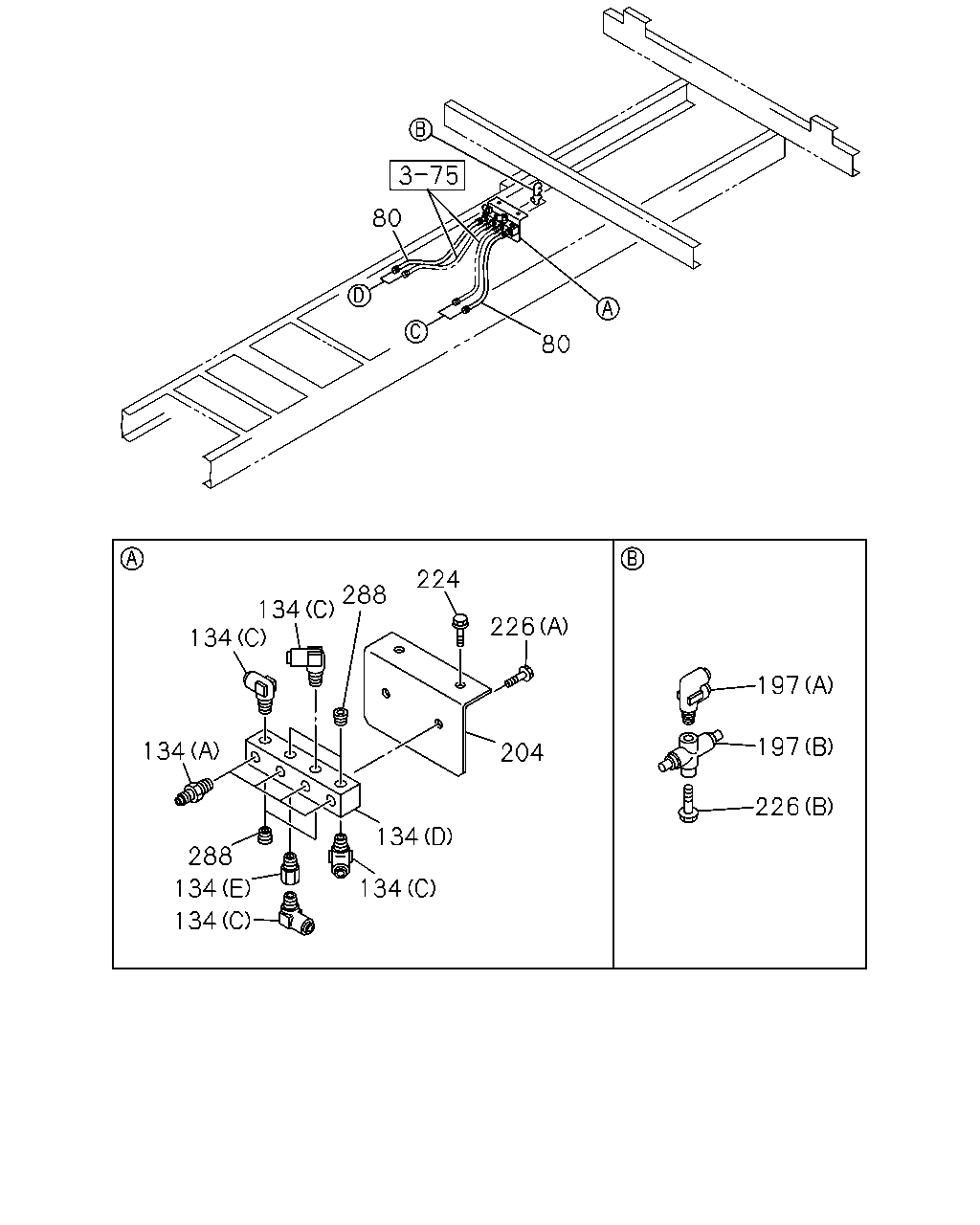

çizim 364467
80 80 224 226 204 288 134 134 134 288 134 134 134 134 197 197 226
BalonParca AdiParca NoAdetTipApplied Date A B
80 HOSE; FLEX,POWER CHAMBER
L=440 		1-09363-767-0 02 1 1307-1311 ●
80 HOSE; FLEX,POWER CHAMBER
L=440 		1-09363-767-0 02 1 1312- ● ●
134 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 04 1 1307-1311 ●
134 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 04 1 1312- ● ●
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 04 1 1307-1311 ●
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 04 1 1312- ● ●
134 CONNECTOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1307-1311 ●
134 CONNECTOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1312- ● ●
134 CONNECTOR
(D) 		1-09661-745-0 01 1 1307-1311 ●
134 CONNECTOR
(D) 		1-09661-745-0 01 1 1312- ● ●
134 CONNECTOR
ANTILOCK BRAKE SYSTEM<BFA> (E) PT3/8 		1-09664-210-0 01 1 1307-1311 ●
134 CONNECTOR
ANTILOCK BRAKE SYSTEM<BFA> (E) PT3/8 		1-09664-210-0 01 1 1312- ● ●
197 UNION ASM; NYLON TUBE
(A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1307-1311 ●
197 UNION ASM; NYLON TUBE
(A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1312- ● ●
197 UNION ASM; NYLON TUBE
(B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1307-1311 ●
197 UNION ASM; NYLON TUBE
(B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1312- ● ●
204 BRACKET; TUBE UNION 8-98191-526-0 01 1 1307-1311 ●
204 BRACKET; TUBE UNION 8-98191-526-0 01 1 1312- ● ●
224 BOLT; TUBE UNION
M8X25 FLANGE 		0-28650-825-0 02 1 1307-1311 ●
224 BOLT; TUBE UNION
M8X25 FLANGE 		0-28650-825-0 02 1 1312- ● ●
226 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1307-1311 ●
226 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1312- ● ●
226 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1311 ●
226 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1312- ● ●
288 PLUG
PT3/8 		5-09605-005-0 04 1 1307-1311 ●
288 PLUG
PT3/8 		5-09605-005-0 04 1 1312- ● ●
