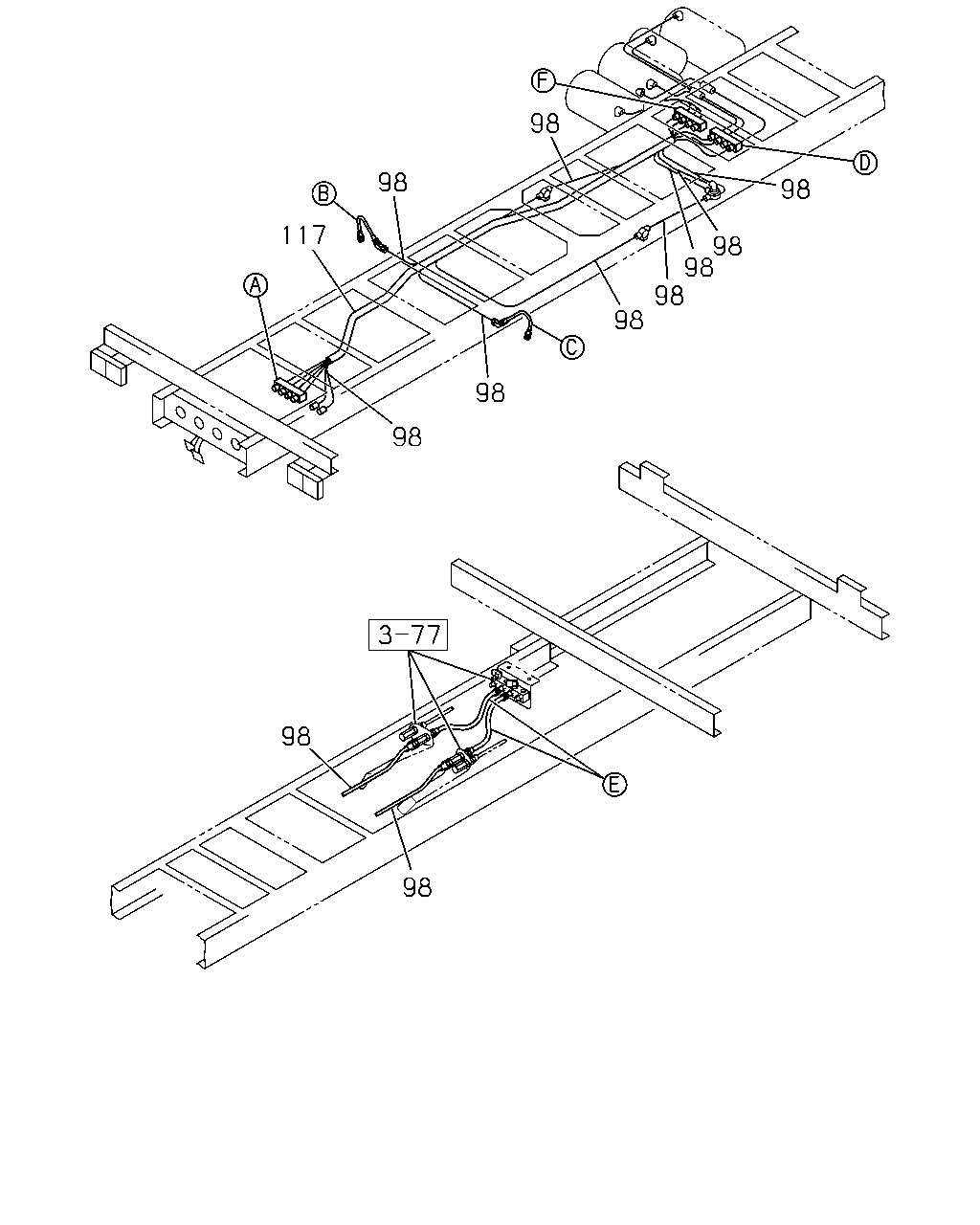

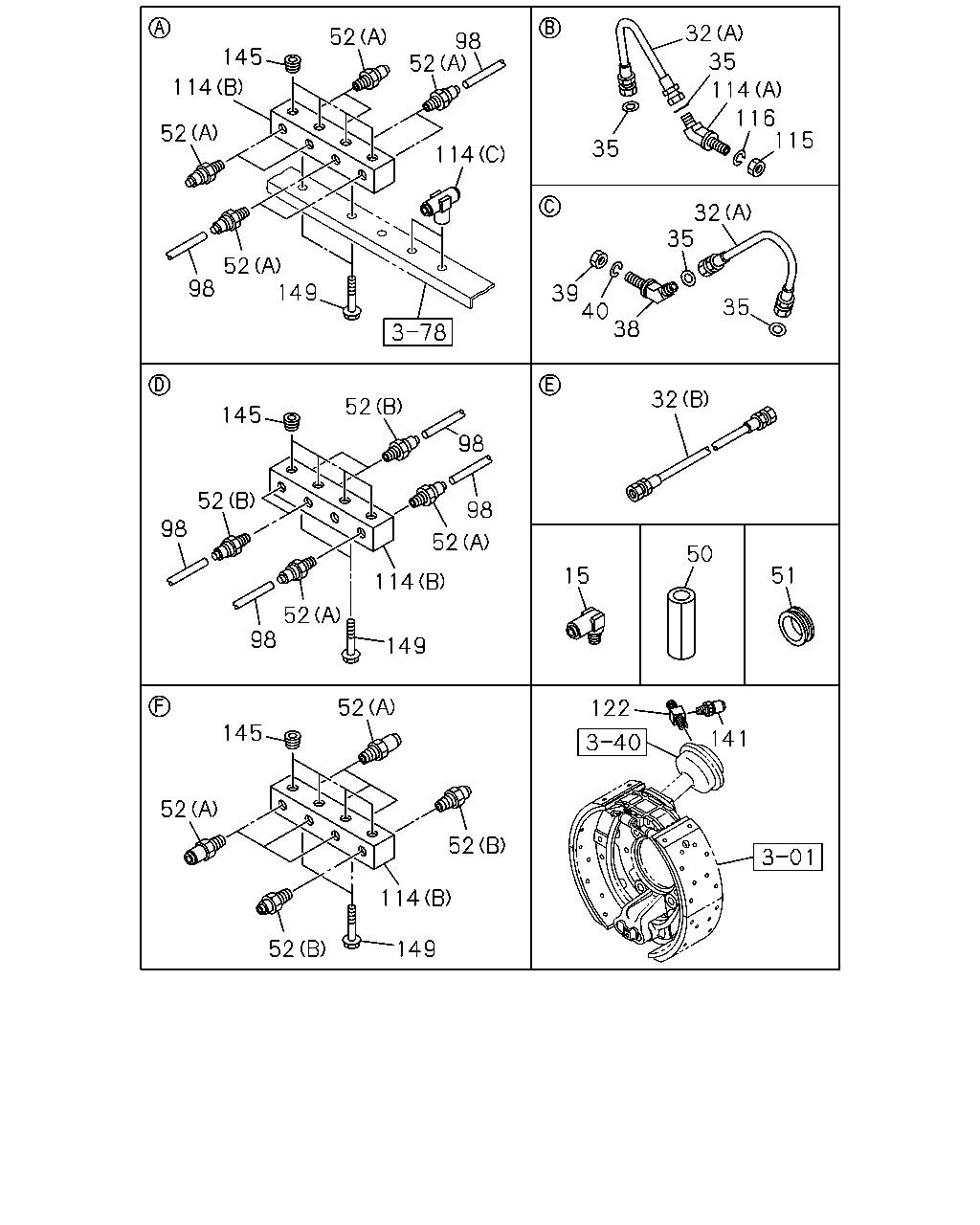

3-75 — BRAKE PIPING; AIR,FRONT (#123927) — 59 parça

52 114 145 52 98 52 114 149 52 98 35 32 35 114 116 115 32 35 39 40 38 35 98 52 145 52 98 98 52 114 149 52 98 52 145 52 52 114 149 52 32 15 50 51 122 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1307-1311	●
15	CONNECTOR; AIR PIPE DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1312-	●	●
32	HOSE; FLEX,FRT (A) L=580	0-57847-580-1	02	1	1307-1311	●
32	HOSE; FLEX,FRT (A) L=580	0-57847-580-1	02	1	1312-	●	●
32	HOSE; FLEX,FRT (B) L=440	1-09363-767-0	02	1	1307-1311	●
32	HOSE; FLEX,FRT (B) L=440	1-09363-767-0	02	1	1312-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1307-1311	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1312-	●	●
38	UNION; AIR PIPE M20 & PT1/4 ELBOW	1-09650-081-1	01	1	1307-1311	●
38	UNION; AIR PIPE M20 & PT1/4 ELBOW	1-09650-081-1	01	1	1312-	●	●
39	NUT; PIPE UNION M22	0-91111-522-0	01	1	1307-1311	●
39	NUT; PIPE UNION M22	0-91111-522-0	01	1	1312-	●	●
40	WASHER; LK,PIPE UNION ID=22.5	0-91510-622-0	01	1	1307-1311	●
40	WASHER; LK,PIPE UNION ID=22.5	0-91510-622-0	01	1	1312-	●	●
50	SLEEVE; RUBBER,NYLON TUBE ID=38 OD=42 L=150	8-98108-133-0	02	1	1312-		●
51	GROMMET; NYLON TUBE ID=44 OD=50 T=18	1-09332-120-0	01	1	1307-1311	●
51	GROMMET; NYLON TUBE ID=44 OD=50 T=18	1-09332-120-0	01	1	1312-	●	●
52	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	06	1	1307-1311	●
52	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	06	1	1312-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	16	1	1307-1311	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	16	1	1312-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1307-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1307-	●	●
114	UNION; NYLON TUBE (A) M20 & PT1/4 ELBOW	1-09650-081-1	01	1	1307-1311	●
114	UNION; NYLON TUBE (A) M20 & PT1/4 ELBOW	1-09650-081-1	01	1	1312-	●	●
114	UNION; NYLON TUBE (C) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1307-1311	●
114	UNION; NYLON TUBE (C) DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1312-	●	●
114	UNION; NYLON TUBE (B)	1-09661-745-0	03	1	1307-1311	●
114	UNION; NYLON TUBE (B)	1-09661-745-0	03	1	1312-	●	●
115	NUT; TUBE UNION M22	0-91111-522-0	01	1	1307-1311	●
115	NUT; TUBE UNION M22	0-91111-522-0	01	1	1312-	●	●
116	WASHER; LK,TUBE UNION ID=22.5	0-91510-622-0	01	1	1307-1311	●
116	WASHER; LK,TUBE UNION ID=22.5	0-91510-622-0	01	1	1312-	●	●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	01	1	1307-1311	●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	01	1	1312-1402	●	●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	01	1	1403-1403	●
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	01	1	1404-	●	●
122	CONNECTOR; FLEX HOSE R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1307-1311	●
122	CONNECTOR; FLEX HOSE R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1312-1402	●	●
122	CONNECTOR; FLEX HOSE R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1403-1403	●
122	CONNECTOR; FLEX HOSE R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1404-	●	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1307-1311	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1312-1402	●	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1403-1403	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1404-	●	●
145	PLUG PT3/8	5-09605-005-0	14	1	1307-1311	●
145	PLUG PT3/8	5-09605-005-0	14	1	1312-	●	●
149	BOLT; UNION M8X12 FLANGE	0-28050-812-0	08	1	1307-1311	●
149	BOLT; UNION M8X12 FLANGE	0-28050-812-0	08	1	1312-	●	●

98 98 98 98 98 98 98 98 98 98 98 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1307-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1307-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1307-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1307-	●	●
