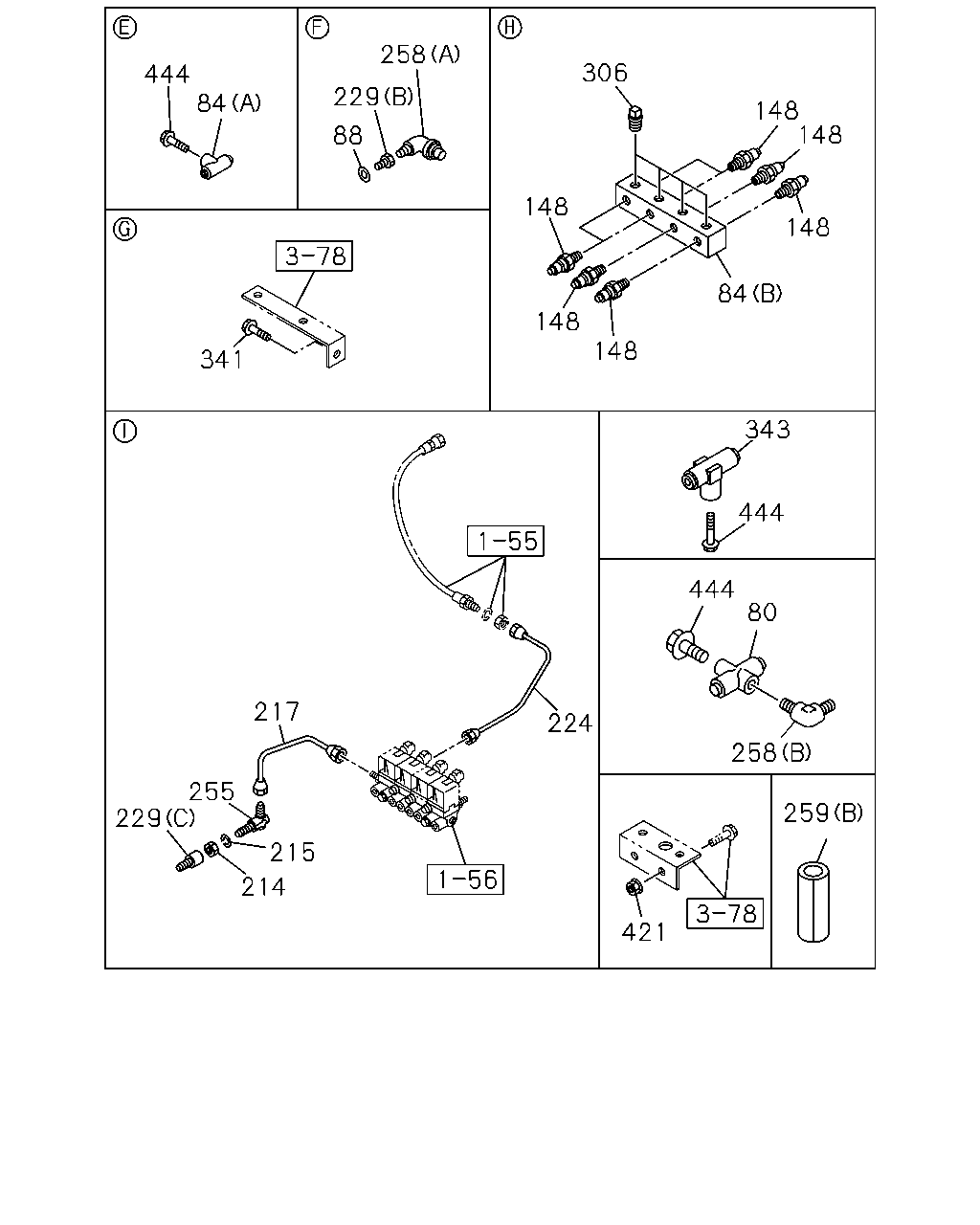

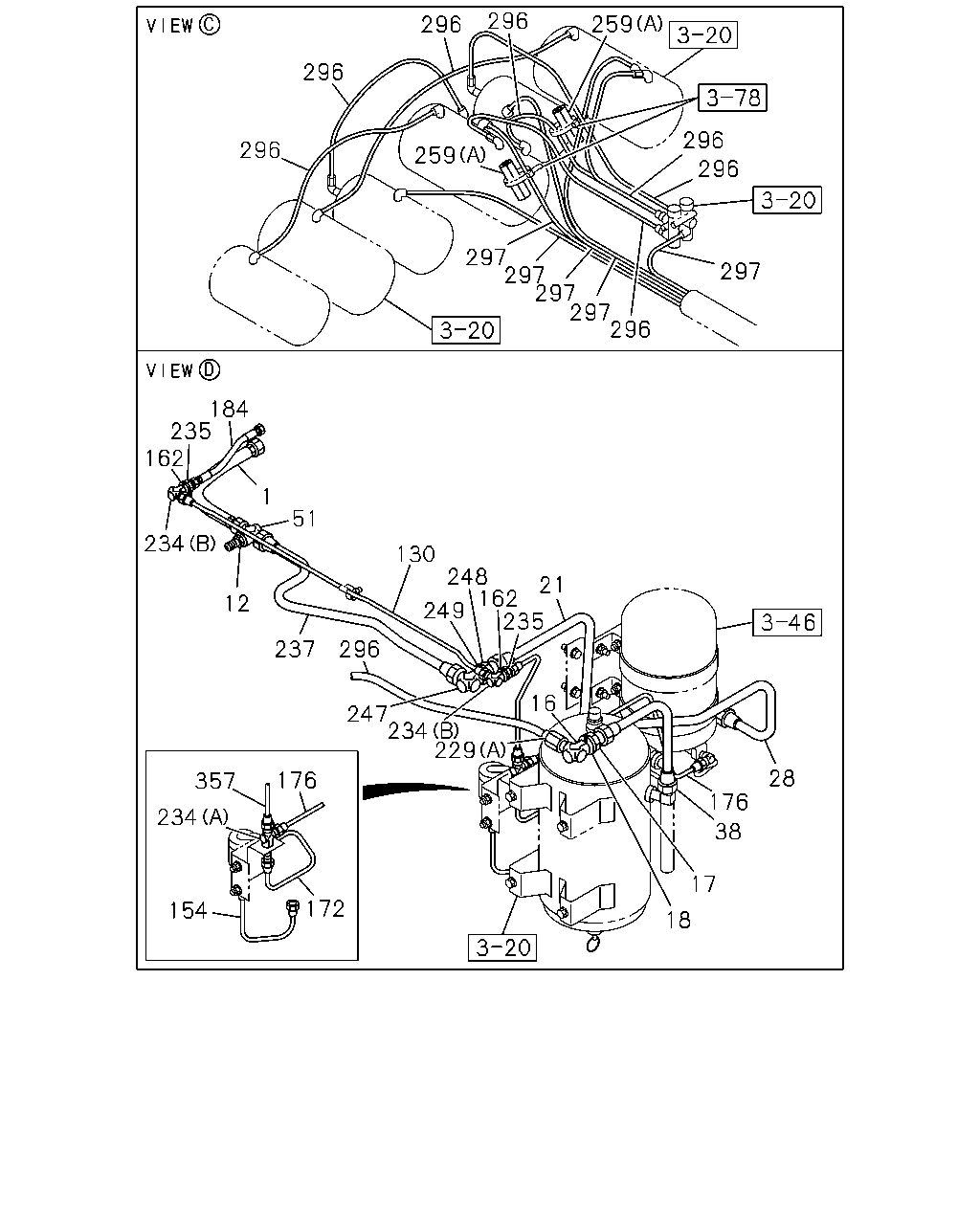

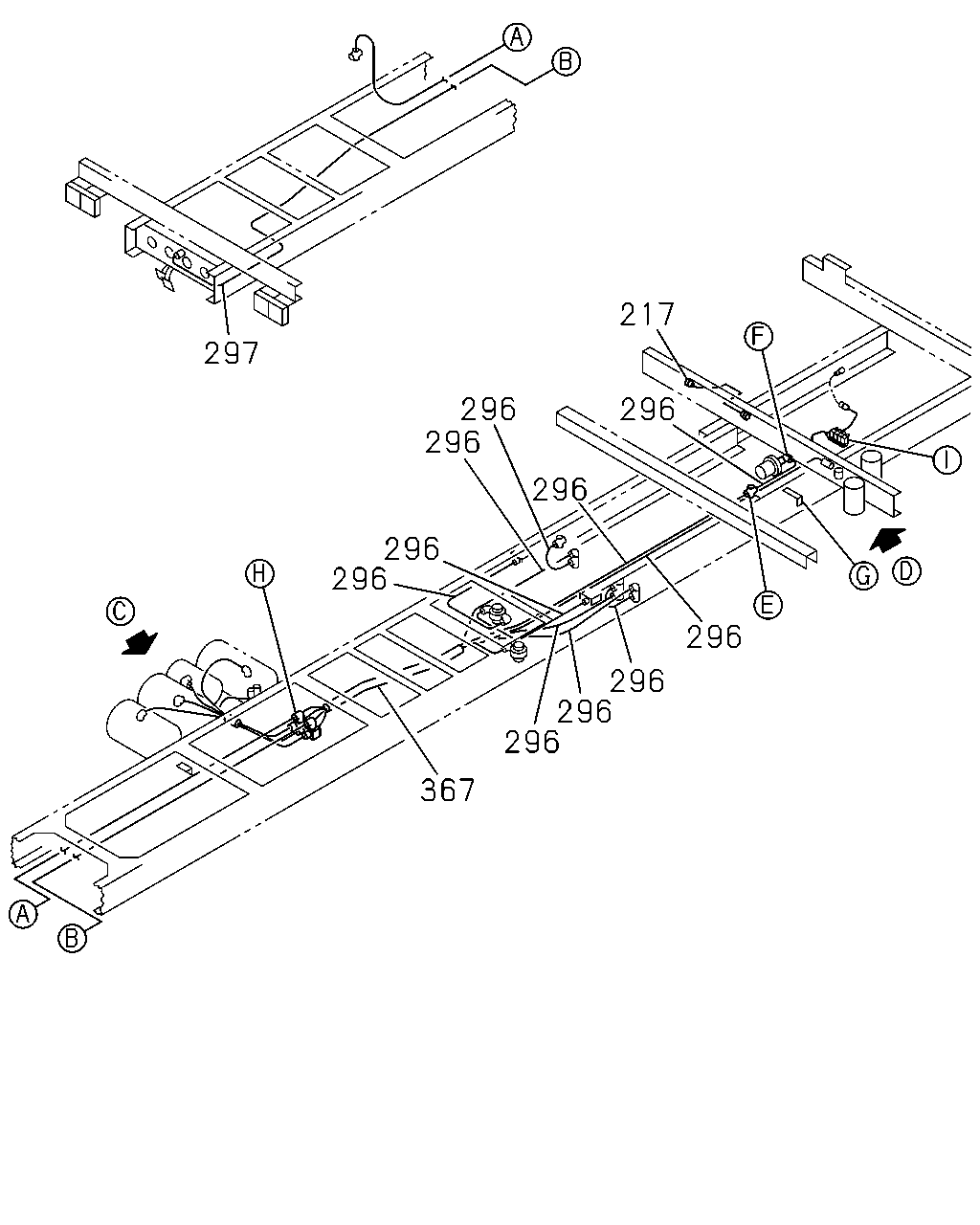

3-70 — BRAKE PIPING; AIR,AIR MASTER (#123926) — 173 parça

444 258 229 84 88 306 148 148 148 84 148 148 148 343 444 444 80 258 259 421 224 217 215 214 255 229 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	UNION; 3 WAY DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1312-	●
84	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1307-1311		●
84	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1312-	●	●
84	UNION; NYLON TUBE (B)	1-09661-745-0	01	1	1307-1311		●
84	UNION; NYLON TUBE (B)	1-09661-745-0	01	1	1312-	●	●
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	1307-1311		●
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	1312-	●	●
148	CONNECTOR; UNION DIN12 & R3/8 STRAIGHT	1-09660-965-0	08	1	1307-1311		●
148	CONNECTOR; UNION DIN12 & R3/8 STRAIGHT	1-09660-965-0	08	1	1312-	●	●
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1307-1311		●
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1312-	●	●
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-812-0	01	1	1307-1311		●
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-812-0	01	1	1312-	●	●
217	PIPE; VAC,UNION TO MAG VLV BUS BODY REAR OVERHANG<YK4> L=218	8-98270-564-0	01	1	1404-	●	●
217	PIPE; VAC,UNION TO MAG VLV L=228	8-98191-514-0	01	1	1307-1311		●
217	PIPE; VAC,UNION TO MAG VLV L=228	8-98191-514-0	01	1	1312-1403	●	●
217	PIPE; VAC,UNION TO MAG VLV EXC. BUS BODY REAR OVERHANG<YK4> L=228	8-98191-514-0	01	1	1404-	●	●
224	PIPE; AIR,UNION TO FLEX HOSE L=310	8-98191-515-0	01	1	1307-1311		●
224	PIPE; AIR,UNION TO FLEX HOSE L=310	8-98191-515-0	01	1	1312-	●	●
229	ADAPTER; NYLON TUBE (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1307-1311		●
229	ADAPTER; NYLON TUBE (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1312-	●	●
229	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1307-1311		●
229	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1312-	●	●
229	ADAPTER; NYLON TUBE (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	1307-1311		●
229	ADAPTER; NYLON TUBE (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	1312-	●	●
255	UNION; NYLON TUBE M12 ELBOW	0-92125-206-0	01	1	1307-1311		●
255	UNION; NYLON TUBE M12 ELBOW	0-92125-206-0	01	1	1312-	●	●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1312-	●
258	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1307-1311		●
258	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-	●	●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=38 OD=42 L=150	8-98108-133-0	02	1	1312-	●
259	SLEEVE; RUBBER,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1312-		●
259	SLEEVE; RUBBER,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1312-	●
259	SLEEVE; RUBBER,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1307-1311		●
259	SLEEVE; RUBBER,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> (A) ID=17 OD=21 L=40	1-09337-012-0	02	1	1312-	●
306	PLUG; NYLON TUBE PT3/8	5-09605-005-0	04	1	1307-1311		●
306	PLUG; NYLON TUBE PT3/8	5-09605-005-0	04	1	1312-	●	●
341	BOLT; BRKT EXC. BUS BODY REAR OVERHANG<YK4> M8X25 FLANGE	0-28650-825-0	02	1	1404-	●	●
341	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1312-	●
341	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1311		●
341	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1312-1403	●	●
341	BOLT; BRKT BUS BODY REAR OVERHANG<YK4> M8X25 FLANGE	0-28650-825-0	01	1	1404-	●	●
341	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1307-		●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1307-		●
341	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1307-1311		●
341	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1312-	●	●
341	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1312-	●
343	UNION; NYLON TUBE DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1307-1311		●
343	UNION; NYLON TUBE DIN8X2 & M8 2WAY	1-09661-133-0	02	1	1312-	●	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1312-	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1307-1311		●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1312-	●	●
444	BOLT; UNION M8X12 FLANGE	0-28050-812-0	01	1	1312-	●
444	BOLT; UNION M8X25 FLANGE	0-28050-825-0	01	1	1312-1403	●
444	BOLT; UNION BUS BODY REAR OVERHANG<YK4> M8X30 FLANGE	0-28050-830-0	01	1	1404-	●
444	BOLT; UNION M8X12 FLANGE	0-28050-812-0	02	1	1307-1311		●
444	BOLT; UNION M8X12 FLANGE	0-28050-812-0	02	1	1312-	●	●
444	BOLT; UNION M8X20 FLANGE	0-28050-820-0	01	1	1307-		●
444	BOLT; UNION M8X20 FLANGE	0-28050-820-0	02	1	1307-1311		●
444	BOLT; UNION M8X20 FLANGE	0-28050-820-0	02	1	1312-	●	●

367 296 296 296 296 217 296 296 296 296 296 296 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
217	PIPE; VAC,UNION TO MAG VLV BUS BODY REAR OVERHANG<YK4> L=218	8-98270-564-0	01	1	1404-	●	●
217	PIPE; VAC,UNION TO MAG VLV L=228	8-98191-514-0	01	1	1307-1311		●
217	PIPE; VAC,UNION TO MAG VLV L=228	8-98191-514-0	01	1	1312-1403	●	●
217	PIPE; VAC,UNION TO MAG VLV EXC. BUS BODY REAR OVERHANG<YK4> L=228	8-98191-514-0	01	1	1404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1404-	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1307-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1307-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1404-	●	●
297	TUBE; NYLON BUS BODY REAR OVERHANG<YK4> SERVICED BY L=4000 OD=8	1-87411-007-0	03	1	1404-	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1404-		●
297	TUBE; NYLON BUS BODY REAR OVERHANG<YK4> SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1404-	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	03	1	1404-		●
297	TUBE; NYLON BUS BODY REAR OVERHANG<YK4> SERVICED BY L=4000 OD=12	1-87411-012-0	03	1	1404-	●
297	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	02	1	1404-		●
297	TUBE; NYLON BUS BODY REAR OVERHANG<YK4> SERVICED BY L=6000 OD=12	1-87411-013-0	02	1	1404-	●
367	TUBE; CORRUGATE BUS BODY REAR OVERHANG<YK4> SERVICED BY L=2000 ID=25	1-87411-031-0	02	1	1404-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1307-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1307-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1307-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1307-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1307-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1404-	●	●
367	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1404-		●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1404-	●
367	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM<BFA> BUS BODY REAR OVERHANG<YK4> SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	1404-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	01	1	1404-		●
367	TUBE; CORRUGATE BUS BODY REAR OVERHANG<YK4> SERVICED BY L=2000 ID=32	1-87411-035-0	01	1	1404-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1404-	●	●
367	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1404-	●	●

18 17 38 28 176 21 235 162 248 249 130 51 1 296 237 247 234 229 176 172 357 234 154 12 234 162 235 184 296 297 297 297 297 297 296 296 259 296 296 296 296 259 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK L=340	1-09363-790-0	01	1	1307-1311		●
1	HOSE; FLEX,AIR TANK L=340	1-09363-790-0	01	1	1312-	●	●
12	NUT; UNION M14	0-91111-514-0	01	1	1307-1311		●
12	NUT; UNION M14	0-91111-514-0	01	1	1312-	●	●
16	UNION; AIR PIPE M22X2 ELBOW	0-92135-215-0	01	1	1307-1311		●
16	UNION; AIR PIPE M22X2 ELBOW	0-92135-215-0	01	1	1312-	●	●
17	NUT; UNION M22	0-91111-522-0	01	1	1307-1311		●
17	NUT; UNION M22	0-91111-522-0	01	1	1312-	●	●
18	WASHER; LK,UNION ID=22.5	0-91510-622-0	01	1	1307-1311		●
18	WASHER; LK,UNION ID=22.5	0-91510-622-0	01	1	1312-	●	●
21	PIPE; AIR,UNION TO AIR DRYER	8-98191-511-0	01	1	1307-1311		●
21	PIPE; AIR,UNION TO AIR DRYER	8-98191-511-0	01	1	1312-	●	●
28	PIPE; AIR,AIR DRYER L=734	8-98191-512-0	01	1	1307-1311		●
28	PIPE; AIR,AIR DRYER L=734	8-98191-512-0	01	1	1312-	●	●
38	PIPE; AIR,MAIN TANK TO UNION L=318	8-98191-513-0	01	1	1307-1311		●
38	PIPE; AIR,MAIN TANK TO UNION L=318	8-98191-513-0	01	1	1312-	●	●
51	UNION M22 2WAY	1-09654-212-1	01	1	1307-1311		●
51	UNION M22 2WAY	1-09654-212-1	01	1	1312-	●	●
130	PIPE; AIR,UNION TO UNION L=756 SERVICED BY L=800	1-47428-812-0	01	1	1307-1311		●
130	PIPE; AIR,UNION TO UNION L=756 SERVICED BY L=800	1-47428-812-0	01	1	1312-	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	8-98191-507-0	01	1	1307-1311		●
154	PIPE; AIR,AIR TANK TO AIR GOV	8-98191-507-0	01	1	1312-	●	●
162	WASHER; LK,NIPPLE ID=12.2	0-91510-812-0	03	1	1307-1311		●
162	WASHER; LK,NIPPLE ID=12.2	0-91510-812-0	03	1	1312-	●	●
172	PIPE; AIR,GOV TO UNION	1-49121-796-0	01	1	1307-1311		●
172	PIPE; AIR,GOV TO UNION	1-49121-796-0	01	1	1312-	●	●
176	PIPE; AIR,AIR DRYER TO UNION L=536 SERVICED BY L=550	1-47428-808-0	01	1	1307-1311		●
176	PIPE; AIR,AIR DRYER TO UNION L=536 SERVICED BY L=550	1-47428-808-0	01	1	1312-	●	●
184	HOSE; FLEX,AIR GOV L=240	1-09363-671-0	01	1	1307-1311		●
184	HOSE; FLEX,AIR GOV L=240	1-09363-671-0	01	1	1312-	●	●
229	ADAPTER; NYLON TUBE (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1307-1311		●
229	ADAPTER; NYLON TUBE (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1312-	●	●
229	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1307-1311		●
229	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1312-	●	●
229	ADAPTER; NYLON TUBE (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	1307-1311		●
229	ADAPTER; NYLON TUBE (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	1312-	●	●
234	UNION; AIR PIPE (B) M12 ELBOW	0-92125-006-0	02	1	1307-1311		●
234	UNION; AIR PIPE (B) M12 ELBOW	0-92125-006-0	02	1	1312-	●	●
234	UNION; AIR PIPE (A) M12 3WAY	0-92138-906-0	01	1	1307-1311		●
234	UNION; AIR PIPE (A) M12 3WAY	0-92138-906-0	01	1	1312-	●	●
235	NUT; PIPE UNION M12	9-09840-280-0	03	1	1307-1311		●
235	NUT; PIPE UNION M12	9-09840-280-0	03	1	1312-	●	●
237	PIPE; AIR,FLEX HOSE TO UNION L=613	8-98191-510-0	01	1	1307-1311		●
237	PIPE; AIR,FLEX HOSE TO UNION L=613	8-98191-510-0	01	1	1312-	●	●
247	UNION; AIR PIPE M22X2 ELBOW	0-92135-215-0	01	1	1307-1311		●
247	UNION; AIR PIPE M22X2 ELBOW	0-92135-215-0	01	1	1312-	●	●
248	NUT; PIPE UNION M22	0-91111-522-0	01	1	1307-1311		●
248	NUT; PIPE UNION M22	0-91111-522-0	01	1	1312-	●	●
249	WASHER; LK,PIPE UNION ID=22.5	0-91510-622-0	01	1	1307-1311		●
249	WASHER; LK,PIPE UNION ID=22.5	0-91510-622-0	01	1	1312-	●	●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=38 OD=42 L=150	8-98108-133-0	02	1	1312-	●
259	SLEEVE; RUBBER,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1312-		●
259	SLEEVE; RUBBER,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1312-	●
259	SLEEVE; RUBBER,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1307-1311		●
259	SLEEVE; RUBBER,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> (A) ID=17 OD=21 L=40	1-09337-012-0	02	1	1312-	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1404-	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1307-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1307-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1404-	●	●
297	TUBE; NYLON BUS BODY REAR OVERHANG<YK4> SERVICED BY L=4000 OD=8	1-87411-007-0	03	1	1404-	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1404-		●
297	TUBE; NYLON BUS BODY REAR OVERHANG<YK4> SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1404-	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	03	1	1404-		●
297	TUBE; NYLON BUS BODY REAR OVERHANG<YK4> SERVICED BY L=4000 OD=12	1-87411-012-0	03	1	1404-	●
297	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	02	1	1404-		●
297	TUBE; NYLON BUS BODY REAR OVERHANG<YK4> SERVICED BY L=6000 OD=12	1-87411-013-0	02	1	1404-	●
357	PIPE; AIR,UNION TO UNION L=286	8-98191-668-0	01	1	1307-1311		●
357	PIPE; AIR,UNION TO UNION L=286	8-98191-668-0	01	1	1312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
