◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#123923) — 62 parça
çizim 363333
13 11 10 16 12 1 8 9 9 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-277-1 01 1 1307-1311 ●
1 DRYER; AIR 1-48190-277-1 01 1 1312- ● ●
8 CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1307-1311 ●
8 CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1312- ● ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1307-1311 ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1312- ● ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-1311 ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1312- ● ●
10 BOLT; AIR DRYER
M10X30 FLANGE 		0-28651-030-0 04 1 1307-1311 ●
10 BOLT; AIR DRYER
M10X30 FLANGE 		0-28651-030-0 04 1 1312- ● ●
11 BRACKET; AIR DRYER 1-48317-876-0 01 1 1307-1311 ●
11 BRACKET; AIR DRYER 1-48317-876-0 01 1 1312- ● ●
12 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1307-1311 ●
12 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1312- ● ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1307-1311 ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1312- ● ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1307-1311 ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312- ● ●

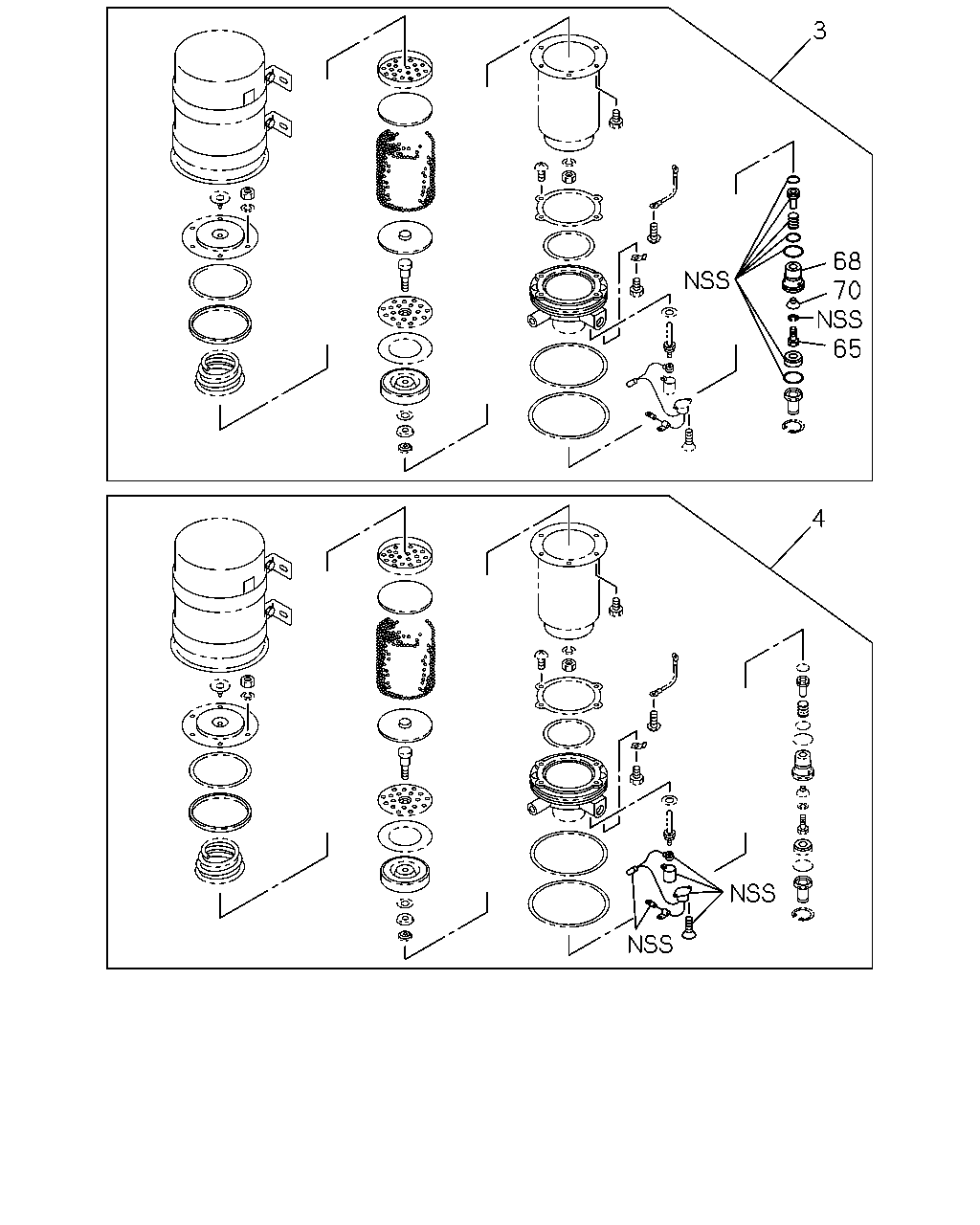

çizim 363334
3 68 70 65 4
BalonParca AdiParca NoAdetTipApplied Date A B
3 PISTON KIT; AIR DRYER 1-85576-057-1 01 1 1307-1311 ●
3 PISTON KIT; AIR DRYER 1-85576-057-1 01 1 1312- ● ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-254-0 01 1 1307-1311 ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-254-0 01 1 1312- ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1307-1311 ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1312- ● ●
68 BODY; VALVE 1-48199-216-0 01 1 1307-1311 ●
68 BODY; VALVE 1-48199-216-0 01 1 1312- ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1307-1311 ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1312- ● ●

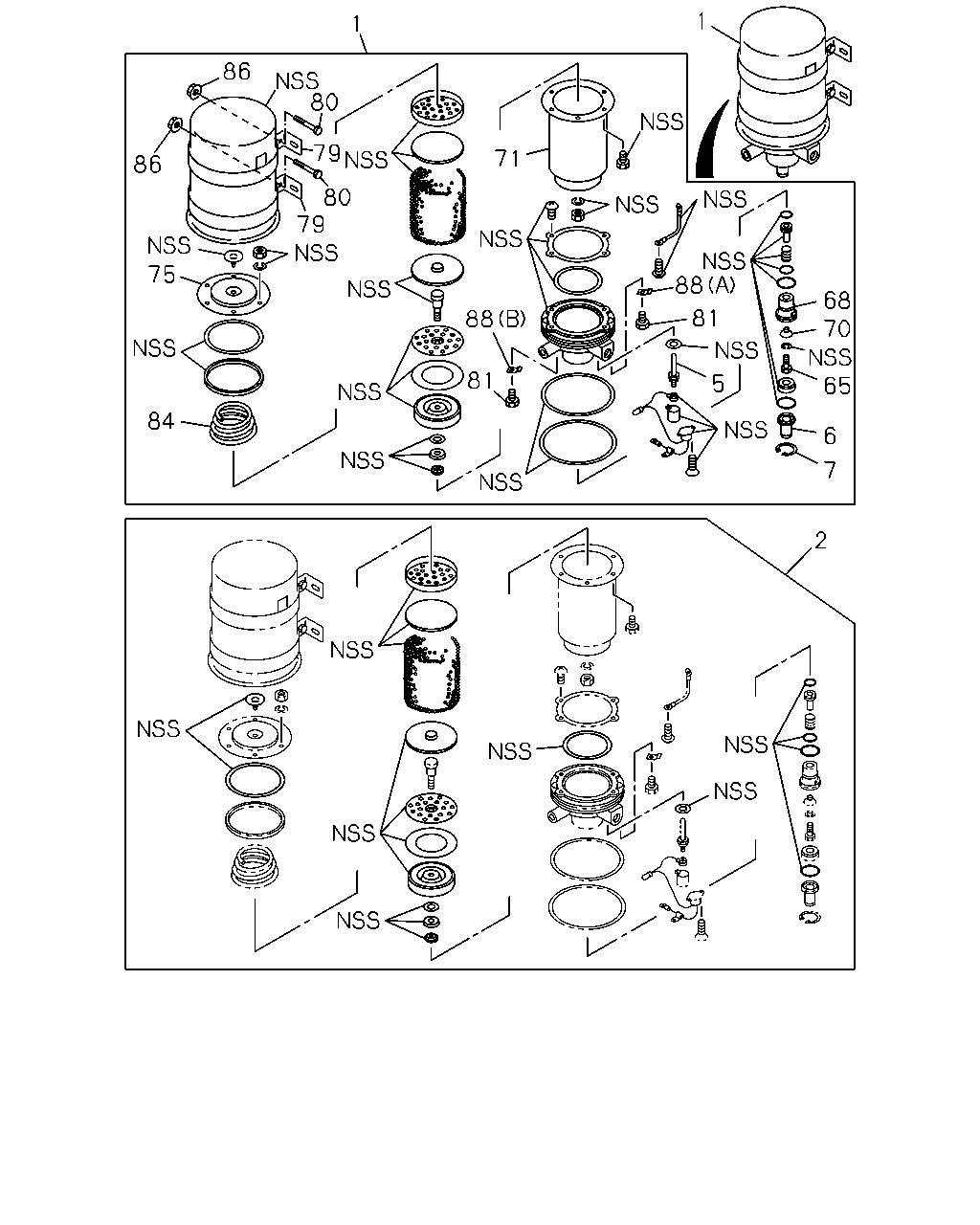

çizim 364344
88 71 88 5 81 70 68 65 6 7 1 86 86 75 84 80 79 1 81 2 80 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-277-1 01 1 1307-1311 ●
1 DRYER; AIR 1-48190-277-1 01 1 1312- ● ●
2 REPAIR KIT; AIR DRYER 1-85576-226-0 01 1 1307-1311 ●
2 REPAIR KIT; AIR DRYER 1-85576-226-0 01 1 1312- ● ●
5 HEATER ASM; AIR DRYER 1-48199-085-0 02 1 1307-1311 ●
5 HEATER ASM; AIR DRYER 1-48199-085-0 02 1 1312- ● ●
6 COVER; EXH,AIR DRYER 1-48199-101-0 01 1 1307-1311 ●
6 COVER; EXH,AIR DRYER 1-48199-101-0 01 1 1312- ● ●
7 RING; SNAP,AIR DRYER 1-48199-154-0 01 1 1307-1311 ●
7 RING; SNAP,AIR DRYER 1-48199-154-0 01 1 1312- ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1307-1311 ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 1312- ● ●
68 BODY; VALVE 1-48199-216-0 01 1 1307-1311 ●
68 BODY; VALVE 1-48199-216-0 01 1 1312- ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1307-1311 ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 1312- ● ●
71 CASE; INNER,AIR DRYER 1-48199-156-1 01 1 1307-1311 ●
71 CASE; INNER,AIR DRYER 1-48199-156-1 01 1 1312- ● ●
75 COVER; CASE,AIR DRYER 1-48199-167-0 01 1 1307-1311 ●
75 COVER; CASE,AIR DRYER 1-48199-167-0 01 1 1312- ● ●
79 BRACKET; AIR DRYER 1-48199-189-0 02 1 1307-1311 ●
79 BRACKET; AIR DRYER 1-48199-189-0 02 1 1312- ● ●
80 BOLT; BRKT 1-48199-190-0 02 1 1307-1311 ●
80 BOLT; BRKT 1-48199-190-0 02 1 1312- ● ●
81 BOLT; CASE,AIR DRYER 1-48199-177-0 02 1 1307-1311 ●
81 BOLT; CASE,AIR DRYER 1-48199-177-0 02 1 1312- ● ●
84 SPRING; AIR DRYER 1-48199-166-0 01 1 1307-1311 ●
84 SPRING; AIR DRYER 1-48199-166-0 01 1 1312- ● ●
86 NUT; BRKT 1-48199-320-0 02 1 1307-1311 ●
86 NUT; BRKT 1-48199-320-0 02 1 1312- ● ●
88 PLATE; STOPPER
(A) 		1-48199-178-0 01 1 1307-1311 ●
88 PLATE; STOPPER
(A) 		1-48199-178-0 01 1 1312- ● ●
88 PLATE; STOPPER
(B) 		1-48199-179-0 01 1 1307-1311 ●
88 PLATE; STOPPER
(B) 		1-48199-179-0 01 1 1312- ● ●
