Isuzu WW
▶
BUSES
▶
LV
▶
11523 - LV152/452(LHD) EURO4
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#123920) — 48 parça
Tümü
A - LVR6FB
B - LVD6FB
◀

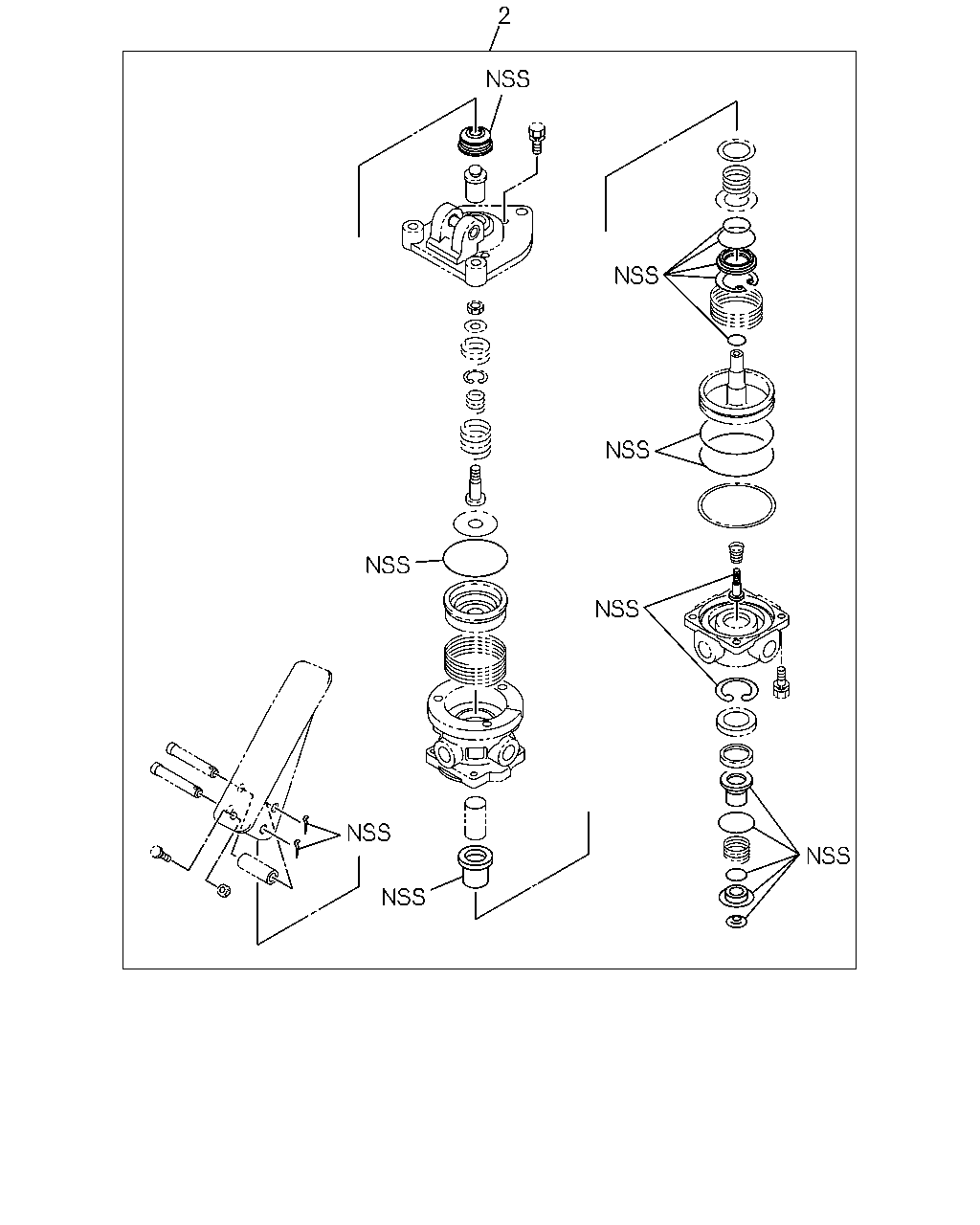

[334A] REPAIR KIT (2 parça)

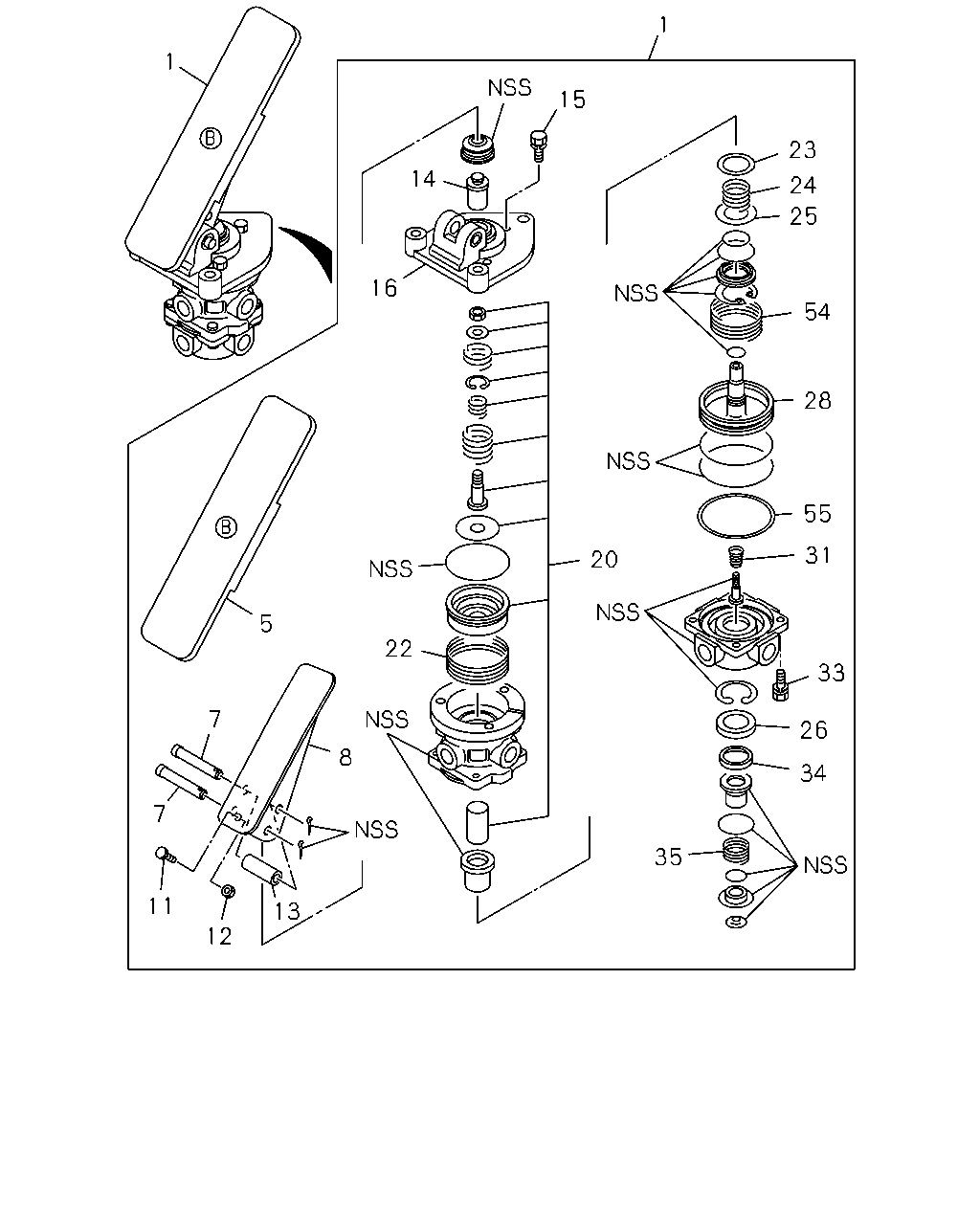

[334A] COMPONENT (46 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; BRK VLV
8-98222-817-0
01
1
1307-1311
●
2
REPAIR KIT; BRK VLV
8-98222-817-0
01
1
1312-
●
●
1
1
5
7
7
11
12
13
8
22
16
14
23
24
25
54
28
55
31
20
33
26
34
35
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; BRK
8-98222-801-0
01
1
1307-1311
●
1
VALVE; BRK
8-98222-801-0
01
1
1312-
●
●
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
1307-1311
●
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
1312-
●
●
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
1307-1311
●
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
1312-
●
●
8
PEDAL; BRK VLV
1-48119-429-0
01
1
1307-1311
●
8
PEDAL; BRK VLV
1-48119-429-0
01
1
1312-
●
●
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
1307-1311
●
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
1312-
●
●
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
1307-1311
●
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
1312-
●
●
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
1307-1311
●
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
1312-
●
●
14
PLUNGER; BRK VLV
1-48119-434-0
01
1
1307-1311
●
14
PLUNGER; BRK VLV
1-48119-434-0
01
1
1312-
●
●
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
1307-1311
●
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
1312-
●
●
16
PLATE; MTG,BRKT VLV
1-48119-433-0
01
1
1307-1311
●
16
PLATE; MTG,BRKT VLV
1-48119-433-0
01
1
1312-
●
●
20
PISTON; UPR,BRK VLV
1-48119-592-0
01
1
1307-1311
●
20
PISTON; UPR,BRK VLV
1-48119-592-0
01
1
1312-
●
●
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
1307-1311
●
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
1312-
●
●
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
1307-1311
●
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
1312-
●
●
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
1307-1311
●
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
1312-
●
●
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
1307-1311
●
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
1312-
●
●
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
1307-1311
●
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
1312-
●
●
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
1307-1311
●
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
1312-
●
●
31
SPRING; VLV,BRK VLV
1-48123-079-0
01
1
1307-1311
●
31
SPRING; VLV,BRK VLV
1-48123-079-0
01
1
1312-
●
●
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
1307-1311
●
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
1312-
●
●
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
1307-1311
●
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
1312-
●
●
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
1307-1311
●
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
1312-
●
●
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
1307-1311
●
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
1312-
●
●
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
1307-1311
●
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
1312-
●
●
