◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-87 - TRUNK ROOM PACKAGE AND REAR PARCEL ▶
6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#12392) — 21 parça
çizim 20355
8 8
BalonParca AdiParca NoAdetTipApplied Date
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 02 1 0105-
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=28 		8-94279-720-0 01 1 0105-
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (C) OD=44 		8-94279-727-0 01 1 0105-

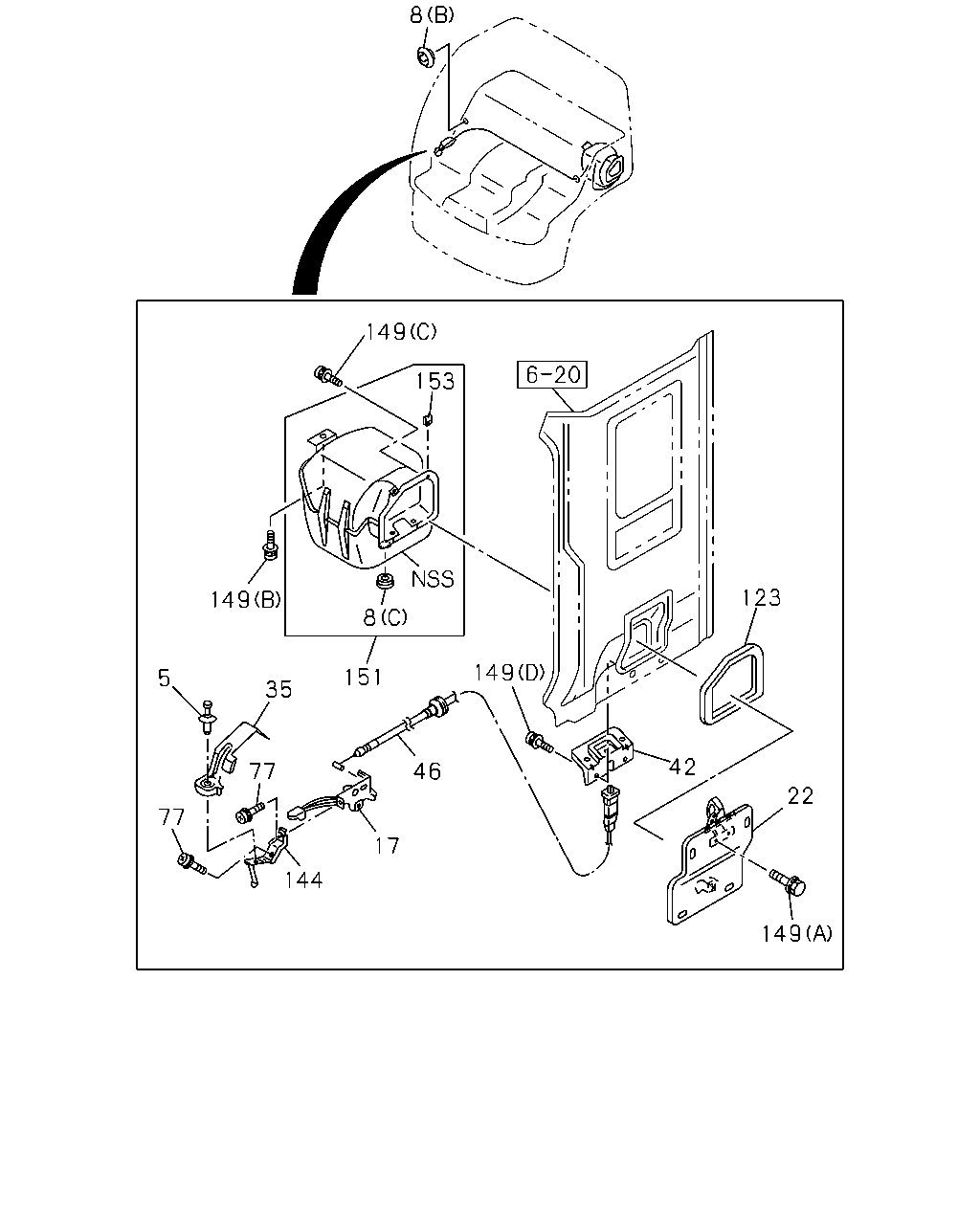

çizim 79262
8 149 153 8 149 151 35 5 77 77 144 17 46 149 42 149 22 123
BalonParca AdiParca NoAdetTipApplied Date
5 FASTENER
BAGGAGE BOX CAB RR SIDE<TBM> ID=6X6 OD=8 		1-09987-194-0 01 1 0105-
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 02 1 0105-
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=28 		8-94279-720-0 01 1 0105-
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (C) OD=44 		8-94279-727-0 01 1 0105-
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 0105-
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 0105-
35 COVER; LUGGAGE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-79517-005-1 01 1 0105-
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 0105-
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L=2842 		1-79517-008-0 01 1 0105-
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 0105-
123 SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-061-1 01 1 0105-
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-267-2 01 1 0105-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0105-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105-
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-951-2 01 1 0105-
153 J-NUT
BAGGAGE BOX CAB RR SIDE<TBM> 		8-94279-056-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
