Sayfa 3-22 - Isuzu EPC

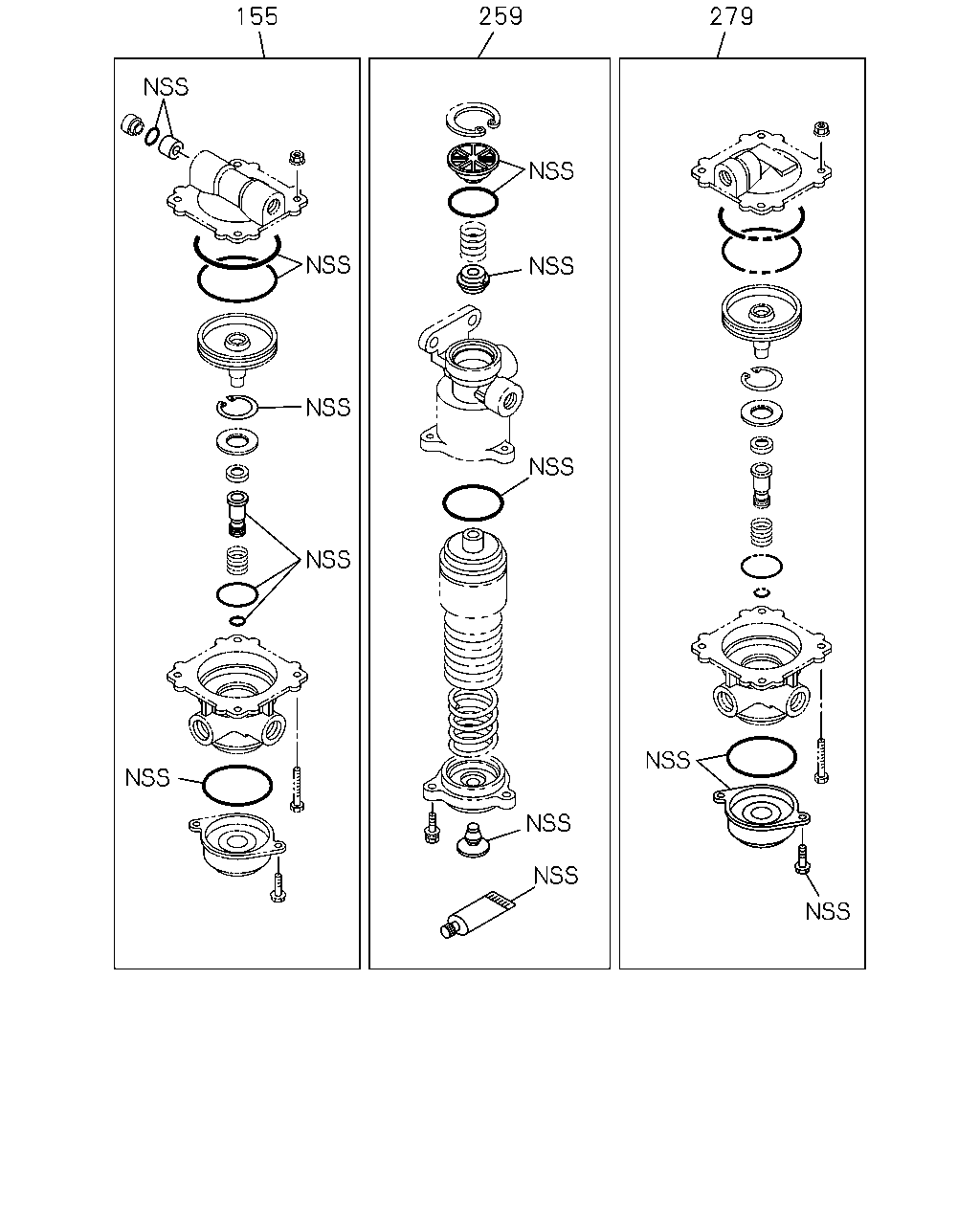

155 259 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE	8-98165-977-0	03	1	1307-1311	●
155	REPAIR KIT; RELAY VALVE	8-98165-977-0	03	1	1312-	●	●
259	REPAIR KIT; VALVE	1-85576-381-0	01	1	1307-1311	●
259	REPAIR KIT; VALVE	1-85576-381-0	01	1	1312-	●	●
279	REPAIR KIT; SILENCER	8-98165-978-0	03	1	1307-1311	●
279	REPAIR KIT; SILENCER	8-98165-978-0	03	1	1312-	●	●

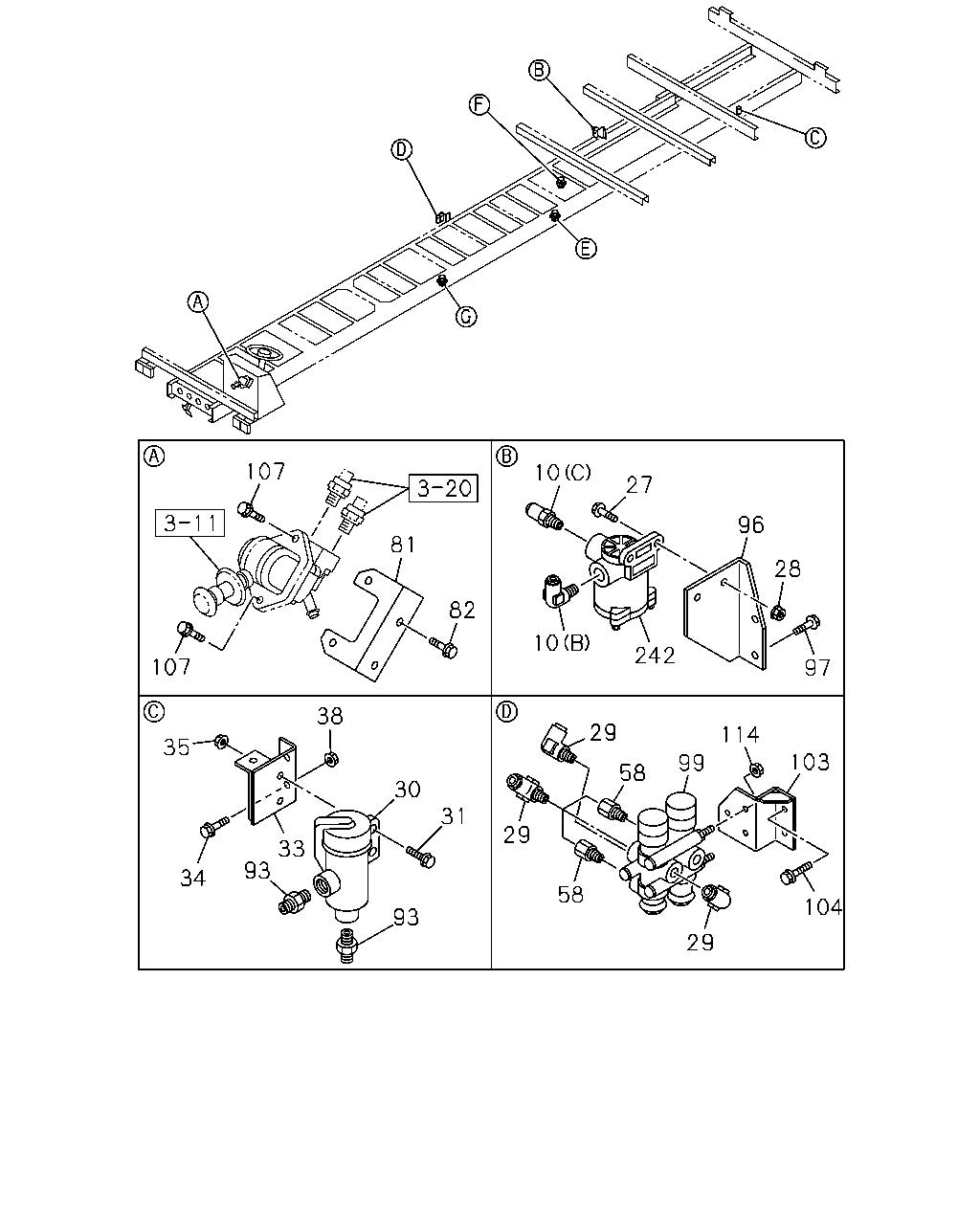

104 103 114 28 96 97 242 10 10 27 82 81 107 107 38 30 31 29 58 58 29 99 29 93 33 93 34 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR (A) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	1307-1311	●
10	CONNECTOR (A) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	1312-	●	●
10	CONNECTOR (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1307-1311	●
10	CONNECTOR (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1312-	●	●
10	CONNECTOR (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1307-1311	●
10	CONNECTOR (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1312-	●	●
10	CONNECTOR (D) R3/8 & RC1/4 & RC3/8 3WAY	8-98181-830-0	01	1	1307-1311	●
10	CONNECTOR (D) R3/8 & RC1/4 & RC3/8 3WAY	8-98181-830-0	01	1	1312-	●	●
27	BOLT; AIR VLV M8X30 FLANGE	0-28650-830-0	02	1	1307-1311	●
27	BOLT; AIR VLV M8X30 FLANGE	0-28650-830-0	02	1	1312-	●	●
28	NUT; AIR VLV M8 FLANGE	0-91180-108-0	02	1	1307-1311	●
28	NUT; AIR VLV M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
29	CONNECTOR; AIR VLV DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1307-1311	●
29	CONNECTOR; AIR VLV DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1312-	●	●
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1307-1311	●
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1312-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1307-1311	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1312-	●	●
33	BRACKET; GOV,AIR CONT	1-48317-877-0	01	1	1307-1311	●
33	BRACKET; GOV,AIR CONT	1-48317-877-0	01	1	1312-	●	●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	1307-1311	●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	1312-	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	1307-1311	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	1307-1311	●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
58	ADAPTER PT3/8	1-09664-210-0	02	1	1307-1311	●
58	ADAPTER PT3/8	1-09664-210-0	02	1	1312-	●	●
81	BRACKET; RELAY VLV,PARKING BRK	8-98191-706-0	01	1	1307-1311	●
81	BRACKET; RELAY VLV,PARKING BRK	8-98191-706-0	01	1	1312-	●	●
82	BOLT; BRKT,RELAY VLV M8X25 FLANGE	0-28650-825-0	02	1	1307-1311	●
82	BOLT; BRKT,RELAY VLV M8X25 FLANGE	0-28650-825-0	02	1	1312-	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1307-1311	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1312-	●	●
96	BRACKET	8-98222-174-0	01	1	1307-1311	●
96	BRACKET	8-98222-174-0	01	1	1312-	●	●
97	BOLT; VLV BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1311	●
97	BOLT; VLV BRKT M8X25 FLANGE	0-28650-825-0	02	1	1312-	●	●
99	VALVE; PROTECTION	8-98191-889-0	01	1	1307-1311	●
99	VALVE; PROTECTION	8-98191-889-0	01	1	1312-	●	●
103	BRACKET; PROTECTION VALVE	1-47478-544-0	01	1	1307-1311	●
103	BRACKET; PROTECTION VALVE	1-47478-544-0	01	1	1312-	●	●
104	BOLT; BRKT,VALVE M8X25 FLANGE	0-28650-825-0	02	1	1307-1311	●
104	BOLT; BRKT,VALVE M8X25 FLANGE	0-28650-825-0	02	1	1312-	●	●
107	BOLT; VLV M6X20 FLANGE	0-28050-620-0	02	1	1307-1311	●
107	BOLT; VLV M6X20 FLANGE	0-28050-620-0	02	1	1312-	●	●
114	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1307-1311	●
114	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	1312-	●	●
242	VALVE; REGULATION	1-48410-722-0	01	1	1307-1311	●
242	VALVE; REGULATION	1-48410-722-0	01	1	1312-	●	●

12 2 12 9 12 12 14 79 25 10 181 213 7 14 14 1 79 12 2 12 67 66 65 68 52 12 10 12

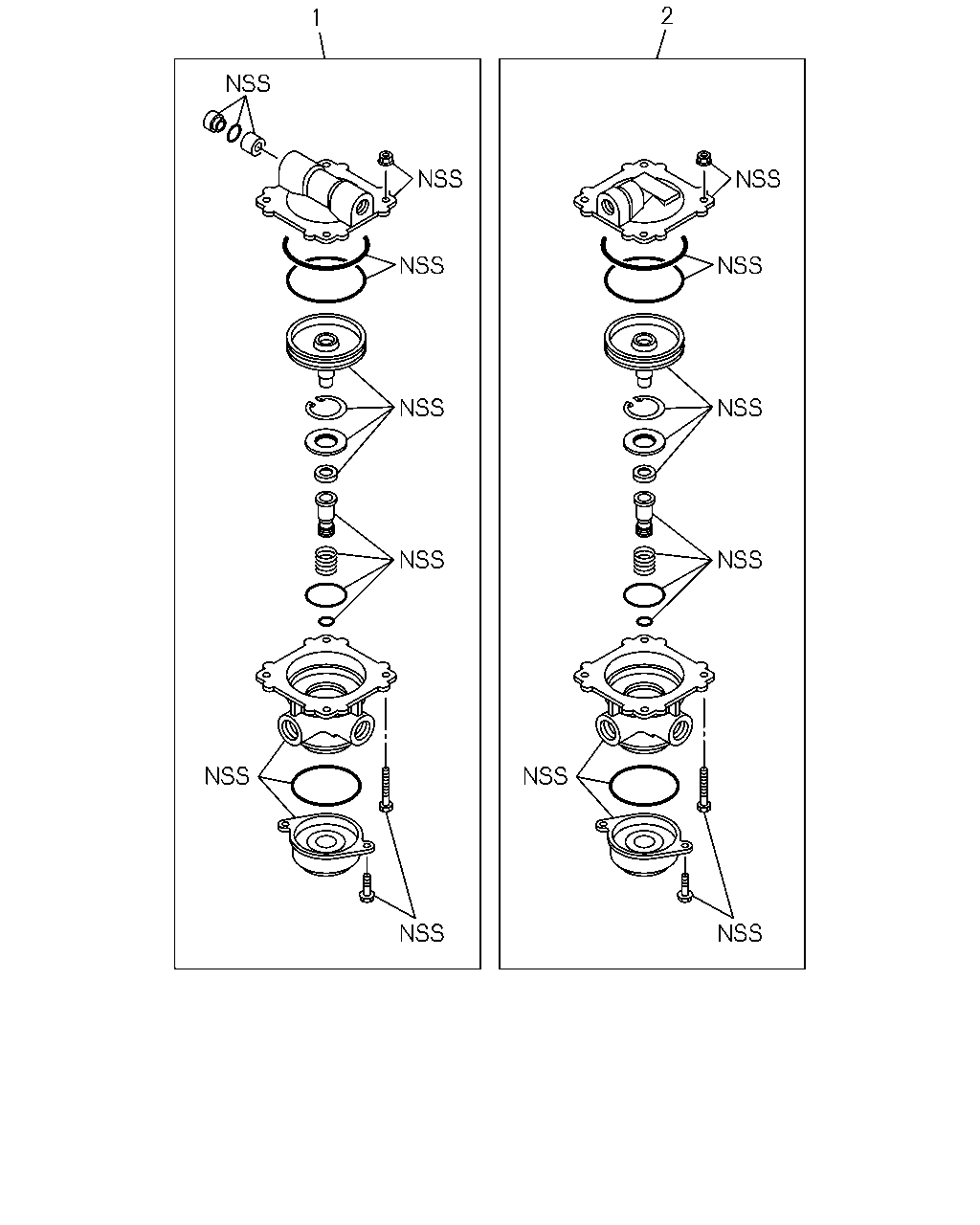

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	8-98091-528-0	01	1	1307-1311	●
1	VALVE; RELAY RWD RR	8-98091-528-0	01	1	1312-	●	●
2	VALVE; RELAY	8-98091-529-0	02	1	1307-1311	●
2	VALVE; RELAY	8-98091-529-0	02	1	1312-	●	●
7	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	02	1	1307-1311	●
7	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
9	NUT M8 FLANGE	0-91180-108-0	02	1	1307-1311	●
9	NUT M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
10	CONNECTOR (A) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	1307-1311	●
10	CONNECTOR (A) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	1312-	●	●
10	CONNECTOR (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1307-1311	●
10	CONNECTOR (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1312-	●	●
10	CONNECTOR (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1307-1311	●
10	CONNECTOR (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1312-	●	●
10	CONNECTOR (D) R3/8 & RC1/4 & RC3/8 3WAY	8-98181-830-0	01	1	1307-1311	●
10	CONNECTOR (D) R3/8 & RC1/4 & RC3/8 3WAY	8-98181-830-0	01	1	1312-	●	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-1311	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1312-	●	●
12	CONNECTOR; RELAY VLV (B) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	1307-1311	●
12	CONNECTOR; RELAY VLV (B) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	1312-	●	●
12	CONNECTOR; RELAY VLV (C) DIN12 & M22 ELBOW	1-09661-497-0	03	1	1307-1311	●
12	CONNECTOR; RELAY VLV (C) DIN12 & M22 ELBOW	1-09661-497-0	03	1	1312-	●	●
12	CONNECTOR; RELAY VLV (D) DIN12 & M16 ELBOW	1-09661-535-0	01	1	1307-1311	●
12	CONNECTOR; RELAY VLV (D) DIN12 & M16 ELBOW	1-09661-535-0	01	1	1312-	●	●
14	CONNECTOR; RELAY VLV DIN12 & M22 ELBOW	1-09661-497-0	03	1	1307-1311	●
14	CONNECTOR; RELAY VLV DIN12 & M22 ELBOW	1-09661-497-0	03	1	1312-	●	●
25	SWITCH; PRESSURE STAMP 2.0	8-98010-856-2	01	1	1307-1311	●
25	SWITCH; PRESSURE STAMP 2.0	8-98010-856-2	01	1	1312-	●	●
52	CONNECTOR; RELAY VLV	1-09661-818-0	01	1	1307-1311	●
52	CONNECTOR; RELAY VLV	1-09661-818-0	01	1	1312-	●	●
65	BRACKET; RELAY VLV RR	8-98191-528-0	01	1	1307-1311	●
65	BRACKET; RELAY VLV RR	8-98191-528-0	01	1	1312-	●	●
66	BOLT; BRKT,RELAY VLV RR M8X35 FLANGE	0-28650-835-0	04	1	1307-1311	●
66	BOLT; BRKT,RELAY VLV RR M8X35 FLANGE	0-28650-835-0	04	1	1312-	●	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91180-108-0	04	1	1307-1311	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91180-108-0	04	1	1312-	●	●
68	NUT; RELAY VLV TO BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1311	●
68	NUT; RELAY VLV TO BRKT M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
79	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1307-1311	●
79	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1312-	●	●
79	CONNECTOR; RELAY VLV (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1307-1311	●
79	CONNECTOR; RELAY VLV (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1312-	●	●
181	ADAPTER; PRESSURE SW INNER PT3/8,OUTER M22	1-09650-494-1	01	1	1307-1311	●
181	ADAPTER; PRESSURE SW INNER PT3/8,OUTER M22	1-09650-494-1	01	1	1312-	●	●
213	GASKET ID=22.5	9-09571-422-0	01	1	1307-1311	●
213	GASKET ID=22.5	9-09571-422-0	01	1	1312-	●	●

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1307-1311	●
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1312-	●	●

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	8-98091-528-0	01	1	1307-1311	●
1	VALVE; RELAY RWD RR	8-98091-528-0	01	1	1312-	●	●
2	VALVE; RELAY	8-98091-529-0	02	1	1307-1311	●
2	VALVE; RELAY	8-98091-529-0	02	1	1312-	●	●
