Sayfa 3-20 - Isuzu EPC

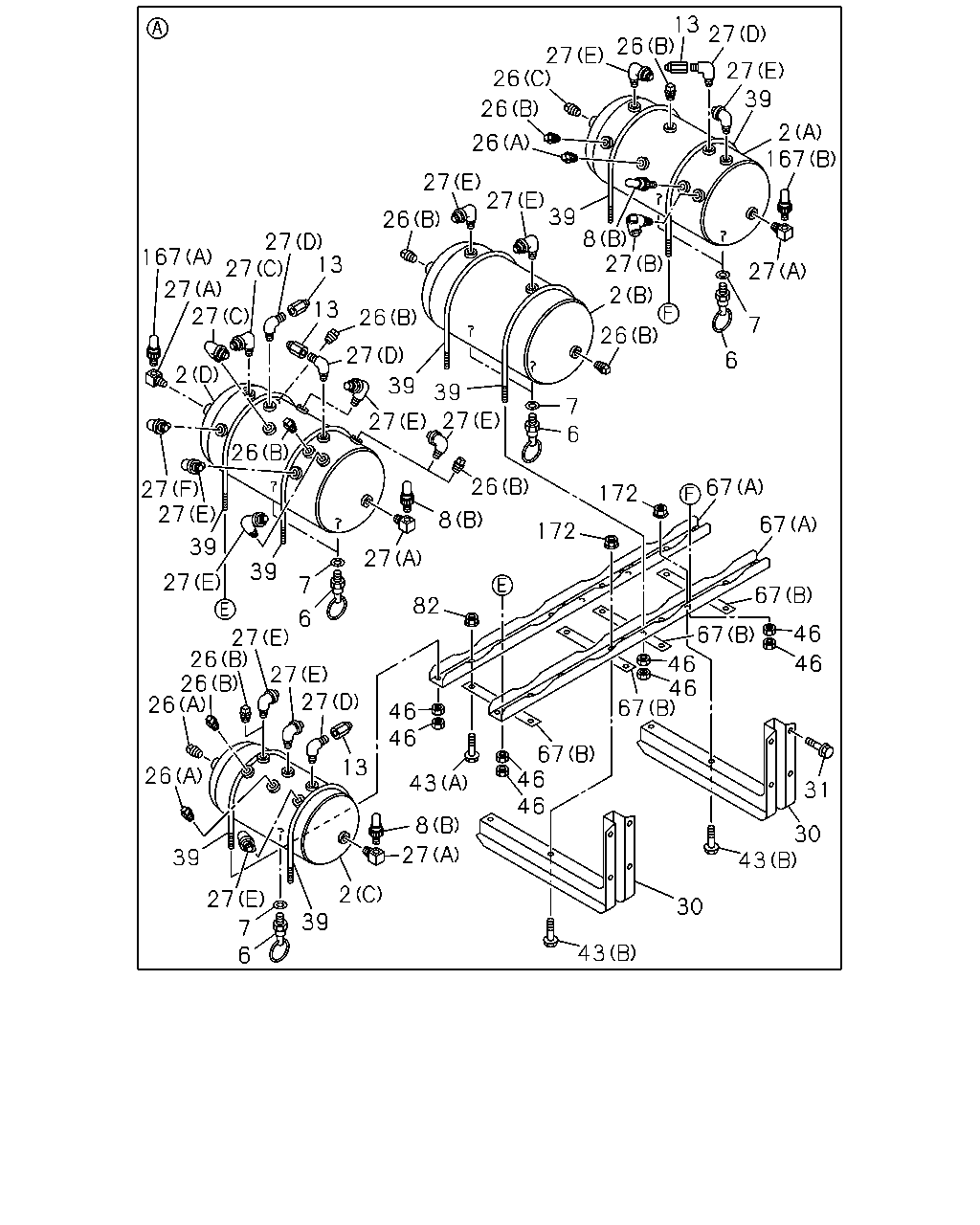

3-20 — AIR TANK (#123918) — 224 parça

43 30 43 31 30 46 67 46 46 67 67 46 46 27 43 46 82 46 172 172 67 67 46 67 2 39 6 27 39 26 26 27 27 26 27 26 6 39 39 27 27 7 8 26 27 27 13 8 7 27 6 7 27 39 39 27 26 13 13 27 27 167 27 27 2 26 26 7 26 26 26 27 26 13 39 27 27 2 27 167 7 6 26 2 27 8 39 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR (A)	1-48370-353-0	01	1	1307-1311	●
2	TANK; AIR (A)	1-48370-353-0	01	1	1312-	●	●
2	TANK; AIR (D)	1-48370-862-0	01	1	1307-1311	●
2	TANK; AIR (D)	1-48370-862-0	01	1	1312-	●	●
2	TANK; AIR (C)	1-48370-904-0	01	1	1307-1311	●
2	TANK; AIR (C)	1-48370-904-0	01	1	1312-	●	●
2	TANK; AIR ANTILOCK BRAKE SYSTEM<BFA> (B)	1-48370-863-1	01	1	1307-1311	●
2	TANK; AIR ANTILOCK BRAKE SYSTEM<BFA> (B)	1-48370-863-1	01	1	1312-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1307-1311	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1312-	●	●
6	COCK; DRAIN,AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	07	1	1307-1311	●
6	COCK; DRAIN,AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	07	1	1312-	●	●
6	COCK; DRAIN,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	05	1	1307-1311	●
6	COCK; DRAIN,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	05	1	1312-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1307-1311	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1312-	●	●
7	GASKET; DRAIN COCK ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	07	1	1307-1311	●
7	GASKET; DRAIN COCK ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	07	1	1312-	●	●
7	GASKET; DRAIN COCK EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	05	1	1307-1311	●
7	GASKET; DRAIN COCK EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	05	1	1312-	●	●
8	CONNECTOR; AIR TANK (A) DIN8 & M16 STRAIGHT	1-09661-530-0	02	1	1307-1311	●
8	CONNECTOR; AIR TANK (A) DIN8 & M16 STRAIGHT	1-09661-530-0	02	1	1312-	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1307-1311	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1312-	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	1307-1311	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	1312-	●	●
26	PLUG; SUB AIR TANK (A) PT1/4	1-09605-019-0	03	1	1312-		●
26	PLUG; SUB AIR TANK (B) PT3/8	5-09605-005-0	07	1	1312-		●
26	PLUG; SUB AIR TANK (A) PT1/4	1-09605-019-0	05	1	1307-	●
26	PLUG; SUB AIR TANK (B) PT3/8	5-09605-005-0	09	1	1307-	●
26	PLUG; SUB AIR TANK (C) PT3/4	9-09664-005-0	01	1	1307-1311	●
26	PLUG; SUB AIR TANK (C) PT3/4	9-09664-005-0	01	1	1312-	●	●
27	UNION; ELBOW,AIR TANK ANTILOCK BRAKE SYSTEM<BFA> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	11	1	1312-		●
27	UNION; ELBOW,AIR TANK (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-		●
27	UNION; ELBOW,AIR TANK (C) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1312-		●
27	UNION; ELBOW,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	1312-		●
27	UNION; ELBOW,AIR TANK (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1307-1311	●
27	UNION; ELBOW,AIR TANK (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1312-	●	●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1307-1311	●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1312-	●	●
27	UNION; ELBOW,AIR TANK (C) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1307-	●
27	UNION; ELBOW,AIR TANK (D) M20 & PT3/4 ELBOW	8-98067-083-1	04	1	1307-1311	●
27	UNION; ELBOW,AIR TANK (D) M20 & PT3/4 ELBOW	8-98067-083-1	04	1	1312-	●	●
27	UNION; ELBOW,AIR TANK ANTILOCK BRAKE SYSTEM<BFA> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	1307-	●
27	UNION; ELBOW,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1307-	●
30	BRACKET; AIR TANK,SUB	1-48317-900-0	02	1	1307-1311	●
30	BRACKET; AIR TANK,SUB	1-48317-900-0	02	1	1312-	●	●
31	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	1307-1311	●
31	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	1312-	●	●
39	U-BOLT; AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48317-675-0	08	1	1307-1311	●
39	U-BOLT; AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48317-675-0	08	1	1312-	●	●
39	U-BOLT; AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48317-675-0	06	1	1307-1311	●
39	U-BOLT; AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48317-675-0	06	1	1312-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	08	1	1307-1311	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	08	1	1312-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M12X25 FLANGE	0-28651-225-0	04	1	1307-1311	●
43	BOLT; STAY,AIR TANK,MAIN (B) M12X25 FLANGE	0-28651-225-0	04	1	1312-	●	●
46	NUT; U-BOLT ANTILOCK BRAKE SYSTEM<BFA> M8	0-91110-508-0	32	1	1307-1311	●
46	NUT; U-BOLT ANTILOCK BRAKE SYSTEM<BFA> M8	0-91110-508-0	32	1	1312-	●	●
46	NUT; U-BOLT EXC. ANTILOCK BRAKE SYSTEM<BFA> M8	0-91110-508-0	24	1	1307-1311	●
46	NUT; U-BOLT EXC. ANTILOCK BRAKE SYSTEM<BFA> M8	0-91110-508-0	24	1	1312-	●	●
67	STAY; SUB TANK (A)	1-48316-070-0	02	1	1307-1311	●
67	STAY; SUB TANK (A)	1-48316-070-0	02	1	1312-	●	●
67	STAY; SUB TANK (B)	1-48316-071-0	04	1	1307-1311	●
67	STAY; SUB TANK (B)	1-48316-071-0	04	1	1312-	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	08	1	1307-1311	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	08	1	1312-	●	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB (A) STAMP 5.5	8-97609-249-0	01	1	1307-1311	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB (A) STAMP 5.5	8-97609-249-0	01	1	1312-	●	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB (B) STAMP 6.0	8-97615-622-0	01	1	1307-1311	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB (B) STAMP 6.0	8-97615-622-0	01	1	1312-	●	●
172	NUT; STAY,AIR TANK,MAIN M12 FLANGE	0-91180-212-0	04	1	1307-1311	●
172	NUT; STAY,AIR TANK,MAIN M12 FLANGE	0-91180-212-0	04	1	1312-	●	●

8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	CONNECTOR; AIR TANK (A) DIN8 & M16 STRAIGHT	1-09661-530-0	02	1	1307-1311	●
8	CONNECTOR; AIR TANK (A) DIN8 & M16 STRAIGHT	1-09661-530-0	02	1	1312-	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1307-1311	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1312-	●	●

1 5 5 166 5 429 11 3 10 5 37 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR	1-48370-861-0	01	1	1307-1311	●
1	TANK ASM; AIR	1-48370-861-0	01	1	1312-	●	●
3	VALVE; CHECK,AIR TANK M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1307-1311	●
3	VALVE; CHECK,AIR TANK M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1312-	●	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1307-1311	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1312-	●	●
5	UNION; AIR TANK (B) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	1307-1311	●
5	UNION; AIR TANK (B) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	1312-	●	●
5	UNION; AIR TANK (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1307-1311	●
5	UNION; AIR TANK (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1312-	●	●
5	UNION; AIR TANK (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1307-1311	●
5	UNION; AIR TANK (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1312-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1307-1311	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1312-	●	●
6	COCK; DRAIN,AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	07	1	1307-1311	●
6	COCK; DRAIN,AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	07	1	1312-	●	●
6	COCK; DRAIN,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	05	1	1307-1311	●
6	COCK; DRAIN,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	05	1	1312-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1307-1311	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1312-	●	●
7	GASKET; DRAIN COCK ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	07	1	1307-1311	●
7	GASKET; DRAIN COCK ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	07	1	1312-	●	●
7	GASKET; DRAIN COCK EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	05	1	1307-1311	●
7	GASKET; DRAIN COCK EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	05	1	1312-	●	●
10	PLUG; AIR TANK PT1/4	1-09605-019-0	01	1	1307-1311	●
10	PLUG; AIR TANK PT1/4	1-09605-019-0	01	1	1312-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1307-1311	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1312-	●	●
37	BOLT; AIR TANK M10X30 FLANGE	0-28651-030-0	04	1	1307-1311	●
37	BOLT; AIR TANK M10X30 FLANGE	0-28651-030-0	04	1	1312-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 6.0	8-97615-622-0	01	1	1307-1311	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 6.0	8-97615-622-0	01	1	1312-	●	●
429	SENSOR THREAD R1/4	1-80220-023-1	01	1	1307-1311	●
429	SENSOR THREAD R1/4	1-80220-023-1	01	1	1312-	●	●

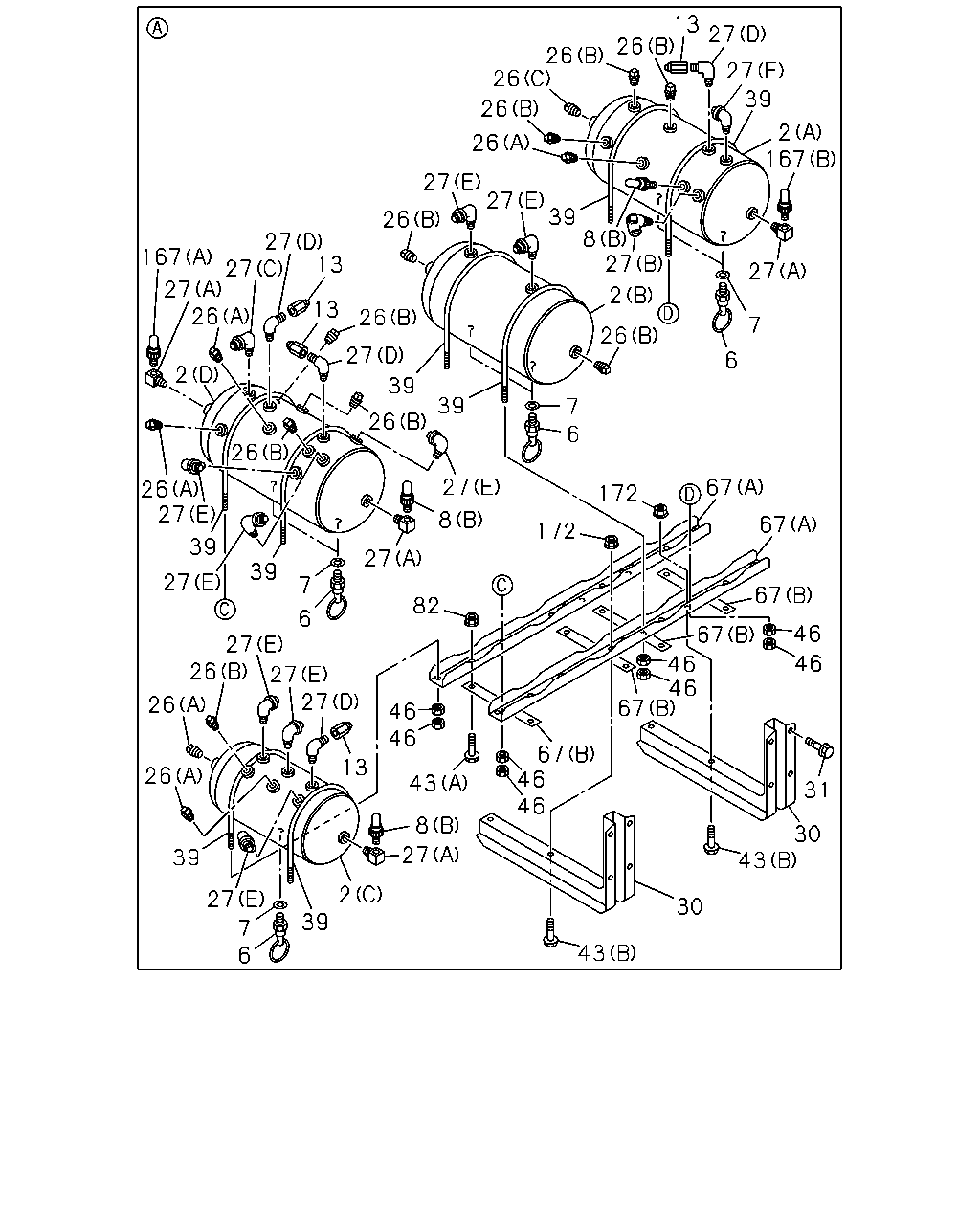

43 31 46 67 67 67 172 172 67 46 46 67 30 46 67 46 46 43 30 27 43 8 2 39 27 7 6 39 26 26 27 27 27 26 13 46 82 27 8 7 6 39 39 27 27 26 26 27 26 27 39 39 26 13 13 27 27 167 26 2 27 46 6 7 6 7 26 2 27 8 39 27 27 26 26 26 26 26 26 13 27 39 27 2 167 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR (A)	1-48370-353-0	01	1	1307-1311	●
2	TANK; AIR (A)	1-48370-353-0	01	1	1312-	●	●
2	TANK; AIR (D)	1-48370-862-0	01	1	1307-1311	●
2	TANK; AIR (D)	1-48370-862-0	01	1	1312-	●	●
2	TANK; AIR (C)	1-48370-904-0	01	1	1307-1311	●
2	TANK; AIR (C)	1-48370-904-0	01	1	1312-	●	●
2	TANK; AIR ANTILOCK BRAKE SYSTEM<BFA> (B)	1-48370-863-1	01	1	1307-1311	●
2	TANK; AIR ANTILOCK BRAKE SYSTEM<BFA> (B)	1-48370-863-1	01	1	1312-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1307-1311	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1312-	●	●
6	COCK; DRAIN,AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	07	1	1307-1311	●
6	COCK; DRAIN,AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	07	1	1312-	●	●
6	COCK; DRAIN,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	05	1	1307-1311	●
6	COCK; DRAIN,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48312-015-0	05	1	1312-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1307-1311	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1312-	●	●
7	GASKET; DRAIN COCK ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	07	1	1307-1311	●
7	GASKET; DRAIN COCK ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	07	1	1312-	●	●
7	GASKET; DRAIN COCK EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	05	1	1307-1311	●
7	GASKET; DRAIN COCK EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=14	1-09630-145-0	05	1	1312-	●	●
8	CONNECTOR; AIR TANK (A) DIN8 & M16 STRAIGHT	1-09661-530-0	02	1	1307-1311	●
8	CONNECTOR; AIR TANK (A) DIN8 & M16 STRAIGHT	1-09661-530-0	02	1	1312-	●	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1307-1311	●
8	CONNECTOR; AIR TANK (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1312-	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	1307-1311	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	1312-	●	●
26	PLUG; SUB AIR TANK (A) PT1/4	1-09605-019-0	03	1	1312-		●
26	PLUG; SUB AIR TANK (B) PT3/8	5-09605-005-0	07	1	1312-		●
26	PLUG; SUB AIR TANK (A) PT1/4	1-09605-019-0	05	1	1307-	●
26	PLUG; SUB AIR TANK (B) PT3/8	5-09605-005-0	09	1	1307-	●
26	PLUG; SUB AIR TANK (C) PT3/4	9-09664-005-0	01	1	1307-1311	●
26	PLUG; SUB AIR TANK (C) PT3/4	9-09664-005-0	01	1	1312-	●	●
27	UNION; ELBOW,AIR TANK ANTILOCK BRAKE SYSTEM<BFA> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	11	1	1312-		●
27	UNION; ELBOW,AIR TANK (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-		●
27	UNION; ELBOW,AIR TANK (C) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1312-		●
27	UNION; ELBOW,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	1312-		●
27	UNION; ELBOW,AIR TANK (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1307-1311	●
27	UNION; ELBOW,AIR TANK (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1312-	●	●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1307-1311	●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1312-	●	●
27	UNION; ELBOW,AIR TANK (C) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1307-	●
27	UNION; ELBOW,AIR TANK (D) M20 & PT3/4 ELBOW	8-98067-083-1	04	1	1307-1311	●
27	UNION; ELBOW,AIR TANK (D) M20 & PT3/4 ELBOW	8-98067-083-1	04	1	1312-	●	●
27	UNION; ELBOW,AIR TANK ANTILOCK BRAKE SYSTEM<BFA> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	1307-	●
27	UNION; ELBOW,AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1307-	●
30	BRACKET; AIR TANK,SUB	1-48317-900-0	02	1	1307-1311	●
30	BRACKET; AIR TANK,SUB	1-48317-900-0	02	1	1312-	●	●
31	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	1307-1311	●
31	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	1312-	●	●
39	U-BOLT; AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48317-675-0	08	1	1307-1311	●
39	U-BOLT; AIR TANK ANTILOCK BRAKE SYSTEM<BFA>	1-48317-675-0	08	1	1312-	●	●
39	U-BOLT; AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48317-675-0	06	1	1307-1311	●
39	U-BOLT; AIR TANK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48317-675-0	06	1	1312-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	08	1	1307-1311	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	08	1	1312-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M12X25 FLANGE	0-28651-225-0	04	1	1307-1311	●
43	BOLT; STAY,AIR TANK,MAIN (B) M12X25 FLANGE	0-28651-225-0	04	1	1312-	●	●
46	NUT; U-BOLT ANTILOCK BRAKE SYSTEM<BFA> M8	0-91110-508-0	32	1	1307-1311	●
46	NUT; U-BOLT ANTILOCK BRAKE SYSTEM<BFA> M8	0-91110-508-0	32	1	1312-	●	●
46	NUT; U-BOLT EXC. ANTILOCK BRAKE SYSTEM<BFA> M8	0-91110-508-0	24	1	1307-1311	●
46	NUT; U-BOLT EXC. ANTILOCK BRAKE SYSTEM<BFA> M8	0-91110-508-0	24	1	1312-	●	●
67	STAY; SUB TANK (A)	1-48316-070-0	02	1	1307-1311	●
67	STAY; SUB TANK (A)	1-48316-070-0	02	1	1312-	●	●
67	STAY; SUB TANK (B)	1-48316-071-0	04	1	1307-1311	●
67	STAY; SUB TANK (B)	1-48316-071-0	04	1	1312-	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	08	1	1307-1311	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	08	1	1312-	●	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB (A) STAMP 5.5	8-97609-249-0	01	1	1307-1311	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB (A) STAMP 5.5	8-97609-249-0	01	1	1312-	●	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB (B) STAMP 6.0	8-97615-622-0	01	1	1307-1311	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB (B) STAMP 6.0	8-97615-622-0	01	1	1312-	●	●
172	NUT; STAY,AIR TANK,MAIN M12 FLANGE	0-91180-212-0	04	1	1307-1311	●
172	NUT; STAY,AIR TANK,MAIN M12 FLANGE	0-91180-212-0	04	1	1312-	●	●

103 176 126 126 107 126 176 257 101 176 102 126 126 257 257 100 107 105 176 126 126 100 257 317 176 109 107 102 101 257 176 317 103 257 177 113 178 114 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) M8X80 FLANGE	0-28050-880-0	04	1	1307-1311	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) M8X80 FLANGE	0-28050-880-0	04	1	1312-	●	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) M8X140 FLANGE	0-28065-814-0	02	1	1307-1311	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) M8X140 FLANGE	0-28065-814-0	02	1	1312-	●	●
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE	0-91180-108-0	06	1	1307-1311	●
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE	0-91180-108-0	06	1	1312-	●	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-47479-239-0	02	1	1307-1311	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-47479-239-0	02	1	1312-	●	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98191-605-0	01	1	1307-1311	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98191-605-0	01	1	1312-	●	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> M8X30 FLANGE	0-28650-830-0	06	1	1307-1311	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> M8X30 FLANGE	0-28650-830-0	06	1	1312-	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM<BFA>	1-47479-434-1	01	1	1307-1311	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM<BFA>	1-47479-434-1	01	1	1312-	●	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	1307-1311	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	1312-	●	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	1307-1311	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	1312-	●	●
113	HOSE; VINYL,EXH L=650 SERVICED BY L=10000	9-09914-701-0	01	1	1307-1311	●
113	HOSE; VINYL,EXH L=650 SERVICED BY L=10000	9-09914-701-0	01	1	1312-	●	●
114	CLAMP; HOSE ID=14	1-09704-102-0	01	1	1307-1311	●
114	CLAMP; HOSE ID=14	1-09704-102-0	01	1	1312-	●	●
120	NUT; BRKT,RELAY VLV M8 FLANGE	0-91180-108-0	02	1	1307-1311	●
120	NUT; BRKT,RELAY VLV M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (A) PT3/8 ELBOW	1-09660-696-0	01	1	1307-1311	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (A) PT3/8 ELBOW	1-09660-696-0	01	1	1312-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1307-1311	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1312-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8	1-09664-210-0	02	1	1307-1311	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8	1-09664-210-0	02	1	1312-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1307-1311	●
176	ADAPTER ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1312-	●	●
177	HOSE; RUBBER,DRAIN L=250	0-02115-250-0	01	1	1307-1311	●
177	HOSE; RUBBER,DRAIN L=250	0-02115-250-0	01	1	1312-	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1307-1311	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1312-	●	●
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM<BFA> ID=22.5	9-09571-422-0	08	1	1307-1311	●
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM<BFA> ID=22.5	9-09571-422-0	08	1	1312-	●	●
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	1307-1311	●
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	1312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
