◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#123916) — 26 parça

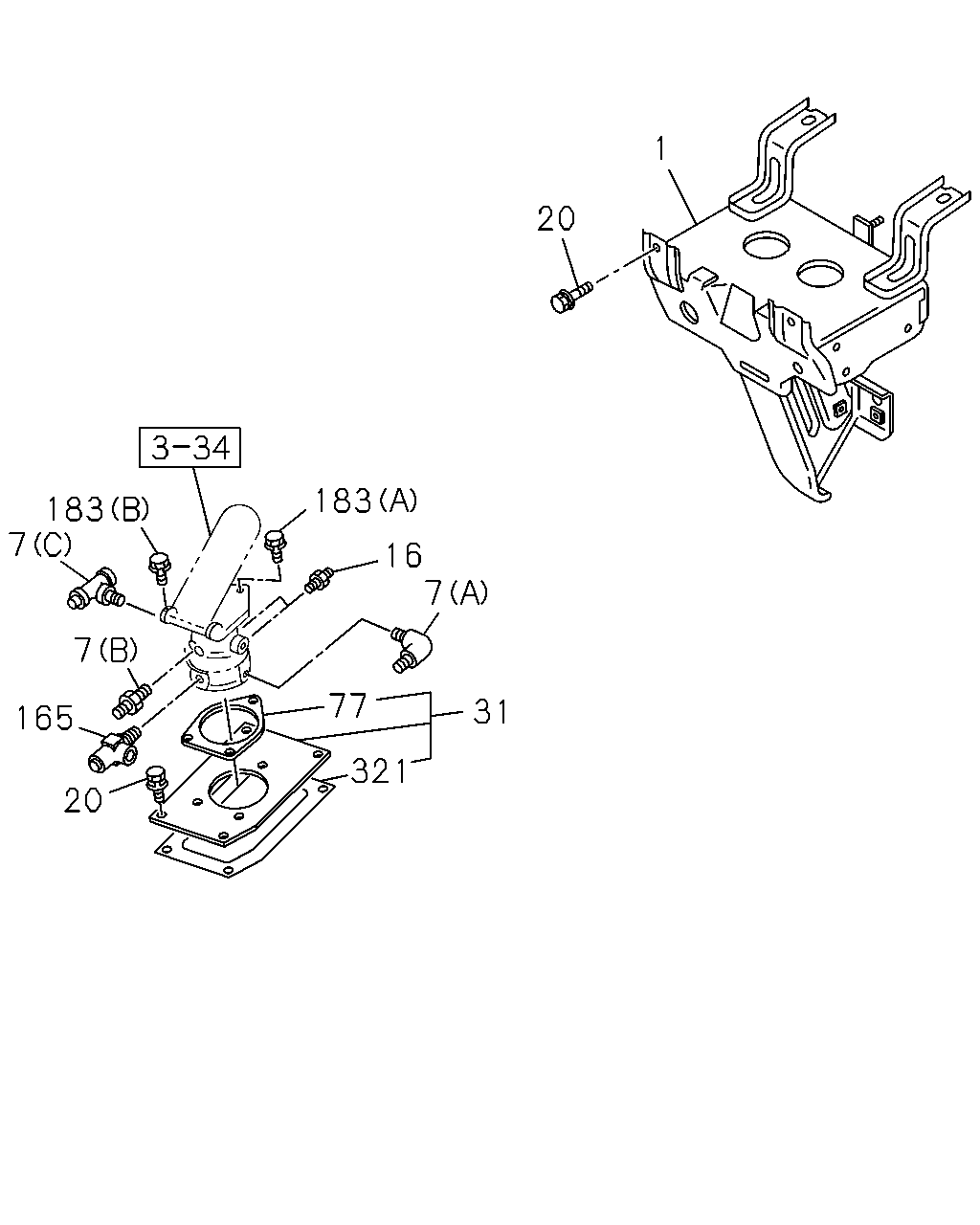

çizim 363997
1 20 183 7 31 321 77 183 7 165 20 16 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 1-73908-280-1 01 1 1307-1311 ●
1 BRACKET ASM; PEDAL 1-73908-280-1 01 1 1312- ● ●
7 CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307-1311 ●
7 CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1312- ● ●
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1307-1311 ●
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1312- ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 & RC1/4 3WAY 		1-09660-988-1 01 1 1307-1311 ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 & RC1/4 3WAY 		1-09660-988-1 01 1 1312- ● ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 02 1 1307-1311 ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 02 1 1312- ● ●
20 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 1307-1311 ●
20 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 1312- ● ●
20 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1307-1311 ●
20 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1312- ● ●
31 PLATE; MTG,BRKT VLV 1-73996-329-1 01 1 1307-1311 ●
31 PLATE; MTG,BRKT VLV 1-73996-329-1 01 1 1312- ● ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 1307-1311 ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 1312- ● ●
165 CONNECTOR; SECONDARY DELIVERY
DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1307-1311 ●
165 CONNECTOR; SECONDARY DELIVERY
DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1312- ● ●
183 BOLT; BRK VLV
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1311 ●
183 BOLT; BRK VLV
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1312- ● ●
183 BOLT; BRK VLV
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1307-1311 ●
183 BOLT; BRK VLV
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1312- ● ●
321 SEAL; VALVE 1-73996-143-0 01 1 1307-1311 ●
321 SEAL; VALVE 1-73996-143-0 01 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
