◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53 - TRANSMISSION OIL COOLER SYSTEM ▶
2-53 — TRANSMISSION OIL COOLER SYSTEM (#123913) — 120 parça

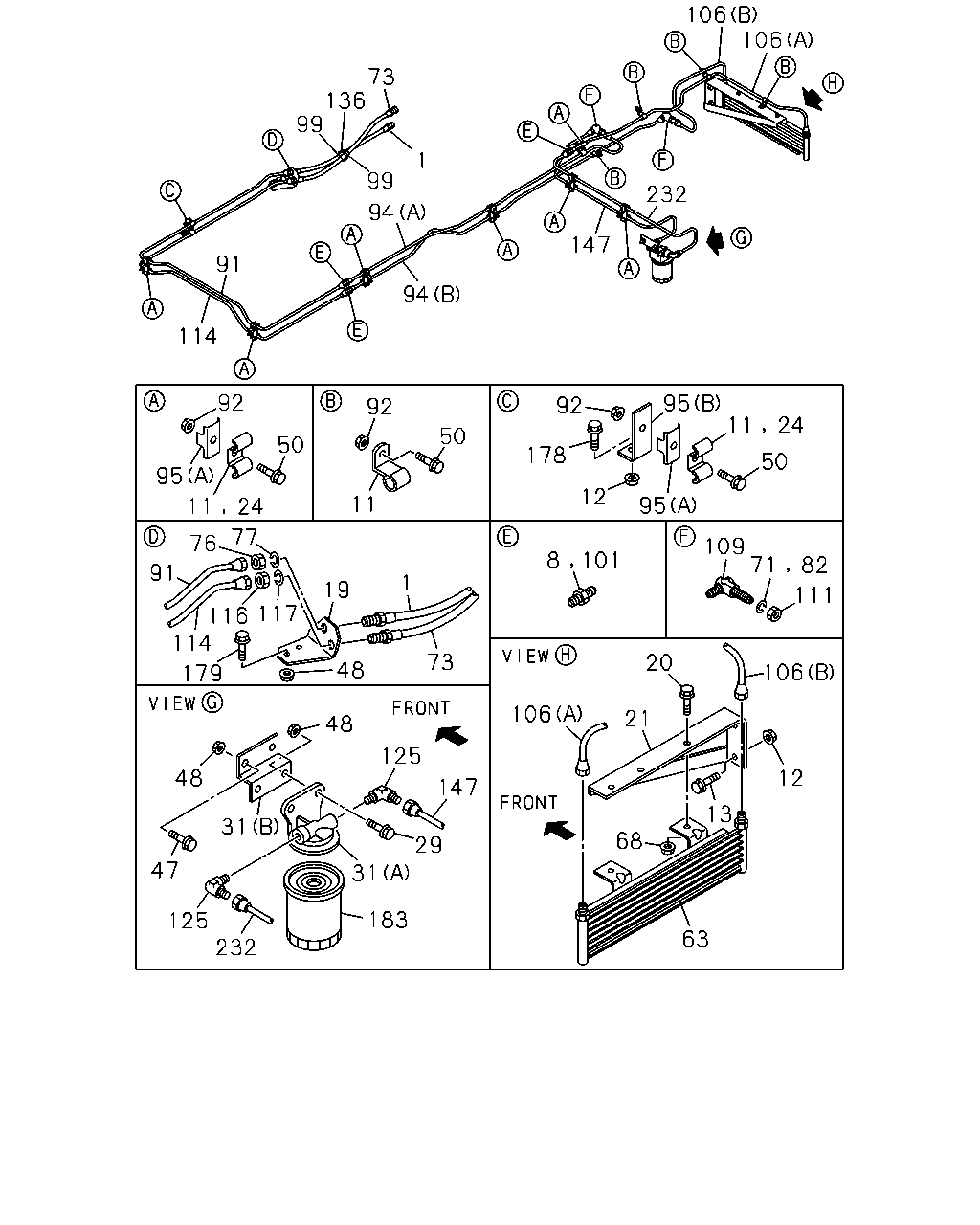

çizim 366452
106 106 232 147 94 94 99 1 73 136 99 91 114 92 95 50 24 11 92 11 50 92 95 24 11 95 50 178 12 76 91 77 19 117 116 114 179 48 1 73 8 101 109 71 111 48 48 125 147 29 31 183 232 125 47 31 20 21 12 13 68 63 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
BUS BODY REAR OVERHANG<YK4> L=465 		1-09365-146-0 01 1 1404-1404 ● ●
1 HOSE; ATF
L=565 		1-09365-086-0 01 1 1307-1311 ●
1 HOSE; ATF
L=565 		1-09365-086-0 01 1 1312-1403 ● ●
1 HOSE; ATF
EXC. BUS BODY REAR OVERHANG<YK4> L=565 		1-09365-086-0 01 1 1404-1404 ● ●
1 HOSE; ATF
L=565 		1-09365-086-0 01 1 1405- ● ●
8 UNION
M16 STRAIGHT L=42 		0-92123-010-0 02 1 1307-1311 ●
8 UNION
M16 STRAIGHT L=42 		0-92123-010-0 02 1 1312- ● ●
11 CLIP; PIPE
ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 06 1 1307-1311 ●
11 CLIP; PIPE
ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 06 1 1312- ● ●
11 CLIP; PIPE
ID=11 H=20 L=20 		8-98033-780-0 04 1 1307-1311 ●
11 CLIP; PIPE
ID=11 H=20 L=20 		8-98033-780-0 04 1 1312- ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1312-1403 ● ●
12 NUT; BRKT
EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 01 1 1404- ● ●
12 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1311 ●
12 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1312- ● ●
13 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1307-1311 ●
13 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1312- ● ●
19 BRACKET; FLEX HOSE 1-47479-089-0 01 1 1307-1311 ●
19 BRACKET; FLEX HOSE 1-47479-089-0 01 1 1312- ● ●
20 BOLT; COOLER TO BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 1307-1311 ●
20 BOLT; COOLER TO BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 1312- ● ●
21 BRACKET; COOLER 8-98226-471-0 01 1 1307-1311 ●
21 BRACKET; COOLER 8-98226-471-0 01 1 1312- ● ●
24 CLIP; OIL PIPE
ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 02 1 1307-1311 ●
24 CLIP; OIL PIPE
ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 02 1 1312- ● ●
29 BOLT; FILTER TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1307-1311 ●
29 BOLT; FILTER TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1312- ● ●
31 BRACKET; OIL FILTER
(B) 		1-32569-081-0 01 1 1307-1311 ●
31 BRACKET; OIL FILTER
(B) 		1-32569-081-0 01 1 1312- ● ●
31 BRACKET; OIL FILTER
(A) 		1-33119-222-0 01 1 1307-1311 ●
31 BRACKET; OIL FILTER
(A) 		1-33119-222-0 01 1 1312- ● ●
47 BOLT; BRKT TO FRAME
M10X25 FLANGE 		0-28651-025-0 02 1 1307-1311 ●
47 BOLT; BRKT TO FRAME
M10X25 FLANGE 		0-28651-025-0 02 1 1312- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1312- ● ●
48 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1307-1311 ●
48 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312- ● ●
50 BOLT; CLIP
BUS BODY REAR OVERHANG<YK4> M8X50 FLANGE 		0-28050-850-0 01 1 1404- ● ●
50 BOLT; CLIP
BUS BODY REAR OVERHANG<YK4> A POINT M8X40 FLANGE 		0-28650-840-0 01 1 1404- ● ●
50 BOLT; CLIP
EXC. BUS BODY REAR OVERHANG<YK4> A POINT M8X40 FLANGE 		0-28650-840-0 02 1 1404- ● ●
50 BOLT; CLIP
FLAT POINT M8X40 FLANGE 		0-28050-840-0 03 1 1307-1311 ●
50 BOLT; CLIP
FLAT POINT M8X40 FLANGE 		0-28050-840-0 03 1 1312- ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 1307-1311 ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 1312- ● ●
50 BOLT; CLIP
A POINT M8X40 FLANGE 		0-28650-840-0 05 1 1307-1311 ●
50 BOLT; CLIP
A POINT M8X40 FLANGE 		0-28650-840-0 05 1 1312-1403 ● ●
50 BOLT; CLIP
A POINT M8X40 FLANGE 		0-28650-840-0 03 1 1404- ● ●
63 COOLER; OIL 1-21700-394-0 01 1 1307-1311 ●
63 COOLER; OIL 1-21700-394-0 01 1 1312-1405 ● ●
63 COOLER; OIL 8-98269-766-0 01 1 1406- ● ●
68 NUT; COOLER
M10 FLANGE 		0-91180-210-0 02 1 1307-1311 ●
68 NUT; COOLER
M10 FLANGE 		0-91180-210-0 02 1 1312- ● ●
71 WASHER; CLIP
ID=16.2 		0-91510-516-0 01 1 1307-1311 ●
71 WASHER; CLIP
ID=16.2 		0-91510-516-0 01 1 1312- ● ●
73 HOSE; FLEX,TRANS
BUS BODY REAR OVERHANG<YK4> L=465 		1-09365-146-0 01 1 1404-1404 ● ●
73 HOSE; FLEX,TRANS
L=565 		1-09365-086-0 01 1 1307-1311 ●
73 HOSE; FLEX,TRANS
L=565 		1-09365-086-0 01 1 1312-1403 ● ●
73 HOSE; FLEX,TRANS
EXC. BUS BODY REAR OVERHANG<YK4> L=565 		1-09365-086-0 01 1 1404-1404 ● ●
73 HOSE; FLEX,TRANS
L=565 		1-09365-086-0 01 1 1405- ● ●
76 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 1307-1311 ●
76 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 1312- ● ●
77 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 1307-1311 ●
77 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 1312- ● ●
82 WASHER; LK,UNION
ID=16.2 		0-91510-516-0 01 1 1307-1311 ●
82 WASHER; LK,UNION
ID=16.2 		0-91510-516-0 01 1 1312- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
BUS BODY REAR OVERHANG<YK4> L=1414 SERVICED BY L=1550 		1-47428-879-0 01 1 1404- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=1846 SERVICED BY L=1900 		1-47428-881-0 01 1 1307-1311 ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=1846 SERVICED BY L=1900 		1-47428-881-0 01 1 1312-1403 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
EXC. BUS BODY REAR OVERHANG<YK4> L=1846 SERVICED BY L=1900 		1-47428-881-0 01 1 1404- ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 11 1 1307-1311 ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 11 1 1312- ● ●
94 PIPE; OIL,UNION TO UNION
BUS BODY REAR OVERHANG<YK4> (A) L=1171 SERVICED BY L=1250 		1-47428-876-0 01 1 1404- ● ●
94 PIPE; OIL,UNION TO UNION
BUS BODY REAR OVERHANG<YK4> (B) L=1520 SERVICED BY L=1550 		1-47428-879-0 01 1 1404- ● ●
94 PIPE; OIL,UNION TO UNION
(A) L=1341 SERVICED BY L=1400 		1-47428-878-0 01 1 1307-1311 ●
94 PIPE; OIL,UNION TO UNION
(A) L=1341 SERVICED BY L=1400 		1-47428-878-0 01 1 1312-1403 ● ●
94 PIPE; OIL,UNION TO UNION
EXC. BUS BODY REAR OVERHANG<YK4> (A) L=1341 SERVICED BY L=1400 		1-47428-878-0 01 1 1404- ● ●
94 PIPE; OIL,UNION TO UNION
(B) L=1690 SERVICED BY L=1700 		1-47428-880-0 01 1 1307-1311 ●
94 PIPE; OIL,UNION TO UNION
(B) L=1690 SERVICED BY L=1700 		1-47428-880-0 01 1 1312-1403 ● ●
94 PIPE; OIL,UNION TO UNION
EXC. BUS BODY REAR OVERHANG<YK4> (B) L=1690 SERVICED BY L=1700 		1-47428-880-0 01 1 1404- ● ●
95 BRACKET; CLIP
(A) 		1-47475-427-1 08 1 1307-1311 ●
95 BRACKET; CLIP
(A) 		1-47475-427-1 08 1 1312- ● ●
95 BRACKET; CLIP
(B) L=68 		1-47475-525-0 01 1 1307-1311 ●
95 BRACKET; CLIP
(B) L=68 		1-47475-525-0 01 1 1312-1403 ● ●
95 BRACKET; CLIP
EXC. BUS BODY REAR OVERHANG<YK4> (B) L=68 		1-47475-525-0 01 1 1404- ● ●
99 SLEEVE; RUBBER,FLEX HOSE
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1307-1311 ●
99 SLEEVE; RUBBER,FLEX HOSE
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1312- ● ●
101 UNION; FLEX HOSE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 1307-1311 ●
101 UNION; FLEX HOSE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 1312- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1331 		8-98191-330-0 01 1 1307-1311 ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1331 		8-98191-330-0 01 1 1312- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=841 		8-98191-332-0 01 1 1307-1311 ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=841 		8-98191-332-0 01 1 1312- ● ●
109 UNION
M16 ELBOW 		0-92135-210-0 02 1 1307-1311 ●
109 UNION
M16 ELBOW 		0-92135-210-0 02 1 1312- ● ●
111 NUT; UNION
M16 		0-91111-516-0 02 1 1307-1311 ●
111 NUT; UNION
M16 		0-91111-516-0 02 1 1312- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
BUS BODY REAR OVERHANG<YK4> L=1439 SERVICED BY L=1550 		1-47428-879-0 01 1 1404- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=1877 SERVICED BY L=1900 		1-47428-881-0 01 1 1307-1311 ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=1877 SERVICED BY L=1900 		1-47428-881-0 01 1 1312-1403 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
EXC. BUS BODY REAR OVERHANG<YK4> L=1877 SERVICED BY L=1900 		1-47428-881-0 01 1 1404- ● ●
116 NUT; BRKT,FLEX HOSE
M16 		0-91111-516-0 01 1 1307-1311 ●
116 NUT; BRKT,FLEX HOSE
M16 		0-91111-516-0 01 1 1312- ● ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 01 1 1307-1311 ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 01 1 1312- ● ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 1307-1311 ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 1312- ● ●
136 CLIP; FLEX HOSE
L=140 		5-09707-031-1 01 1 1307-1311 ●
136 CLIP; FLEX HOSE
L=140 		5-09707-031-1 01 1 1312- ● ●
147 PIPE; OIL,UNION TO FILTER
L=1236 SERVICED BY L=1250 		1-47428-876-0 01 1 1307-1311 ●
147 PIPE; OIL,UNION TO FILTER
L=1236 SERVICED BY L=1250 		1-47428-876-0 01 1 1312- ● ●
178 BOLT; BRKT,CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1307-1311 ●
178 BOLT; BRKT,CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1312-1403 ● ●
178 BOLT; BRKT,CLIP
EXC. BUS BODY REAR OVERHANG<YK4> M8X35 FLANGE 		0-28650-835-0 01 1 1404- ● ●
179 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1307-1311 ●
179 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1312- ● ●
183 CARTRIDGE; OIL FILTER 8-94459-700-1 01 1 1307-1311 ●
183 CARTRIDGE; OIL FILTER 8-94459-700-1 01 1 1312- ● ●
232 PIPE; OIL,FILTER TO UNION
L=1062 SERVICED BY L=1100 		1-47428-875-0 01 1 1307-1311 ●
232 PIPE; OIL,FILTER TO UNION
L=1062 SERVICED BY L=1100 		1-47428-875-0 01 1 1312- ● ●
