11523 - LV152/452(LHD) EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶

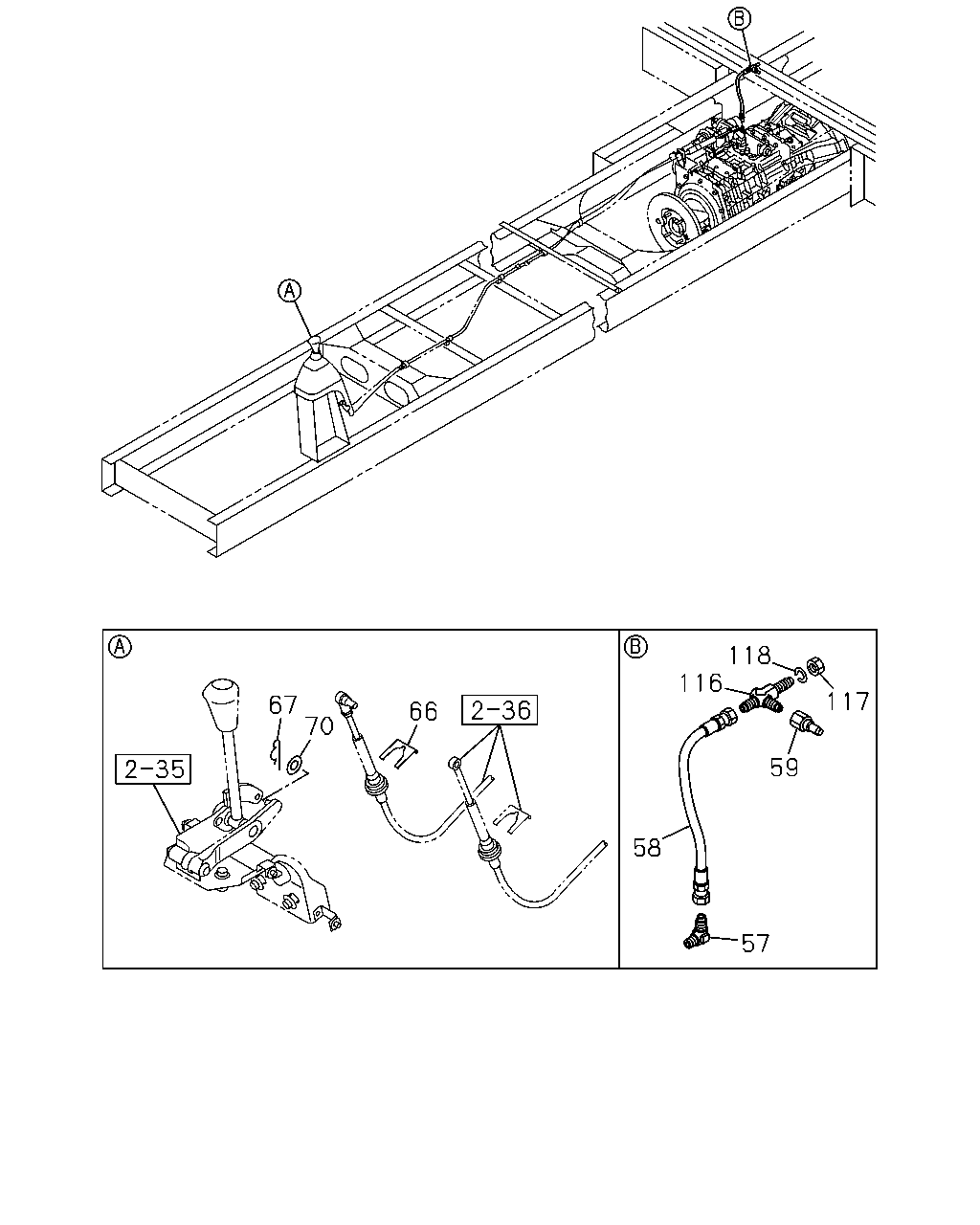

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#123910) — 20 parça
Tümü
A - LVR6FB
B - LVD6FB
67
66
116
59
117
118
57
58
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
57
NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1307-1311
●
57
NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1312-
●
●
58
HOSE; FLEX,POWER ASSISTOR
BUS BODY REAR OVERHANG<YK4> L=260
1-09363-876-0
01
1
1405-
●
●
58
HOSE; FLEX,POWER ASSISTOR
L=250
1-09363-618-0
01
1
1307-1311
●
58
HOSE; FLEX,POWER ASSISTOR
L=250
1-09363-618-0
01
1
1312-1404
●
●
58
HOSE; FLEX,POWER ASSISTOR
EXC. BUS BODY REAR OVERHANG<YK4> L=250
1-09363-618-0
01
1
1405-
●
●
59
CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1307-1311
●
59
CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1312-
●
●
66
CLIP; SELECT BRKT
1-09700-966-1
01
1
1307-1311
●
66
CLIP; SELECT BRKT
1-09700-966-1
01
1
1312-
●
●
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94111-137-0
01
1
1307-1311
●
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94111-137-0
01
1
1312-
●
●
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=16
0-91614-508-0
01
1
1307-1311
●
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=16
0-91614-508-0
01
1
1312-
●
●
116
UNION; AIR PIPE
M12 2WAY
1-09654-059-2
01
1
1307-1311
●
116
UNION; AIR PIPE
M12 2WAY
1-09654-059-2
01
1
1312-
●
●
117
NUT; UNION,AIR PIPE
M12
0-91111-512-0
01
1
1307-1311
●
117
NUT; UNION,AIR PIPE
M12
0-91111-512-0
01
1
1312-
●
●
118
WASHER; LK,UNION
ID=12.2
0-91510-512-0
01
1
1307-1311
●
118
WASHER; LK,UNION
ID=12.2
0-91510-512-0
01
1
1312-
●
●
