11523 - LV152/452(LHD) EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#123909) — 86 parça
Tümü
A - LVR6FB
B - LVD6FB
◀

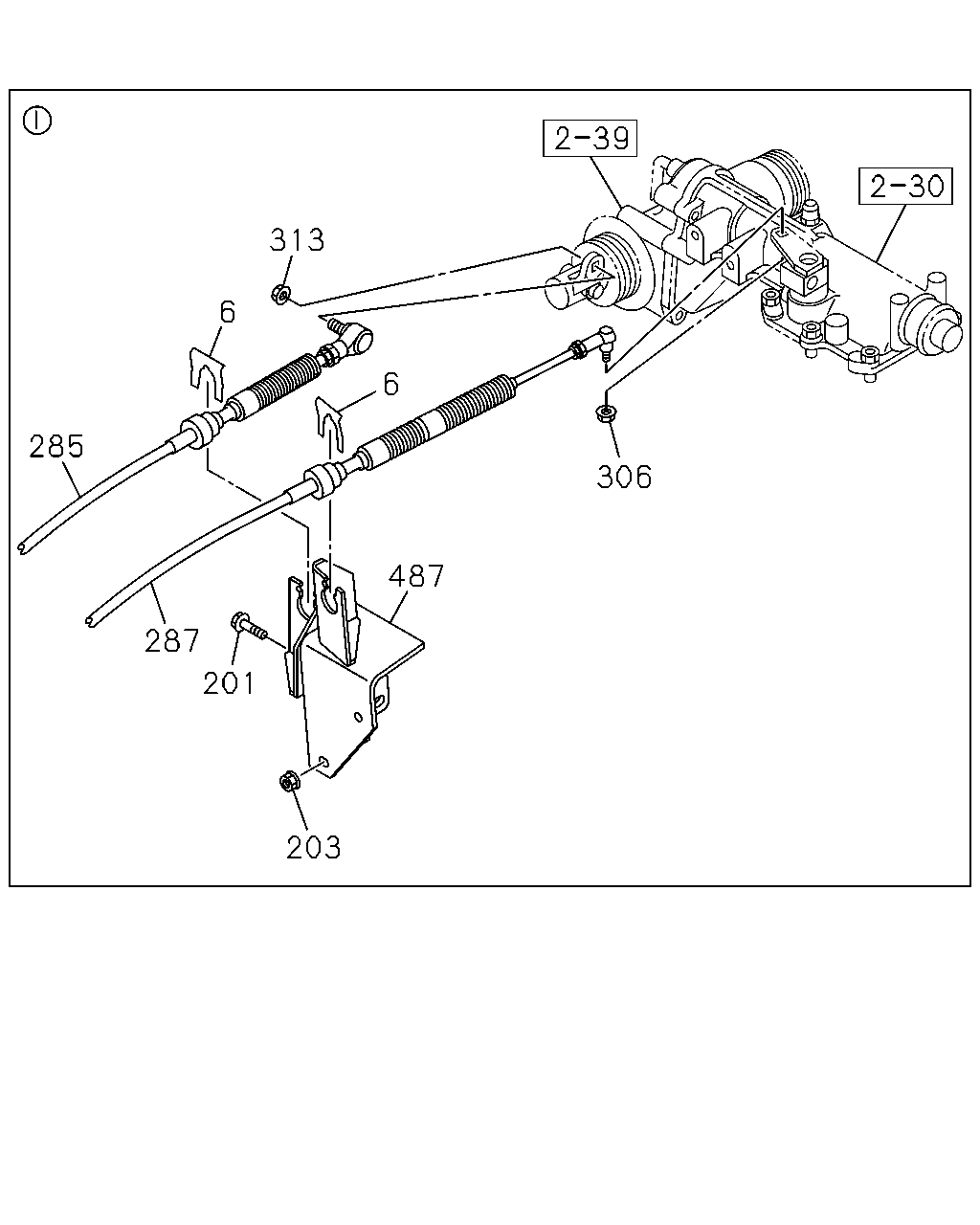

[236A] NO.3 (24 parça)

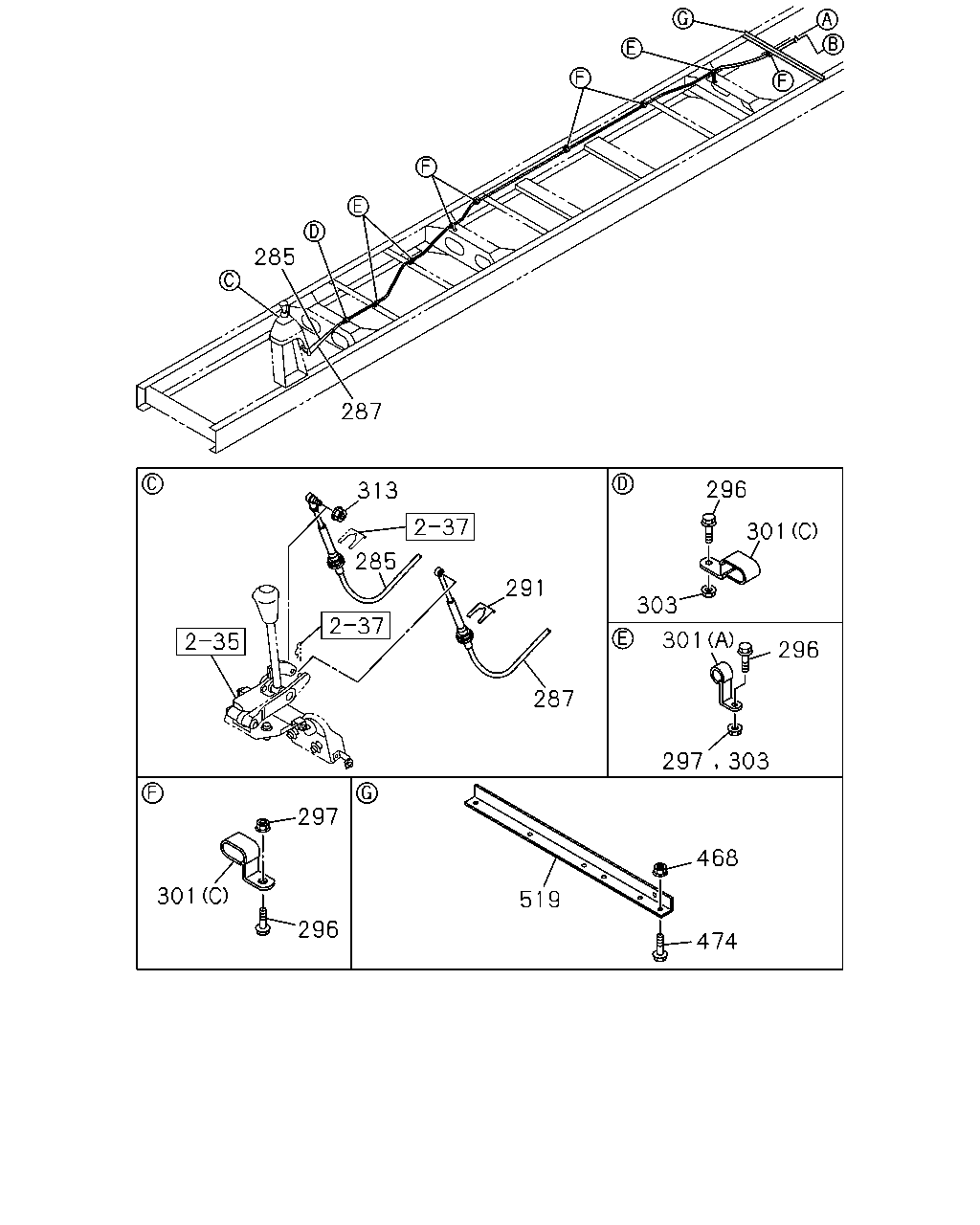

[236A] NO.1 (38 parça)

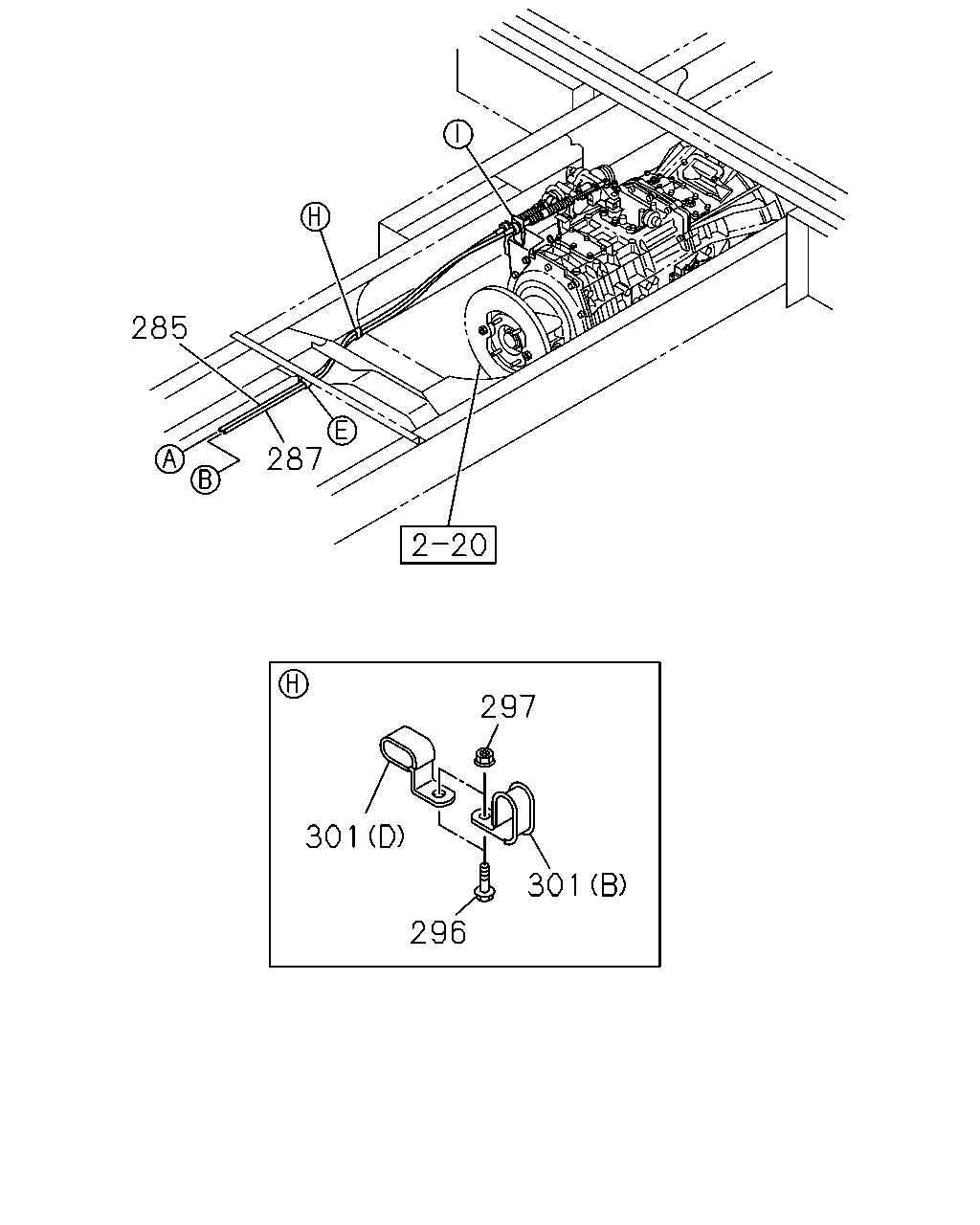

[236A] NO.2 (24 parça)
▶
306
487
203
201
287
285
313
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
CLIP; CABLE
ID=22.2
1-09701-209-1
02
1
1307-1311
●
6
CLIP; CABLE
ID=22.2
1-09701-209-1
02
1
1312-
●
●
201
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
01
1
1307-1311
●
201
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
01
1
1312-
●
●
203
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
02
1
1307-1311
●
203
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
02
1
1312-
●
●
285
WIRE; SHIFT,TRANS CONT
BUS BODY REAR OVERHANG<YK4>
8-98270-300-0
01
1
1404-
●
●
285
WIRE; SHIFT,TRANS CONT
8-98191-776-0
01
1
1307-1311
●
285
WIRE; SHIFT,TRANS CONT
8-98191-776-0
01
1
1312-1403
●
●
285
WIRE; SHIFT,TRANS CONT
EXC. BUS BODY REAR OVERHANG<YK4>
8-98191-776-0
01
1
1404-
●
●
287
WIRE; SELECT,TRANS CONT
BUS BODY REAR OVERHANG<YK4>
8-98270-301-0
01
1
1404-
●
●
287
WIRE; SELECT,TRANS CONT
8-98191-778-0
01
1
1307-1311
●
287
WIRE; SELECT,TRANS CONT
8-98191-778-0
01
1
1312-1403
●
●
287
WIRE; SELECT,TRANS CONT
EXC. BUS BODY REAR OVERHANG<YK4>
8-98191-778-0
01
1
1404-
●
●
306
NUT; WIRE BRKT
M8 FLANGE
1-09440-062-1
01
1
1307-1311
●
306
NUT; WIRE BRKT
M8 FLANGE
1-09440-062-1
01
1
1312-
●
●
313
NUT; CLIP BRKT
M10 FLANGE
1-09440-061-0
01
1
1307-1311
●
313
NUT; CLIP BRKT
M10 FLANGE
1-09440-061-0
01
1
1312-
●
●
313
NUT; CLIP BRKT
M8 FLANGE
1-09440-062-1
01
1
1307-1311
●
313
NUT; CLIP BRKT
M8 FLANGE
1-09440-062-1
01
1
1312-
●
●
487
BRACKET; CONT CABLE
BUS BODY REAR OVERHANG<YK4>
8-98268-512-0
01
1
1404-
●
●
487
BRACKET; CONT CABLE
8-98191-529-1
01
1
1307-1311
●
487
BRACKET; CONT CABLE
8-98191-529-1
01
1
1312-1403
●
●
487
BRACKET; CONT CABLE
EXC. BUS BODY REAR OVERHANG<YK4>
8-98191-529-1
01
1
1404-
●
●
285
287
296
301
296
301
303
297
303
468
474
519
297
287
291
285
313
301
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
285
WIRE; SHIFT,TRANS CONT
BUS BODY REAR OVERHANG<YK4>
8-98270-300-0
01
1
1404-
●
●
285
WIRE; SHIFT,TRANS CONT
8-98191-776-0
01
1
1307-1311
●
285
WIRE; SHIFT,TRANS CONT
8-98191-776-0
01
1
1312-1403
●
●
285
WIRE; SHIFT,TRANS CONT
EXC. BUS BODY REAR OVERHANG<YK4>
8-98191-776-0
01
1
1404-
●
●
287
WIRE; SELECT,TRANS CONT
BUS BODY REAR OVERHANG<YK4>
8-98270-301-0
01
1
1404-
●
●
287
WIRE; SELECT,TRANS CONT
8-98191-778-0
01
1
1307-1311
●
287
WIRE; SELECT,TRANS CONT
8-98191-778-0
01
1
1312-1403
●
●
287
WIRE; SELECT,TRANS CONT
EXC. BUS BODY REAR OVERHANG<YK4>
8-98191-778-0
01
1
1404-
●
●
291
CLIP; SHIFT TO SELECT,FRAME
1-09700-966-1
01
1
1307-1311
●
291
CLIP; SHIFT TO SELECT,FRAME
1-09700-966-1
01
1
1312-
●
●
296
BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE
0-28650-825-0
02
1
1312-1403
●
296
BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE
0-28650-825-0
01
1
1404-
●
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28650-820-0
11
1
1307-1311
●
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28650-820-0
11
1
1312-
●
●
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
10
1
1312-1403
●
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
09
1
1404-
●
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
08
1
1307-
●
301
CLIP; WIRE
BUS BODY REAR OVERHANG<YK4> (D) ID=13 & 13 L=20 H=21.5
8-94125-947-0
01
1
1404-
●
●
301
CLIP; WIRE
(C) ID=13 & 13 L=20 H=21.5
8-98033-769-0
09
1
1312-1403
●
301
CLIP; WIRE
(C) ID=13 & 13 L=20 H=21.5
8-98033-769-0
08
1
1404-
●
301
CLIP; WIRE
(A) ID=13X2 H=25 L=50
1-09700-777-0
03
1
1307-1311
●
301
CLIP; WIRE
(A) ID=13X2 H=25 L=50
1-09700-777-0
03
1
1312-
●
●
301
CLIP; WIRE
(B) ID=15
1-09700-845-1
01
1
1307-1311
●
301
CLIP; WIRE
(B) ID=15
1-09700-845-1
01
1
1312-1403
●
●
301
CLIP; WIRE
EXC. BUS BODY REAR OVERHANG<YK4> (B) ID=15
1-09700-845-1
01
1
1404-
●
●
301
CLIP; WIRE
(C) ID=13 & 13 L=20 H=21.5
8-98033-769-0
07
1
1307-
●
303
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1307-1311
●
303
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1312-
●
●
313
NUT; CLIP BRKT
M10 FLANGE
1-09440-061-0
01
1
1307-1311
●
313
NUT; CLIP BRKT
M10 FLANGE
1-09440-061-0
01
1
1312-
●
●
313
NUT; CLIP BRKT
M8 FLANGE
1-09440-062-1
01
1
1307-1311
●
313
NUT; CLIP BRKT
M8 FLANGE
1-09440-062-1
01
1
1312-
●
●
468
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1307-1311
●
468
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1312-
●
●
474
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1307-1311
●
474
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1312-
●
●
519
BRACKET; FRAME
8-98191-531-0
01
1
1307-1311
●
519
BRACKET; FRAME
8-98191-531-0
01
1
1312-
●
●
285
287
301
297
296
301
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
285
WIRE; SHIFT,TRANS CONT
BUS BODY REAR OVERHANG<YK4>
8-98270-300-0
01
1
1404-
●
●
285
WIRE; SHIFT,TRANS CONT
8-98191-776-0
01
1
1307-1311
●
285
WIRE; SHIFT,TRANS CONT
8-98191-776-0
01
1
1312-1403
●
●
285
WIRE; SHIFT,TRANS CONT
EXC. BUS BODY REAR OVERHANG<YK4>
8-98191-776-0
01
1
1404-
●
●
287
WIRE; SELECT,TRANS CONT
BUS BODY REAR OVERHANG<YK4>
8-98270-301-0
01
1
1404-
●
●
287
WIRE; SELECT,TRANS CONT
8-98191-778-0
01
1
1307-1311
●
287
WIRE; SELECT,TRANS CONT
8-98191-778-0
01
1
1312-1403
●
●
287
WIRE; SELECT,TRANS CONT
EXC. BUS BODY REAR OVERHANG<YK4>
8-98191-778-0
01
1
1404-
●
●
296
BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE
0-28650-825-0
02
1
1312-1403
●
296
BOLT; CLIP,SHIFT & SELECT
M8X25 FLANGE
0-28650-825-0
01
1
1404-
●
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28650-820-0
11
1
1307-1311
●
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28650-820-0
11
1
1312-
●
●
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
10
1
1312-1403
●
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
09
1
1404-
●
297
NUT; CLIP
M8 FLANGE
0-91180-108-0
08
1
1307-
●
301
CLIP; WIRE
BUS BODY REAR OVERHANG<YK4> (D) ID=13 & 13 L=20 H=21.5
8-94125-947-0
01
1
1404-
●
●
301
CLIP; WIRE
(C) ID=13 & 13 L=20 H=21.5
8-98033-769-0
09
1
1312-1403
●
301
CLIP; WIRE
(C) ID=13 & 13 L=20 H=21.5
8-98033-769-0
08
1
1404-
●
301
CLIP; WIRE
(A) ID=13X2 H=25 L=50
1-09700-777-0
03
1
1307-1311
●
301
CLIP; WIRE
(A) ID=13X2 H=25 L=50
1-09700-777-0
03
1
1312-
●
●
301
CLIP; WIRE
(B) ID=15
1-09700-845-1
01
1
1307-1311
●
301
CLIP; WIRE
(B) ID=15
1-09700-845-1
01
1
1312-1403
●
●
301
CLIP; WIRE
EXC. BUS BODY REAR OVERHANG<YK4> (B) ID=15
1-09700-845-1
01
1
1404-
●
●
301
CLIP; WIRE
(C) ID=13 & 13 L=20 H=21.5
8-98033-769-0
07
1
1307-
●
