◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#123908) — 44 parça

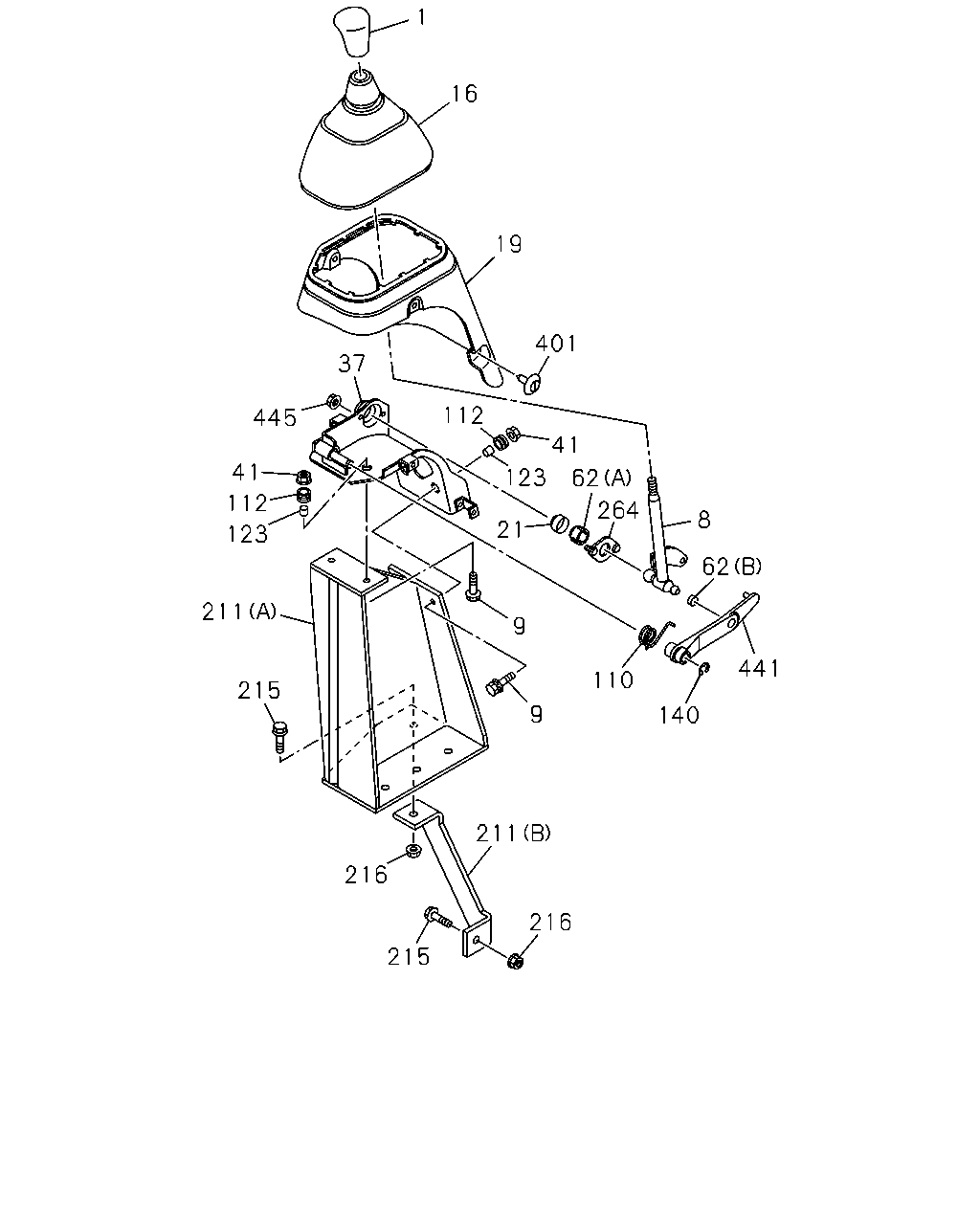

çizim 363149
1 16 19 401 41 123 112 62 264 8 62 441 140 110 21 9 9 211 216 215 216 215 211 123 112 41 445 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-082-1 01 1 1307-1311 ●
1 KNOB; CHANGE LEVER 1-33611-082-1 01 1 1312- ● ●
8 LEVER; CHANGE 8-98093-456-0 01 1 1307-1311 ●
8 LEVER; CHANGE 8-98093-456-0 01 1 1312- ● ●
9 BOLT; CHANGE LEVER
M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1307-1311 ●
9 BOLT; CHANGE LEVER
M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1312- ● ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 1307-1311 ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 1312- ● ●
19 COVER; CHANGE LEVER 1-79996-415-1 01 1 1307-1311 ●
19 COVER; CHANGE LEVER 1-79996-415-1 01 1 1312- ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1307-1311 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1312- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98093-462-0 01 1 1307-1311 ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98093-462-0 01 1 1312- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1307-1311 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1312- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1307-1311 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1312- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1307-1311 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1312- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1307-1311 ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1312- ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1307-1311 ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1312- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1307-1311 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1312- ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1307-1311 ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1312- ● ●
211 BRACKET; CHANGE LEVER
(A) 		8-98191-501-0 01 1 1307-1311 ●
211 BRACKET; CHANGE LEVER
(A) 		8-98191-501-0 01 1 1312- ● ●
211 BRACKET; CHANGE LEVER
(B) 		8-98191-527-0 01 1 1307-1311 ●
211 BRACKET; CHANGE LEVER
(B) 		8-98191-527-0 01 1 1312- ● ●
215 BOLT; BRKT,CHANGE LEVER
M12X40 FLANGE 		0-28651-240-0 05 1 1307-1311 ●
215 BOLT; BRKT,CHANGE LEVER
M12X40 FLANGE 		0-28651-240-0 05 1 1312- ● ●
216 NUT; BRKT,CHANGE LEVER
M12 FLANGE 		0-91180-212-0 05 1 1307-1311 ●
216 NUT; BRKT,CHANGE LEVER
M12 FLANGE 		0-91180-212-0 05 1 1312- ● ●
264 PLATE; COVER 1-33619-430-0 01 1 1307-1311 ●
264 PLATE; COVER 1-33619-430-0 01 1 1312- ● ●
401 CLIP; COVER
D8X13.5 		1-09987-270-0 04 1 1307-1311 ●
401 CLIP; COVER
D8X13.5 		1-09987-270-0 04 1 1312- ● ●
441 LEVER; SELECT 8-98093-449-0 01 1 1307-1311 ●
441 LEVER; SELECT 8-98093-449-0 01 1 1312- ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1307-1311 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
