Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#123904) — 54 parça

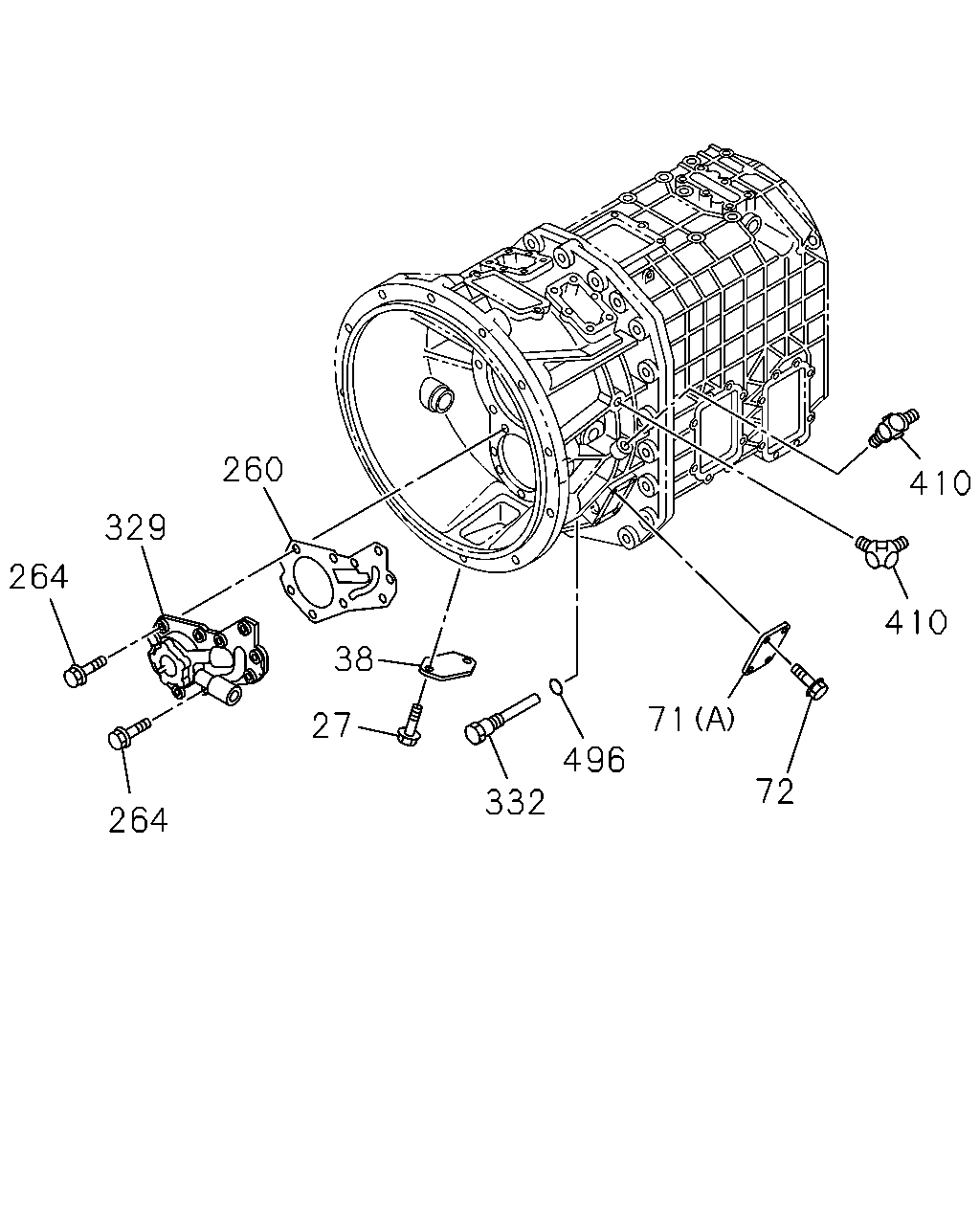

264 329 260 38 27 264 332 496 71 410 410 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1307-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1307-
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	1307-
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1307-
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1307-
72	BOLT; SIDE COVER M10X30 FLANGE	0-28151-030-0	04	1	1307-
72	BOLT; SIDE COVER M12X40 FLANGE	0-28151-240-0	07	1	1307-
72	BOLT; SIDE COVER M12X30 FLANGE	0-28751-230-0	08	1	1307-
72	BOLT; SIDE COVER M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1307-
260	GASKET; OIL PUMP	1-34142-031-0	01	1	1307-
264	BOLT; OIL PUMP M10X70 FLANGE	0-28151-070-0	01	1	1307-
264	BOLT; OIL PUMP M10X40 FLANGE	8-98230-249-0	09	1	1307-
329	PUMP ASM; OIL	1-34150-112-0	01	1	1307-
332	FILTER; OIL	1-34159-050-1	01	1	1307-
410	UNION; OIL PIPE R1/4 & M16 ELBOW	1-09660-800-1	02	1	1307-
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	1307-

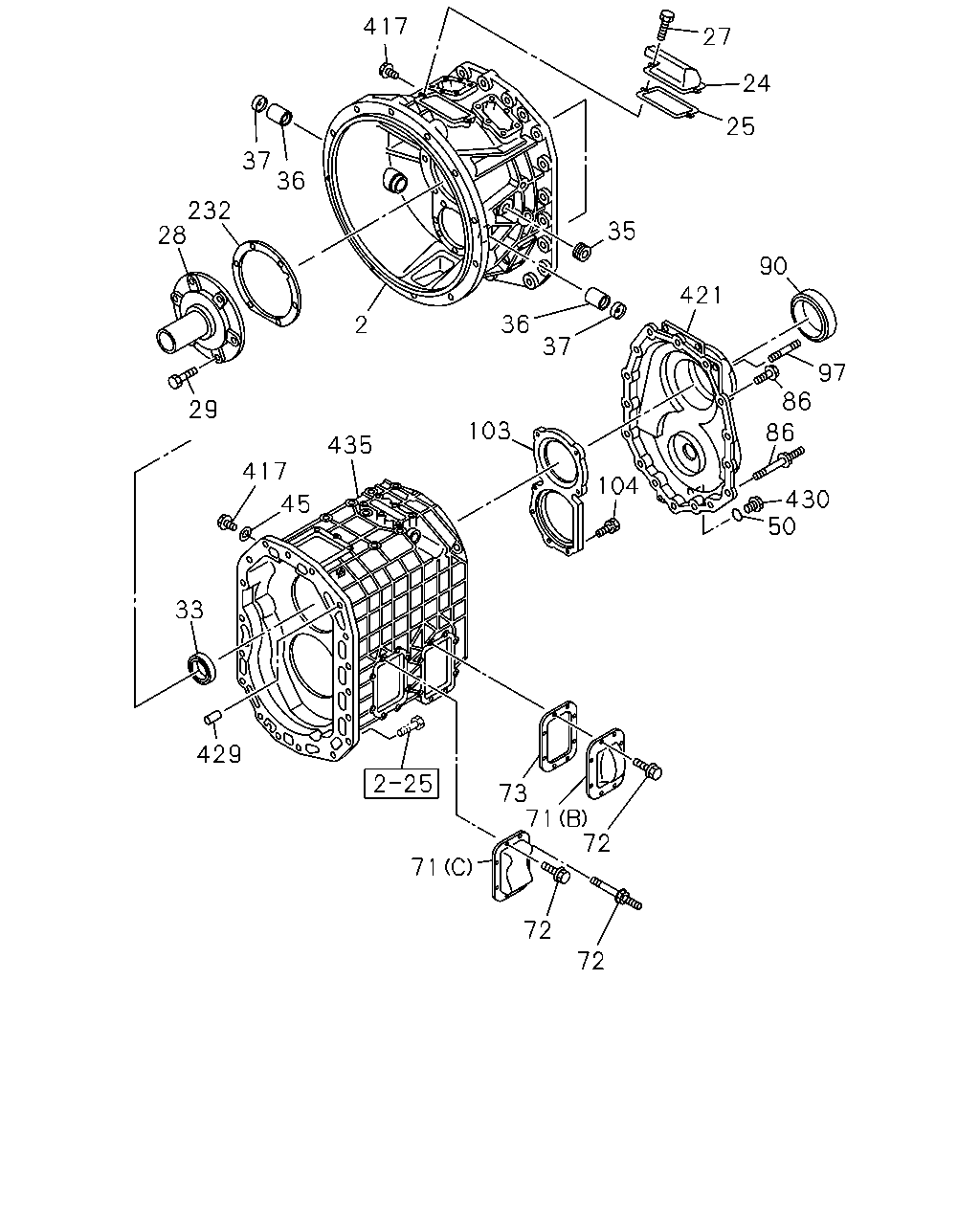

417 27 25 24 90 97 421 86 86 430 50 104 103 37 36 35 37 232 36 28 2 29 435 417 33 45 73 71 72 72 72 71 429

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	8-98077-167-1	01	1	1307-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1307-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1307-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1307-
28	COVER; FRT,TRANS CASE	1-33121-159-2	01	1	1307-
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1307-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1307-
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1307-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1307-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1307-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1307-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1307-
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	1307-
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1307-
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1307-
72	BOLT; SIDE COVER M10X30 FLANGE	0-28151-030-0	04	1	1307-
72	BOLT; SIDE COVER M12X40 FLANGE	0-28151-240-0	07	1	1307-
72	BOLT; SIDE COVER M12X30 FLANGE	0-28751-230-0	08	1	1307-
72	BOLT; SIDE COVER M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1307-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-041-0	01	1	1307-
86	BOLT; RR COVER M12X40 FLANGE	0-28151-240-0	14	1	1307-
86	BOLT; RR COVER M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1307-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1307-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1307-
103	RETAINER; BRG	1-33151-059-0	01	1	1307-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1307-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1307-
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1307-
417	PLUG; OIL FILLER,TRANS M22X12	1-09604-035-0	01	1	1307-
421	COVER; RR,TRANS	8-98191-936-1	01	1	1307-1502
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	1307-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1307-
435	CASE; TRANS	8-98132-970-0	01	1	1307-

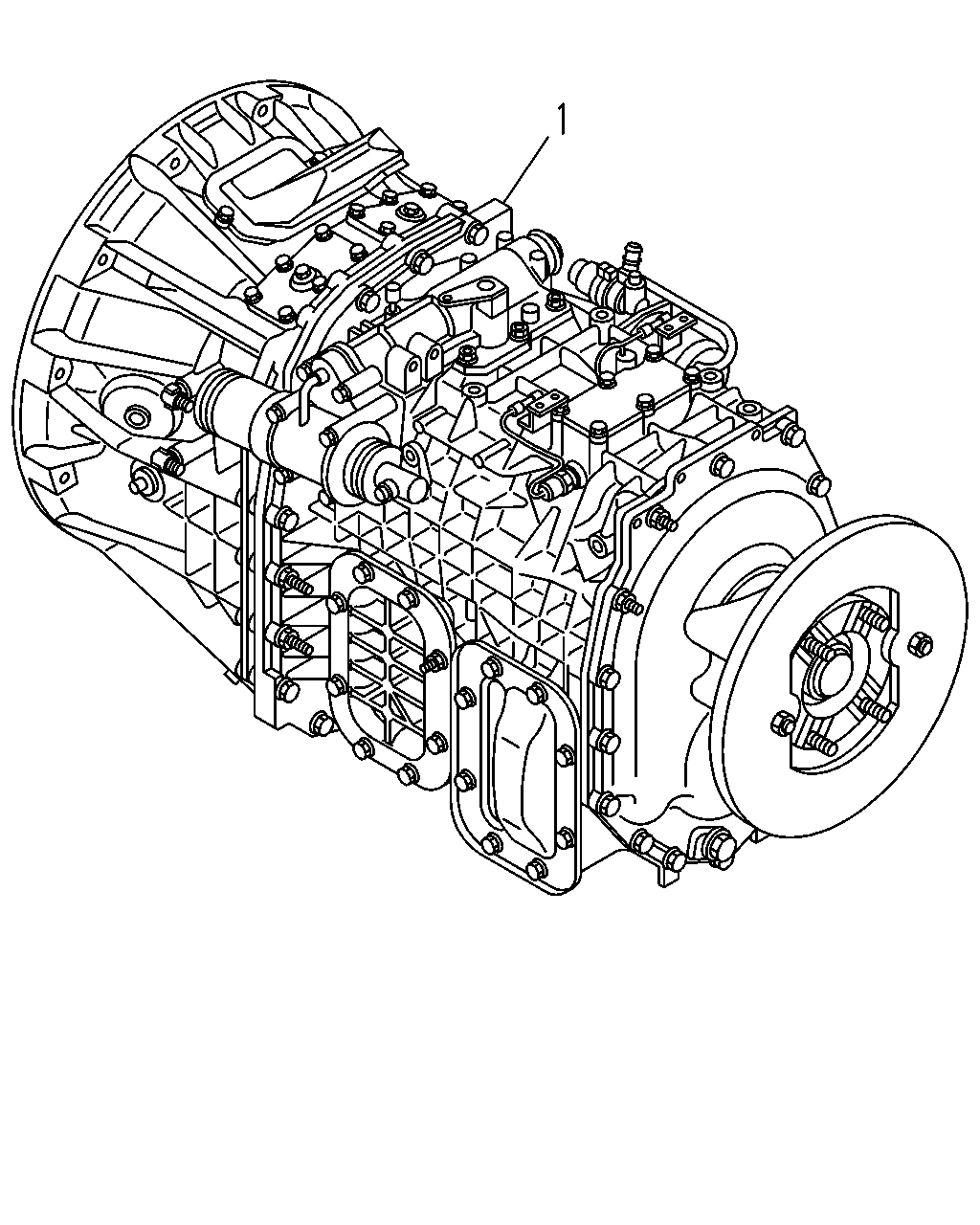

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL P80W PROP SHAFT<C2U>	1-33044-701-0	01	1	1404-
1	TRANSMISSION ASM; MANUAL	1-33044-548-0	01	1	1307-1402
1	TRANSMISSION ASM; MANUAL RR ENG LEAF SUSP(LVR0AA) P115 PROP SHAFT<C5X>	1-33044-548-0	01	1	1403-
