2-05 — CLUTCH PIPING (#123900) — 135 parça

153 115 48 47 116 36 37 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	1307-1311	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	1312-	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	1307-1311	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	1312-	●	●
37	BOLT; CLIP BRKT BUS BODY REAR OVERHANG<YK4> M8X35 FLANGE	0-28650-835-0	02	1	1405-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1311	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1312-1404	●	●
37	BOLT; CLIP BRKT EXC. BUS BODY REAR OVERHANG<YK4> M8X25 FLANGE	0-28650-825-0	02	1	1405-	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1311	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	1307-1311	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	1312-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1307-1311	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1312-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1307-1311	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1312-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	1307-1311	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	1312-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BUS BODY REAR OVERHANG<YK4> L=1649 SERVICED BY L=1700	1-47428-767-0	01	1	1404-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2024 SERVICED BY L=2150	1-47428-770-0	01	1	1307-1311	●
153	PIPE ASM; CLU,UNION TO FLEX L=2024 SERVICED BY L=2150	1-47428-770-0	01	1	1312-1403	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. BUS BODY REAR OVERHANG<YK4> L=2024 SERVICED BY L=2150	1-47428-770-0	01	1	1404-	●	●

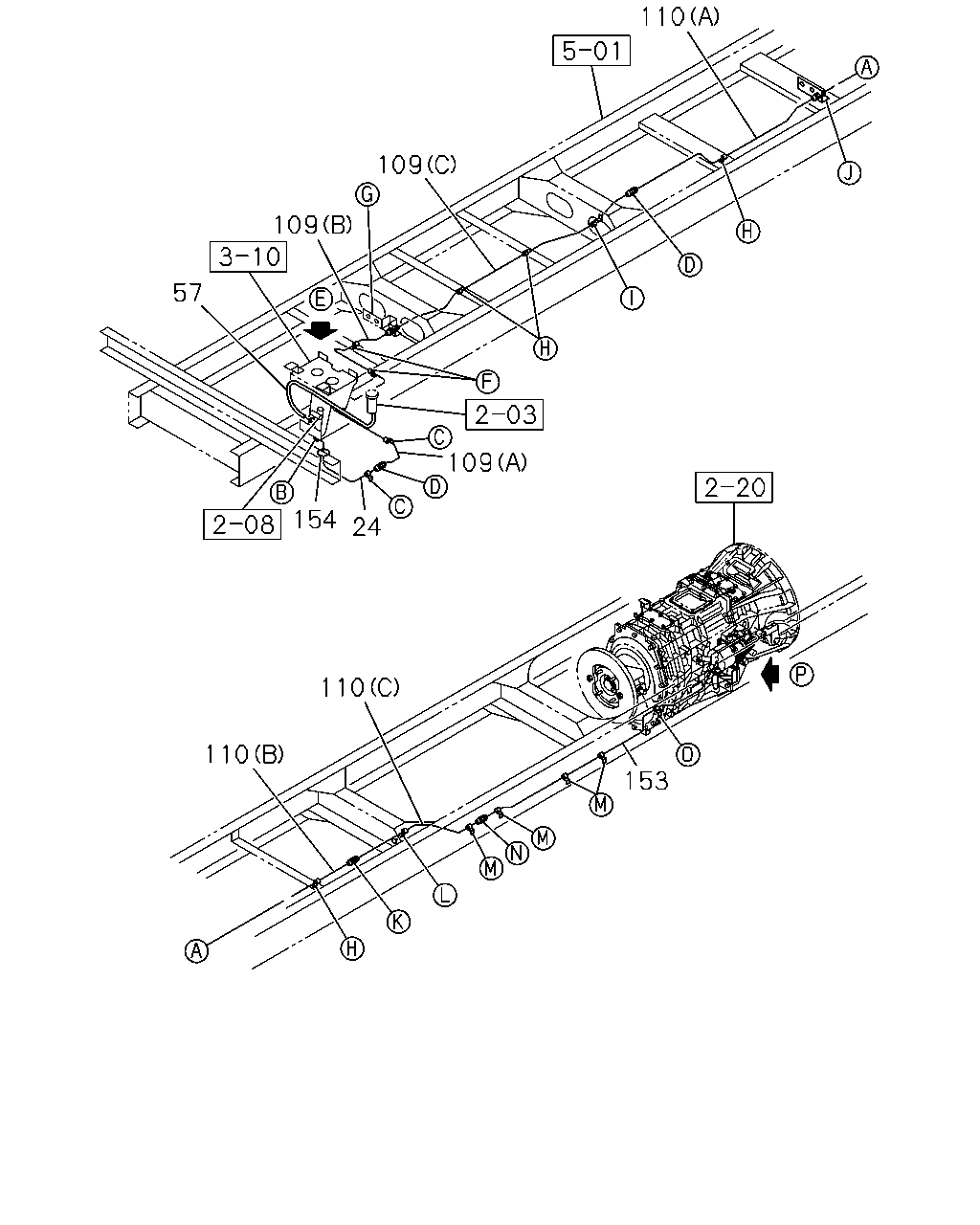

57 109 109 109 24 154 110 110 153 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	1307-1311	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	1312-	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	1307-1311	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	1312-	●	●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	1307-1311	●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	1312-	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1268 SERVICED BY L=1400	1-47428-765-0	01	1	1307-1311	●
109	PIPE; AIR,UNION TO UNION (B) L=1268 SERVICED BY L=1400	1-47428-765-0	01	1	1312-	●	●
109	PIPE; AIR,UNION TO UNION (C) L=1881 SERVICED BY L=1950	1-47428-769-0	01	1	1307-1311	●
109	PIPE; AIR,UNION TO UNION (C) L=1881 SERVICED BY L=1950	1-47428-769-0	01	1	1312-	●	●
110	PIPE; OIL,UNION TO UNION (B) L=886 SERVICED BY L=900	1-47428-760-0	01	1	1307-1311	●
110	PIPE; OIL,UNION TO UNION (B) L=886 SERVICED BY L=900	1-47428-760-0	01	1	1312-	●	●
110	PIPE; OIL,UNION TO UNION (A) L=1460 SERVICED BY L=1550	1-47428-766-0	01	1	1307-1311	●
110	PIPE; OIL,UNION TO UNION (A) L=1460 SERVICED BY L=1550	1-47428-766-0	01	1	1312-	●	●
110	PIPE; OIL,UNION TO UNION (C) L=837	8-98191-246-0	01	1	1307-1311	●
110	PIPE; OIL,UNION TO UNION (C) L=837	8-98191-246-0	01	1	1312-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BUS BODY REAR OVERHANG<YK4> L=1649 SERVICED BY L=1700	1-47428-767-0	01	1	1404-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2024 SERVICED BY L=2150	1-47428-770-0	01	1	1307-1311	●
153	PIPE ASM; CLU,UNION TO FLEX L=2024 SERVICED BY L=2150	1-47428-770-0	01	1	1312-1403	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. BUS BODY REAR OVERHANG<YK4> L=2024 SERVICED BY L=2150	1-47428-770-0	01	1	1404-	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	1307-1311	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	1312-	●	●

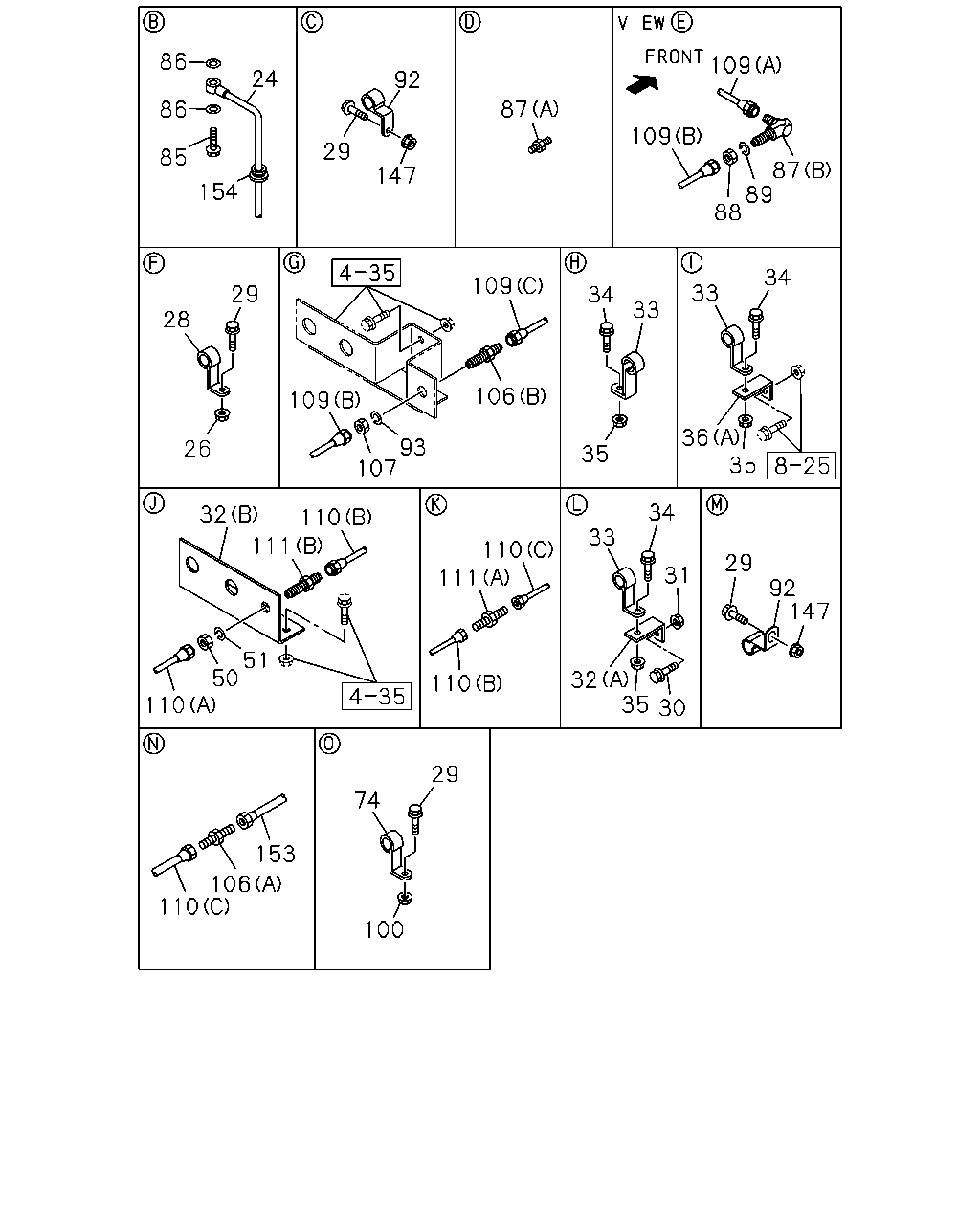

86 24 86 85 154 92 29 147 87 109 109 88 89 87 28 29 26 109 107 93 109 106 34 33 35 33 34 36 35 32 111 110 51 50 110 110 111 110 33 34 31 32 35 30 29 92 147 153 106 110 74 29 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	1307-1311	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	1312-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1307-1311	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	1307-1311	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	1312-	●	●
29	BOLT; CLIP,OIL PIPE BUS BODY REAR OVERHANG<YK4> M8X25 FLANGE	0-28650-825-0	01	1	1405-	●	●
29	BOLT; CLIP,OIL PIPE EXC. BUS BODY REAR OVERHANG<YK4> M8X30 FLANGE	0-28650-830-0	05	1	1405-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1312-1404		●
29	BOLT; CLIP,OIL PIPE EXC. BUS BODY REAR OVERHANG<YK4> M8X30 FLANGE	0-28650-830-0	01	1	1405-		●
29	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28650-835-0	04	1	1312-		●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	1307-1311	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	1312-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	1307-1311	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	1312-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	05	1	1307-1404	●
29	BOLT; CLIP,OIL PIPE BUS BODY REAR OVERHANG<YK4> M8X30 FLANGE	0-28650-830-0	04	1	1405-	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1307-1311	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1312-	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-1311	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1312-	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	01	1	1307-1311	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	01	1	1312-	●	●
32	BRACKET; CLIP OIL PIPE (B)	8-98191-502-0	01	1	1307-1311	●
32	BRACKET; CLIP OIL PIPE (B)	8-98191-502-0	01	1	1312-	●	●
33	CLIP; OIL PIPE D=18 H=30	1-09701-028-0	06	1	1307-1311	●
33	CLIP; OIL PIPE D=18 H=30	1-09701-028-0	06	1	1312-	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	1307-1311	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	1312-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1307-1311	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1312-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	1307-1311	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	1312-	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	1307-1311	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	1312-	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	1307-1311	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	1312-	●	●
50	NUT; UNION M14	0-91111-514-0	01	1	1307-1311	●
50	NUT; UNION M14	0-91111-514-0	01	1	1312-	●	●
51	WASHER; LK ID=14.2	0-91510-814-0	01	1	1307-1311	●
51	WASHER; LK ID=14.2	0-91510-814-0	01	1	1312-	●	●
74	CLIP; CLU OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	1307-1311	●
74	CLIP; CLU OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	1312-	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	1307-1311	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	1312-	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	1307-1311	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	1312-	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	02	1	1307-1311	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	02	1	1312-	●	●
87	UNION; OIL PIPE (B) M14 ELBOW	0-92125-208-0	01	1	1307-1311	●
87	UNION; OIL PIPE (B) M14 ELBOW	0-92125-208-0	01	1	1312-	●	●
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	1307-1311	●
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	1312-	●	●
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	1307-1311	●
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	1312-	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	1307-1311	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	1312-	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	01	1	1307-1311	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	01	1	1312-	●	●
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91180-108-0	01	1	1307-1311	●
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91180-108-0	01	1	1312-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1307-1311	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-	●	●
106	UNION; OIL PIPE (B) M14	0-92113-308-0	01	1	1307-1311	●
106	UNION; OIL PIPE (B) M14	0-92113-308-0	01	1	1312-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1307-1311	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1312-	●	●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	1307-1311	●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	1312-	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1268 SERVICED BY L=1400	1-47428-765-0	01	1	1307-1311	●
109	PIPE; AIR,UNION TO UNION (B) L=1268 SERVICED BY L=1400	1-47428-765-0	01	1	1312-	●	●
109	PIPE; AIR,UNION TO UNION (C) L=1881 SERVICED BY L=1950	1-47428-769-0	01	1	1307-1311	●
109	PIPE; AIR,UNION TO UNION (C) L=1881 SERVICED BY L=1950	1-47428-769-0	01	1	1312-	●	●
110	PIPE; OIL,UNION TO UNION (B) L=886 SERVICED BY L=900	1-47428-760-0	01	1	1307-1311	●
110	PIPE; OIL,UNION TO UNION (B) L=886 SERVICED BY L=900	1-47428-760-0	01	1	1312-	●	●
110	PIPE; OIL,UNION TO UNION (A) L=1460 SERVICED BY L=1550	1-47428-766-0	01	1	1307-1311	●
110	PIPE; OIL,UNION TO UNION (A) L=1460 SERVICED BY L=1550	1-47428-766-0	01	1	1312-	●	●
110	PIPE; OIL,UNION TO UNION (C) L=837	8-98191-246-0	01	1	1307-1311	●
110	PIPE; OIL,UNION TO UNION (C) L=837	8-98191-246-0	01	1	1312-	●	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1307-1311	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-	●	●
111	UNION; OIL PIPE (B) M14	0-92113-308-0	01	1	1307-1311	●
111	UNION; OIL PIPE (B) M14	0-92113-308-0	01	1	1312-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	06	1	1307-1311	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	06	1	1312-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BUS BODY REAR OVERHANG<YK4> L=1649 SERVICED BY L=1700	1-47428-767-0	01	1	1404-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2024 SERVICED BY L=2150	1-47428-770-0	01	1	1307-1311	●
153	PIPE ASM; CLU,UNION TO FLEX L=2024 SERVICED BY L=2150	1-47428-770-0	01	1	1312-1403	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. BUS BODY REAR OVERHANG<YK4> L=2024 SERVICED BY L=2150	1-47428-770-0	01	1	1404-	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	1307-1311	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	1312-	●	●
