◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#123899) — 64 parça

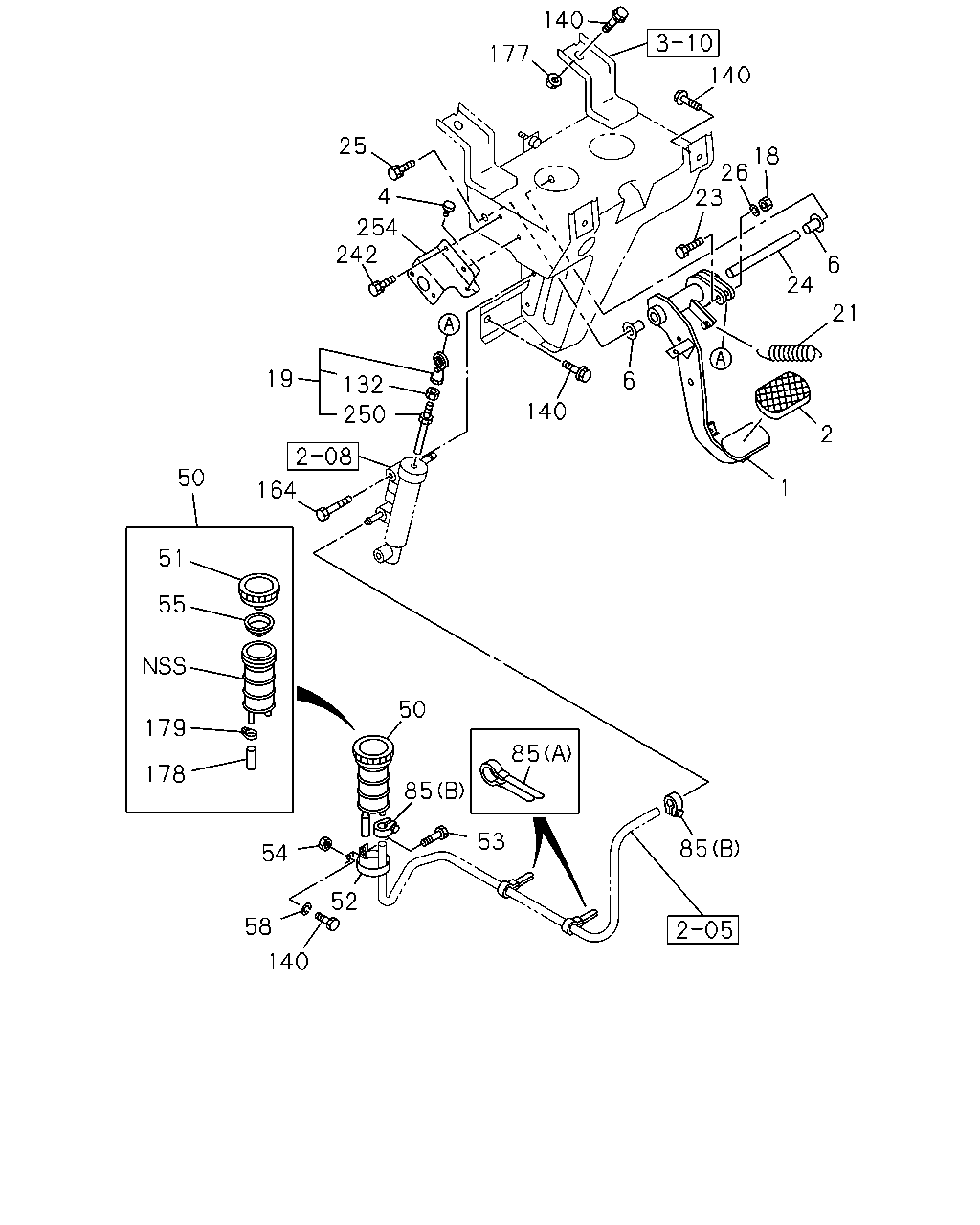

çizim 366759
50 51 55 179 178 54 58 140 52 53 85 50 85 250 132 19 242 254 4 25 140 6 1 2 21 164 177 140 140 18 26 23 24 6 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-73907-321-4 01 1 1307-1311 ●
1 PEDAL; CLU 1-73907-321-4 01 1 1312- ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1307-1311 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1312- ● ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1307-1311 ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1312- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1307-1311 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1312- ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 1307-1311 ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 1312- ● ●
19 ROD ASM; PUSH,CLU 1-73907-692-0 01 1 1307-1311 ●
19 ROD ASM; PUSH,CLU 1-73907-692-0 01 1 1312- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 1307-1311 ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 1312- ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1307-1311 ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1312- ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 1307-1311 ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 1312- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 1307-1311 ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 1312- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 1307-1311 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 1312- ● ●
50 TANK; OIL,CLU 1-47530-183-1 01 1 1307-1311 ●
50 TANK; OIL,CLU 1-47530-183-1 01 1 1312- ● ●
51 CAP; OIL TANK,CLU 9-47525-032-1 01 1 1307-1311 ●
51 CAP; OIL TANK,CLU 9-47525-032-1 01 1 1312- ● ●
52 BRACKET; OIL TANK,CLU M/CYL 9-47537-023-1 01 1 1307-1311 ●
52 BRACKET; OIL TANK,CLU M/CYL 9-47537-023-1 01 1 1312- ● ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16 		0-20850-516-0 01 1 1307-1311 ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16 		0-20850-516-0 01 1 1312- ● ●
54 NUT; BRKT,OIL TANK,CLU M/CYL
M5 		8-98098-423-0 03 1 1307-1311 ●
54 NUT; BRKT,OIL TANK,CLU M/CYL
M5 		8-98098-423-0 03 1 1312- ● ●
55 BAFFLE; RUBBER,CLU M/CYL 9-47529-031-0 01 1 1307-1311 ●
55 BAFFLE; RUBBER,CLU M/CYL 9-47529-031-0 01 1 1312- ● ●
58 WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3 		0-91610-505-0 02 1 1307-1311 ●
58 WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3 		0-91610-505-0 02 1 1312- ● ●
85 CLIP; HOSE TO M/CYL
(B) ID=15 		9-09715-098-0 02 1 1307-1311 ●
85 CLIP; HOSE TO M/CYL
(B) ID=15 		9-09715-098-0 02 1 1312- ● ●
85 CLIP; HOSE TO M/CYL
(A) ID=14 L=44 		9-09917-427-0 02 1 1307-1311 ●
85 CLIP; HOSE TO M/CYL
(A) ID=14 L=44 		9-09917-427-0 02 1 1312- ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 1307-1311 ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 1312- ● ●
140 BOLT; BRKT
M5X16 		0-20850-516-0 02 1 1307-1311 ●
140 BOLT; BRKT
M5X16 		0-20850-516-0 02 1 1312- ● ●
140 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1311 ●
140 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1312- ● ●
140 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1307-1311 ●
140 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1312- ● ●
140 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 1307-1311 ●
140 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 1312- ● ●
164 BOLT; CLU M/CYL
M10X70 FLANGE 		0-28051-070-0 02 1 1307-1311 ●
164 BOLT; CLU M/CYL
M10X70 FLANGE 		0-28051-070-0 02 1 1312- ● ●
177 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1311 ●
177 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1312- ● ●
178 CAP; OIL TANK HOSE 1-47539-005-0 01 1 1307-1311 ●
178 CAP; OIL TANK HOSE 1-47539-005-0 01 1 1312- ● ●
179 CLIP; CAP TO OIL TANK
ID=15 		9-09715-098-0 01 1 1307-1311 ●
179 CLIP; CAP TO OIL TANK
ID=15 		9-09715-098-0 01 1 1312- ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 1307-1311 ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 1312- ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1307-1311 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1312- ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 1307-1311 ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 1312- ● ●
