◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#123895) — 94 parça

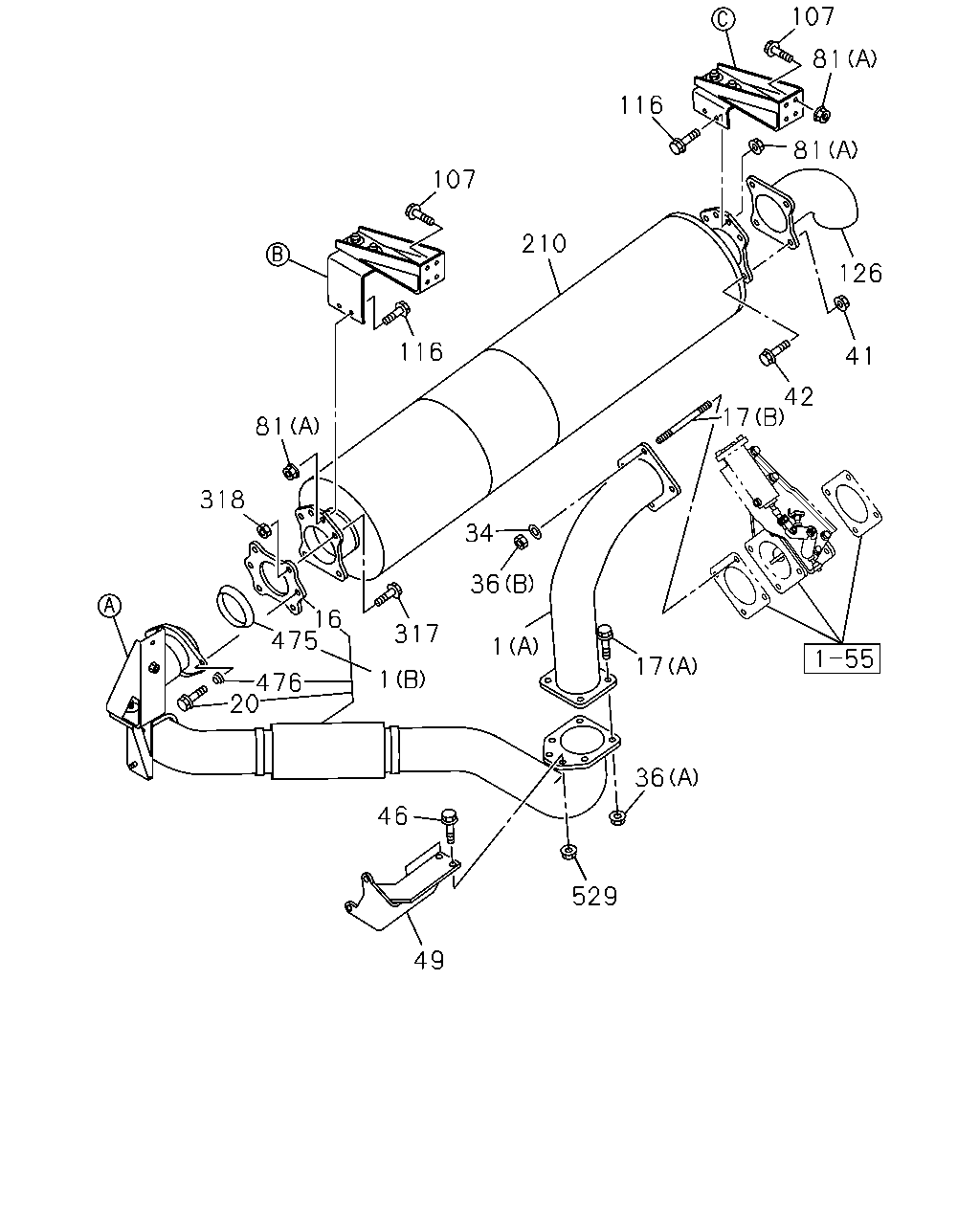

çizim 362869
107 116 210 116 107 81 126 41 17 42 17 36 529 49 46 1 16 475 20 318 81 317 34 36 1 81 476
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(A) 		8-98191-784-0 01 1 1307-1311 ●
1 PIPE; EXH
(A) 		8-98191-784-0 01 1 1312- ● ●
1 PIPE; EXH
(B) 		8-98191-826-0 01 1 1307-1311 ●
1 PIPE; EXH
(B) 		8-98191-826-0 01 1 1312- ● ●
16 FLANGE; EXH PIPE 1-22115-148-1 01 1 1307-1311 ●
16 FLANGE; EXH PIPE 1-22115-148-1 01 1 1312- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		1-09000-653-0 04 1 1307-1311 ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		1-09000-653-0 04 1 1312- ● ●
17 BOLT; EXH PIPE
(B) M12X140 L=160 		1-09302-163-0 04 1 1307-1311 ●
17 BOLT; EXH PIPE
(B) M12X140 L=160 		1-09302-163-0 04 1 1312- ● ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 1307-1311 ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 1312- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 1307-1311 ●
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 1312- ● ●
36 NUT; EXH PIPE
(A) M12 		0-91110-512-0 04 1 1307-1311 ●
36 NUT; EXH PIPE
(A) M12 		0-91110-512-0 04 1 1312- ● ●
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 1307-1311 ●
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 1312- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		0-91110-512-0 04 1 1307-1311 ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		0-91110-512-0 04 1 1312- ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 04 1 1307-1311 ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 04 1 1312- ● ●
46 BOLT; BRKT,EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 1307-1311 ●
46 BOLT; BRKT,EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 1312- ● ●
49 BRACKET; EXH PIPE TO TRANS 8-98191-391-0 01 1 1307-1311 ●
49 BRACKET; EXH PIPE TO TRANS 8-98191-391-0 01 1 1312- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 1307-1311 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 1312- ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 04 1 1307-1311 ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 04 1 1312- ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 08 1 1307-1311 ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 08 1 1312- ● ●
116 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1307-1311 ●
116 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1312- ● ●
126 PIPE; EXH,RR 8-98191-675-0 01 1 1307-1311 ●
126 PIPE; EXH,RR 8-98191-675-0 01 1 1312- ● ●
210 CONVERTER 8-98191-674-0 01 1 1307-1311 ●
210 CONVERTER 8-98191-674-0 01 1 1312- ● ●
317 BOLT; EXH PIPE,FRT
M12X25 FLANGE 		1-09000-604-0 04 1 1307-1311 ●
317 BOLT; EXH PIPE,FRT
M12X25 FLANGE 		1-09000-604-0 04 1 1312- ● ●
318 NUT; EXH PIPE,FRT
M12 		0-91110-512-0 04 1 1307-1311 ●
318 NUT; EXH PIPE,FRT
M12 		0-91110-512-0 04 1 1312- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 01 1 1307-1311 ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 01 1 1312- ● ●
476 SPRING; VIBNON,EXH PIPE 8-94141-851-0 02 1 1307-1311 ●
476 SPRING; VIBNON,EXH PIPE 8-94141-851-0 02 1 1312- ● ●
529 NUT; BRKT,EXH PIPE
M10 		0-91110-510-0 02 1 1307-1311 ●
529 NUT; BRKT,EXH PIPE
M10 		0-91110-510-0 02 1 1312- ● ●

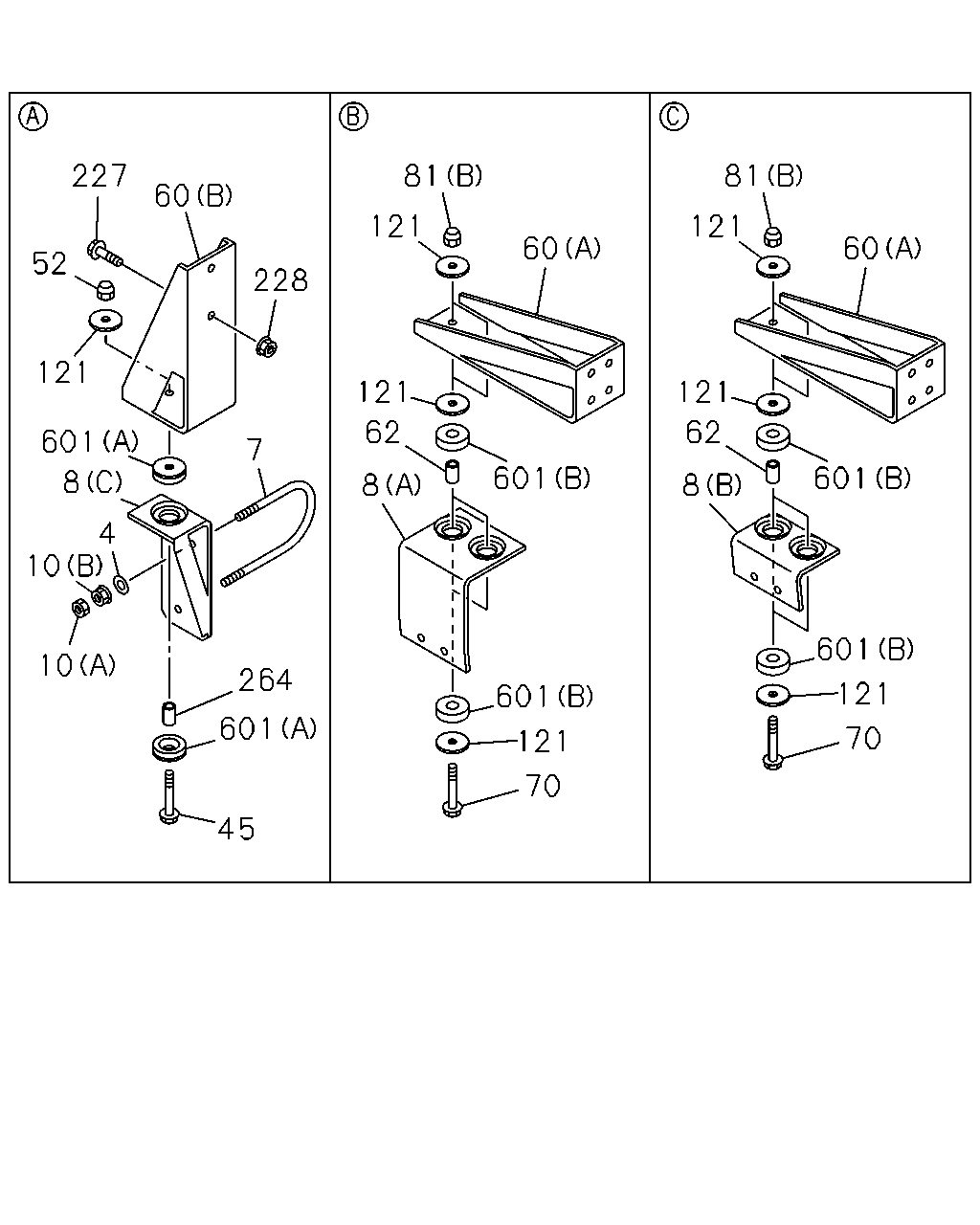

çizim 366112
227 52 121 601 10 10 601 45 264 228 7 60 8 4 81 121 60 601 601 121 70 8 62 121 81 121 60 121 8 62 601 601 70 121
BalonParca AdiParca NoAdetTipApplied Date A B
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		0-91610-708-0 02 1 1307-1311 ●
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		0-91610-708-0 02 1 1312- ● ●
7 U-BOLT; EXH PIPE,FRT 1-22113-079-0 01 1 1307-1311 ●
7 U-BOLT; EXH PIPE,FRT 1-22113-079-0 01 1 1312- ● ●
8 BRACKET; EXH PIPE
(A) 		8-98191-469-0 01 1 1307-1311 ●
8 BRACKET; EXH PIPE
(A) 		8-98191-469-0 01 1 1312- ● ●
8 BRACKET; EXH PIPE
(B) 		8-98191-470-0 01 1 1307-1311 ●
8 BRACKET; EXH PIPE
(B) 		8-98191-470-0 01 1 1312- ● ●
8 BRACKET; EXH PIPE
(C) 		8-98215-889-0 01 1 1307-1311 ●
8 BRACKET; EXH PIPE
(C) 		8-98215-889-0 01 1 1312- ● ●
10 NUT; U BOLT
(A) M8 		0-91110-508-0 02 1 1307-1311 ●
10 NUT; U BOLT
(A) M8 		0-91110-508-0 02 1 1312- ● ●
10 NUT; U BOLT
(B) M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
10 NUT; U BOLT
(B) M8 FLANGE 		0-91180-108-0 02 1 1312- ● ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 01 1 1307-1311 ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 01 1 1312- ● ●
52 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 1307-1311 ●
52 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 1312- ● ●
60 BRACKET; FRAME TO BRKT
BUS BODY REAR OVERHANG<YK4> (B) 		8-98268-817-0 01 1 1404- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98191-443-0 02 1 1307-1311 ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98191-443-0 02 1 1312- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98215-888-0 01 1 1307-1311 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98215-888-0 01 1 1312-1403 ● ●
60 BRACKET; FRAME TO BRKT
EXC. BUS BODY REAR OVERHANG<YK4> (B) 		8-98215-888-0 01 1 1404- ● ●
62 TUBE; DIST,BRKT
L=25 		1-14234-083-0 04 1 1307-1311 ●
62 TUBE; DIST,BRKT
L=25 		1-14234-083-0 04 1 1312- ● ●
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 04 1 1307-1311 ●
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 04 1 1312- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 1307-1311 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 1312- ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 04 1 1307-1311 ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 04 1 1312- ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 12 1 1404- ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 13 1 1307-1311 ●
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 13 1 1312-1403 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 01 1 1404- ● ●
227 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1307-1311 ●
227 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1312- ● ●
228 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1311 ●
228 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1312- ● ●
264 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 1307-1311 ●
264 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 1312- ● ●
601 MOUNTING
(A) OD=40 		1-22159-094-0 02 1 1307-1311 ●
601 MOUNTING
(A) OD=40 		1-22159-094-0 02 1 1312- ● ●
601 MOUNTING
(B) 		8-98055-817-0 08 1 1307-1311 ●
601 MOUNTING
(B) 		8-98055-817-0 08 1 1312- ● ●
