Isuzu WW
▶
BUSES
▶
LV
▶
11523 - LV152/452(LHD) EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-45 - WATER SEDIMENTER; FUEL
▶
1-45 — WATER SEDIMENTER; FUEL
(#123894) — 16 parça
Tümü
A - LVR6FB
B - LVD6FB
◀

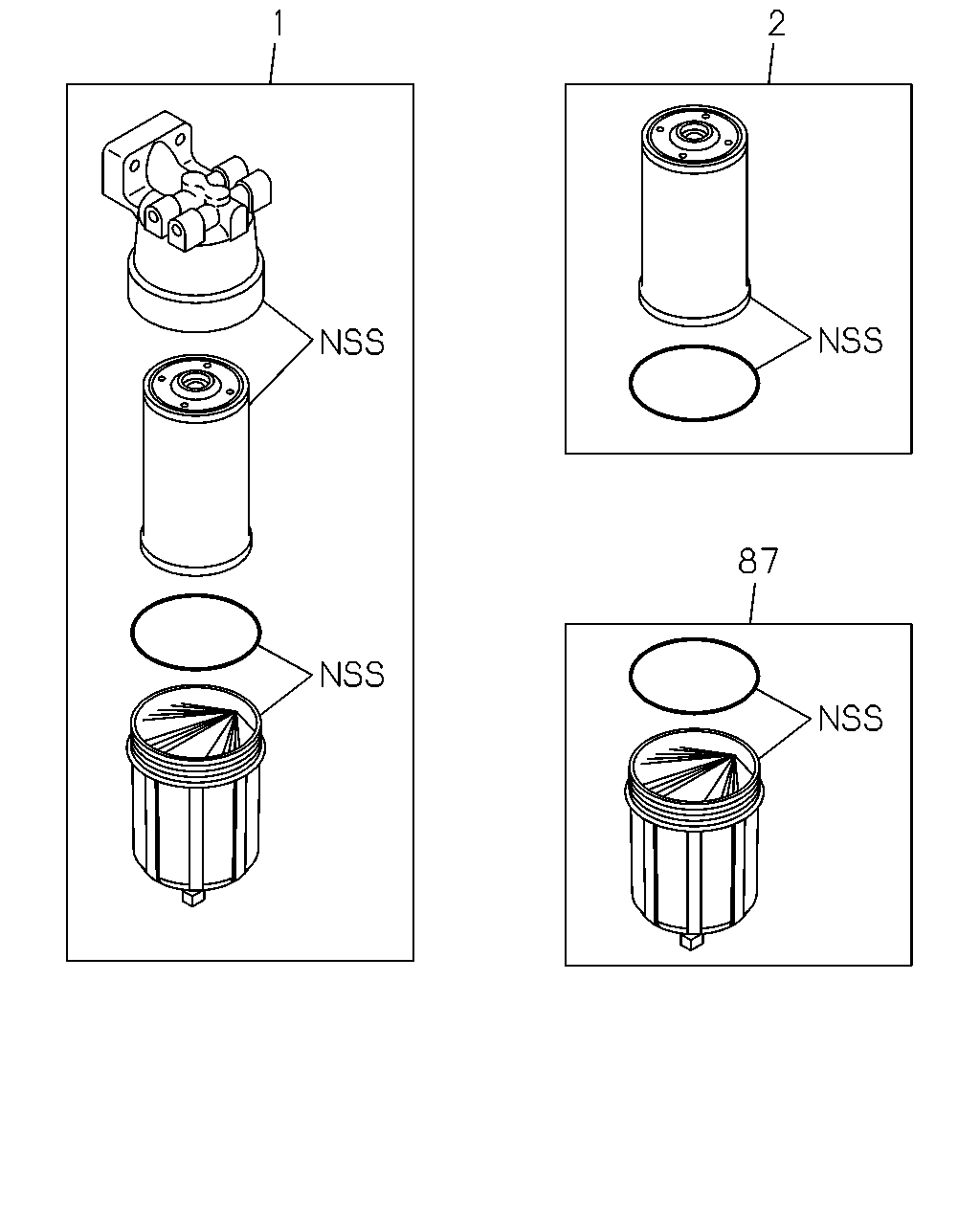

[145A] NO.1 (8 parça)

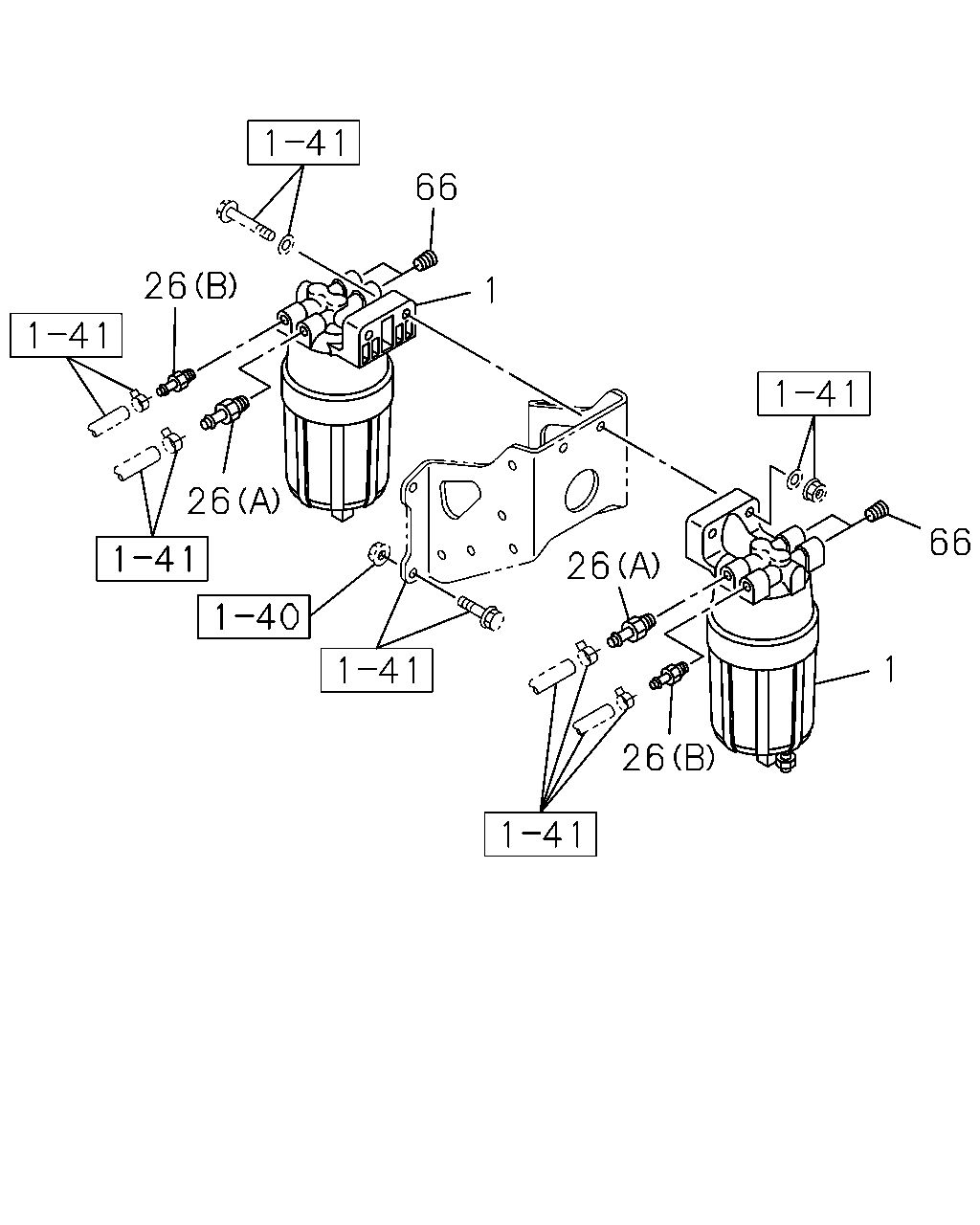

[145A] NO.2 (8 parça)
▶
1
66
1
66
26
26
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SEDIMENTER; FUEL
8-98086-193-1
02
1
1307-1311
●
1
SEDIMENTER; FUEL
8-98086-193-1
02
1
1312-
●
●
26
PIPE; FUEL,IN & OUT
(A) NPTF3/8-18 OD=12
8-98122-952-0
02
1
1307-1311
●
26
PIPE; FUEL,IN & OUT
(A) NPTF3/8-18 OD=12
8-98122-952-0
02
1
1312-
●
●
26
PIPE; FUEL,IN & OUT
(B) NPTF3/8-18 OD=10
8-98122-953-0
02
1
1307-1311
●
26
PIPE; FUEL,IN & OUT
(B) NPTF3/8-18 OD=10
8-98122-953-0
02
1
1312-
●
●
66
PLUG; FUEL FILTER
NPTF3/8-18
8-97329-623-0
04
1
1307-1311
●
66
PLUG; FUEL FILTER
NPTF3/8-18
8-97329-623-0
04
1
1312-
●
●
1
2
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SEDIMENTER; FUEL
8-98086-193-1
02
1
1307-1311
●
1
SEDIMENTER; FUEL
8-98086-193-1
02
1
1312-
●
●
2
ELEMENT; FUEL FILTER
BEST VALUE PARTS
1-87610-094-1
02
1
1307-1311
●
2
ELEMENT; FUEL FILTER
BEST VALUE PARTS
1-87610-094-1
02
1
1312-
●
●
2
ELEMENT; FUEL FILTER
8-98092-481-1
02
1
1307-1311
●
2
ELEMENT; FUEL FILTER
8-98092-481-1
02
1
1312-
●
●
87
CASE ASM; SEDIMENTER
8-98092-482-1
02
1
1307-1311
●
87
CASE ASM; SEDIMENTER
8-98092-482-1
02
1
1312-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
