Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#123893) — 214 parça

102 48 97 103 100 101 102 100 101 100 101 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; BRKT EXC. BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE	0-28650-830-0	02	1	1405-	●	●
48	BOLT; BRKT EXC. BUS BODY REAR OVERHANG<YK4> (C) M8X35 FLANGE	0-28650-835-0	02	1	1405-	●	●
48	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1307-1311		●
48	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1312-	●	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1307-1311		●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1312-1404	●	●
48	BOLT; BRKT BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE	0-28650-830-0	01	1	1405-	●	●
48	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1307-1311		●
48	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1312-1404	●	●
48	BOLT; BRKT BUS BODY REAR OVERHANG<YK4> (C) M8X35 FLANGE	0-28650-835-0	03	1	1405-	●	●
97	BRACKET; CLIP BUS BODY REAR OVERHANG<YK4> (E)	1-82699-745-1	01	1	1404-	●	●
97	BRACKET; CLIP (A) L=105	1-47477-409-0	01	1	1307-1311		●
97	BRACKET; CLIP (A) L=105	1-47477-409-0	01	1	1312-	●	●
97	BRACKET; CLIP (E)	1-47478-140-0	01	1	1307-1311		●
97	BRACKET; CLIP (E)	1-47478-140-0	01	1	1312-1403	●	●
97	BRACKET; CLIP EXC. BUS BODY REAR OVERHANG<YK4> (E)	1-47478-140-0	01	1	1404-1407	●	●
97	BRACKET; CLIP EXC. BUS BODY REAR OVERHANG<YK4> (E)	8-98269-434-0	01	1	1408-	●	●
97	BRACKET; CLIP (C) L=40	1-47478-410-0	04	1	1307-1311		●
97	BRACKET; CLIP (C) L=40	1-47478-410-0	04	1	1312-	●	●
97	BRACKET; CLIP (D)	1-47479-195-0	01	1	1307-1311		●
97	BRACKET; CLIP (D)	1-47479-195-0	01	1	1312-	●	●
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1307-1311		●
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1312-	●	●
100	CLIP; FUEL PIPE EXC. BUS BODY REAR OVERHANG<YK4> (A) ID=39 L=33	8-98009-359-0	13	1	1404-	●	●
100	CLIP; FUEL PIPE (A) ID=39 L=33	8-98009-359-0	13	1	1307-1311		●
100	CLIP; FUEL PIPE (A) ID=39 L=33	8-98009-359-0	13	1	1312-1403	●	●
100	CLIP; FUEL PIPE BUS BODY REAR OVERHANG<YK4> (A) ID=39 L=33	8-98009-359-0	12	1	1404-	●	●
100	CLIP; FUEL PIPE (B) ID=19X35 H=17.5 L=22.5	8-98202-740-0	01	1	1307-1311		●
100	CLIP; FUEL PIPE (B) ID=19X35 H=17.5 L=22.5	8-98202-740-0	01	1	1312-	●	●
100	CLIP; FUEL PIPE (C) ID=19X35 H=17.5 L=47.5	8-98202-741-0	01	1	1307-1311		●
100	CLIP; FUEL PIPE (C) ID=19X35 H=17.5 L=47.5	8-98202-741-0	01	1	1312-	●	●
101	BOLT; CLIP,FUEL PIPE EXC. BUS BODY REAR OVERHANG<YK4> (A) M8X20 FLANGE	0-28650-820-0	14	1	1404-	●	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	14	1	1307-1311		●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	14	1	1312-1403	●	●
101	BOLT; CLIP,FUEL PIPE BUS BODY REAR OVERHANG<YK4> (A) M8X20 FLANGE	0-28650-820-0	13	1	1404-	●	●
101	BOLT; CLIP,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1307-1311		●
101	BOLT; CLIP,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-	●	●
102	NUT; CLIP,FUEL PIPE EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	15	1	1404-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	15	1	1307-1311		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	15	1	1312-1403	●	●
102	NUT; CLIP,FUEL PIPE BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	14	1	1404-	●	●
103	NUT; BRKT BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	07	1	1404-	●	●
103	NUT; BRKT EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	08	1	1404-	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	1307-1311		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	1312-1403	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1404-	●	●

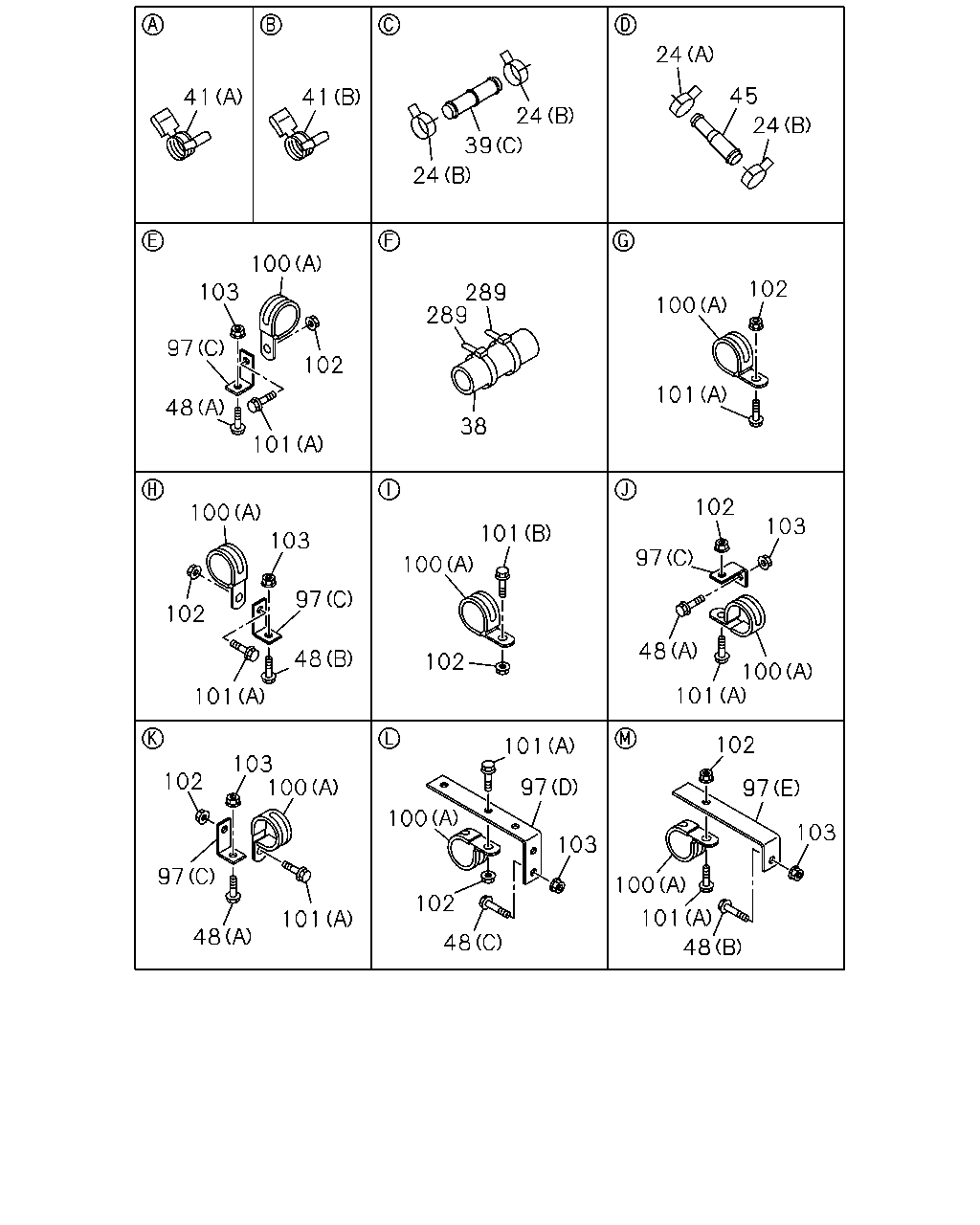

41 41 24 39 24 24 45 24 100 103 97 48 102 101 289 289 38 100 102 101 100 102 97 103 101 48 100 102 101 97 48 102 103 100 101 103 102 100 97 48 101 100 102 48 97 101 103 100 101 48 103 97 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=19	8-94238-569-0	01	1	1307-1311		●
24	CLIP; FUEL HOSE (A) ID=19	8-94238-569-0	01	1	1312-	●	●
24	CLIP; FUEL HOSE (B) ID=21	8-94242-034-0	11	1	1307-1311		●
24	CLIP; FUEL HOSE (B) ID=21	8-94242-034-0	11	1	1312-	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1312-1403	●
38	SLEEVE; RUBBER,RUBBER HOSE BUS BODY REAR OVERHANG<YK4> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1404-1404	●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. BUS BODY REAR OVERHANG<YK4> L=150 SERVICED BY L=1300	1-09360-677-1	05	1	1405-		●
38	SLEEVE; RUBBER,RUBBER HOSE BUS BODY REAR OVERHANG<YK4> L=150 SERVICED BY L=1300	1-09360-677-1	05	1	1405-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	05	1	1307-1311		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	05	1	1312-1404	●	●
38	SLEEVE; RUBBER,RUBBER HOSE BUS BODY REAR OVERHANG<YK4> L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1405-		●
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1307-1311		●
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1312-	●	●
39	PIPE; FUEL (C)	8-98227-090-0	05	1	1307-1311		●
39	PIPE; FUEL (C)	8-98227-090-0	05	1	1312-	●	●
39	PIPE; FUEL (B)	8-98227-097-0	01	1	1307-1311		●
39	PIPE; FUEL (B)	8-98227-097-0	01	1	1312-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1307-1311		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1312-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	05	1	1307-1311		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	05	1	1312-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=21	8-94242-034-0	01	1	1307-1311		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=21	8-94242-034-0	01	1	1312-	●	●
45	PIPE; FUEL,DELIVERY	8-98227-091-0	01	1	1307-1311		●
45	PIPE; FUEL,DELIVERY	8-98227-091-0	01	1	1312-	●	●
48	BOLT; BRKT EXC. BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE	0-28650-830-0	02	1	1405-	●	●
48	BOLT; BRKT EXC. BUS BODY REAR OVERHANG<YK4> (C) M8X35 FLANGE	0-28650-835-0	02	1	1405-	●	●
48	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1307-1311		●
48	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1312-	●	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1307-1311		●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1312-1404	●	●
48	BOLT; BRKT BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE	0-28650-830-0	01	1	1405-	●	●
48	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1307-1311		●
48	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1312-1404	●	●
48	BOLT; BRKT BUS BODY REAR OVERHANG<YK4> (C) M8X35 FLANGE	0-28650-835-0	03	1	1405-	●	●
97	BRACKET; CLIP BUS BODY REAR OVERHANG<YK4> (E)	1-82699-745-1	01	1	1404-	●	●
97	BRACKET; CLIP (A) L=105	1-47477-409-0	01	1	1307-1311		●
97	BRACKET; CLIP (A) L=105	1-47477-409-0	01	1	1312-	●	●
97	BRACKET; CLIP (E)	1-47478-140-0	01	1	1307-1311		●
97	BRACKET; CLIP (E)	1-47478-140-0	01	1	1312-1403	●	●
97	BRACKET; CLIP EXC. BUS BODY REAR OVERHANG<YK4> (E)	1-47478-140-0	01	1	1404-1407	●	●
97	BRACKET; CLIP EXC. BUS BODY REAR OVERHANG<YK4> (E)	8-98269-434-0	01	1	1408-	●	●
97	BRACKET; CLIP (C) L=40	1-47478-410-0	04	1	1307-1311		●
97	BRACKET; CLIP (C) L=40	1-47478-410-0	04	1	1312-	●	●
97	BRACKET; CLIP (D)	1-47479-195-0	01	1	1307-1311		●
97	BRACKET; CLIP (D)	1-47479-195-0	01	1	1312-	●	●
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1307-1311		●
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1312-	●	●
100	CLIP; FUEL PIPE EXC. BUS BODY REAR OVERHANG<YK4> (A) ID=39 L=33	8-98009-359-0	13	1	1404-	●	●
100	CLIP; FUEL PIPE (A) ID=39 L=33	8-98009-359-0	13	1	1307-1311		●
100	CLIP; FUEL PIPE (A) ID=39 L=33	8-98009-359-0	13	1	1312-1403	●	●
100	CLIP; FUEL PIPE BUS BODY REAR OVERHANG<YK4> (A) ID=39 L=33	8-98009-359-0	12	1	1404-	●	●
100	CLIP; FUEL PIPE (B) ID=19X35 H=17.5 L=22.5	8-98202-740-0	01	1	1307-1311		●
100	CLIP; FUEL PIPE (B) ID=19X35 H=17.5 L=22.5	8-98202-740-0	01	1	1312-	●	●
100	CLIP; FUEL PIPE (C) ID=19X35 H=17.5 L=47.5	8-98202-741-0	01	1	1307-1311		●
100	CLIP; FUEL PIPE (C) ID=19X35 H=17.5 L=47.5	8-98202-741-0	01	1	1312-	●	●
101	BOLT; CLIP,FUEL PIPE EXC. BUS BODY REAR OVERHANG<YK4> (A) M8X20 FLANGE	0-28650-820-0	14	1	1404-	●	●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	14	1	1307-1311		●
101	BOLT; CLIP,FUEL PIPE (A) M8X20 FLANGE	0-28650-820-0	14	1	1312-1403	●	●
101	BOLT; CLIP,FUEL PIPE BUS BODY REAR OVERHANG<YK4> (A) M8X20 FLANGE	0-28650-820-0	13	1	1404-	●	●
101	BOLT; CLIP,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1307-1311		●
101	BOLT; CLIP,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-	●	●
102	NUT; CLIP,FUEL PIPE EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	15	1	1404-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	15	1	1307-1311		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	15	1	1312-1403	●	●
102	NUT; CLIP,FUEL PIPE BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	14	1	1404-	●	●
103	NUT; BRKT BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	07	1	1404-	●	●
103	NUT; BRKT EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	08	1	1404-	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	1307-1311		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	1312-1403	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1404-	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	1312-1403	●
289	CLIP; BAND,HOSE BUS BODY REAR OVERHANG<YK4> L=250	5-09707-030-1	04	1	1404-1404	●
289	CLIP; BAND,HOSE BUS BODY REAR OVERHANG<YK4> L=250	5-09707-030-1	02	1	1405-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	10	1	1307-1311		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	10	1	1312-	●	●

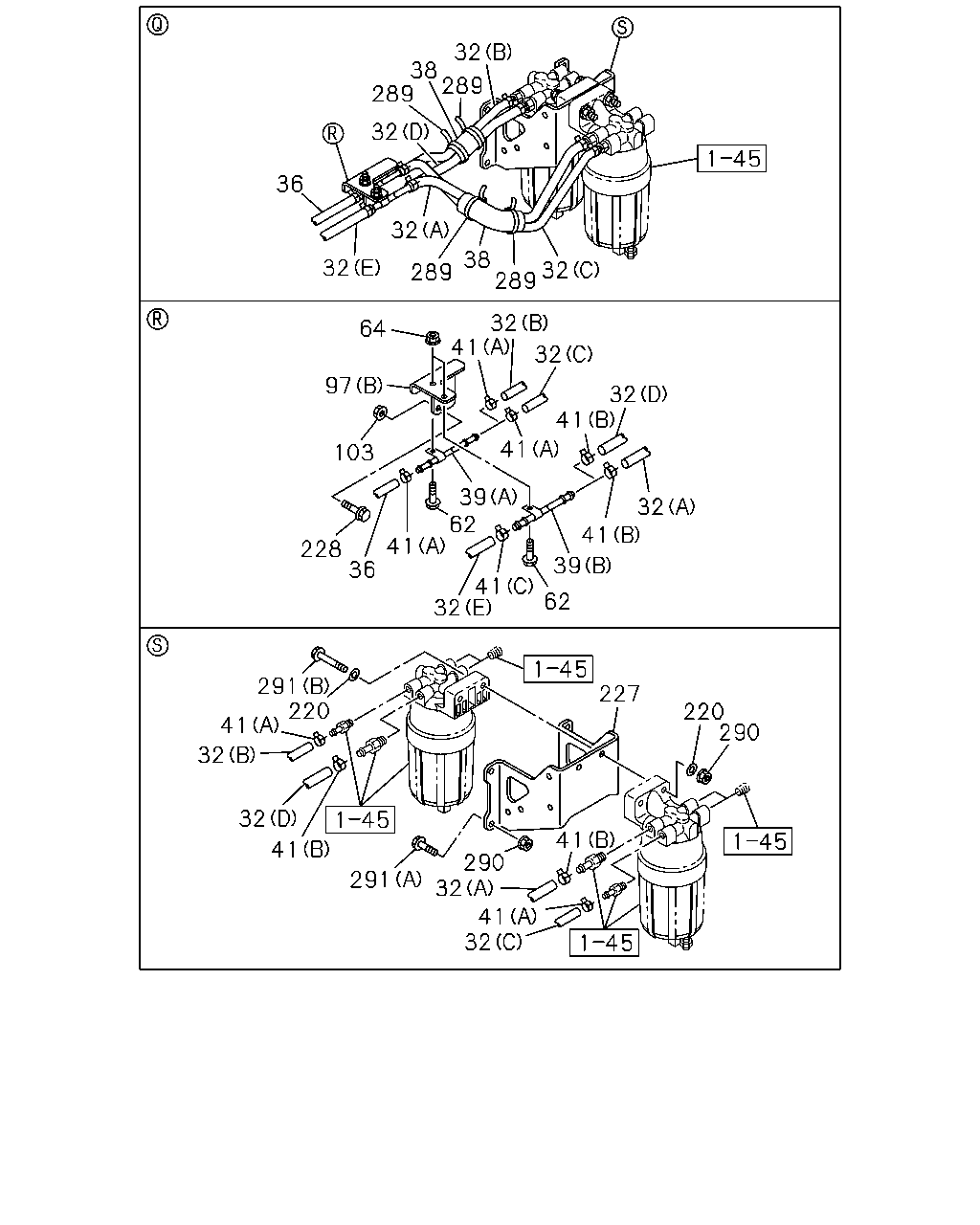

32 32 32 634 32 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK BUS BODY REAR OVERHANG<YK4> (E) L=500	8-98271-731-0	02	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. BUS BODY REAR OVERHANG<YK4> (E) L=1000	8-98227-094-0	06	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=290	8-98203-007-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (A) L=290	8-98203-007-0	01	1	1312-	●	●
32	PIPE; DELIVERY,FUEL TANK (B)	8-98221-259-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (B)	8-98221-259-0	01	1	1312-	●	●
32	PIPE; DELIVERY,FUEL TANK (C)	8-98221-260-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (C)	8-98221-260-0	01	1	1312-	●	●
32	PIPE; DELIVERY,FUEL TANK (D)	8-98221-261-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (D)	8-98221-261-0	01	1	1312-	●	●
32	PIPE; DELIVERY,FUEL TANK (E) L=1000	8-98227-094-0	06	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (E) L=1000	8-98227-094-0	06	1	1312-1403	●	●
32	PIPE; DELIVERY,FUEL TANK BUS BODY REAR OVERHANG<YK4> (E) L=1000	8-98227-094-0	04	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (F) L=470	8-98227-098-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (F) L=470	8-98227-098-0	01	1	1312-	●	●
634	HOSE; RUBBER RETURN	8-98210-877-0	01	1	1307-1311		●
634	HOSE; RUBBER RETURN	8-98210-877-0	01	1	1312-	●	●

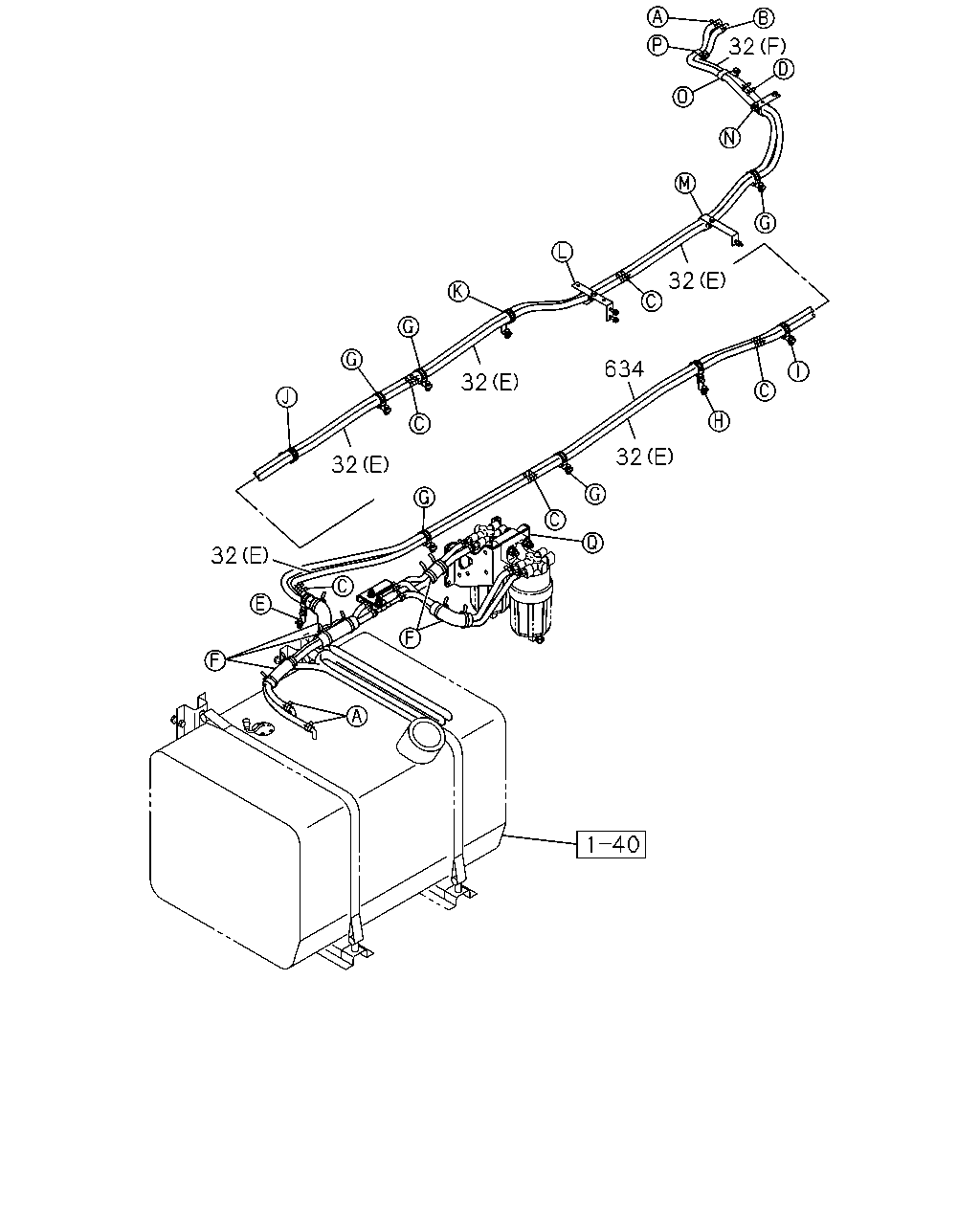

289 32 38 289 32 32 36 32 289 289 38 32 32 32 41 32 41 39 62 41 32 41 39 41 32 41 64 97 103 36 228 62 227 220 290 41 290 41 32 291 32 32 41 32 291 41 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK BUS BODY REAR OVERHANG<YK4> (E) L=500	8-98271-731-0	02	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. BUS BODY REAR OVERHANG<YK4> (E) L=1000	8-98227-094-0	06	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=290	8-98203-007-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (A) L=290	8-98203-007-0	01	1	1312-	●	●
32	PIPE; DELIVERY,FUEL TANK (B)	8-98221-259-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (B)	8-98221-259-0	01	1	1312-	●	●
32	PIPE; DELIVERY,FUEL TANK (C)	8-98221-260-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (C)	8-98221-260-0	01	1	1312-	●	●
32	PIPE; DELIVERY,FUEL TANK (D)	8-98221-261-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (D)	8-98221-261-0	01	1	1312-	●	●
32	PIPE; DELIVERY,FUEL TANK (E) L=1000	8-98227-094-0	06	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (E) L=1000	8-98227-094-0	06	1	1312-1403	●	●
32	PIPE; DELIVERY,FUEL TANK BUS BODY REAR OVERHANG<YK4> (E) L=1000	8-98227-094-0	04	1	1404-	●	●
32	PIPE; DELIVERY,FUEL TANK (F) L=470	8-98227-098-0	01	1	1307-1311		●
32	PIPE; DELIVERY,FUEL TANK (F) L=470	8-98227-098-0	01	1	1312-	●	●
36	HOSE; FUEL,FILTER TO TANK	8-98210-876-0	01	1	1307-1311		●
36	HOSE; FUEL,FILTER TO TANK	8-98210-876-0	01	1	1312-	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1312-1403	●
38	SLEEVE; RUBBER,RUBBER HOSE BUS BODY REAR OVERHANG<YK4> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1404-1404	●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. BUS BODY REAR OVERHANG<YK4> L=150 SERVICED BY L=1300	1-09360-677-1	05	1	1405-		●
38	SLEEVE; RUBBER,RUBBER HOSE BUS BODY REAR OVERHANG<YK4> L=150 SERVICED BY L=1300	1-09360-677-1	05	1	1405-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	05	1	1307-1311		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	05	1	1312-1404	●	●
38	SLEEVE; RUBBER,RUBBER HOSE BUS BODY REAR OVERHANG<YK4> L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1405-		●
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1307-1311		●
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1312-	●	●
39	PIPE; FUEL (C)	8-98227-090-0	05	1	1307-1311		●
39	PIPE; FUEL (C)	8-98227-090-0	05	1	1312-	●	●
39	PIPE; FUEL (B)	8-98227-097-0	01	1	1307-1311		●
39	PIPE; FUEL (B)	8-98227-097-0	01	1	1312-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1307-1311		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1312-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	05	1	1307-1311		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	05	1	1312-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=21	8-94242-034-0	01	1	1307-1311		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=21	8-94242-034-0	01	1	1312-	●	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1307-1311		●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1312-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1307-1311		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1312-	●	●
97	BRACKET; CLIP BUS BODY REAR OVERHANG<YK4> (E)	1-82699-745-1	01	1	1404-	●	●
97	BRACKET; CLIP (A) L=105	1-47477-409-0	01	1	1307-1311		●
97	BRACKET; CLIP (A) L=105	1-47477-409-0	01	1	1312-	●	●
97	BRACKET; CLIP (E)	1-47478-140-0	01	1	1307-1311		●
97	BRACKET; CLIP (E)	1-47478-140-0	01	1	1312-1403	●	●
97	BRACKET; CLIP EXC. BUS BODY REAR OVERHANG<YK4> (E)	1-47478-140-0	01	1	1404-1407	●	●
97	BRACKET; CLIP EXC. BUS BODY REAR OVERHANG<YK4> (E)	8-98269-434-0	01	1	1408-	●	●
97	BRACKET; CLIP (C) L=40	1-47478-410-0	04	1	1307-1311		●
97	BRACKET; CLIP (C) L=40	1-47478-410-0	04	1	1312-	●	●
97	BRACKET; CLIP (D)	1-47479-195-0	01	1	1307-1311		●
97	BRACKET; CLIP (D)	1-47479-195-0	01	1	1312-	●	●
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1307-1311		●
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1312-	●	●
103	NUT; BRKT BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	07	1	1404-	●	●
103	NUT; BRKT EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE	0-91180-108-0	08	1	1404-	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	1307-1311		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	1312-1403	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1404-	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1307-1311		●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1312-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98184-813-0	01	1	1307-1311		●
227	BRACKET; FUEL SEDIMENTER	8-98184-813-0	01	1	1312-	●	●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28650-825-0	02	1	1307-1311		●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28650-825-0	02	1	1312-	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	1312-1403	●
289	CLIP; BAND,HOSE BUS BODY REAR OVERHANG<YK4> L=250	5-09707-030-1	04	1	1404-1404	●
289	CLIP; BAND,HOSE BUS BODY REAR OVERHANG<YK4> L=250	5-09707-030-1	02	1	1405-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	10	1	1307-1311		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	10	1	1312-	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	06	1	1307-1311		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	06	1	1312-	●	●
291	BOLT; FILER TO BRKT (B) M10X90 FLANGE	0-28051-090-0	02	1	1307-1311		●
291	BOLT; FILER TO BRKT (B) M10X90 FLANGE	0-28051-090-0	02	1	1312-	●	●
291	BOLT; FILER TO BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1307-1311		●
291	BOLT; FILER TO BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
