Isuzu WW
▶
BUSES
▶
LV
▶
11523 - LV152/452(LHD) EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

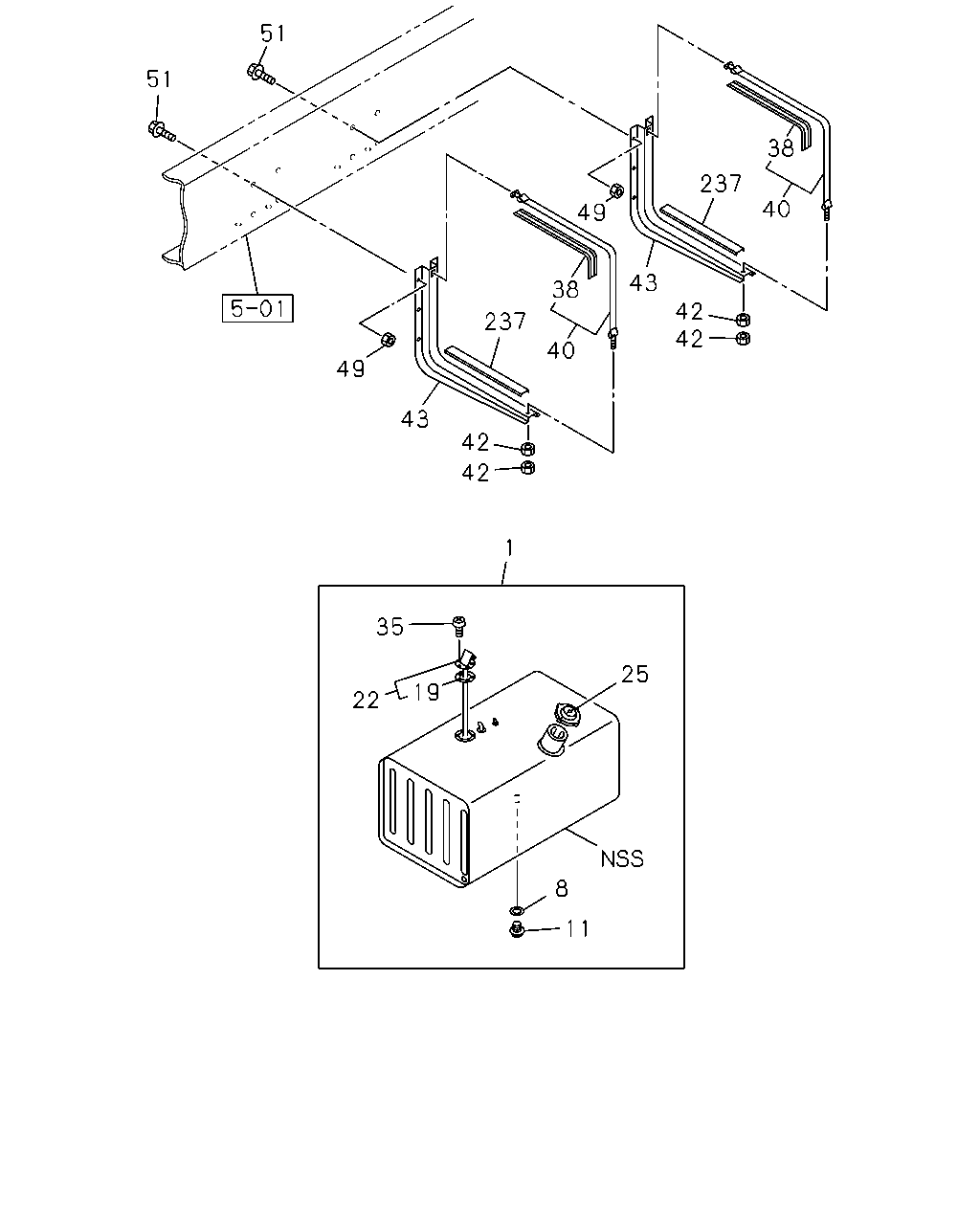

1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#123892) — 31 parça
Tümü
A - LVR6FB
B - LVD6FB
51
51
49
43
42
42
1
35
22
19
25
11
8
40
237
38
43
42
42
49
237
38
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
880X649X549 300L
1-22401-108-2
01
1
1307-1311
●
1
TANK; FUEL
880X649X549 300L
1-22401-108-2
01
1
1312-1505
●
●
1
TANK; FUEL
880X649X549 300L
8-98298-799-0
01
1
1506-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
9-09572-014-0
01
1
1307-1311
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
9-09572-014-0
01
1
1312-
●
●
11
PLUG; DRAIN,FUEL TANK
M14X14
9-09862-156-0
01
1
1307-1311
●
11
PLUG; DRAIN,FUEL TANK
M14X14
9-09862-156-0
01
1
1312-
●
●
19
GASKET; FUEL TANK UNIT
ID=45 OD=67
1-83149-003-0
01
1
1307-1311
●
19
GASKET; FUEL TANK UNIT
ID=45 OD=67
1-83149-003-0
01
1
1312-
●
●
22
UNIT; FUEL TANK
1-83141-118-0
01
1
1307-1311
●
22
UNIT; FUEL TANK
1-83141-118-0
01
1
1312-1505
●
●
22
UNIT; FUEL TANK
8-98296-673-0
01
1
1506-
●
●
25
CAP; FILLER,FUEL TANK
1-22440-046-1
01
1
1307-1311
●
25
CAP; FILLER,FUEL TANK
1-22440-046-1
01
1
1312-
●
●
35
SCREW; FUEL TANK UNIT
M4X10 W/PL WASHER
0-36210-410-0
05
1
1307-1311
●
35
SCREW; FUEL TANK UNIT
M4X10 W/PL WASHER
0-36210-410-0
05
1
1312-1505
●
●
35
SCREW; FUEL TANK UNIT
M4X10 W/LK WASHER
0-36220-410-0
05
1
1506-
●
●
38
INSULATION; SUPPORT BELT
L=650
1-22553-022-1
02
1
1307-1311
●
38
INSULATION; SUPPORT BELT
L=650
1-22553-022-1
02
1
1312-
●
●
40
BELT; SUPPORT,FUEL TANK
1-22550-222-3
02
1
1307-1311
●
40
BELT; SUPPORT,FUEL TANK
1-22550-222-3
02
1
1312-
●
●
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1307-1311
●
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1312-
●
●
43
BRACKET; FUEL TANK
1-53461-544-0
02
1
1307-1311
●
43
BRACKET; FUEL TANK
1-53461-544-0
02
1
1312-
●
●
49
NUT; BRKT
M12
0-91110-512-0
08
1
1307-1311
●
49
NUT; BRKT
M12
0-91110-512-0
08
1
1312-
●
●
51
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28651-240-0
08
1
1307-1311
●
51
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28651-240-0
08
1
1312-
●
●
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
02
1
1307-1311
●
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
02
1
1312-
●
●
