1-31 — AIR DUCT
(#123890) — 20 parça
◀

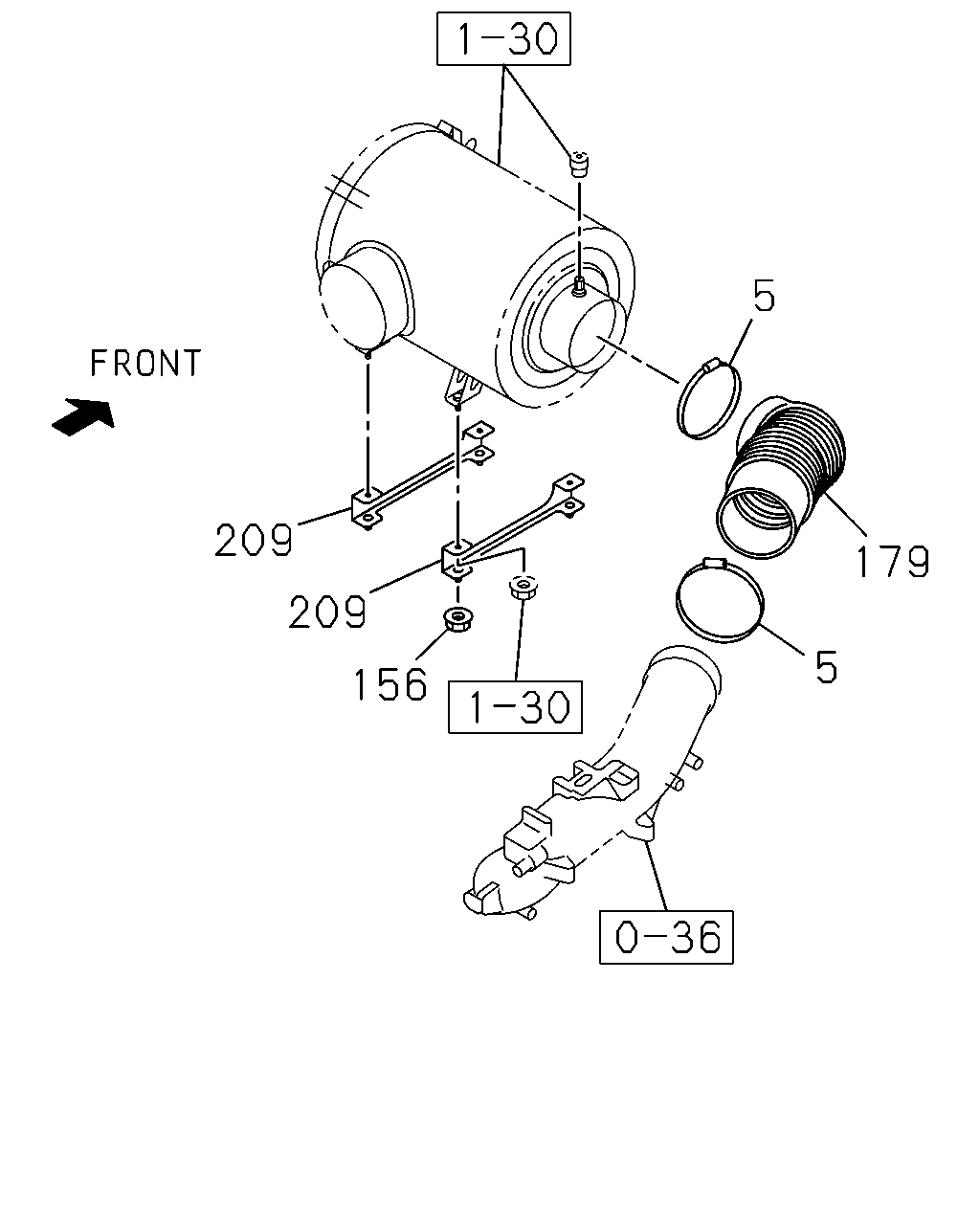

[131A] NO.1 (4 parça)
[131A] NO.2 (16 parça)
▶
5
179
5
156
209
209
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
ID=155-184
1-09707-182-0
02
1
1307-
156
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1307-
179
HOSE; AIR INT
8-98225-109-1
01
1
1307-
209
BRACKET; ACL
1-53419-343-1
02
1
1307-
155
317
199
317
211
411
317
157
317
411
357
357
353
353
353
353
248
248
379
248
248
488
488
157
317
411
199
155
317
211
325
357
357
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
155
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1307-
155
BOLT; BRKT
(B) M10X25 FLANGE
0-28651-025-0
02
1
1307-
157
PIPE; AIR
(A)
8-98191-595-1
01
1
1307-
157
PIPE; AIR
(B)
8-98191-598-1
01
1
1307-
199
BRACKET; PIPE
(A)
1-47478-710-0
01
1
1307-
199
BRACKET; PIPE
(B)
8-98191-892-0
01
1
1307-
211
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1307-
211
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1307-
248
CLIP; RUBBER HOSE
ID=87-116
1-09707-138-0
04
1
1307-
317
NUT; CUSHION RUBBER
M8 FLANGE
0-91180-108-0
10
1
1307-
325
HOSE; RUBBER,ENG TO PIPE
1-09361-088-0
01
1
1307-
353
CLIP; RUBBER HOSE
ID=87-116
1-09707-144-0
04
1
1307-
357
CLIP; RUBBER HOSE
ID=87-116
1-09707-144-0
04
1
1307-
379
HOSE; RUBBER
8-98191-837-0
01
1
1307-
411
RUBBER; CUSHION
8-98148-109-0
05
1
1307-
488
HOSE; RUBBER,PIPE
1-09361-165-0
02
1
1307-
