◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#123883) — 23 parça

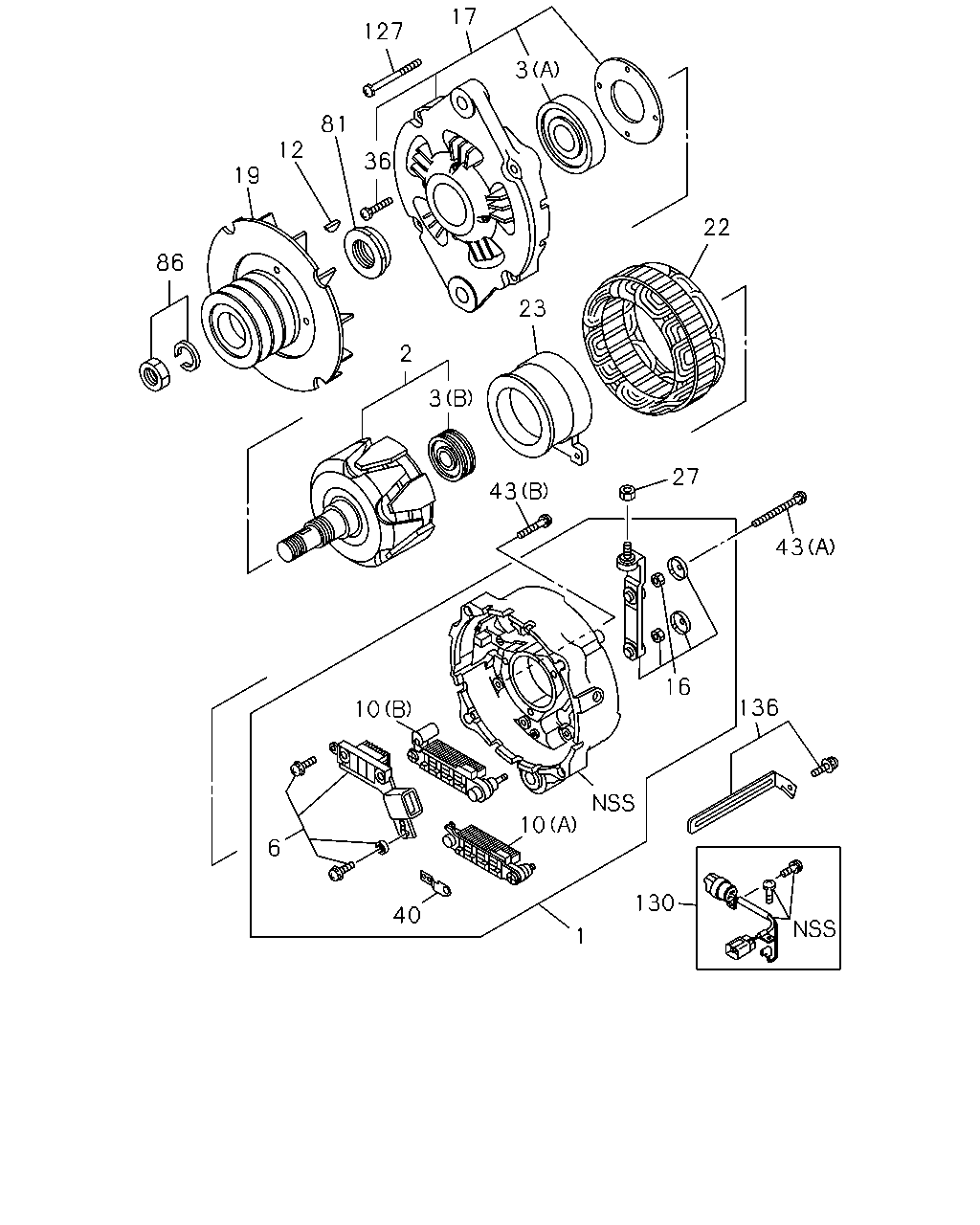

çizim 362626
43 27 43 3 2 23 22 10 10 130 40 1 6 86 19 12 81 127 17 3 36 136 16
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-650-3 		1-81214-375-2 01 1 -
2 ROTOR; GEN
ASM PART: A = 1-81200-650-3 		1-81221-106-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-650-3 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-650-3 		1-81229-816-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 1-81200-650-3 		1-81260-018-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: A = 1-81200-650-3 		1-81219-128-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 1-81200-650-3 		1-81219-140-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: A = 1-81200-650-3 		1-81229-822-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 1-81200-650-3 		1-81229-806-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-650-3 		1-81213-115-1 01 1 -
19 PULLEY; GEN
ASM PART: A = 1-81200-650-3 		1-81222-151-3 01 1 -
22 STATOR; GEN
ASM PART: A = 1-81200-650-3 		1-81211-132-1 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 1-81200-650-3 		1-81212-026-1 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 1-81200-650-3 		1-81229-821-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 1-81200-650-3 		1-81229-814-0 01 1 -
40 PLATE; RR COVER
ASM PART: A = 1-81200-650-3 		1-81222-163-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 1-81200-650-3 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 1-81200-650-3 		1-81229-817-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 1-81200-650-3 		1-81229-813-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 1-81200-650-3 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
ASM PART: A = 1-81200-650-3 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
ASM PART: A = 1-81200-650-3 		1-81229-892-0 01 1 -
136 CLAMP; GENERATOR
ASM PART: A = 1-81200-650-3 		1-81229-775-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
