0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#123881) — 216 parça

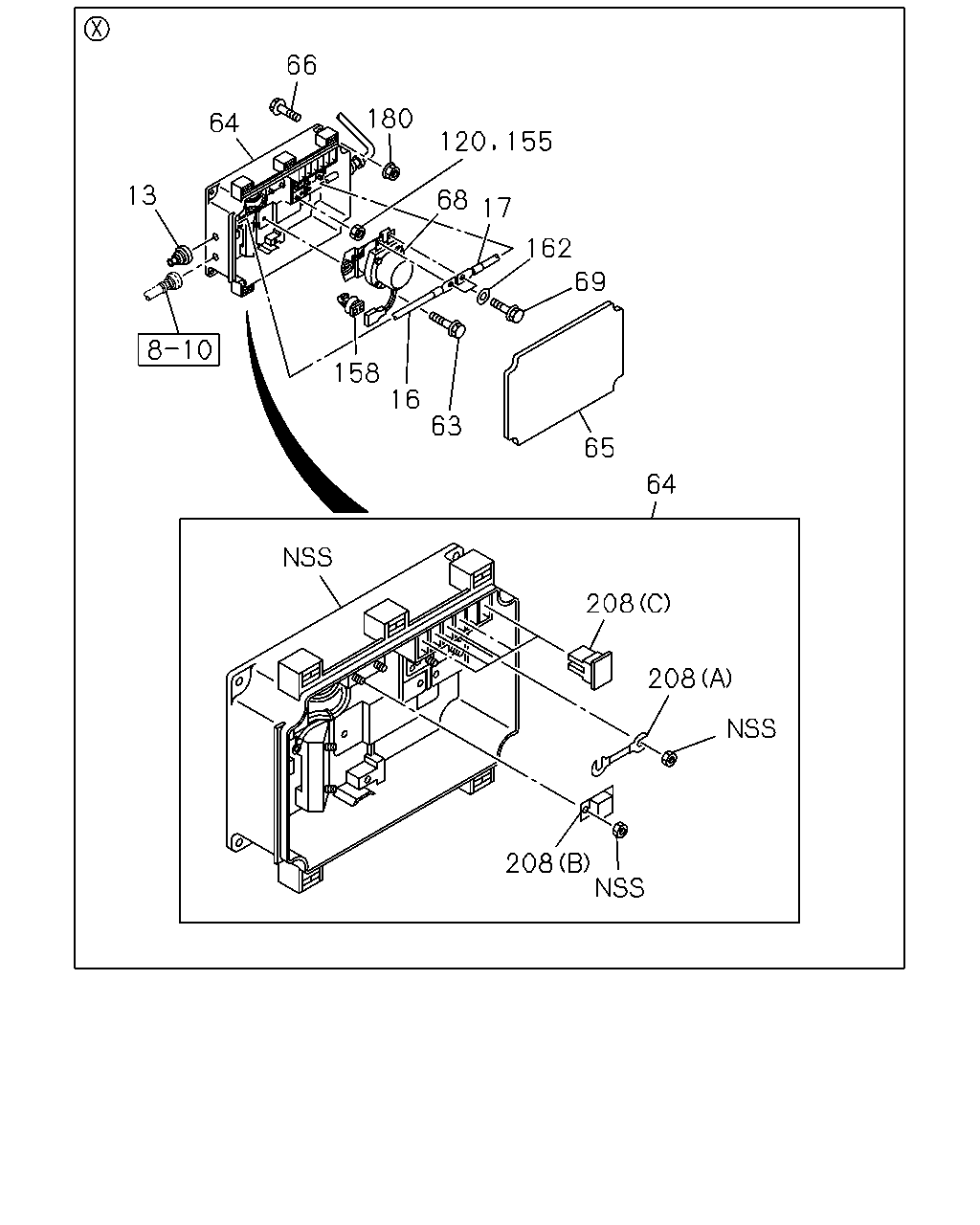

çizim 362602
13 64 66 180 155 17 68 158 63 162 64 65 69 120 16 208 208 208
BalonParca AdiParca NoAdetTipApplied Date A B
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1307-1311 ●
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1312- ● ●
16 CABLE; STARTER TO RELAY
BUS BODY REAR OVERHANG<YK4> 		8-98269-652-0 01 1 1404- ● ●
16 CABLE; STARTER TO RELAY
L=5900 		8-98191-754-0 01 1 1307-1311 ●
16 CABLE; STARTER TO RELAY
L=5900 		8-98191-754-0 01 1 1312-1403 ● ●
16 CABLE; STARTER TO RELAY
EXC. BUS BODY REAR OVERHANG<YK4> L=5900 		8-98191-754-0 01 1 1404- ● ●
17 CABLE; BATTERY (+) TO RELAY
L=1700 		1-82650-366-1 01 1 1307-1311 ●
17 CABLE; BATTERY (+) TO RELAY
L=1700 		1-82650-366-1 01 1 1312- ● ●
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1307-1311 ●
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1312- ● ●
64 BOX; BATTERY RELAY 1-82510-651-0 01 1 1307-1311 ●
64 BOX; BATTERY RELAY 1-82510-651-0 01 1 1312- ● ●
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 1307-1311 ●
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 1312- ● ●
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1307-1311 ●
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1312- ● ●
68 RELAY; BATTERY 1-82550-313-0 01 1 1307-1311 ●
68 RELAY; BATTERY 1-82550-313-0 01 1 1312- ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1307-1311 ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1312- ● ●
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1312- ● ●
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1307-1311 ●
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1312- ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1307-1311 ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1312- ● ●
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1307-1311 ●
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1312- ● ●
208 FUSE
(B) 80A 		1-82516-031-0 01 1 1307-1311 ●
208 FUSE
(B) 80A 		1-82516-031-0 01 1 1312- ● ●
208 FUSE
(C) 40A GREEN 		8-94468-662-0 05 1 1307-1311 ●
208 FUSE
(C) 40A GREEN 		8-94468-662-0 05 1 1312- ● ●
208 FUSE
(A) 125A 		9-82941-130-1 01 1 1307-1311 ●
208 FUSE
(A) 125A 		9-82941-130-1 01 1 1312- ● ●

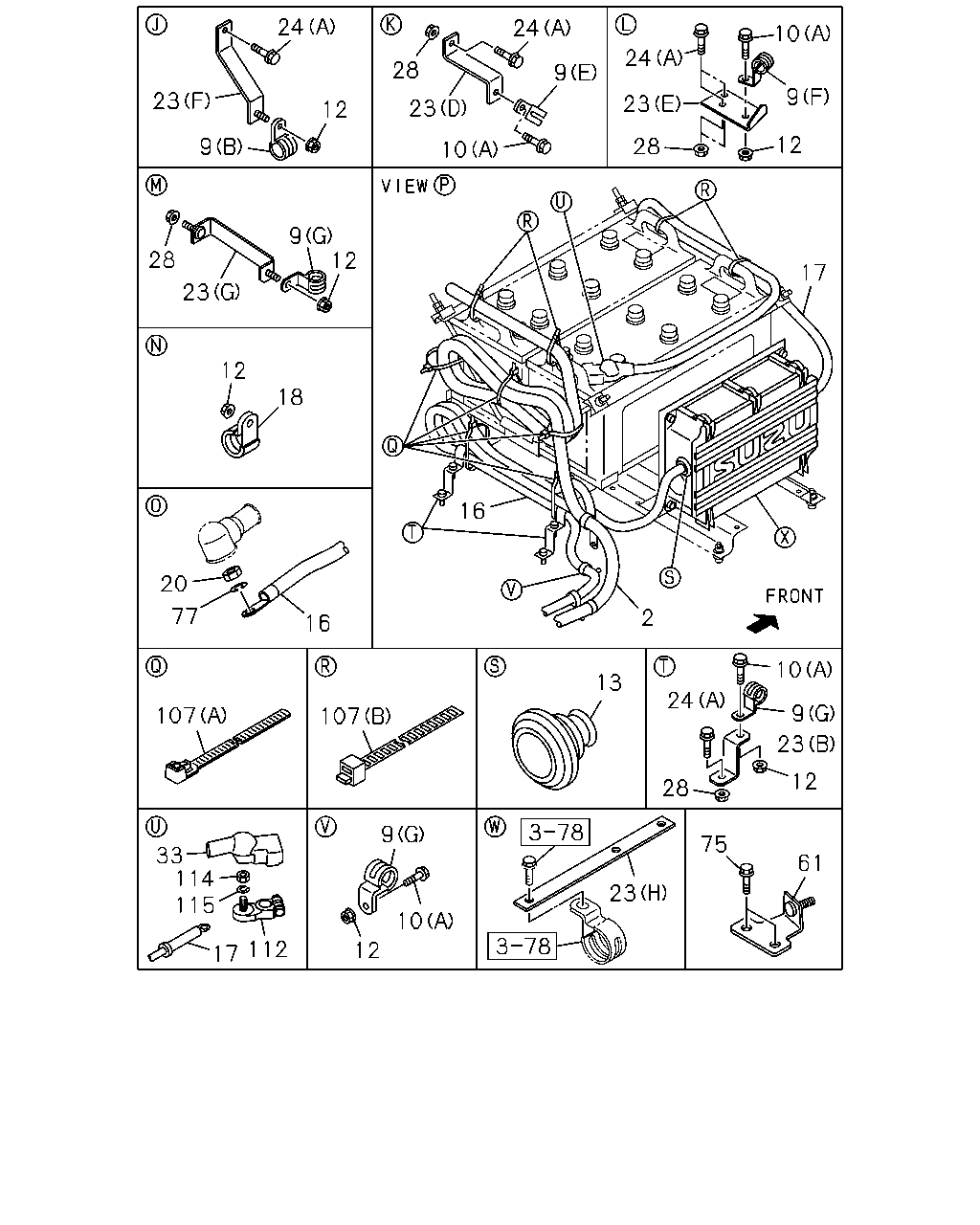

çizim 366481
24 23 12 28 23 24 9 10 24 23 28 12 9 10 17 2 16 18 12 12 9 23 28 77 20 16 9 107 107 13 24 10 9 23 12 28 75 61 9 10 12 17 112 115 114 23 33
BalonParca AdiParca NoAdetTipApplied Date A B
2 CABLE; BATTERY
L=3600 		8-98208-762-0 01 1 1307-1311 ●
2 CABLE; BATTERY
L=3600 		8-98208-762-0 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
EXC. BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 10 1 1404- ●
9 CLIP; BATTERY CABLE
(G) ID=20 H=23 L=27 		1-09700-861-0 11 1 1312-1403 ●
9 CLIP; BATTERY CABLE
BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 09 1 1404- ●
9 CLIP; BATTERY CABLE
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 1312- ●
9 CLIP; BATTERY CABLE
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1307- ●
9 CLIP; BATTERY CABLE
(B) ID=26 L=27 		1-09701-006-0 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(B) ID=26 L=27 		1-09701-006-0 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(C) ID=25 L=60 		1-09701-041-1 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(C) ID=25 L=60 		1-09701-041-1 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(E) ID=21 L=24 		8-94176-807-1 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(E) ID=21 L=24 		8-94176-807-1 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(G) ID=20 H=23 L=27 		1-09700-861-0 10 1 1307-1403 ●
9 CLIP; BATTERY CABLE
BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 08 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
EXC. BUS BODY REAR OVERHANG<YK4> (A) M8X25 FLANGE 		0-28650-825-0 09 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1312-1403 ●
10 BOLT; BATTERY CABLE CLIP
EXC. BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 09 1 1307-1311 ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 09 1 1312-1403 ● ●
10 BOLT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> (A) M8X25 FLANGE 		0-28650-825-0 08 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1403 ●
10 BOLT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1307-1311 ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1312- ● ●
12 NUT; BATTERY CABLE CLIP
EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 13 1 1404- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 14 1 1312-1403 ●
12 NUT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 12 1 1404- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 13 1 1307-1403 ●
12 NUT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 11 1 1404- ●
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1307-1311 ●
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1312- ● ●
16 CABLE; STARTER TO RELAY
BUS BODY REAR OVERHANG<YK4> 		8-98269-652-0 01 1 1404- ● ●
16 CABLE; STARTER TO RELAY
L=5900 		8-98191-754-0 01 1 1307-1311 ●
16 CABLE; STARTER TO RELAY
L=5900 		8-98191-754-0 01 1 1312-1403 ● ●
16 CABLE; STARTER TO RELAY
EXC. BUS BODY REAR OVERHANG<YK4> L=5900 		8-98191-754-0 01 1 1404- ● ●
17 CABLE; BATTERY (+) TO RELAY
L=1700 		1-82650-366-1 01 1 1307-1311 ●
17 CABLE; BATTERY (+) TO RELAY
L=1700 		1-82650-366-1 01 1 1312- ● ●
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 1307-1311 ●
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 1312- ● ●
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1307-1311 ●
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47476-658-0 02 1 1312- ●
23 BRACKET; CABLE CLIP TO FRAME
(H) L=229 		1-47478-993-0 01 1 1312- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=145 		1-47475-655-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=145 		1-47475-655-0 01 1 1312-1403 ● ●
23 BRACKET; CABLE CLIP TO FRAME
EXC. BUS BODY REAR OVERHANG<YK4> (A) L=145 		1-47475-655-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47476-658-0 03 1 1307- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=115 B=25 		1-47476-758-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=115 B=25 		1-47476-758-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-47477-868-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-47477-868-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=40 		1-47478-410-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=40 		1-47478-410-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-575-1 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-575-1 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(G) 		1-82698-589-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(G) 		1-82698-589-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98062-598-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98062-598-0 01 1 1312- ● ●
24 BOLT; BRKT TO FRAME
EXC. BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 04 1 1404- ● ●
24 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 07 1 1307-1311 ●
24 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 07 1 1312- ● ●
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1307-1311 ●
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1312-1403 ● ●
24 BOLT; BRKT TO FRAME
BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1404- ● ●
28 NUT; BRKT TO FRAME
EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 10 1 1404- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 10 1 1307-1311 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 10 1 1312-1403 ● ●
28 NUT; BRKT TO FRAME
BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 09 1 1404- ● ●
33 CAP; INSULATOR
BLACK 		1-82699-106-0 01 1 1307-1311 ●
33 CAP; INSULATOR
BLACK 		1-82699-106-0 01 1 1312- ● ●
61 BRACKET; BATTERY CABLE 8-98147-302-0 01 1 1307-1311 ●
61 BRACKET; BATTERY CABLE 8-98147-302-0 01 1 1312-1402 ● ●
61 BRACKET; BATTERY CABLE 8-98147-302-0 01 1 1403- ● ●
75 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1307-1311 ●
75 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1312-1402 ● ●
75 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1403- ● ●
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 1307-1311 ●
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 1312- ● ●
107 CLIP; BAND
(A) L=350 		1-09707-183-0 05 1 1307-1311 ●
107 CLIP; BAND
(A) L=350 		1-09707-183-0 05 1 1312- ● ●
107 CLIP; BAND
(B) L=250 		5-09707-030-1 04 1 1307-1311 ●
107 CLIP; BAND
(B) L=250 		5-09707-030-1 04 1 1312- ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 1307-1311 ●
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 1312- ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 1307-1311 ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 1312- ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10 		1-09985-180-0 01 1 1307-1311 ●
115 WASHER; LK,CABLE,BATTERY
ID=10 		1-09985-180-0 01 1 1312- ● ●

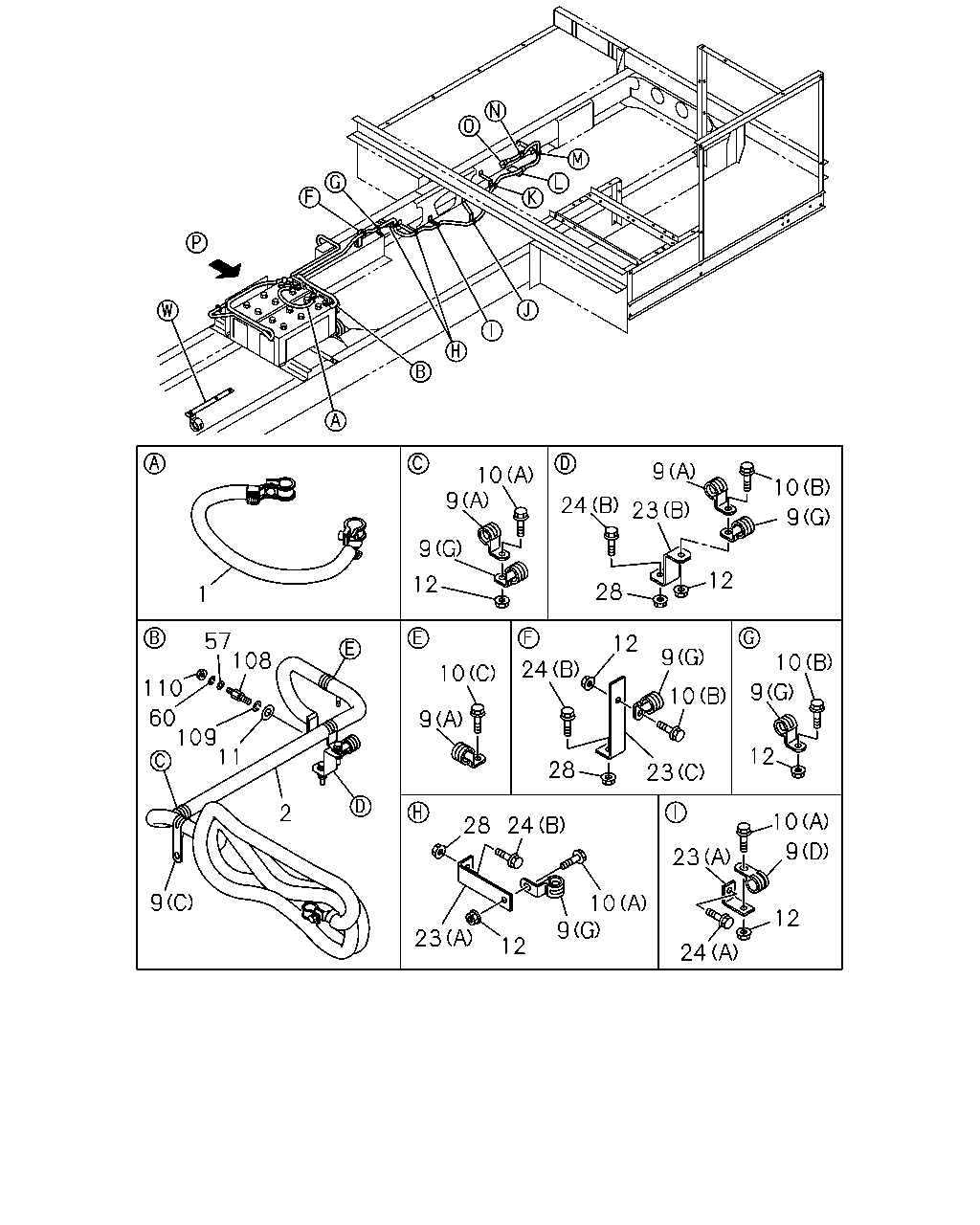

çizim 366487
1 9 10 9 24 10 9 12 28 23 10 9 12 23 28 24 12 9 10 10 9 10 9 12 23 24 10 9 12 23 28 24 9 2 11 108 109 60 110 57 12 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=500 		8-97623-077-0 01 1 1307-1311 ●
1 CABLE; BATTERY
L=500 		8-97623-077-0 01 1 1312- ● ●
2 CABLE; BATTERY
L=3600 		8-98208-762-0 01 1 1307-1311 ●
2 CABLE; BATTERY
L=3600 		8-98208-762-0 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
EXC. BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 10 1 1404- ●
9 CLIP; BATTERY CABLE
(G) ID=20 H=23 L=27 		1-09700-861-0 11 1 1312-1403 ●
9 CLIP; BATTERY CABLE
BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 09 1 1404- ●
9 CLIP; BATTERY CABLE
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 1312- ●
9 CLIP; BATTERY CABLE
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1307- ●
9 CLIP; BATTERY CABLE
(B) ID=26 L=27 		1-09701-006-0 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(B) ID=26 L=27 		1-09701-006-0 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(C) ID=25 L=60 		1-09701-041-1 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(C) ID=25 L=60 		1-09701-041-1 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(E) ID=21 L=24 		8-94176-807-1 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(E) ID=21 L=24 		8-94176-807-1 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1307-1311 ●
9 CLIP; BATTERY CABLE
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1312- ● ●
9 CLIP; BATTERY CABLE
(G) ID=20 H=23 L=27 		1-09700-861-0 10 1 1307-1403 ●
9 CLIP; BATTERY CABLE
BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 08 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
EXC. BUS BODY REAR OVERHANG<YK4> (A) M8X25 FLANGE 		0-28650-825-0 09 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1312-1403 ●
10 BOLT; BATTERY CABLE CLIP
EXC. BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 09 1 1307-1311 ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 09 1 1312-1403 ● ●
10 BOLT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> (A) M8X25 FLANGE 		0-28650-825-0 08 1 1404- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1403 ●
10 BOLT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1404- ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1307-1311 ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1312- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1307-1311 ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1312- ● ●
12 NUT; BATTERY CABLE CLIP
EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 13 1 1404- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 14 1 1312-1403 ●
12 NUT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 12 1 1404- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 13 1 1307-1403 ●
12 NUT; BATTERY CABLE CLIP
BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 11 1 1404- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47476-658-0 02 1 1312- ●
23 BRACKET; CABLE CLIP TO FRAME
(H) L=229 		1-47478-993-0 01 1 1312- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=145 		1-47475-655-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=145 		1-47475-655-0 01 1 1312-1403 ● ●
23 BRACKET; CABLE CLIP TO FRAME
EXC. BUS BODY REAR OVERHANG<YK4> (A) L=145 		1-47475-655-0 01 1 1404- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47476-658-0 03 1 1307- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=115 B=25 		1-47476-758-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=115 B=25 		1-47476-758-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-47477-868-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-47477-868-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=40 		1-47478-410-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=40 		1-47478-410-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-575-1 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-575-1 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(G) 		1-82698-589-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(G) 		1-82698-589-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 01 1 1312- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98062-598-0 01 1 1307-1311 ●
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98062-598-0 01 1 1312- ● ●
24 BOLT; BRKT TO FRAME
EXC. BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 04 1 1404- ● ●
24 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 07 1 1307-1311 ●
24 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 07 1 1312- ● ●
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1307-1311 ●
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1312-1403 ● ●
24 BOLT; BRKT TO FRAME
BUS BODY REAR OVERHANG<YK4> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1404- ● ●
28 NUT; BRKT TO FRAME
EXC. BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 10 1 1404- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 10 1 1307-1311 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 10 1 1312-1403 ● ●
28 NUT; BRKT TO FRAME
BUS BODY REAR OVERHANG<YK4> M8 FLANGE 		0-91180-108-0 09 1 1404- ● ●
57 WASHER; PL,BATTERY CABLE
ID=6.4 		0-91614-506-0 01 1 1307-1311 ●
57 WASHER; PL,BATTERY CABLE
ID=6.4 		0-91614-506-0 01 1 1312- ● ●
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1307-1311 ●
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1312- ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1307-1311 ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1312- ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1307-1311 ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1312- ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1307-1311 ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
