◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#123880) — 127 parça

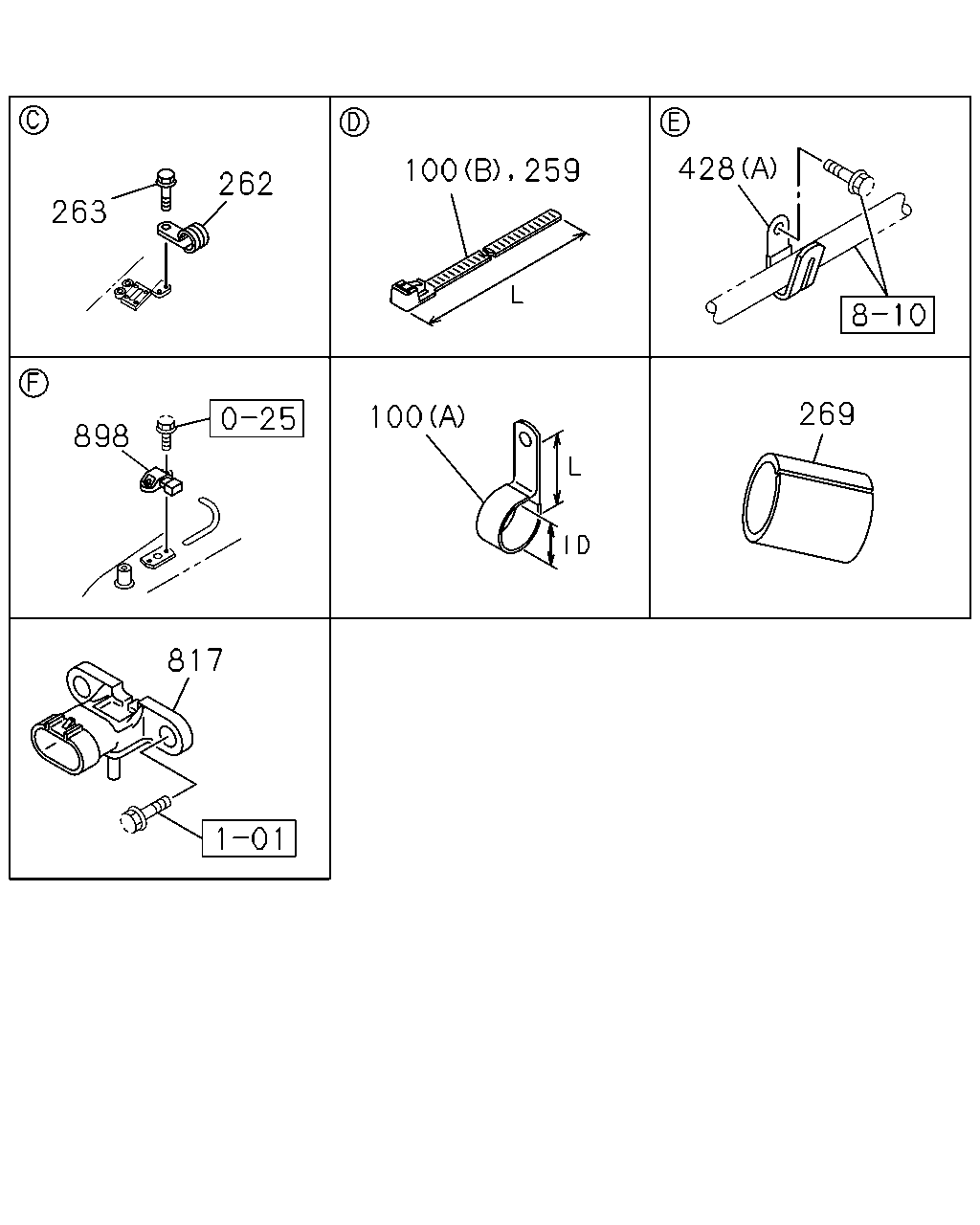

çizim 362409
263 262 100 259 428 269 100 898 817
BalonParca AdiParca NoAdetTipApplied Date A B
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1307-1311 ●
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1312-1402 ● ●
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1403- ● ●
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1307-1311 ●
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1312-1402 ● ●
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1403- ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 01 1 1307-1311 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 01 1 1312-1402 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 01 1 1403- ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		8-98216-431-0 05 1 1307-1311 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		8-98216-431-0 05 1 1312-1402 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		8-98216-431-0 05 1 1403- ● ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 03 1 1307-1311 ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 03 1 1312-1402 ● ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 03 1 1403- ● ●
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 1307-1311 ●
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 1312-1402 ● ●
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 1403- ● ●
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 1307-1311 ●
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 1312-1402 ● ●
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 1403- ● ●
428 CLIP; HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1307-1311 ●
428 CLIP; HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1312- ● ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 1307-1307 ●
817 SENSOR; PRESSURE,FUEL 8-98020-514-0 01 1 1307-1311 ●
817 SENSOR; PRESSURE,FUEL 8-98020-514-0 01 1 1312- ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1307-1311 ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1312-1402 ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1403- ● ●

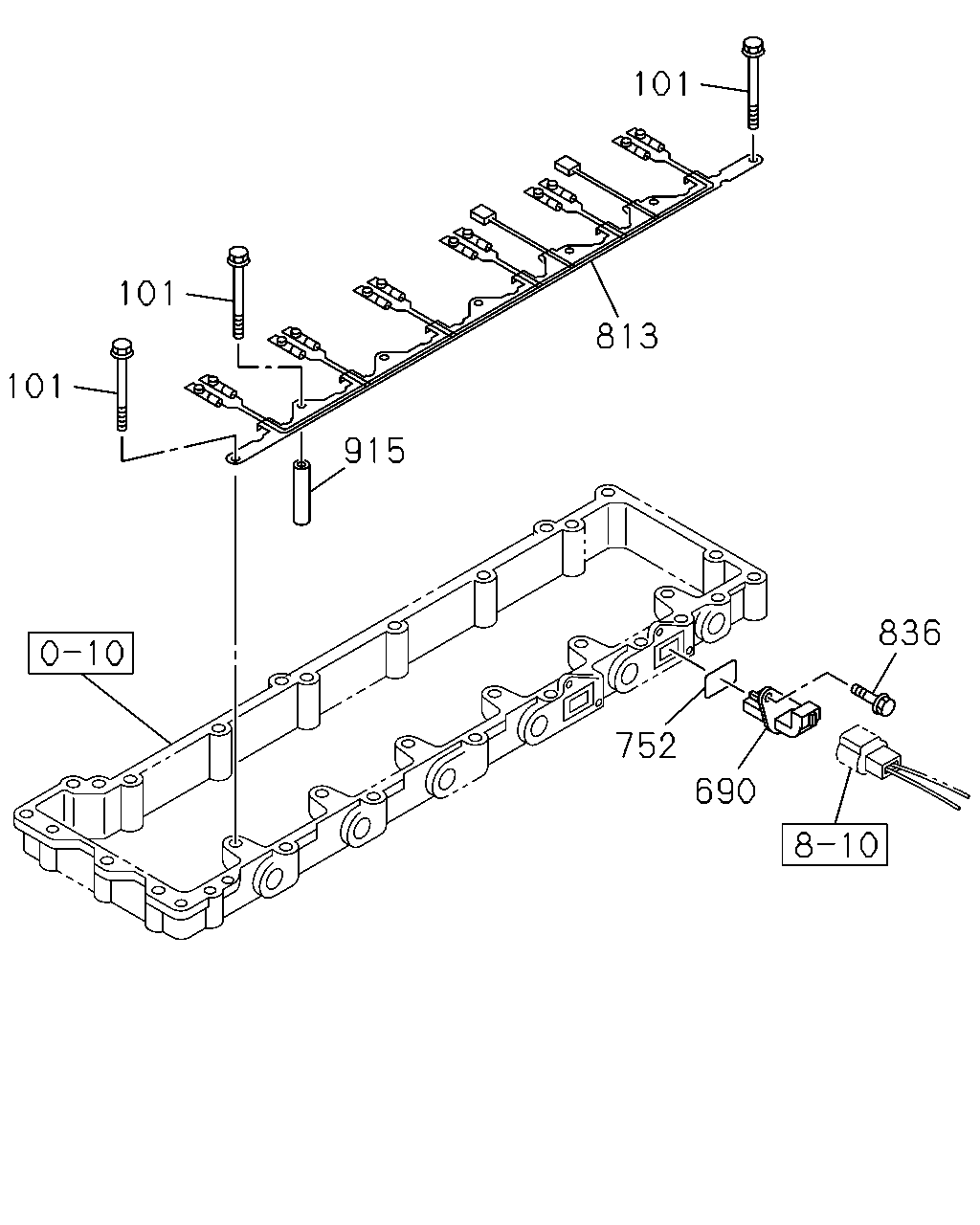

çizim 362507
101 101 915 813 101 752 690 836
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1307-1311 ●
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1312-1402 ● ●
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1403- ● ●
690 CONNECTOR 8-94390-858-1 02 1 1307-1311 ●
690 CONNECTOR 8-94390-858-1 02 1 1312-1402 ● ●
690 CONNECTOR 8-94390-858-1 02 1 1403- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1307-1311 ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1312-1402 ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1403- ● ●
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1307-1311 ●
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1312-1402 ● ●
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1403- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1307-1311 ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1312-1402 ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1403- ● ●
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1307-1311 ●
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1312-1402 ● ●
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1403- ● ●

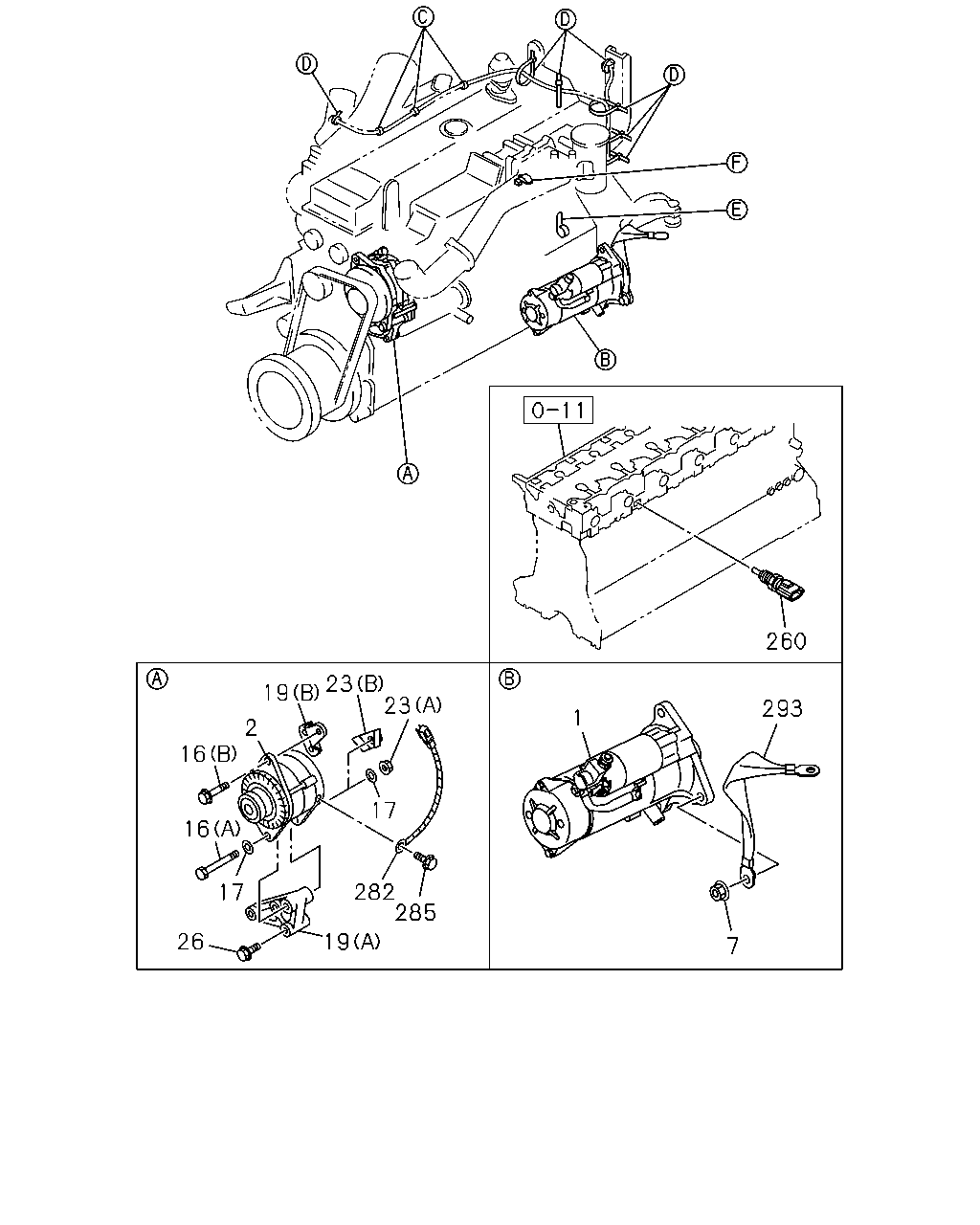

çizim 362958
260 293 7 1 282 285 19 26 17 16 16 2 19 23 23 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1307-1311 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1312-1402 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1403- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 110A MITSUBISHI 		1-81200-650-3 01 1 1307-1311 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 110A MITSUBISHI 		1-81200-650-3 01 1 1312-1402 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 110A MITSUBISHI 		1-81200-650-3 01 1 1403- ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1307-1311 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1312-1402 ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1403- ● ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 1307-1311 ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 1312-1402 ● ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 1403- ● ●
16 BOLT; GEN
(A) M14X157 		1-09000-071-1 01 1 1307-1311 ●
16 BOLT; GEN
(A) M14X157 		1-09000-071-1 01 1 1312-1402 ● ●
16 BOLT; GEN
(A) M14X157 		1-09000-071-1 01 1 1403- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 02 1 1307-1311 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 02 1 1312-1402 ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 02 1 1403- ● ●
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 1307-1311 ●
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 1312-1402 ● ●
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 1403- ● ●
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 1307-1311 ●
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 1312-1402 ● ●
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 1403- ● ●
23 NUT; GEN
(A) M14 FLANGE 		0-91150-114-0 01 1 1307-1311 ●
23 NUT; GEN
(A) M14 FLANGE 		0-91150-114-0 01 1 1312-1402 ● ●
23 NUT; GEN
(A) M14 FLANGE 		0-91150-114-0 01 1 1403- ● ●
23 NUT; GEN
(B) M14 W/BRKT 		1-19711-029-0 01 1 1307-1311 ●
23 NUT; GEN
(B) M14 W/BRKT 		1-19711-029-0 01 1 1312-1402 ● ●
23 NUT; GEN
(B) M14 W/BRKT 		1-19711-029-0 01 1 1403- ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1307-1311 ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1312-1402 ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1403- ● ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1307-1311 ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1312-1402 ● ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1403-1406 ● ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1407- ● ●
282 HARNESS; EXT,GEN 1-82640-682-2 01 1 1307-1311 ●
282 HARNESS; EXT,GEN 1-82640-682-2 01 1 1312-1402 ● ●
282 HARNESS; EXT,GEN 1-82640-682-2 01 1 1403- ● ●
285 BOLT; GEN
M8X12 FLANGE 		0-28050-812-0 01 1 1307-1311 ●
285 BOLT; GEN
M8X12 FLANGE 		0-28050-812-0 01 1 1312-1402 ● ●
285 BOLT; GEN
M8X12 FLANGE 		0-28050-812-0 01 1 1403- ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1307-1311 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1312-1402 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1403- ● ●

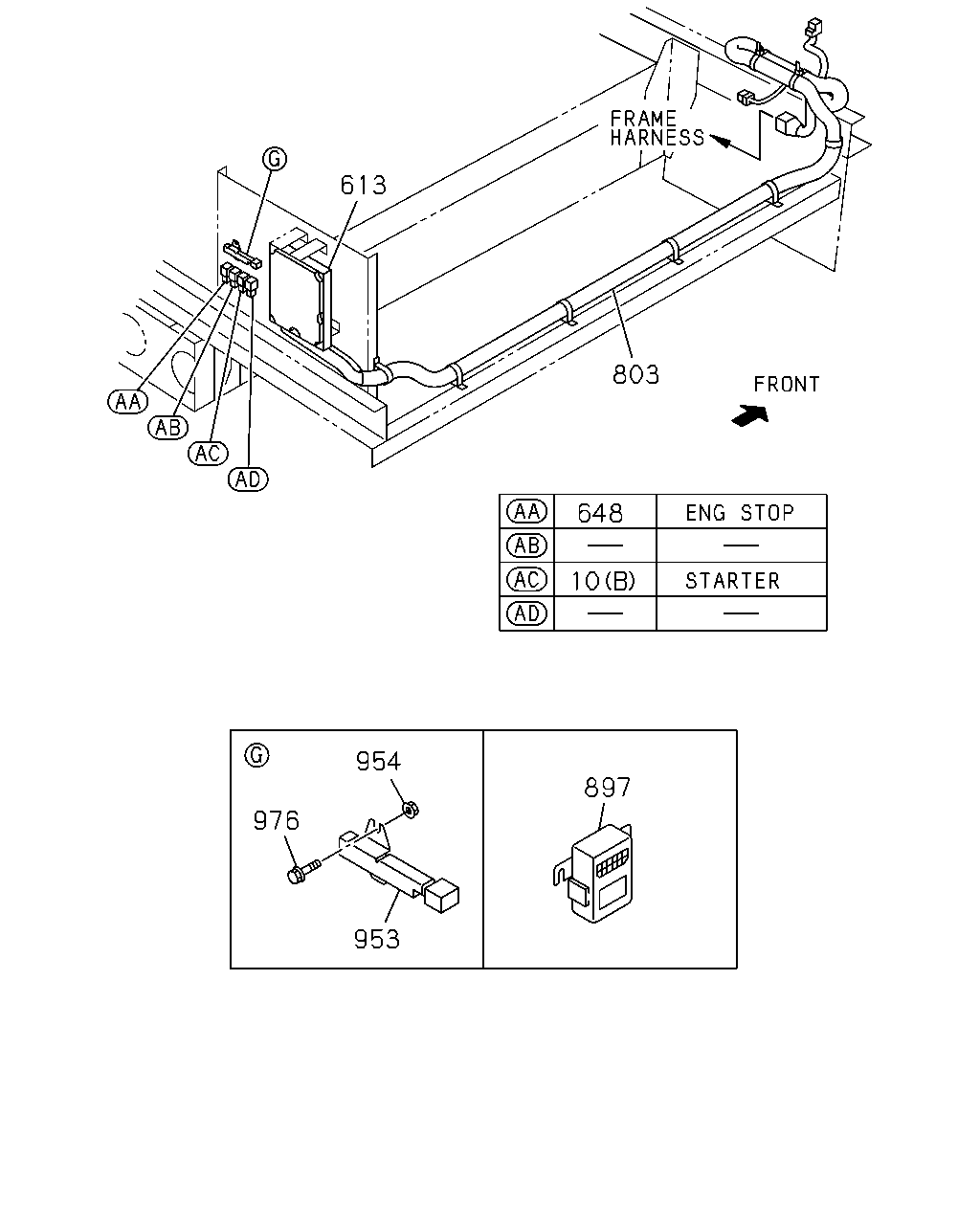

çizim 366095
613 803 648 10 954 976 953 897
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 		1-81171-100-1 01 1 1307-1311 ●
10 RELAY; STARTER
(A) 		1-81171-100-1 01 1 1312- ● ●
10 RELAY; STARTER
(B) 24V 12.5A PANASONIC 		8-98168-240-0 01 1 1307-1311 ●
10 RELAY; STARTER
(B) 24V 12.5A PANASONIC 		8-98168-240-0 01 1 1312- ● ●
613 CONTROL UNIT; ENG 8-98224-318-1 01 1 1307-1311 ●
613 CONTROL UNIT; ENG 8-98224-318-1 01 1 1312- ● ●
648 RELAY; ENG STOPPER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
648 RELAY; ENG STOPPER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
803 HARNESS; GOVERNOR
ANTILOCK BRAKE SYSTEM<BFA> 		8-98221-139-0 01 1 1307-1311 ●
803 HARNESS; GOVERNOR
ANTILOCK BRAKE SYSTEM<BFA> 		8-98221-139-0 01 1 1312- ● ●
803 HARNESS; GOVERNOR
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		8-98221-140-0 01 1 1307-1311 ●
803 HARNESS; GOVERNOR
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		8-98221-140-0 01 1 1312- ● ●
897 DRM 8-98013-144-8 01 1 1307-1311 ●
897 DRM 8-98013-144-8 01 1 1312-1401 ● ●
897 DRM 8-98260-912-1 01 1 1402- ● ●
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 1307-1311 ●
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 1312- ● ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 1307-1311 ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 1312- ● ●
976 BOLT; RESISTOR
M6X16 FLANGE 		0-28650-616-0 02 1 1307-1311 ●
976 BOLT; RESISTOR
M6X16 FLANGE 		0-28650-616-0 02 1 1312- ● ●

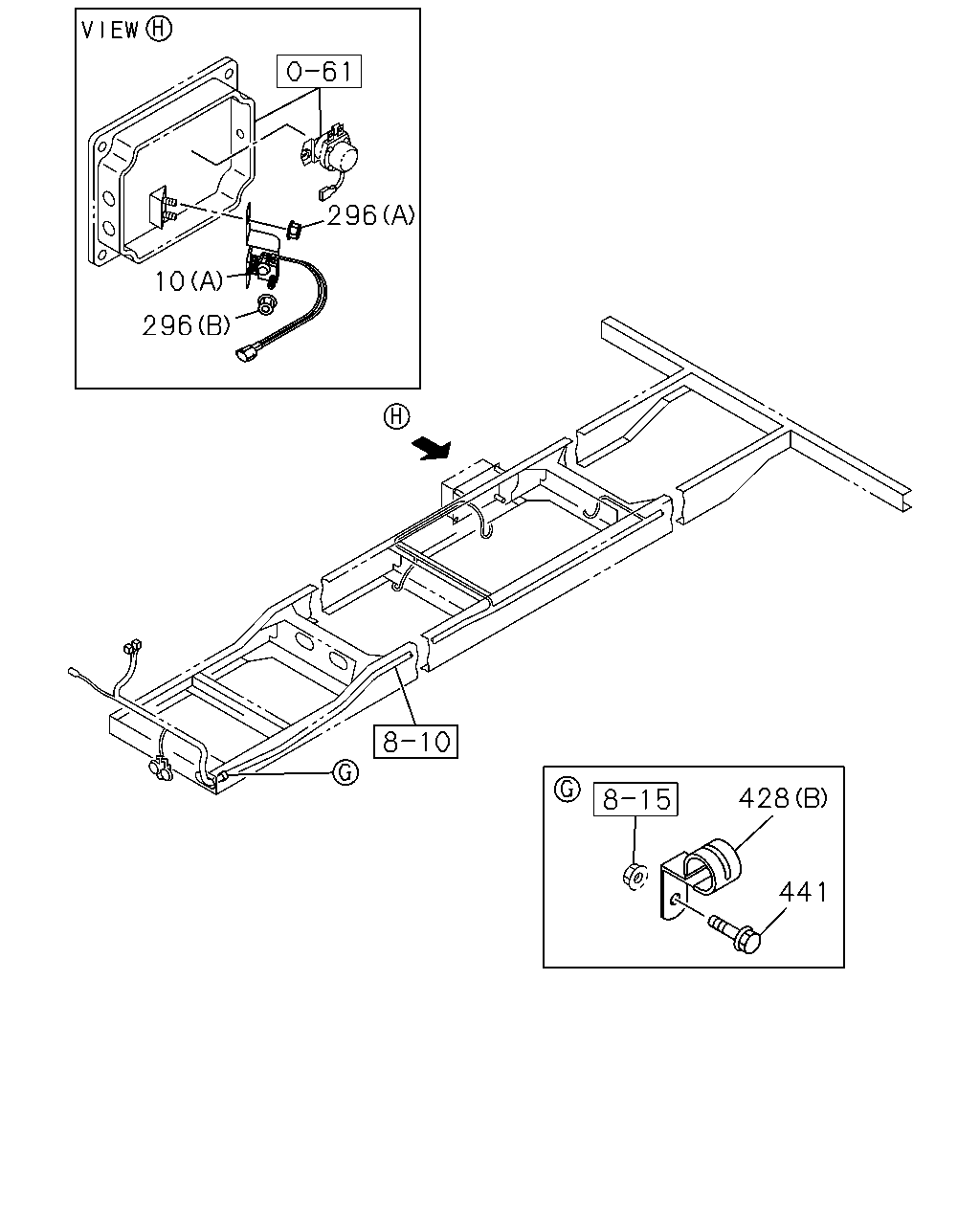

çizim 366402
10 296 296 428 441
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 		1-81171-100-1 01 1 1307-1311 ●
10 RELAY; STARTER
(A) 		1-81171-100-1 01 1 1312- ● ●
10 RELAY; STARTER
(B) 24V 12.5A PANASONIC 		8-98168-240-0 01 1 1307-1311 ●
10 RELAY; STARTER
(B) 24V 12.5A PANASONIC 		8-98168-240-0 01 1 1312- ● ●
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1312- ● ●
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1307-1311 ●
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1312- ● ●
428 CLIP; HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1307-1311 ●
428 CLIP; HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1312- ● ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 1307-1307 ●
441 BOLT; HARNESS TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1307-1311 ●
441 BOLT; HARNESS TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1312- ● ●
