11523 - LV152/452(LHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

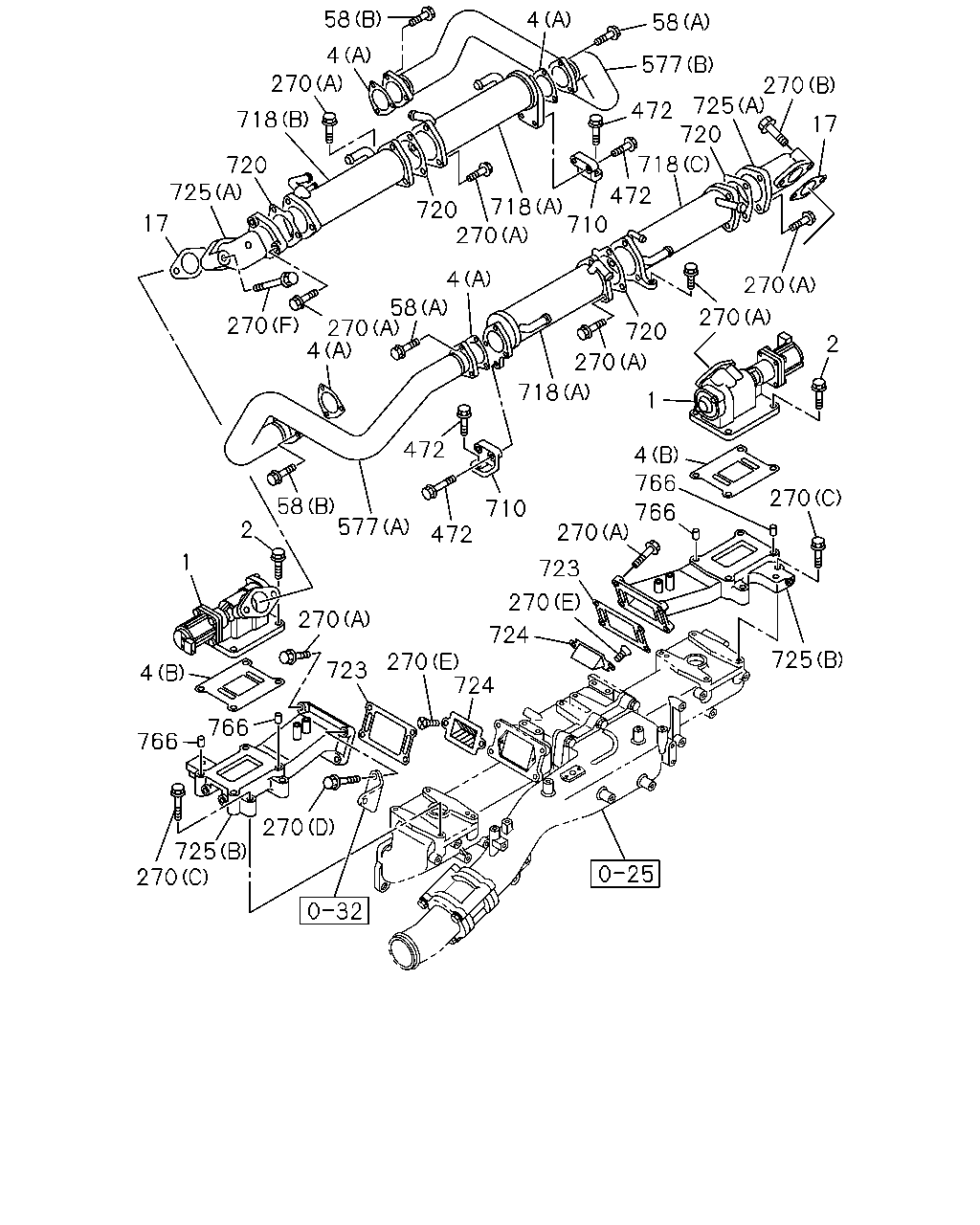

0-57 — EMISSION PIPING
(#123879) — 33 parça
17
725
720
718
270
4
58
270
4
270
58
4
270
720
718
710
472
718
720
472
725
270
17
577
58
4
1
2
58
577
472
472
710
718
270
720
270
270
2
270
1
4
766
766
270
723
270
724
724
270
723
270
766
4
766
270
725
270
725
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
8-98029-595-7
02
1
1307-1502
1
VALVE; EGR
8-98238-266-1
02
1
1503-
2
BOLT; EGR VLV
M10X30 FLANGE
0-28751-030-0
08
1
1307-1405
2
BOLT; EGR VLV
M10X35 FLANGE
0-28751-035-0
08
1
1406-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97601-836-0
04
1
1307-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97608-423-0
02
1
1307-
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47
8-97603-282-0
02
1
1307-
58
BOLT; PIPE
(A) M8X25 FLANGE
0-28650-825-0
06
1
1307-
58
BOLT; PIPE
(B) M8X23 FLANGE
8-97378-077-0
06
1
1307-
270
BOLT
(C) M10X45 FLANGE
0-28151-045-0
08
1
1307-
270
BOLT
(B) M10X70 FLANGE
0-28151-070-0
02
1
1307-
270
BOLT
(F) M10X80 FLANGE
0-28151-080-0
02
1
1307-
270
BOLT
(A) M10X35 FLANGE
0-28751-035-0
20
1
1307-
270
BOLT
(D) M10X40 FLANGE
0-28751-040-0
02
1
1307-
270
BOLT
(E) M6X12 HEX SOCKET
9-05820-612-0
04
1
1307-1502
270
BOLT
(E) M6X12 HEX SOCKET
8-98272-417-0
04
1
1503-
472
BOLT; BRKT
M10X35 FLANGE
0-28751-035-0
06
1
1307-
577
PIPE; AIR,EGR
(A)
8-97608-515-0
01
1
1307-
577
PIPE; AIR,EGR
(B)
8-97608-516-0
01
1
1307-
710
BRACKET; EGR COOLER
8-97608-521-0
02
1
1307-
718
COOLER; EGR
(A)
8-97608-517-1
02
1
1307-
718
COOLER; EGR
(B)
8-97608-886-1
01
1
1307-
718
COOLER; EGR
(C)
8-97608-887-1
01
1
1307-
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=80
8-97603-889-0
04
1
1307-
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97621-936-0
02
1
1307-1502
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97647-880-0
02
1
1503-
724
VALVE; REED
8-98186-738-0
02
1
1307-1502
724
VALVE; REED
8-98272-702-0
02
1
1503-1503
724
VALVE; REED
8-98291-639-0
02
1
1503-
725
DUCT; EGR VLV
(A)
8-98239-398-1
02
1
1307-
725
DUCT; EGR VLV
(B)
8-98239-399-0
02
1
1307-1502
725
DUCT; EGR VLV
(B)
8-98273-010-0
02
1
1503-
766
DOWEL; EGR VLV
OD=14 L=10
9-11319-065-3
04
1
1307-
