11523 - LV152/452(LHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

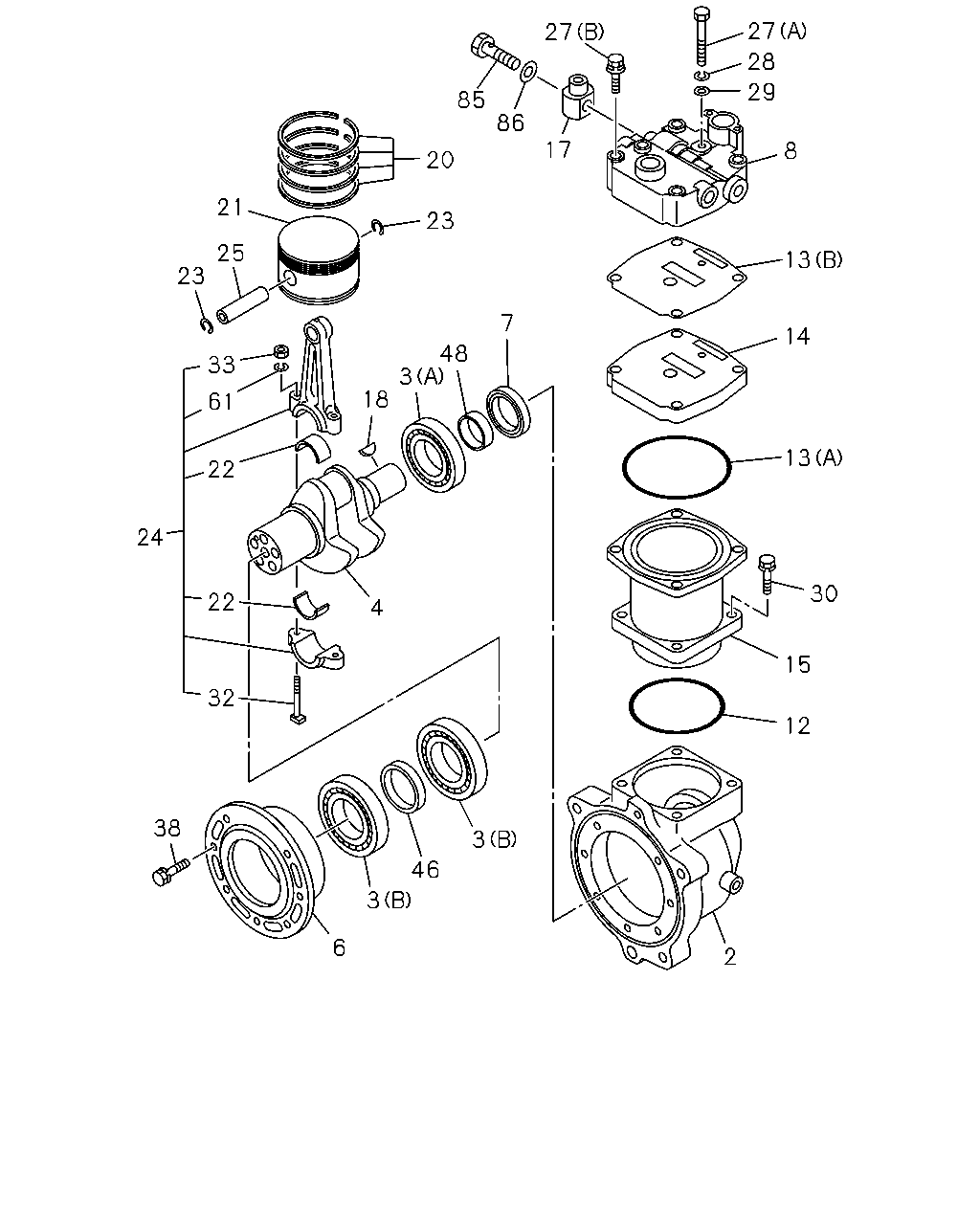

0-39 — AIR COMPRESSOR; BRAKE
(#123872) — 36 parça
2
6
46
3
3
4
7
12
15
30
13
14
13
8
3
38
32
22
24
22
18
61
33
23
25
21
48
23
20
85
86
27
17
27
28
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
1-19151-286-3
01
1
1307-
3
BEARING; AIR CMPR
(B)
1-09800-246-0
02
1
1307-
3
BEARING; AIR CMPR
(A)
8-98171-672-0
01
1
1307-
4
CRANKSHAFT; AIR CMPR
1-19171-097-0
01
1
1307-
6
COVER ASM; BRG,AIR CMPR
1-19156-079-1
01
1
1307-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-619-0
01
1
1307-
8
HEAD ASM; CYL,AIR CMPR
8-98167-016-0
01
1
1307-
12
GASKET; AIR CMPR
1-09623-651-1
01
1
1307-
13
GASKET; AIR CMPR
(B)
1-19139-019-0
01
1
1307-1307
13
GASKET; AIR CMPR
(B)
8-98242-649-0
01
1
1307-1402
13
GASKET; AIR CMPR
(B)
8-98269-488-0
01
1
1403-
13
GASKET; AIR CMPR
(A)
1-09623-650-1
01
1
1307-
14
PLATE; AIR CMPR
1-19110-064-1
01
1
1307-
15
CYLINDER; AIR CMPR
1-19163-065-0
01
1
1307-
17
ADAPTER; AIR CMPR
1-19119-034-1
01
1
1307-
18
KEY; AIR CMPR
9-08055-622-0
01
1
1307-
20
RING KIT; PISTON,AIR CMPR
1-19163-064-0
01
1
1307-
21
PISTON; AIR CMPR
1-19161-023-0
01
1
1307-
22
METAL; CONNROD,AIR CMPR
1-19179-025-0
02
1
1307-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-001-0
02
1
1307-
24
ROD ASM; CONN,AIR CMPR
1-19171-078-0
01
1
1307-
25
PIN; PISTON,AIR CMPR
1-19167-007-0
01
1
1307-
27
BOLT; HD
(A)
1-09044-071-0
01
1
1307-
27
BOLT; HD
(B) M10X75
8-98167-018-0
04
1
1307-
28
WASHER; LK,HD BOLT
ID=8.2
9-09150-508-0
01
1
1307-
29
WASHER; PL,HD BOLT
ID=8.4
9-09160-508-0
01
1
1307-
30
BOLT; CYL TO CRANKCASE
M10X30
1-19119-026-0
04
1
1307-
32
BOLT; CONNROD
1-19179-021-0
02
1
1307-
33
NUT; CONNROD BOLT
1-19179-026-0
02
1
1307-
38
BOLT; COVER FIX
M8X30
0-20800-830-0
07
1
1307-
46
SPACER; BRG
1-19179-029-0
01
1
1307-
48
SLEEVE; CR/SHF
1-19179-027-0
01
1
1307-
61
WASHER; LK,CONNROD BOLT
1-19179-022-0
02
1
1307-
85
BOLT; ADAPTER
M14X39 FLANGE
1-09675-089-0
01
1
1307-
86
GASKET; ADAPTER
ID=14.2 OD=19.2
1-09630-085-0
02
1
1307-1307
86
GASKET; ADAPTER
ID=14.2 OD=19.2
8-98251-345-0
02
1
1307-
