1 |

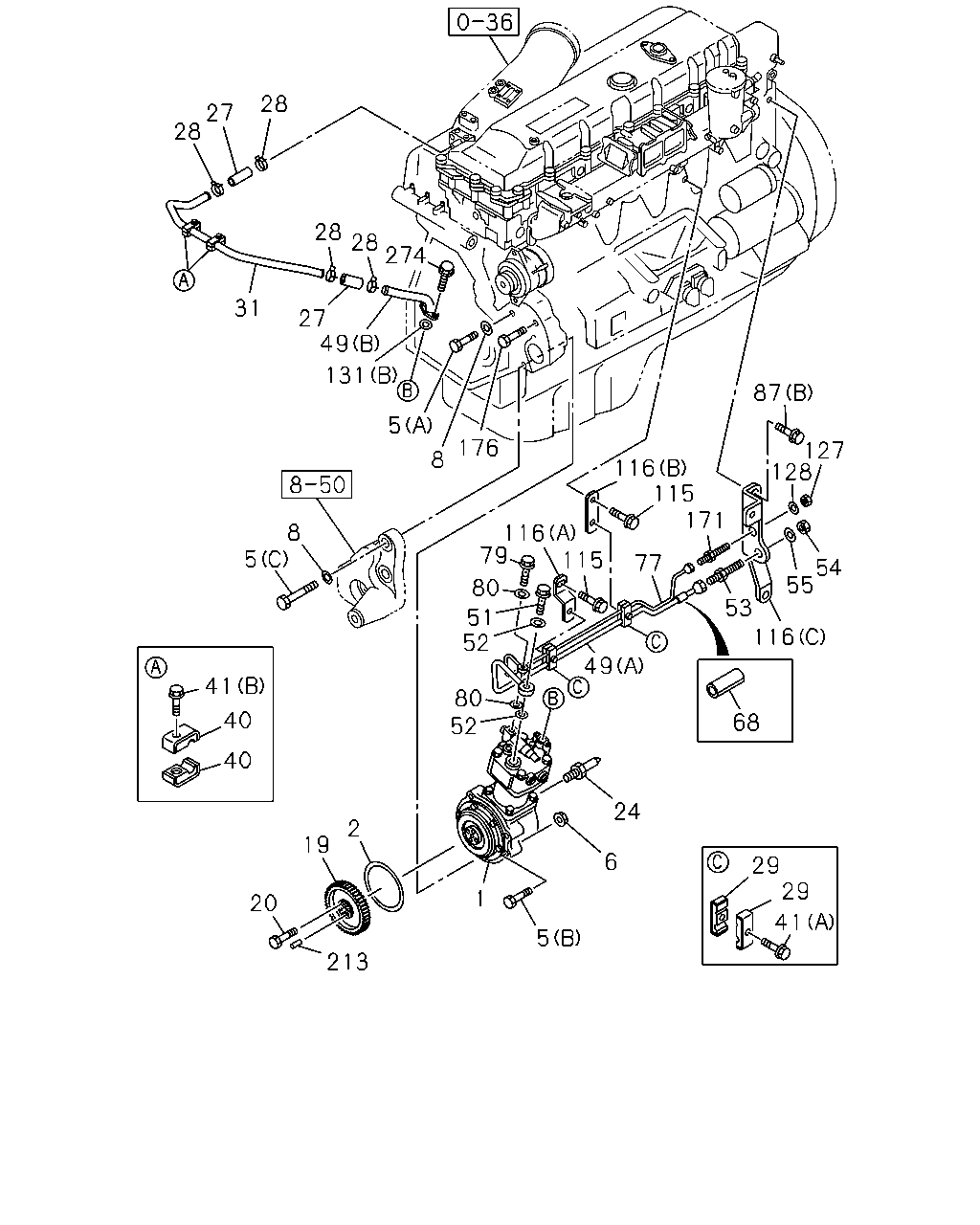

COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98014-057-2 |
01 |
1 |
1307-1307 |
| |
1 |
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98242-648-1 |
01 |
1 |
1307- |
| |
2 |
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-476-0 |
01 |
1 |
1307- |
| |
5 |
BOLT; AIR CMPR FIX
(C)
M14X100
|
0-16956-400-0 |
01 |
1 |
1307- |
| |
5 |
BOLT; AIR CMPR FIX
(B)
M14X90
|
0-16956-490-0 |
01 |
1 |
1307- |
| |
5 |
BOLT; AIR CMPR FIX
(A)
M14X128
|
8-94399-253-1 |
01 |
1 |
1307- |
| |
6 |
NUT; AIR CMPR
M14 FLANGE
|
0-91150-114-0 |
01 |
1 |
1307- |
| |
8 |
WASHER; PL,AIR CMPR
ID=15 OD=26
|
9-09164-514-0 |
03 |
1 |
1307- |
| |
19 |
GEAR; INJ PUMP
Z=54
|
1-12524-164-1 |
01 |
1 |
1307- |
| |
20 |
BOLT; GEAR TO SHAFT
M12X39 FLANGE
|
1-09070-116-0 |
05 |
1 |
1307- |
| |
24 |
POINTER; AIR CMPR
|
1-11327-017-1 |
01 |
1 |
1307- |
| |
27 |
HOSE; AIR CMPR,SUCTION
L=55
|
1-09360-784-0 |
02 |
1 |
1307- |
| |
28 |
CLIP; HOSE,AIR CMPR
ID=28.5
|
1-09707-150-0 |
04 |
1 |
1307- |
| |
29 |
CLIP; AIR PIPE
|
1-09701-210-0 |
04 |
1 |
1307- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
|
8-97640-743-0 |
01 |
1 |
1307- |
| |
40 |
CLIP; AIR PIPE
|
1-09701-281-1 |
04 |
1 |
1307- |
| |
41 |
BOLT; CLIP
(A)
M6X40 FLANGE
|
0-28050-640-0 |
02 |
1 |
1307- |
| |
41 |
BOLT; CLIP
(B)
M8X50 FLANGE
|
0-28050-850-0 |
02 |
1 |
1307- |
| |
49 |
PIPE; AIR,CHARGE
(A)
|
8-97606-616-0 |
01 |
1 |
1307- |
| |
49 |
PIPE; AIR,CHARGE
(B)
|
8-98100-022-0 |
01 |
1 |
1307- |
| |
51 |
BOLT; EYE,AIR PIPE TO CMPR
M24X39
|
1-09675-175-2 |
01 |
1 |
1307- |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=10.2 OD=15.2
|
1-09630-083-0 |
08 |
1 |
1307- |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5 OD=32
|
9-09571-424-0 |
02 |
1 |
1307- |
| |
53 |
UNION; CHARGE PIPE
M22 & M26 L=79 STRAIGHT
|
1-09654-318-1 |
01 |
1 |
1307- |
| |
54 |
NUT; PIPE UNION
M22
|
0-91111-522-0 |
01 |
1 |
1307- |
| |
55 |
WASHER; LK,PIPE UNION
ID=22.5
|
0-91510-522-0 |
01 |
1 |
1307- |
| |
68 |
SLEEVE; RUBBER
ID=18 OD=22 L=25
|
8-94412-773-0 |
01 |
1 |
1307- |
| |
77 |
PIPE; AIR,GOV
|
8-97606-617-0 |
01 |
1 |
1307- |
| |
79 |
BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
1307- |
| |
80 |
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=25
|
1-09630-141-0 |
02 |
1 |
1307- |
| |
87 |
BOLT; BRKT FIX
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1307- |
| |
87 |
BOLT; BRKT FIX
(B)
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
1307- |
| |
115 |
BOLT; AIR PIPE
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
1307- |
| |
116 |
BRACKET; AIR PIPE
(A)
|
1-19199-221-0 |
01 |
1 |
1307- |
| |
116 |
BRACKET; AIR PIPE
(B)
|
1-19199-412-0 |
01 |
1 |
1307- |
| |
116 |
BRACKET; AIR PIPE
(D)
|
8-97614-120-0 |
01 |
1 |
1307- |
| |
116 |
BRACKET; AIR PIPE
(E)
|
8-97614-124-0 |
01 |
1 |
1307- |
| |
116 |
BRACKET; AIR PIPE
(C)
|
8-98157-648-0 |
01 |
1 |
1307- |
| |
127 |
NUT; UNION
M12
|
9-09840-280-0 |
04 |
1 |
1307- |
| |
128 |
WASHER; LK,UNION
ID=12.2
|
0-91510-512-0 |
04 |
1 |
1307- |
| |
131 |
GASKET; AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
ID=24.5
|
8-94399-398-0 |
01 |
1 |
1307- |
| |
131 |
GASKET; AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
ID=10.2
|
8-97365-390-0 |
06 |
1 |
1307- |
| |
171 |
UNION
M12 L=62.5
|
0-92113-206-0 |
01 |
1 |
1307- |
| |
176 |
BOLT; BRKT FIX
M10X130 FLANGE
|
0-28166-013-0 |
01 |
1 |
1307- |
| |
213 |
PIN; AIR CMPR GEAR
OD=5 L=10
|
9-08150-510-0 |
01 |
1 |
1307- |
| |
274 |
BOLT; PIPE
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
1307- |
