11523 - LV152/452(LHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#123870) — 31 parça
◀

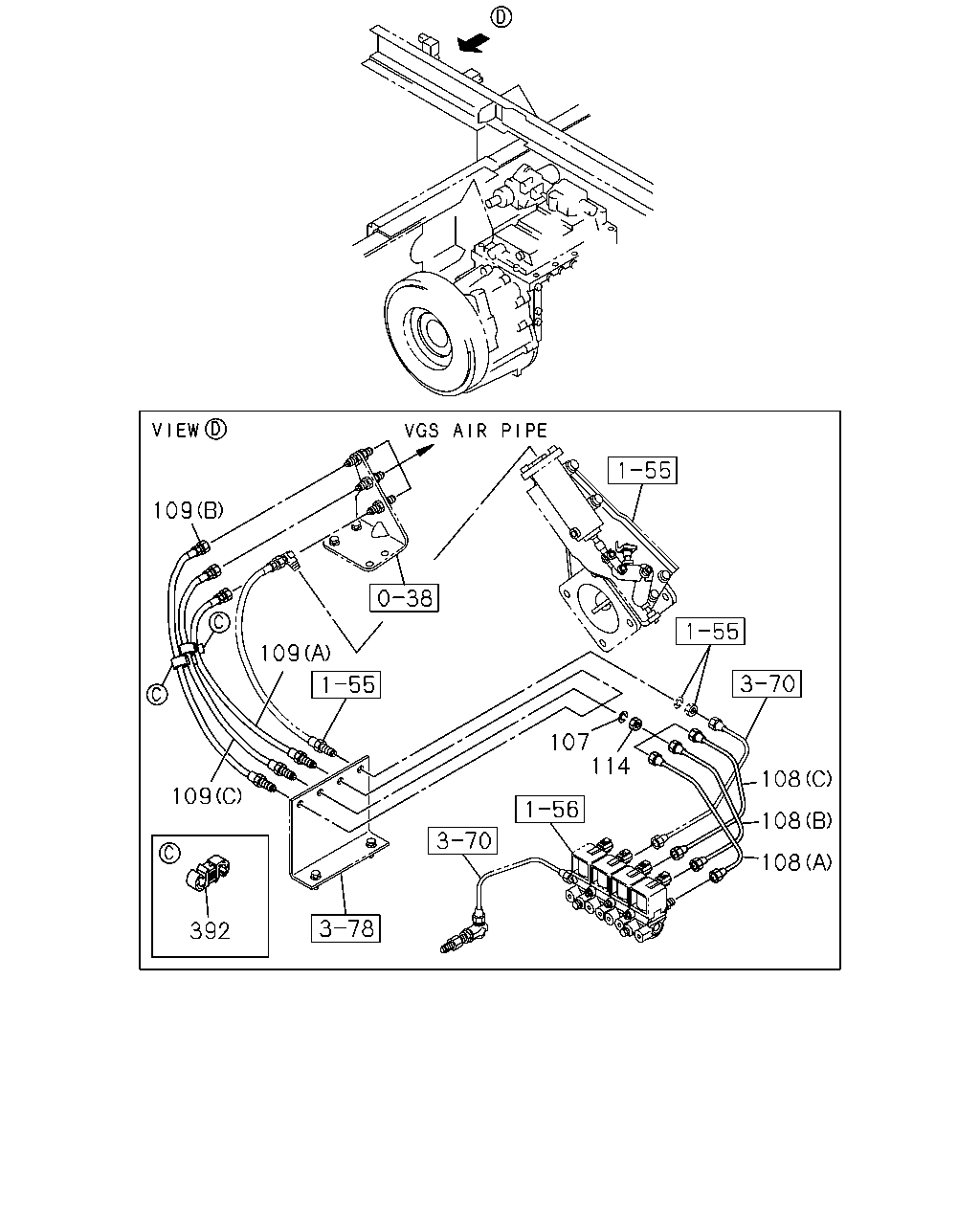

[036A] VGS AIR PIPE (9 parça)

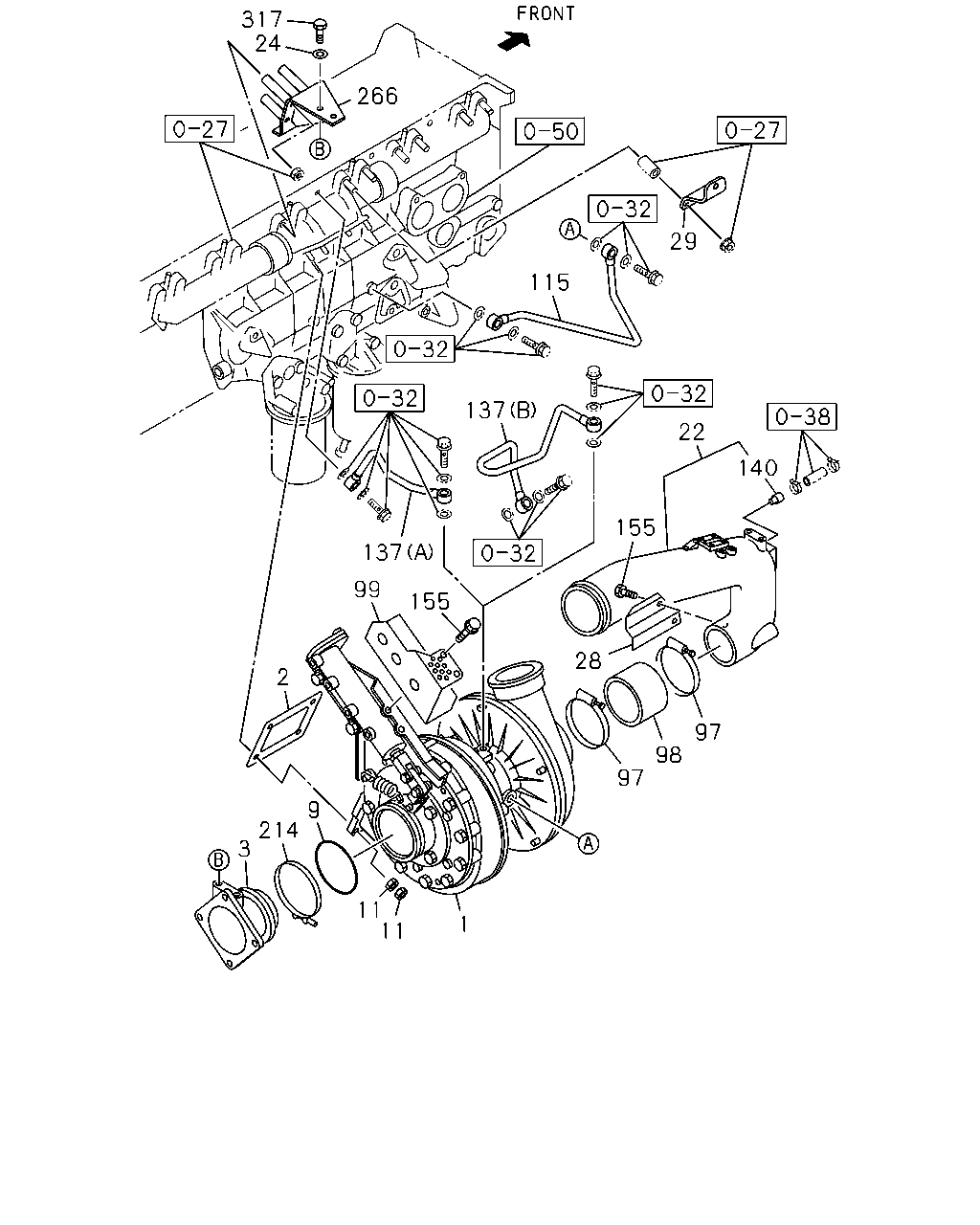

[036A] FIXING;TURBOCHARGER (22 parça)
▶
109
109
109
392
107
114
108
108
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
WASHER; LK
ID=12.2
0-91510-512-0
03
1
1307-
108
PIPE ASM; AIR MAG VLV
(A)
8-98191-504-0
01
1
1307-
108
PIPE ASM; AIR MAG VLV
(B)
8-98191-505-0
01
1
1307-
108
PIPE ASM; AIR MAG VLV
(C)
8-98191-506-0
01
1
1307-
109
HOSE; FLEX,MAG VLV
(A) L=420
1-09363-633-0
01
1
1307-
109
HOSE; FLEX,MAG VLV
(B) L=560
1-09363-654-0
01
1
1307-
109
HOSE; FLEX,MAG VLV
(C) L=470
1-09363-682-0
01
1
1307-
114
NUT; FLEX HOSE
M12
9-09840-280-0
03
1
1307-
392
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
02
1
1307-
24
317
266
115
137
29
22
140
155
28
97
98
97
155
137
99
2
9
214
3
1
11
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
1-14400-425-5
01
1
1307-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1307-
3
PIPE; EXH,TURBOCHARGER
1-14144-658-1
01
1
1307-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84
8-97618-761-1
01
1
1307-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1307-
22
DUCT; INL,ACL TO TURBOCHARGER
8-98124-026-1
01
1
1307-1309
22
DUCT; INL,ACL TO TURBOCHARGER
8-98254-524-1
01
1
1310-
24
WASHER; PL,PIPE
ID=10.5 OD=22
1-09500-007-0
02
1
1307-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-272-0
01
1
1307-
29
BRACKET; INL PIPE,ACL TO TURBOCHARGER
1-14119-473-0
01
1
1307-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-142
1-09707-139-0
02
1
1307-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-988-0
01
1
1307-
99
PROTECTOR; HEAT
1-14181-350-0
01
1
1307-
115
PIPE; WATER,TURBOCHARGER OUT
1-13722-040-0
01
1
1307-
137
PIPE; WATER,TURBOCHARGER IN
(A)
1-13722-041-2
01
1
1307-1412
137
PIPE; WATER,TURBOCHARGER IN
(B)
8-98300-237-0
01
1
1501-
140
PIPE; AIR PIPE
8-94256-799-2
01
1
1307-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28050-610-0
04
1
1307-
155
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1307-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1307-
266
BRACKET; EXH PIPE
8-97606-662-1
01
1
1307-
317
BOLT; EXH PIPE
M10X20
1-09020-073-2
02
1
1307-
