11523 - LV152/452(LHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

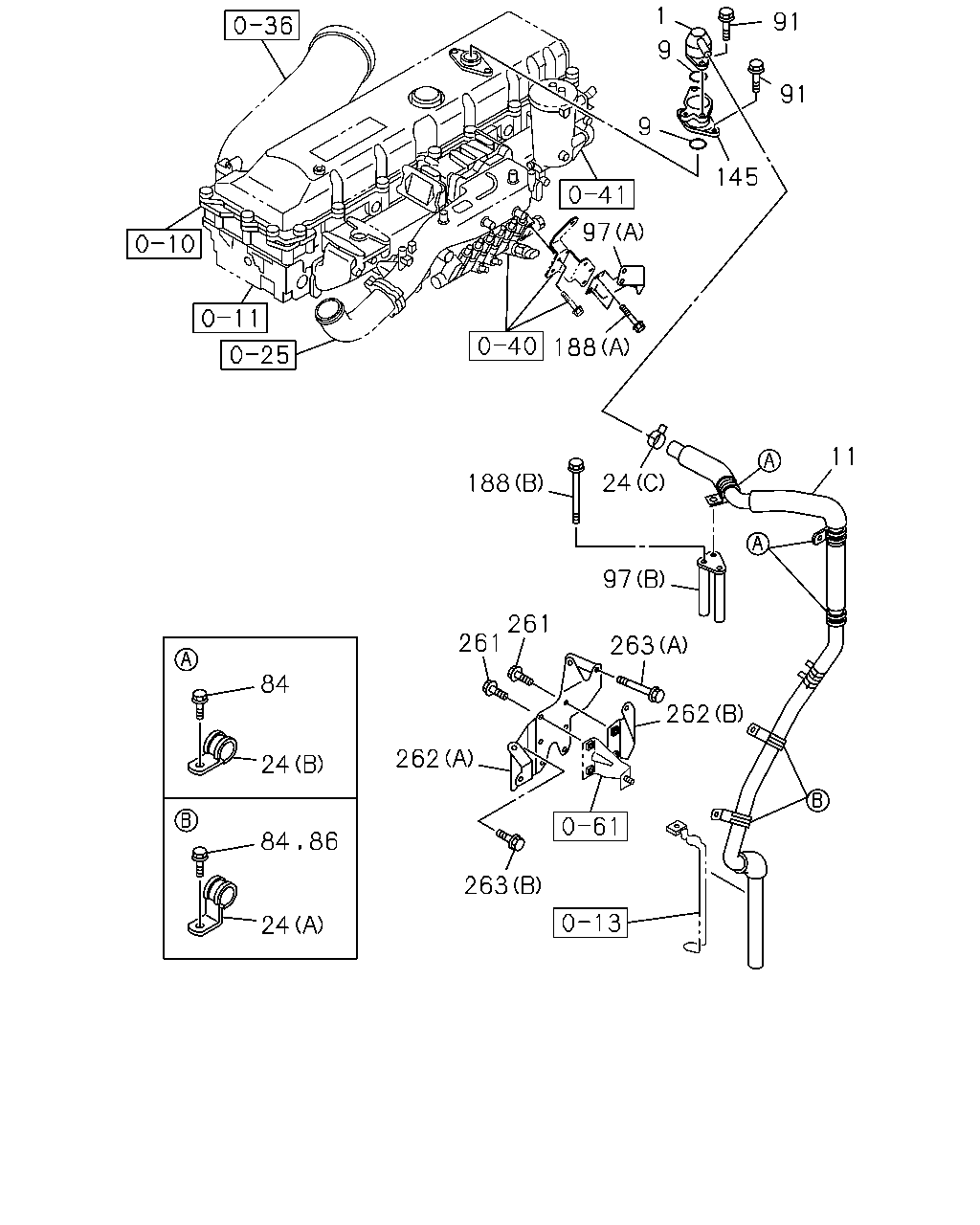

0-28 — VENTILATION SYSTEM
(#123865) — 19 parça
97
261
263
262
262
263
84
86
24
84
24
261
188
24
11
145
91
91
1
9
9
97
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
1-11740-181-1
01
1
1307-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
02
1
1307-
11
HOSE; RUBBER,AIR
8-98195-253-0
01
1
1307-
24
CLIP; RUBBER HOSE,VENTILATOR
(A) ID=35 H=45 L=33
1-09700-947-0
02
1
1307-
24
CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5
1-09707-150-0
01
1
1307-
24
CLIP; RUBBER HOSE,VENTILATOR
(B) ID=33 L=30
8-97619-250-0
03
1
1307-
84
BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE
0-28050-816-0
05
1
1307-
86
BOLT; BREATHER PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1307-
91
BOLT; AIR BREATHER
M10X20 FLANGE
0-28151-020-0
04
1
1307-
97
BRACKET; HOSE
(A)
1-15419-726-0
01
1
1307-
97
BRACKET; HOSE
(B)
8-97620-560-0
01
1
1307-
145
ADAPTER; AIR BREATHER
8-98073-548-0
01
1
1307-
188
BOLT; BRKT
(B) M10X140 FLANGE
0-28156-014-0
02
1
1307-
188
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
02
1
1307-
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
1307-
262
BRACKET; OIL SEPARETOR
(A)
1-13345-220-1
01
1
1307-
262
BRACKET; OIL SEPARETOR
(B)
8-98195-254-0
01
1
1307-
263
BOLT; BRKT,OIL SEPARETOR
(B) M8X20 FLANGE
0-28050-820-0
04
1
1307-
263
BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE
0-28151-090-0
01
1
1307-
