◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#123863) — 29 parça

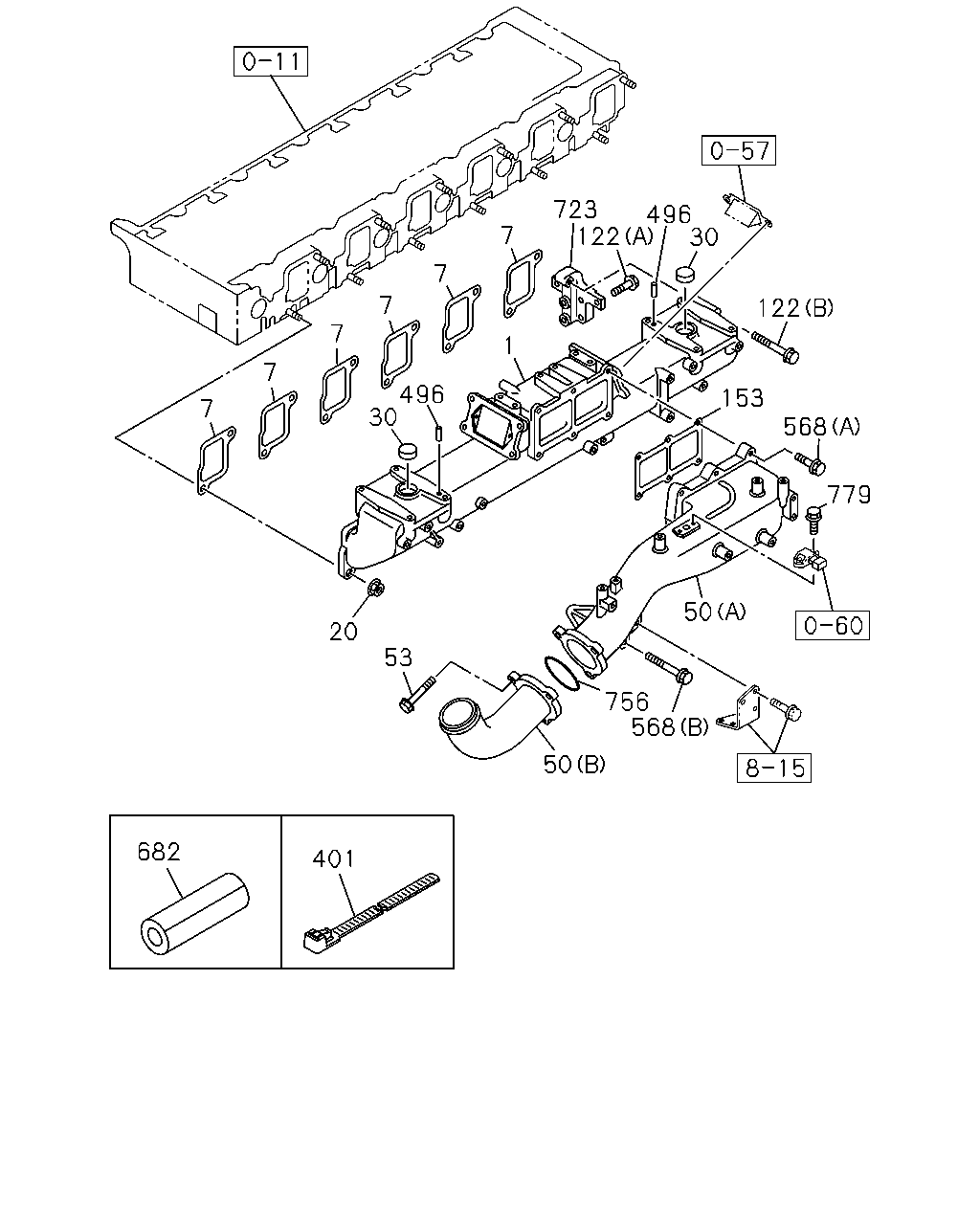

çizim 362157
1 496 30 7 7 7 7 7 7 723 30 496 122 122 568 153 779 50 756 50 568 53 20 401 682
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; INL 8-98119-442-2 01 1 1307-
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97615-623-1 06 1 1307-
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 1307-
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 1307-
50 PIPE; INL
(A) 		8-98133-285-1 01 1 1307-
50 PIPE; INL
(B) 		8-98192-223-1 01 1 1307-1408
50 PIPE; INL
(B) 		8-98239-403-0 01 1 1409-1410
50 PIPE; INL
(B) 		8-98298-367-0 01 1 1411-
53 BOLT; INL PIPE
M8X30 FLANGE 		0-28050-830-0 03 1 1307-
122 BOLT; BRKT
(B) M10X110 FLANGE 		0-28156-011-0 01 1 1307-
122 BOLT; BRKT
(A) M12X60 FLANGE 		0-28161-260-0 02 1 1307-
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-094-1 01 1 1307-
401 CLIP; BAND
L=250 		8-98216-430-0 01 1 1307-
496 PIN; INL MANIF
OD=4 L=12 		1-09740-032-0 02 1 1307-
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 1307-
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28151-080-0 01 1 1307-
682 COVER; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1307-
723 BRACKET; INL MANIF 8-97618-557-0 01 1 1307-
756 GASKET; INTAKE,THROTTLE
ID=94.6 		1-09623-593-0 01 1 1307-
779 BOLT; SENSOR
M4X10 W/PL WASHER 		8-97316-615-0 02 1 1307-

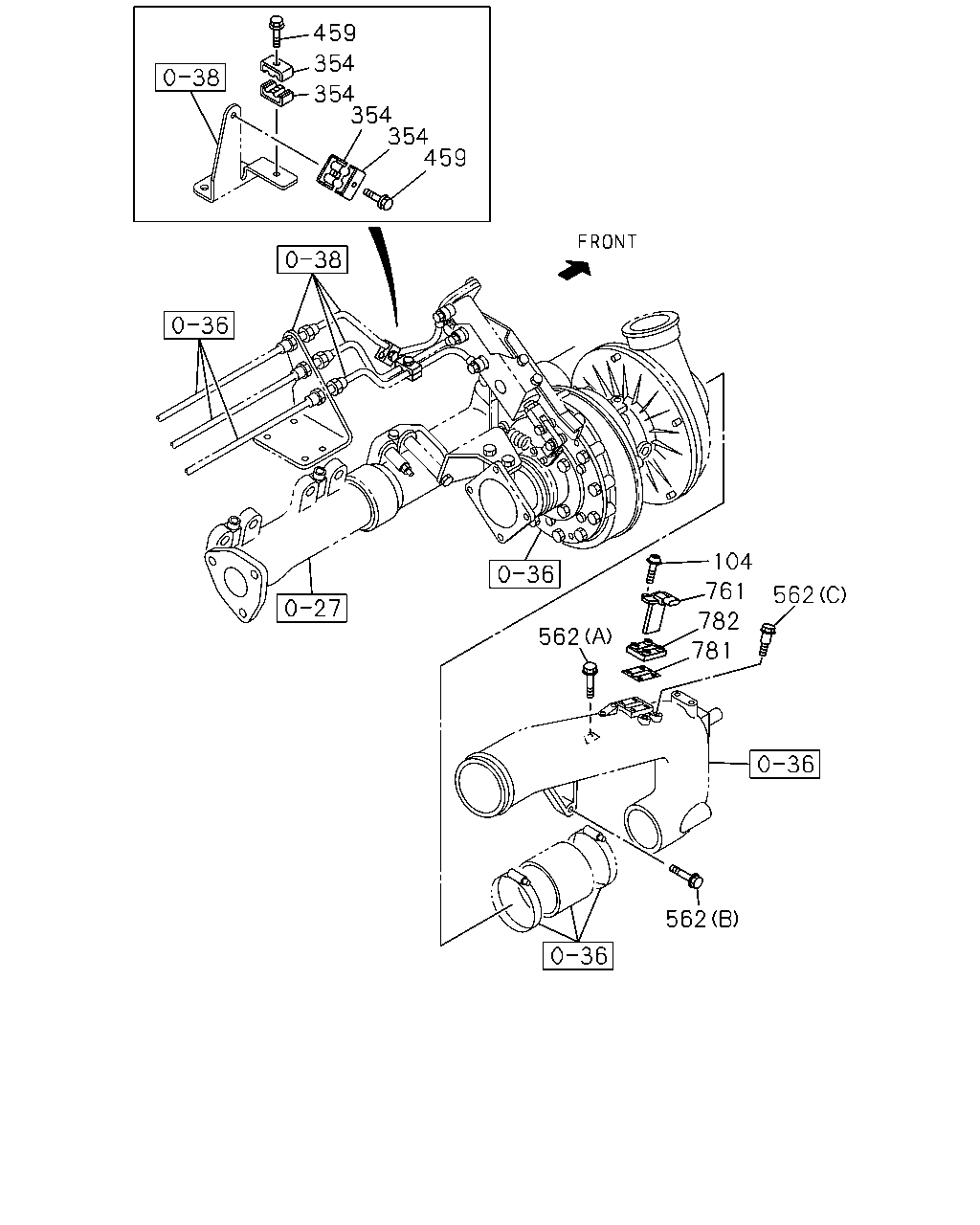

çizim 362176
459 354 354 354 354 459 562 104 761 782 781 562 562
BalonParca AdiParca NoAdetTipApplied Date
104 SCREW
M4X20 W/LK&PL WASHER 		9-03920-420-0 04 1 1307-
354 CLIP; AIR PIPE 1-09701-240-0 04 1 1307-
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28050-635-0 02 1 1307-
562 BOLT; INL DUCT
(A) M10X50 FLANGE 		0-28151-050-0 02 1 1307-
562 BOLT; INL DUCT
(B) M10X70 FLANGE 		0-28151-070-0 01 1 1307-
562 BOLT; INL DUCT
(C) M10X49.8 		8-97039-586-0 02 1 1307-
761 SENSOR; MANIF 8-97601-967-0 01 1 1307-
781 GASKET; SENSOR 8-98212-728-0 01 1 1307-
782 ADAPTER; SENSOR 8-98169-371-0 01 1 1307-
