11523 - LV152/452(LHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

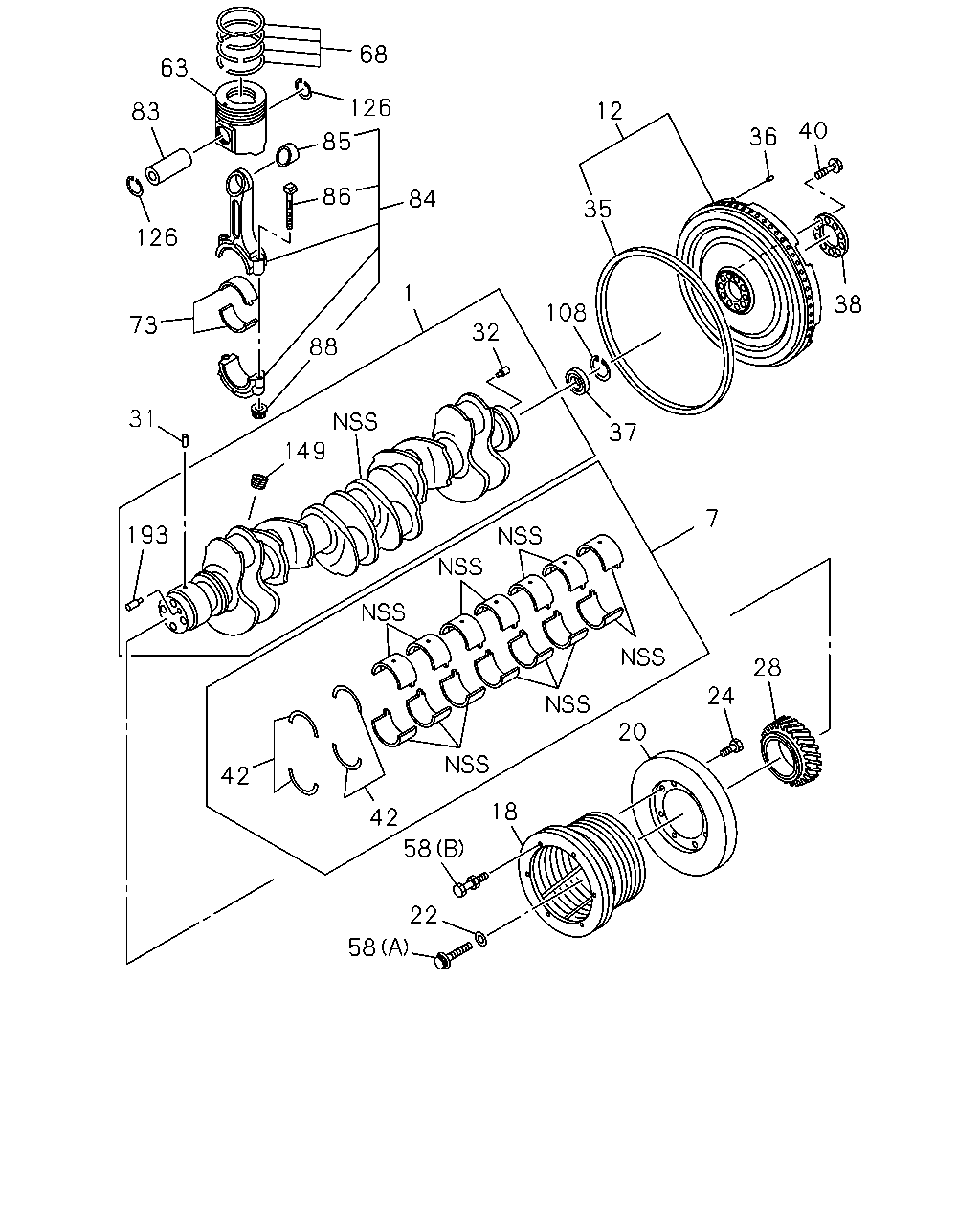

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#123860) — 31 parça
68
63
83
126
73
31
193
149
32
1
88
84
86
85
126
42
42
58
58
18
22
20
28
24
7
37
108
35
12
36
40
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-98172-014-0
01
1
1307-
7
METAL KIT; CRANKSHAFT,STANDARD
8-98151-849-1
01
1
1307-
12
FLYWHEEL
8-98191-969-1
01
1
1307-
18
PULLEY; CR/SHF
2-GROOVE
8-98188-479-1
01
1
1307-
20
DAMPER; CR/SHF
8-98147-154-0
01
1
1307-
22
PLATE; PULLEY
ID=18
9-09851-862-0
04
1
1307-
24
BOLT; DAMPER
M12X30 FLANGE
0-28761-230-0
08
1
1307-
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
1307-
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
1307-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
1307-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
1307-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
1307-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
1307-
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-158-0
01
1
1307-
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
1307-
40
BOLT; FLYWHEEL
1-09070-017-1
10
1
1307-
42
WASHER; THRUST,CR/SHF
8-98151-850-0
02
1
1307-
58
BOLT; CR/SHF PULLEY
(B)
1-09029-073-0
06
1
1307-
58
BOLT; CR/SHF PULLEY
(A)
1-09070-017-1
04
1
1307-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98028-808-2
06
1
1307-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-1
06
1
1307-
73
METAL SET; CONN ROD,STANDARD
1-12271-096-0
06
1
1307-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
1307-
84
ROD ASM; CONN
8-98115-948-0
06
1
1307-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98115-959-0
06
1
1307-
86
BOLT; CONNROD
1-12235-036-3
12
1
1307-
88
NUT; CONNROD
1-12239-005-1
12
1
1307-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
1307-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
1307-
149
PLUG
PT1
1-09605-021-1
06
1
1307-
193
PIN; FLANGE
OD=8 L=20
9-08160-820-0
01
1
1307-
