◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#123849) — 16 parça

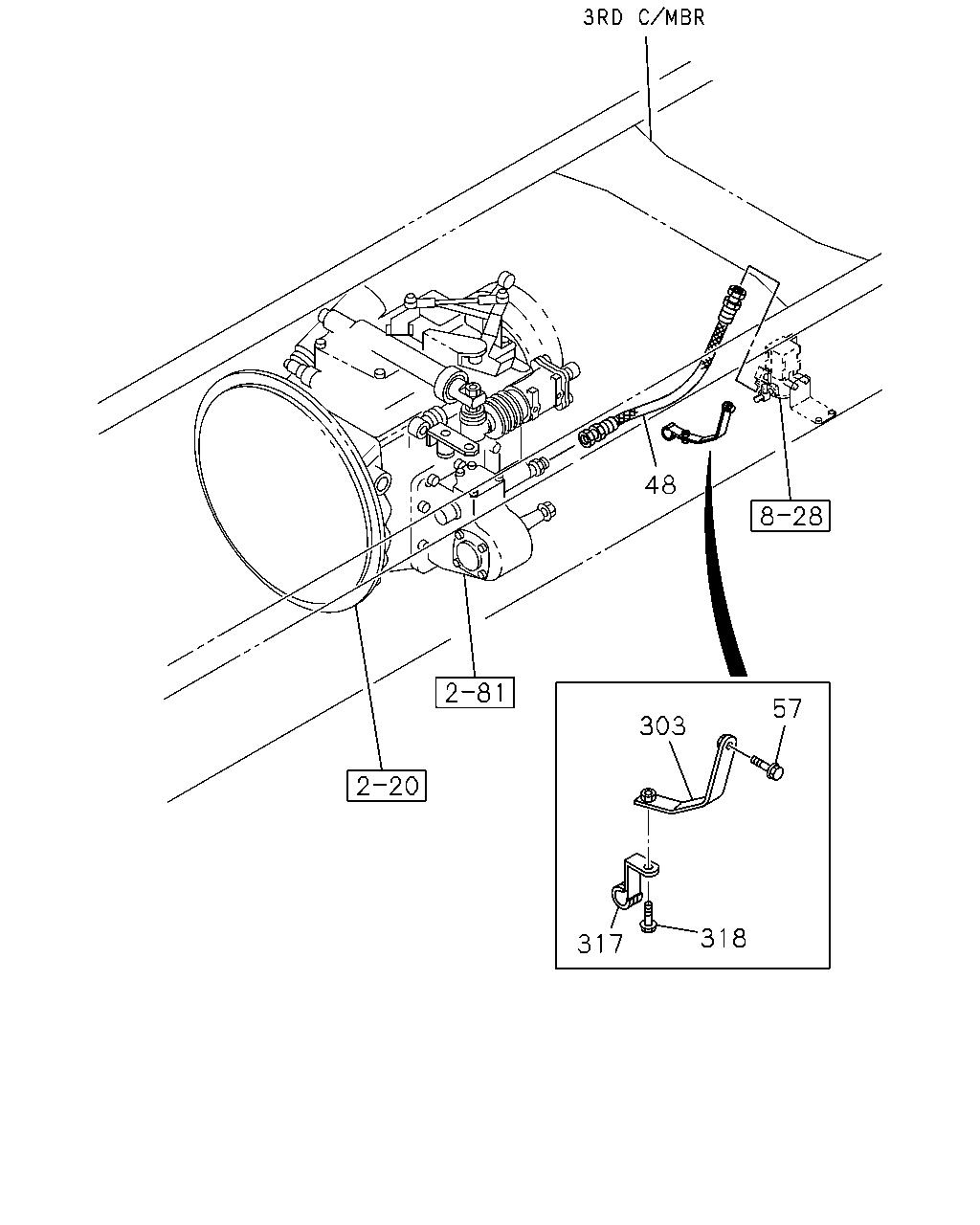

çizim 363201
48 57 303 317 318
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=560 		1-09363-914-0 01 1 1307-1312 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=560 		1-09363-914-0 01 1 1401- ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=470 		1-09363-714-0 01 1 1307-1312 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=470 		1-09363-714-0 01 1 1401- ● ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28651-025-0 01 1 1307-1312 ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28651-025-0 01 1 1401- ● ●
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98136-973-0 01 1 1307-1312 ●
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98136-973-0 01 1 1401- ● ●
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1307-1312 ●
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1401- ● ●
318 BOLT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
318 BOLT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●

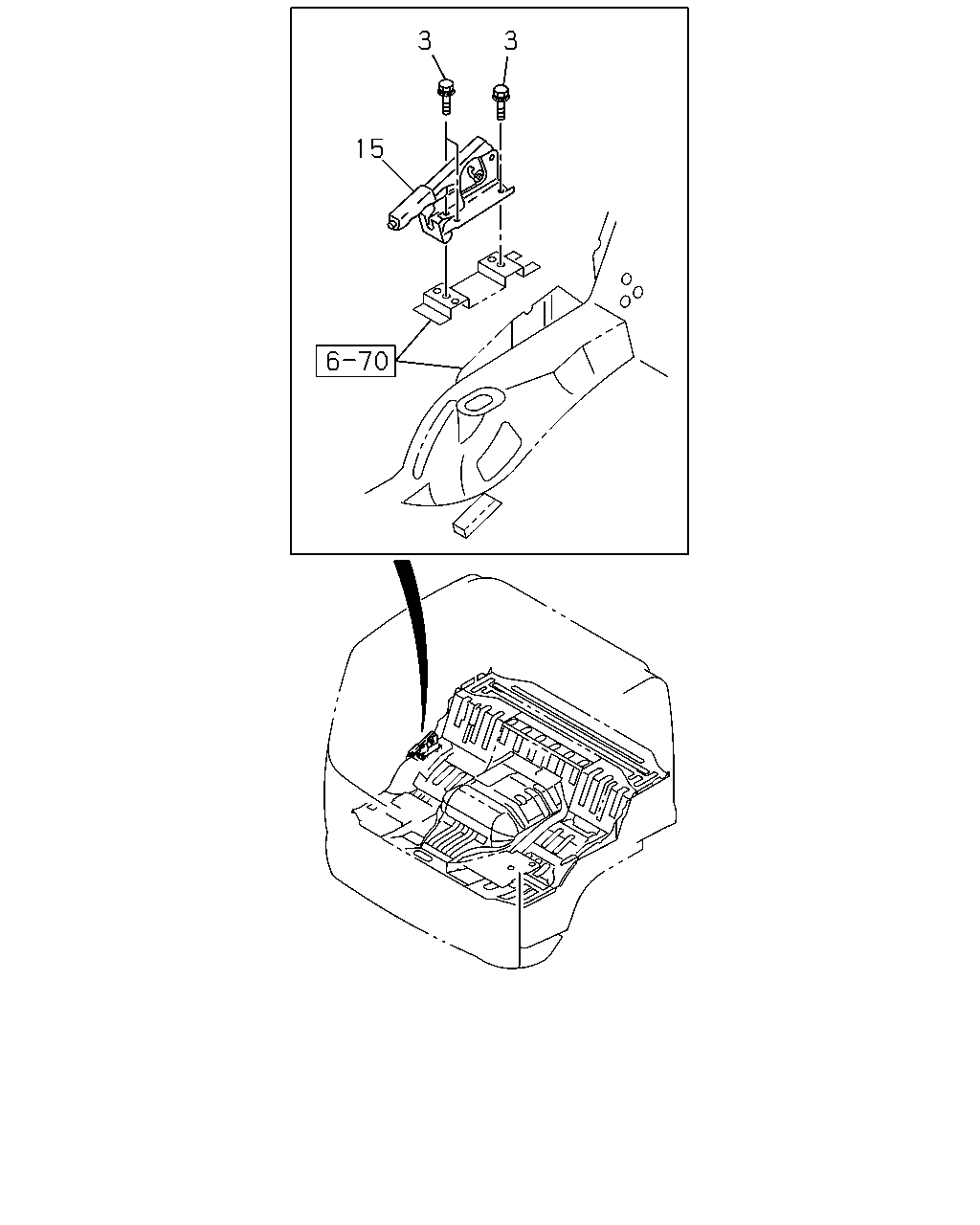

çizim 366637
3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1307-1312 ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1401- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 1307-1312 ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
