2-53 — TRANSMISSION OIL COOLER SYSTEM (#123847) — 96 parça

209 209 209 209 3 3 1 209 209 48 51 11 51 11 47 46 136 50 32 95 92 53 95 11 51 32

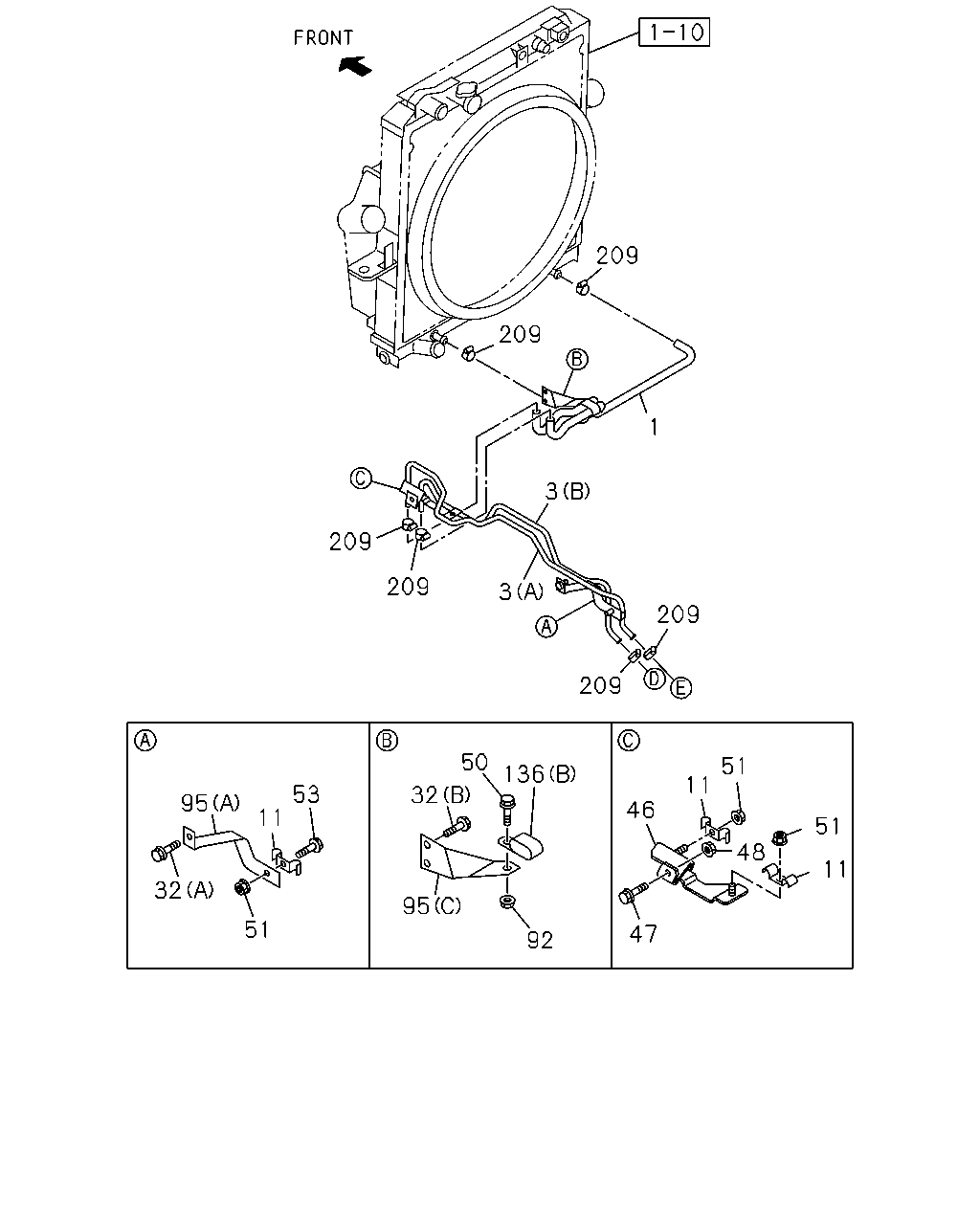

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-681-0	01	1	1307-1312	●
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-681-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=987	8-98235-094-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=987	8-98235-094-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=881	8-98235-095-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=881	8-98235-095-0	01	1	1401-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1307-1308	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1309-1312	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1307-1312	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1401-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98125-906-0	01	1	1307-1312	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98125-906-0	01	1	1401-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-1308	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1309-1312	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1401-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
92	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
92	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	1307-1312	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	1401-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-885-0	01	1	1307-1312	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-885-0	01	1	1401-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98065-886-0	01	1	1307-1312	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98065-886-0	01	1	1401-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1307-1312	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1401-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1307-1312	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1401-	●	●
209	CLIP; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1307-1312	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1307-1312	●
209	CLIP; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1401-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1401-	●	●

50 219 92 136 95 32 87 242 88 87 242 88 88 88 73 73 209 209 242 242

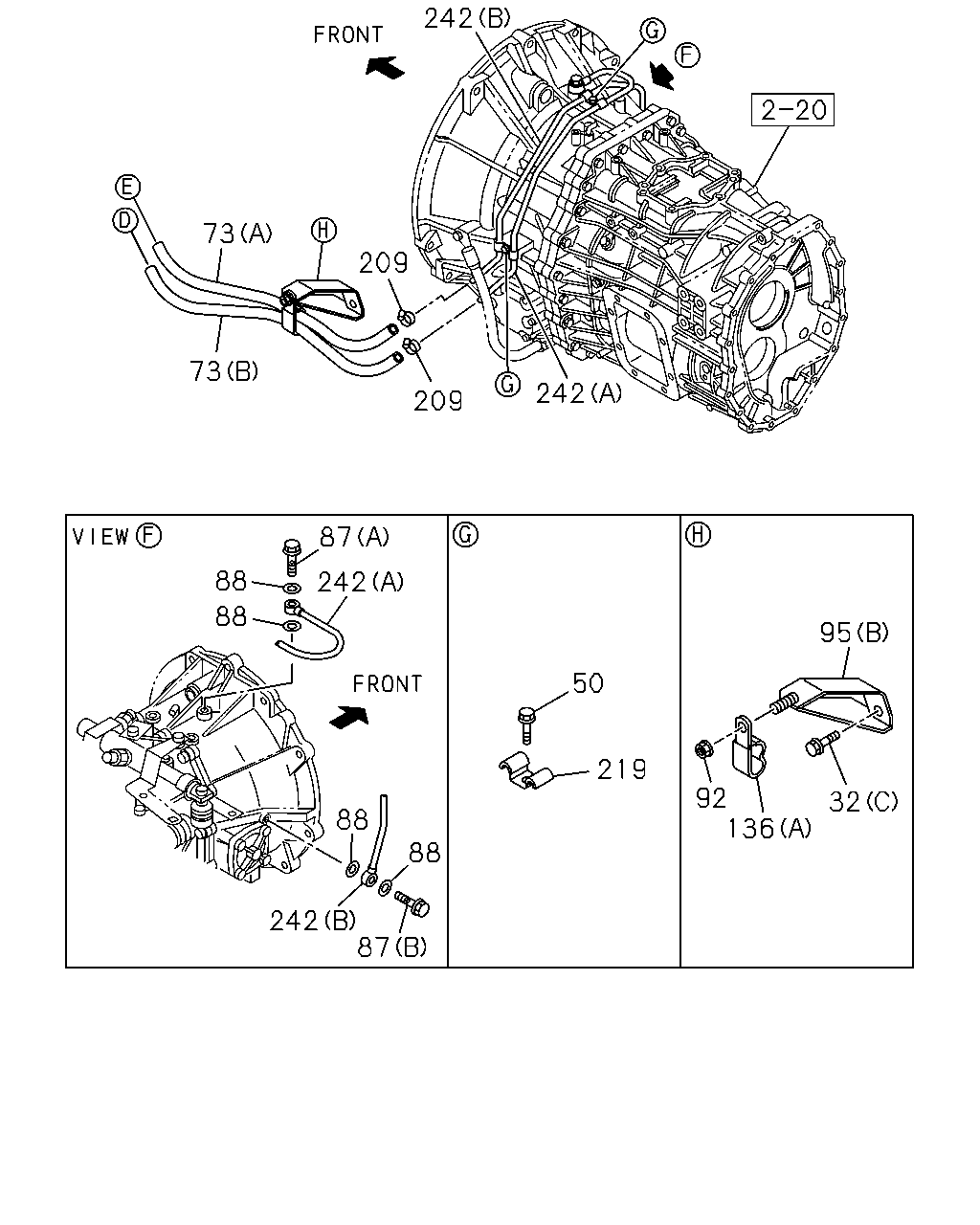

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1307-1312	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1401-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=380	8-98081-840-0	01	1	1307-1312	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=380	8-98081-840-0	01	1	1401-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=440	8-98081-849-0	01	1	1307-1312	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=440	8-98081-849-0	01	1	1401-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1307-1312	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1401-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1307-1312	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1401-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1307-1312	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1401-	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
92	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
92	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	1307-1312	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-564-0	01	1	1401-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-885-0	01	1	1307-1312	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98065-885-0	01	1	1401-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98065-886-0	01	1	1307-1312	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98065-886-0	01	1	1401-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1307-1312	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1401-	●	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1307-1312	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1401-	●	●
209	CLIP; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1307-1312	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1307-1312	●
209	CLIP; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1401-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	04	1	1401-	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1307-1312	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1401-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1307-1312	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1401-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1307-1312	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1401-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●

255 265

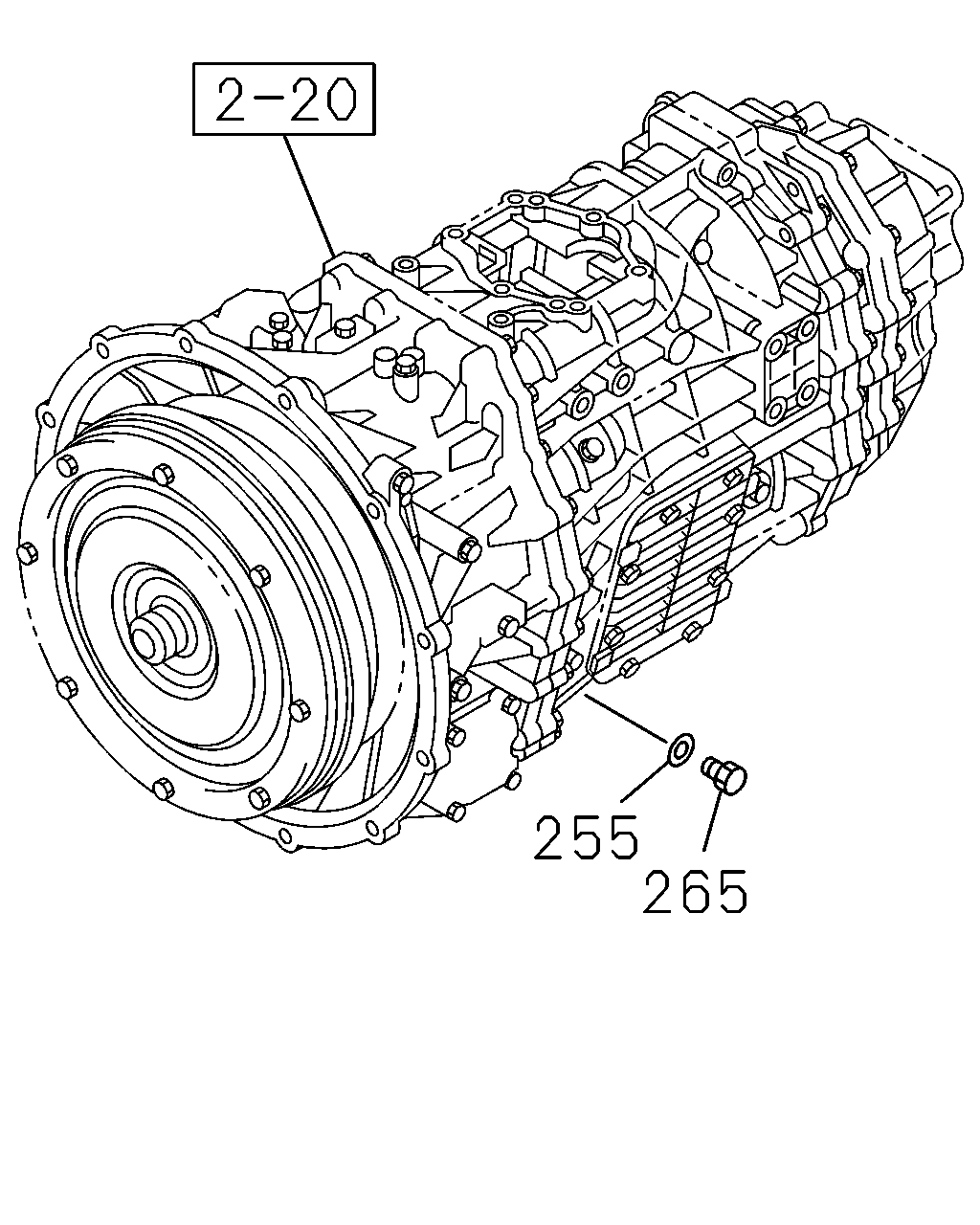

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR ID=12.2	9-09571-412-0	01	1	1405-	●	●
	265	PLUG; HOLE M12X9	0-92002-412-0	01	1	1405-	●	●
