Isuzu WW
▶
TRUCKS
▶
FRR
▶
11549 - FRR AUST/NZ EURO5 SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-39 - POWER ASSISTOR
▶
2-39 — POWER ASSISTOR
(#123845) — 27 parça
◀

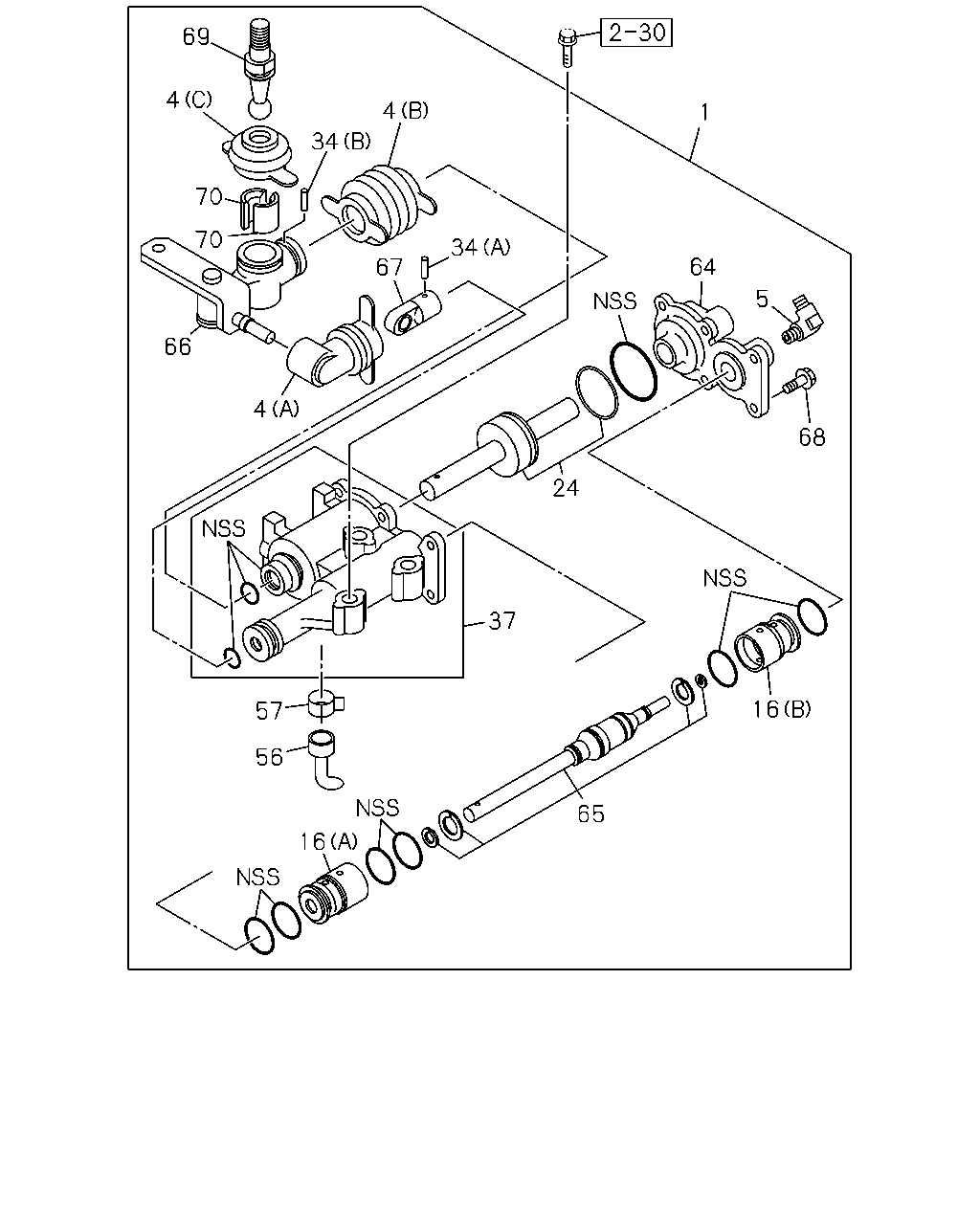

[239A] COMPONENT (20 parça)

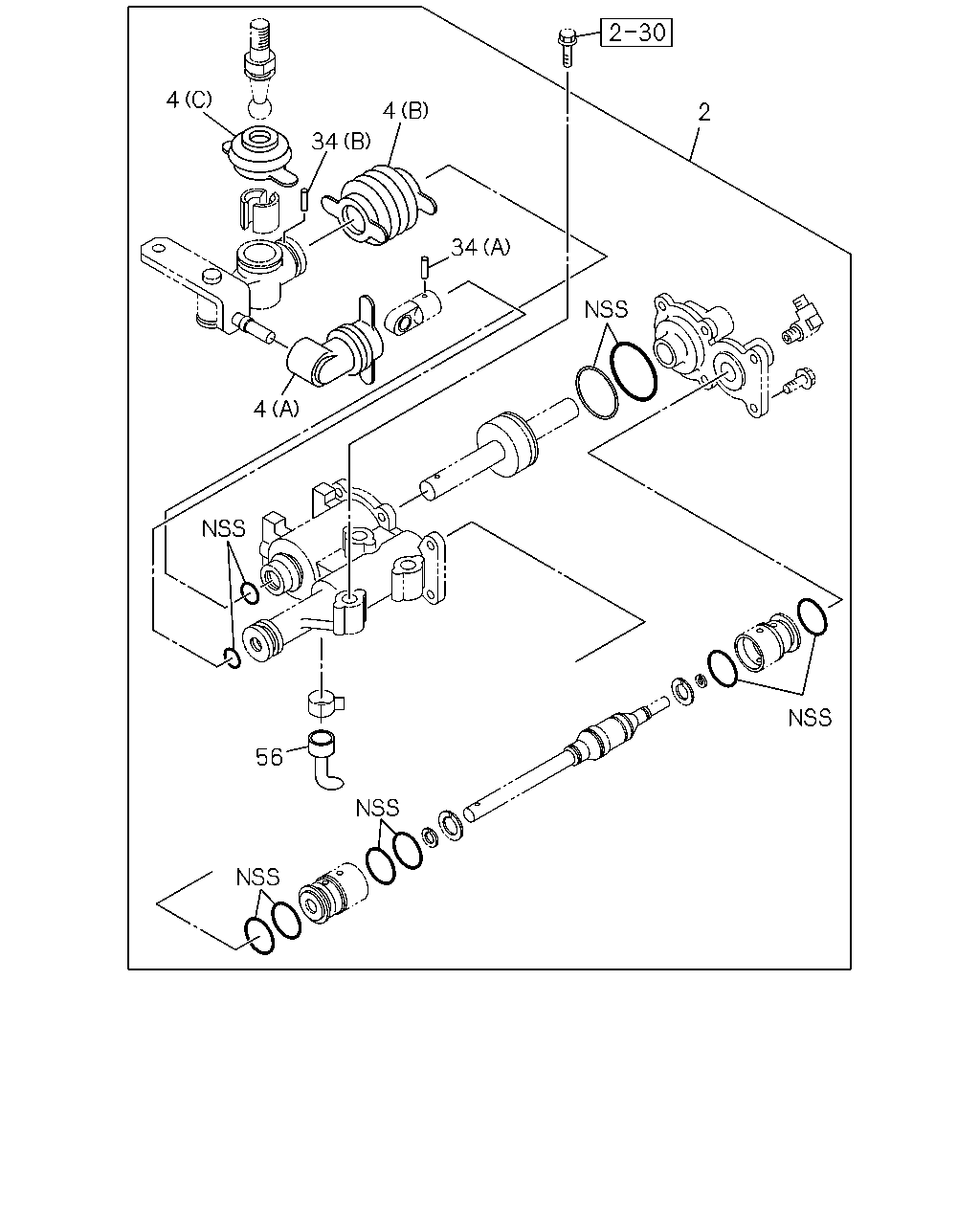

[239A] REPAIR KIT (7 parça)
▶
4
66
70
70
4
69
1
64
68
5
24
37
16
65
16
56
57
34
4
67
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ASSISTOR ASM; POWER,SHIFT
14" CLUTCH(WF6)
8-98022-853-1
01
1
1307-
4
BOOT; POWER SHIFTER
14" CLUTCH(WF6) (A)
1-33739-843-0
01
1
1307-
4
BOOT; POWER SHIFTER
14" CLUTCH(WF6) (B)
1-33739-844-0
01
1
1307-
4
BOOT; POWER SHIFTER
14" CLUTCH(WF6) (C)
1-33739-847-0
01
1
1307-
5
CONNECTOR; CYL
14" CLUTCH(WF6) M12 & PT1/8
0-92124-306-0
01
1
1307-
16
SEAT; VALVE
14" CLUTCH(WF6) (A)
8-97388-032-0
01
1
1307-
16
SEAT; VALVE
14" CLUTCH(WF6) (B)
8-97388-033-0
01
1
1307-
24
PISTON
14" CLUTCH(WF6)
8-98065-242-0
01
1
1307-
34
PIN; STRAIGHT,POWER SHIFTER
14" CLUTCH(WF6) (B)
1-33739-885-0
01
1
1307-
34
PIN; STRAIGHT,POWER SHIFTER
14" CLUTCH(WF6) (A)
1-33739-974-0
01
1
1307-
37
HOUSING; POWER SHIFTER
14" CLUTCH(WF6)
8-97388-027-0
01
1
1307-
56
HOSE; POWER SHIFTER
14" CLUTCH(WF6)
1-33739-848-0
01
1
1307-
57
CLAMP; HOSE
14" CLUTCH(WF6)
1-33739-849-0
01
1
1307-
64
COVER; HOUSING
14" CLUTCH(WF6)
8-98025-483-0
01
1
1307-
65
VALVE; POWER SHIFTER
14" CLUTCH(WF6)
8-97388-029-0
01
1
1307-
66
JOINT ASM; POWER SHIFTER
14" CLUTCH(WF6)
8-97388-137-0
01
1
1307-
67
JOINT; BALL,POWER SHIFTER
14" CLUTCH(WF6)
1-33739-973-0
01
1
1307-
68
BOLT; COVER
14" CLUTCH(WF6) M6X12 FLANGE
1-33739-842-0
06
1
1307-
69
STUD; BALL,POWER SHIFTER
14" CLUTCH(WF6)
1-33739-846-0
01
1
1307-
70
SEAT; BALL STUD
14" CLUTCH(WF6)
1-33659-118-0
02
1
1307-
2
34
4
34
4
4
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; POWER SHIFTER
14" CLUTCH(WF6)
8-97388-035-0
01
1
1307-
4
BOOT; POWER SHIFTER
14" CLUTCH(WF6) (A)
1-33739-843-0
01
1
1307-
4
BOOT; POWER SHIFTER
14" CLUTCH(WF6) (B)
1-33739-844-0
01
1
1307-
4
BOOT; POWER SHIFTER
14" CLUTCH(WF6) (C)
1-33739-847-0
01
1
1307-
34
PIN; STRAIGHT,POWER SHIFTER
14" CLUTCH(WF6) (B)
1-33739-885-0
01
1
1307-
34
PIN; STRAIGHT,POWER SHIFTER
14" CLUTCH(WF6) (A)
1-33739-974-0
01
1
1307-
56
HOSE; POWER SHIFTER
14" CLUTCH(WF6)
1-33739-848-0
01
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
