Isuzu WW
▶
TRUCKS
▶
FRR
▶
11549 - FRR AUST/NZ EURO5 SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶

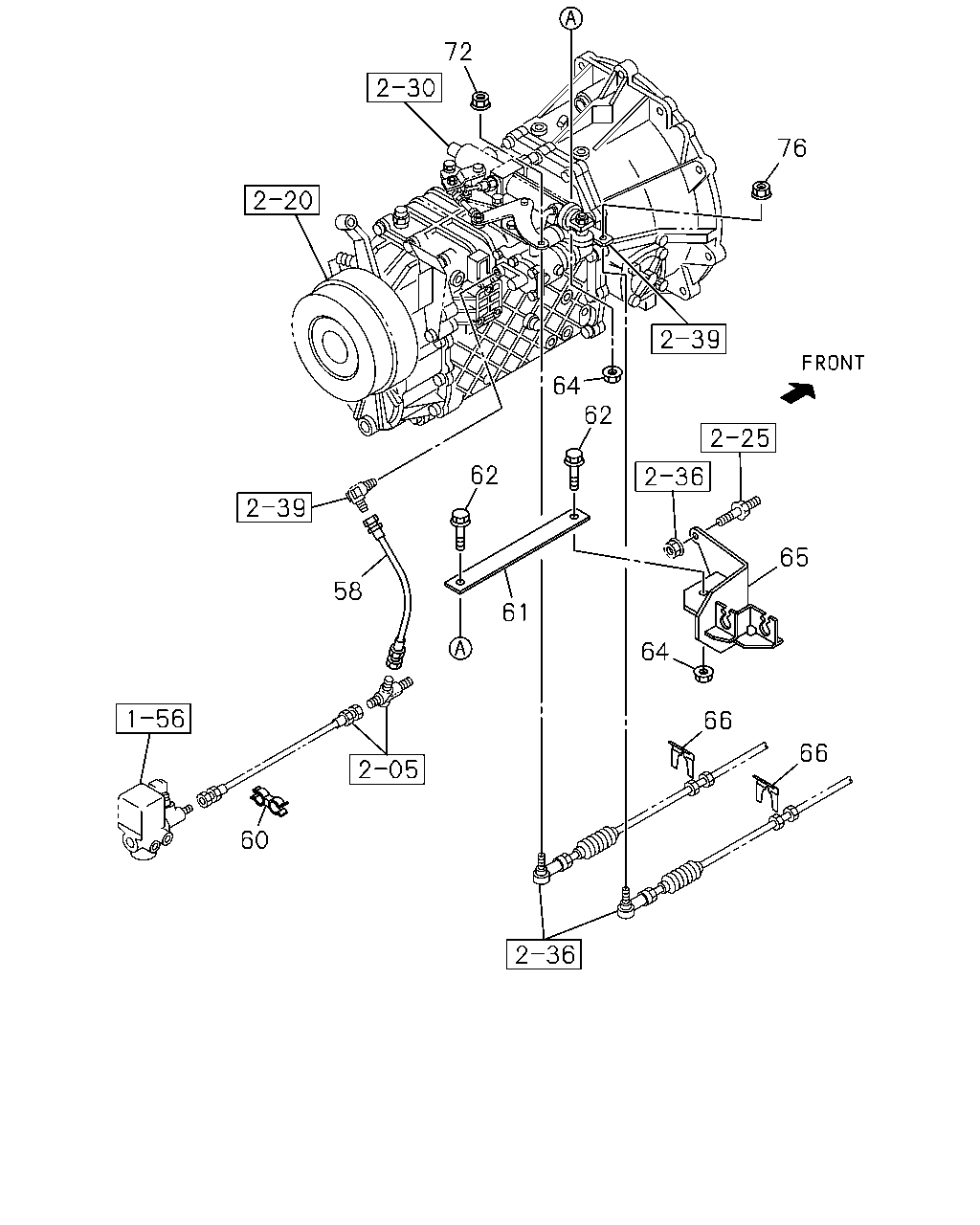

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#123844) — 19 parça
Tümü
A - FCR5CS
B - FCD5CS
58
62
61
64
66
66
60
64
62
76
72
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
58
HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=290
1-09363-875-0
01
1
1307-1312
●
58
HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=290
1-09363-875-0
01
1
1401-
●
●
60
CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=11.8 & 7.5
1-09709-182-0
01
1
1307-1312
●
60
CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=11.8 & 7.5
1-09709-182-0
01
1
1401-
●
●
61
STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98165-370-0
01
1
1307-1309
●
61
STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98251-404-0
01
1
1310-1312
●
61
STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98251-404-0
01
1
1401-
●
●
62
BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE
0-28651-030-0
02
1
1307-1312
●
62
BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE
0-28651-030-0
02
1
1401-
●
●
64
NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE
0-91180-210-0
02
1
1307-1312
●
64
NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE
0-91180-210-0
02
1
1401-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98010-158-1
01
1
1307-1312
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98010-158-1
01
1
1401-
●
●
66
CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2
1-09701-209-1
02
1
1307-1312
●
66
CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2
1-09701-209-1
02
1
1401-
●
●
72
NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
1-09440-049-0
01
1
1307-1312
●
72
NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
1-09440-049-0
01
1
1401-
●
●
76
NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
1-09440-049-0
01
1
1307-1312
●
76
NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
1-09440-049-0
01
1
1401-
●
●
