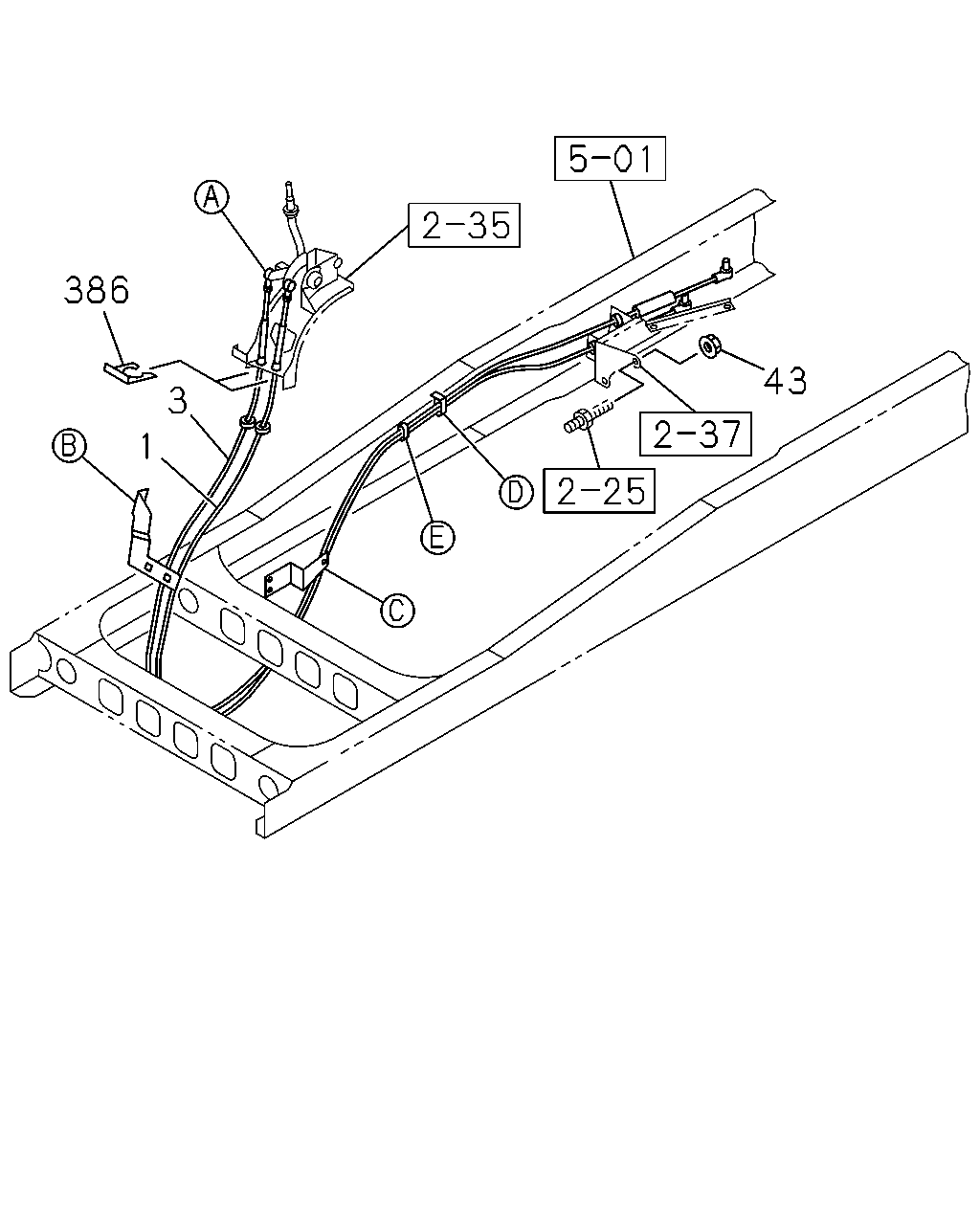

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#123843) — 68 parça

386 43 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3010	8-98010-424-4	01	1	1307-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=2950	8-98010-422-4	01	1	1307-1312	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=2950	8-98010-422-4	01	1	1401-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2950	8-98010-422-4	01	1	1401-		●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3065	8-98133-213-2	01	1	1307-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3005	8-98133-212-2	01	1	1307-1312	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3005	8-98133-212-2	01	1	1401-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005	8-98133-212-2	01	1	1401-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3145	8-98010-464-4	01	1	1307-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3085	8-98010-462-5	01	1	1307-1312	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3085	8-98010-462-5	01	1	1401-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3085	8-98010-462-5	01	1	1401-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3200	8-98133-221-2	01	1	1307-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3140	8-98133-220-2	01	1	1307-1312	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3140	8-98133-220-2	01	1	1401-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140	8-98133-220-2	01	1	1401-		●
43	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
43	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09700-966-1	02	1	1307-1312	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09700-966-1	02	1	1401-	●	●

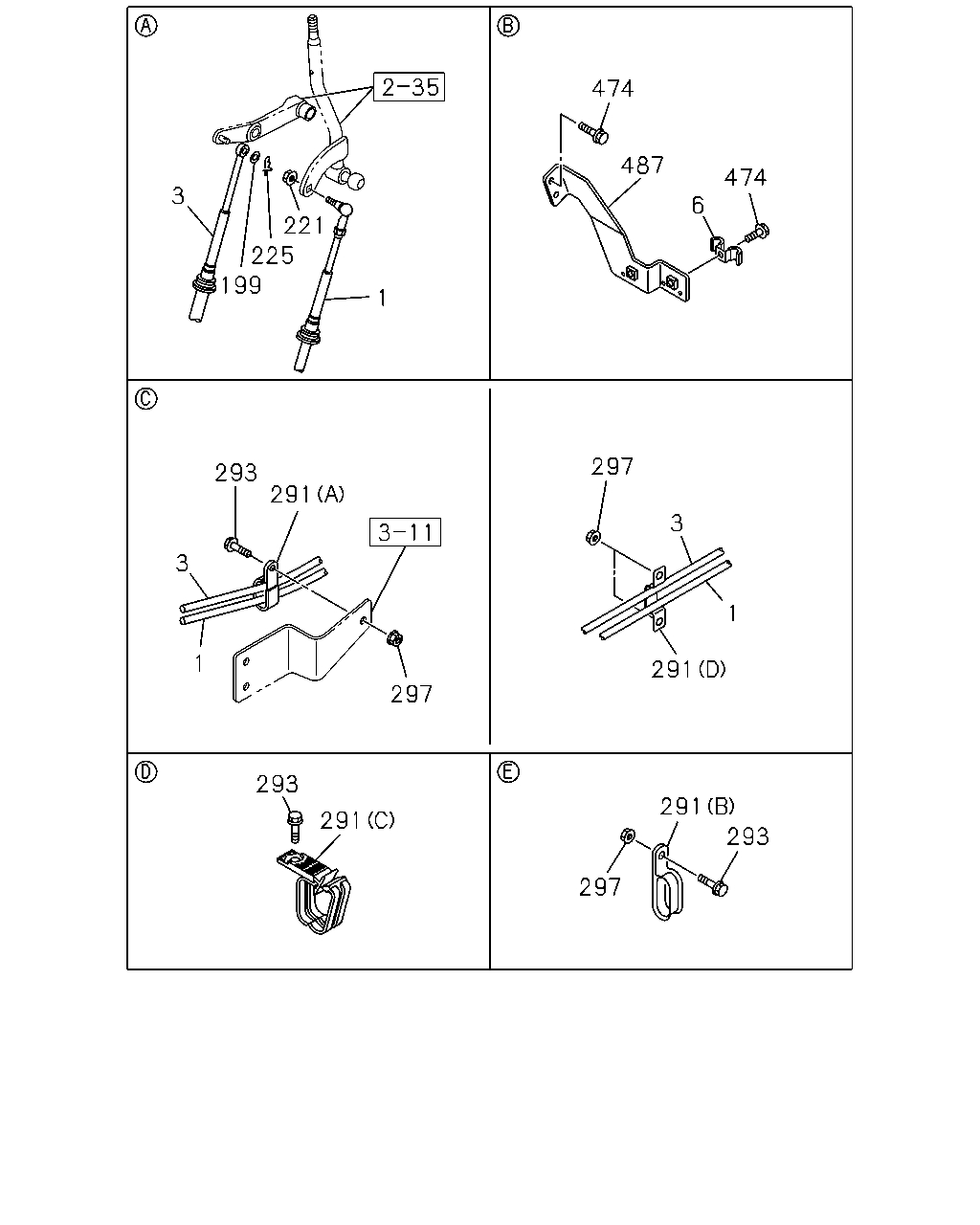

3 221 225 199 1 293 291 3 1 297 293 291 297 291 293 291 1 3 297 6 474 487 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3010	8-98010-424-4	01	1	1307-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=2950	8-98010-422-4	01	1	1307-1312	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=2950	8-98010-422-4	01	1	1401-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2950	8-98010-422-4	01	1	1401-		●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3065	8-98133-213-2	01	1	1307-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3005	8-98133-212-2	01	1	1307-1312	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3005	8-98133-212-2	01	1	1401-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005	8-98133-212-2	01	1	1401-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3145	8-98010-464-4	01	1	1307-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3085	8-98010-462-5	01	1	1307-1312	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3085	8-98010-462-5	01	1	1401-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3085	8-98010-462-5	01	1	1401-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3200	8-98133-221-2	01	1	1307-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3140	8-98133-220-2	01	1	1307-1312	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3140	8-98133-220-2	01	1	1401-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140	8-98133-220-2	01	1	1401-		●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1307-1312	●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1401-	●	●
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16	0-91614-508-0	01	1	1307-1312	●
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16	0-91614-508-0	01	1	1401-	●	●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-062-1	01	1	1307-1312	●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-062-1	01	1	1401-	●	●
225	PIN; SELECT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7	8-94111-137-0	01	1	1307-1312	●
225	PIN; SELECT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7	8-94111-137-0	01	1	1401-	●	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16	0-95325-026-0	01	1	1307-1312	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16	0-95325-026-0	01	1	1401-	●	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1307-1312	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1401-	●	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 13 L=32	8-97389-264-0	02	1	1307-1312	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 13 L=32	8-97389-264-0	02	1	1401-	●	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98080-966-0	01	1	1307-1312	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98080-966-0	01	1	1401-	●	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1307-1312	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1401-1504	●	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-	●	●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	01	1	1401-	●	●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE	0-28650-825-0	03	1	1307-1312	●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE	0-28650-825-0	03	1	1401-	●	●
297	NUT; CLIP GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
297	NUT; CLIP GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
297	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
297	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	03	1	1307-1312	●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	03	1	1401-	●	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98183-009-0	01	1	1307-	●	●
