◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#123841) — 207 parça

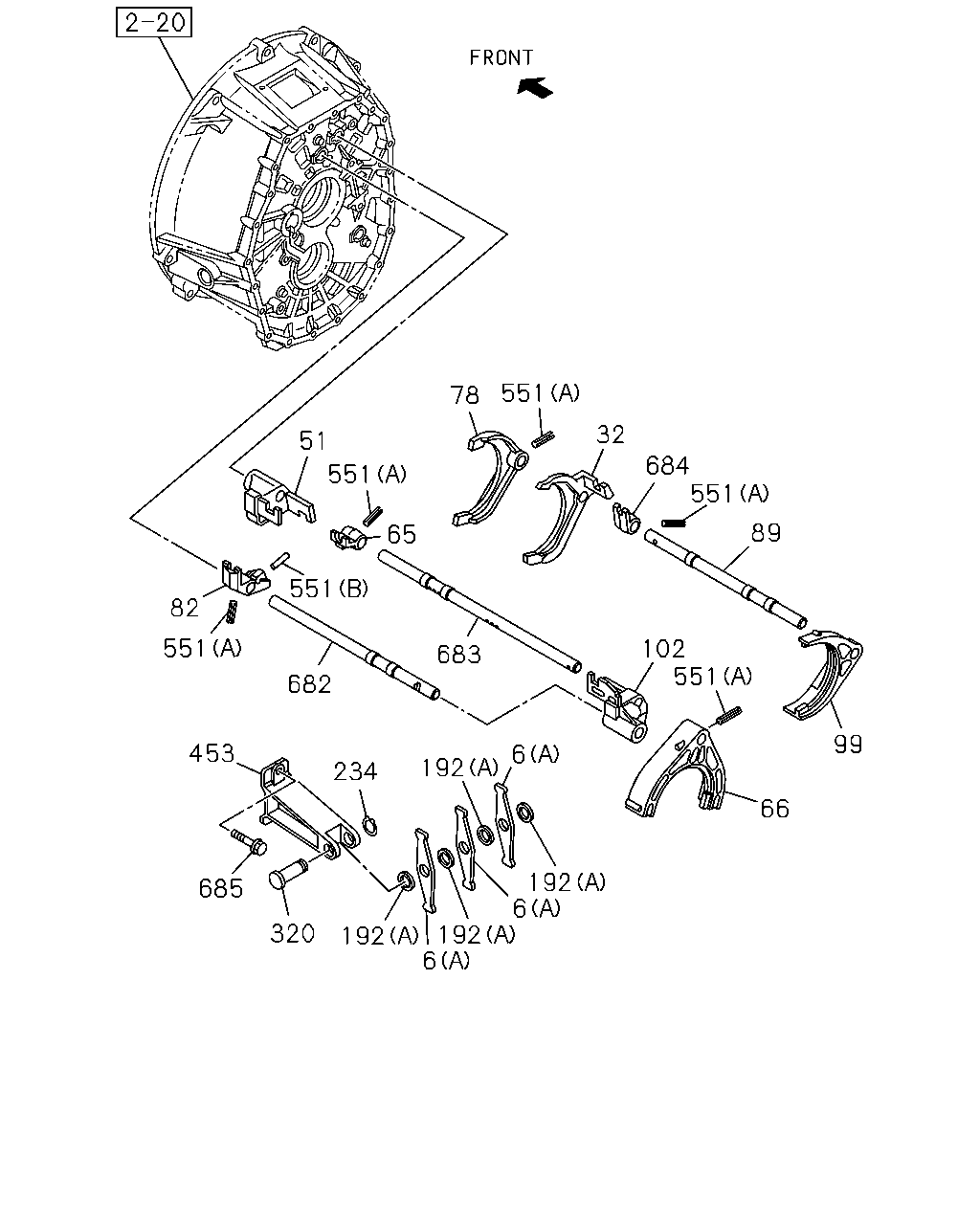

çizim 363121
51 551 78 551 32 684 551 89 99 551 102 683 65 551 82 551 682 234 192 66 192 6 192 6 192 320 685 453 6
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 1307-
6 LEVER; RELAY
14" CLUTCH(WF6) (C) 		8-98014-157-1 01 1 1307-
6 LEVER; RELAY
EXC. 14" CLUTCH(WF6) (B) 		8-97379-995-0 01 1 1307-
32 ARM; SHIFT,1ST & 2ND 8-98062-167-0 01 1 1307-1307
32 ARM; SHIFT,1ST & 2ND 8-98236-424-1 01 1 1308-
51 BLOCK; SHIFT,1ST & 2ND 8-98074-457-1 01 1 1307-
65 BLOCK ASM; SHIFT,5TH & 6TH 8-97388-980-1 01 1 1307-
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 1307-
78 ARM; SHIFT,REV 8-97388-975-1 01 1 1307-
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 1307-
89 ROD; SHIFT,REV 8-98062-172-0 01 1 1307-
99 ARM; SHIFT,4TH & 3RD 8-98062-170-0 01 1 1307-1506
99 ARM; SHIFT,4TH & 3RD 8-98309-861-0 01 1 1507-
102 BLOCK; SHIFT,3RD & 4TH 8-97388-978-2 01 1 1307-
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 1307-
192 WASHER; PL
14" CLUTCH(WF6) (B) 		8-97305-661-0 02 1 1307-
192 WASHER; PL
EXC. 14" CLUTCH(WF6) (C) 		1-09503-280-0 01 1 1307-
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1307-
320 SHAFT; LEVER 8-97377-928-0 01 1 1307-
453 BLOCK; RELAY LEVER 8-97377-927-1 01 1 1307-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1307-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1307-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1307-
551 PIN; SPRING
EXC. 14" CLUTCH(WF6) (D) L=30 OD=4 		1-09748-031-0 02 1 1307-
551 PIN; SPRING
EXC. 14" CLUTCH(WF6) (E) OD=5 		8-97184-905-0 03 1 1307-
551 PIN; SPRING
EXC. 14" CLUTCH(WF6) (F) 		8-97379-991-0 01 1 1307-
682 ROD; SHIFT,REV,SUB 8-97388-974-0 01 1 1307-
683 ROD; SHIFT,5TH & 6TH 8-98062-173-1 01 1 1307-
684 BLOCK; SHIFT,REV,SUB 8-97388-970-0 01 1 1307-
685 BOLT; BLOCK
M8X30 FLANGE 		8-98034-764-0 02 1 1307-

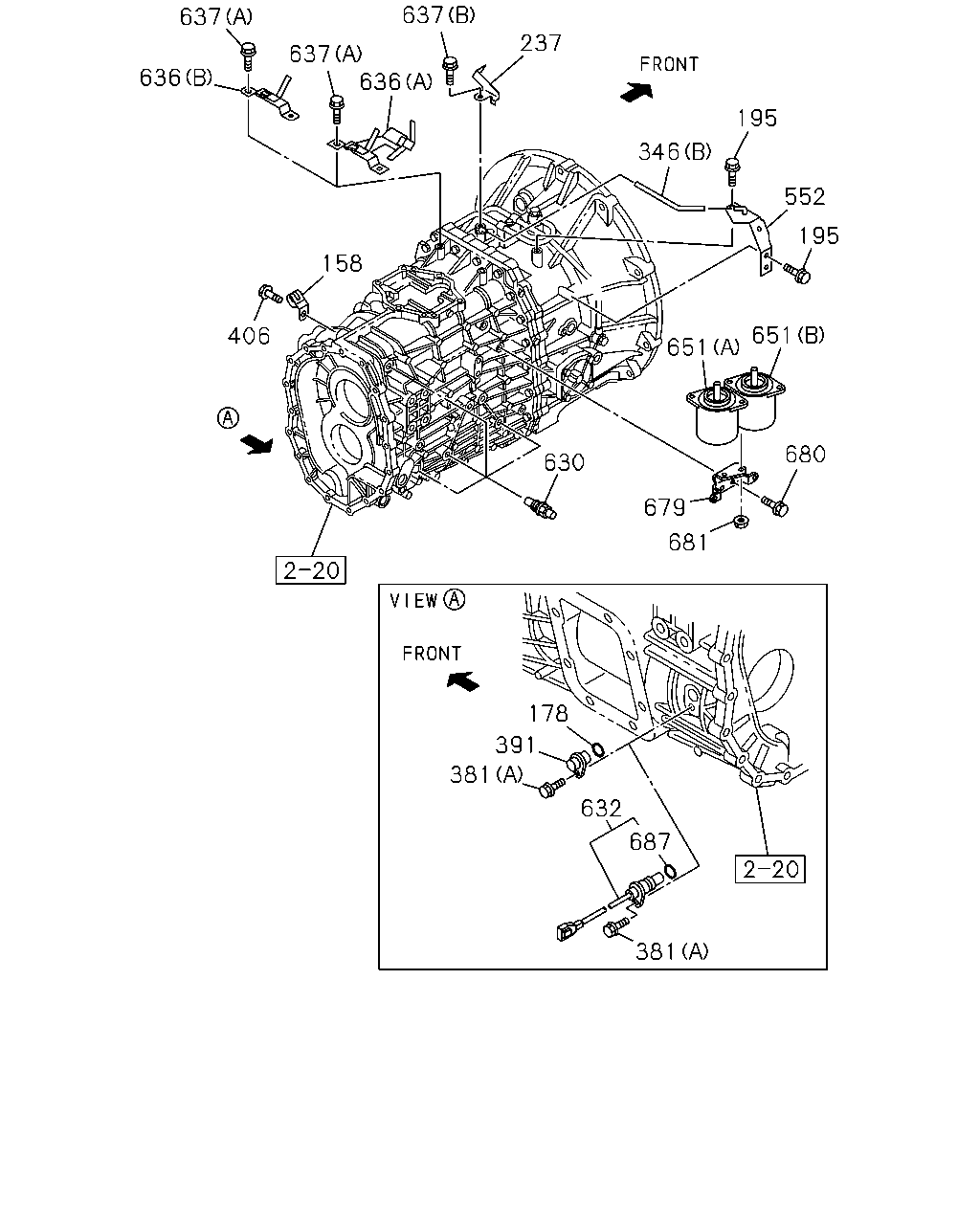

çizim 363123
381 687 632 178 391 381 681 679 680 630 651 651 195 552 195 346 237 637 636 637 158 406 636 637
BalonParca AdiParca NoAdetTipApplied Date
158 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1307-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) 		9-09567-113-0 01 1 1307-
195 BOLT
EXC. 14" CLUTCH(WF6) M8X20 FLANGE 		0-28650-820-0 02 1 1307-
237 BRACKET; CABLE,TRANS
EXC. 14" CLUTCH(WF6) 		8-98009-307-1 01 1 1307-
346 HOSE; AIR
EXC. 14" CLUTCH(WF6) (A) 		8-97309-855-0 01 1 1307-1404
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405-
346 HOSE; AIR
EXC. 14" CLUTCH(WF6) (B) 		8-97373-381-0 01 1 1307-
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1307-
381 BOLT
EXC. 14" CLUTCH(WF6) (B) M6X12 FLANGE 		1-33739-842-0 04 1 1307-
391 PLUG; SW HOLE
14" CLUTCH(WF6) 		8-97300-273-1 01 1 1307-
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1307-
552 BRACKET
EXC. 14" CLUTCH(WF6) 		8-98005-329-1 01 1 1307-
630 DETENT ASM 8-98019-536-0 04 1 1307-
632 SENSOR; TRANS,REV
EXC. 14" CLUTCH(WF6) 		8-97315-604-1 01 1 1307-
636 BRACKET; CLIP
14" CLUTCH(WF6) (B) 		8-97610-092-1 01 1 1307-1502
636 BRACKET; CLIP
EXC. 14" CLUTCH(WF6) (A) 		8-97610-093-1 01 1 1307-
637 BOLT; BRACKET
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1307-1502
637 BOLT; BRACKET
EXC. 14" CLUTCH(WF6) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1503-
637 BOLT; BRACKET
EXC. 14" CLUTCH(WF6) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1307-
651 SOLENOID ASM; SHIFT
EXC. 14" CLUTCH(WF6) (A) 		8-98048-497-1 01 1 1307-
651 SOLENOID ASM; SHIFT
EXC. 14" CLUTCH(WF6) (B) 		8-98048-498-1 01 1 1307-
679 BRACKET; HEAT PROTECTOR
EXC. 14" CLUTCH(WF6) 		8-98005-332-0 01 1 1307-
680 BOLT; FLANGE
EXC. 14" CLUTCH(WF6) M10X20 FLANGE 		0-28761-020-0 02 1 1307-
681 NUT; FLANGE
EXC. 14" CLUTCH(WF6) M10 FLANGE 		0-91180-210-0 02 1 1307-
687 GASKET; SENSOR
EXC. 14" CLUTCH(WF6) 		9-09567-113-0 01 1 1307-

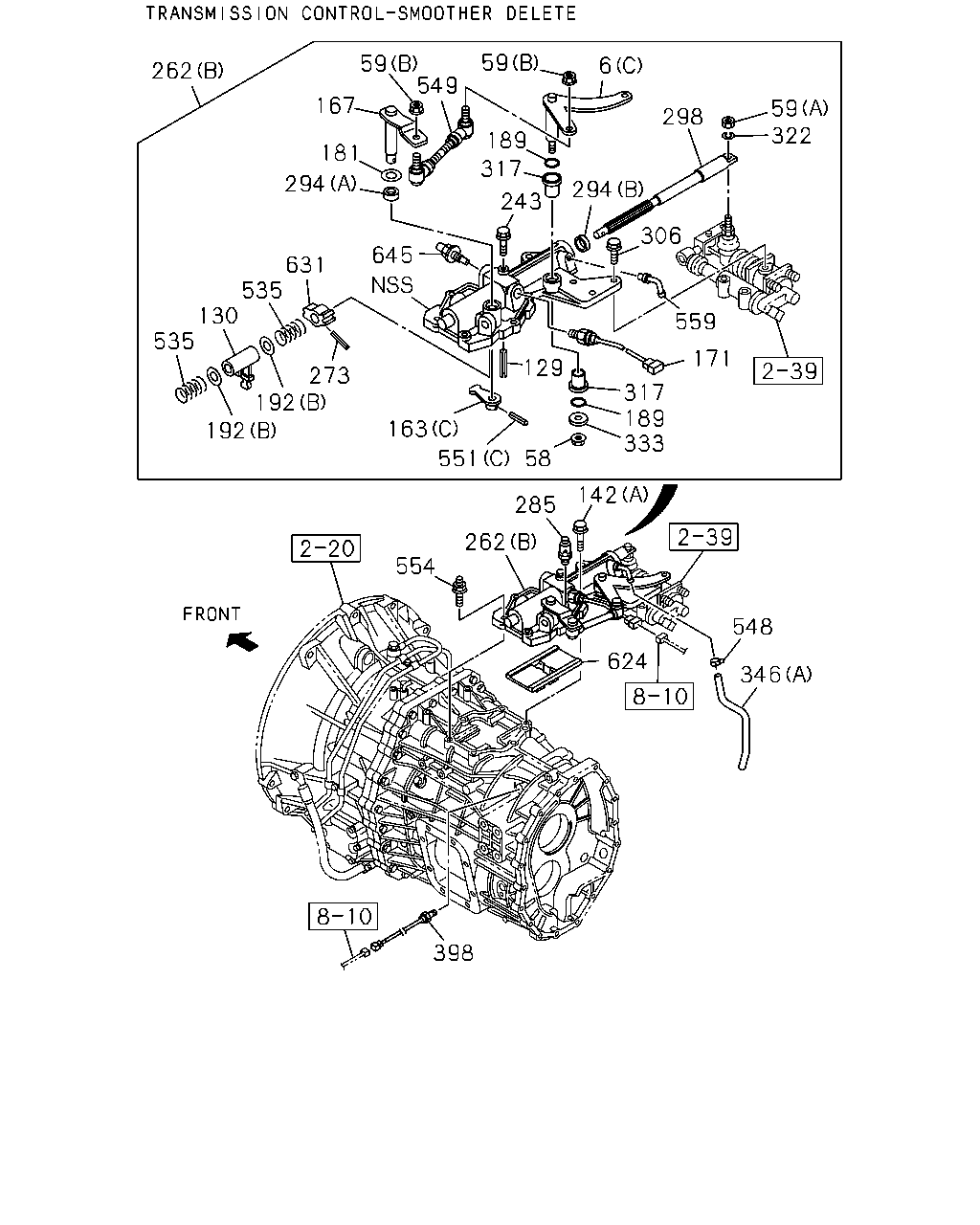

çizim 366099
59 298 322 6 59 59 167 181 294 645 631 535 130 535 273 192 192 163 551 58 129 243 189 317 294 559 306 317 189 333 285 262 554 142 548 346 624 398 549 171 262
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 1307-
6 LEVER; RELAY
14" CLUTCH(WF6) (C) 		8-98014-157-1 01 1 1307-
6 LEVER; RELAY
EXC. 14" CLUTCH(WF6) (B) 		8-97379-995-0 01 1 1307-
58 NUT
14" CLUTCH(WF6) M10 FLANGE 		0-91180-110-0 01 1 1307-
59 NUT
14" CLUTCH(WF6) (A) M12 		0-91110-512-0 01 1 1307-
59 NUT
14" CLUTCH(WF6) (B) M8 FLANGE 		0-91180-108-0 02 1 1307-
129 PIN; SPR,SHIFT
14" CLUTCH(WF6) L=30 OD=4 		1-09748-031-0 01 1 1307-
130 LEVER; SHIFT,INTERNAL
14" CLUTCH(WF6) 		8-97306-647-0 01 1 1307-
142 BOLT; QUAD BOX
14" CLUTCH(WF6) (A) M8X22 FLANGE 		8-97365-376-0 04 1 1307-
142 BOLT; QUAD BOX
EXC. 14" CLUTCH(WF6) (B) M8X35 FLANGE 		8-98020-384-0 03 1 1307-
142 BOLT; QUAD BOX
EXC. 14" CLUTCH(WF6) (C) M8X75 FLANGE 		8-98020-385-0 03 1 1307-
163 LEVER; SELECT,INTERNAL
14" CLUTCH(WF6) (C) 		8-97305-663-0 01 1 1307-
163 LEVER; SELECT,INTERNAL
EXC. 14" CLUTCH(WF6) (A) 		8-97379-979-0 01 1 1307-
163 LEVER; SELECT,INTERNAL
EXC. 14" CLUTCH(WF6) (B) 		8-97379-990-0 01 1 1307-
167 LEVER; SELECT,EXTERNAL
14" CLUTCH(WF6) 		8-98021-489-0 01 1 1307-
167 LEVER; SELECT,EXTERNAL
EXC. 14" CLUTCH(WF6) 		8-97379-994-0 01 1 1307-
171 SWITCH; NEUTRAL
EXC. 14" CLUTCH(WF6) 		8-98242-172-0 01 1 1307-1312
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510-
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1307-1307
171 SWITCH; NEUTRAL
14" CLUTCH(WF6) 		8-98023-050-0 01 1 1307-1312
181 WASHER; PL,SELECT LEVER
14" CLUTCH(WF6) 		8-97367-327-0 01 1 1307-
189 GASKET; SELECT LEVER,CONT BOX
14" CLUTCH(WF6) 		1-09623-594-0 02 1 1307-
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 1307-
192 WASHER; PL
14" CLUTCH(WF6) (B) 		8-97305-661-0 02 1 1307-
192 WASHER; PL
EXC. 14" CLUTCH(WF6) (C) 		1-09503-280-0 01 1 1307-
243 BOLT; COVER
14" CLUTCH(WF6) M6X12 FLANGE 		1-33739-842-0 01 1 1307-
243 BOLT; COVER
EXC. 14" CLUTCH(WF6) M6X12 FLANGE 		1-33739-842-0 11 1 1307-
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98207-563-0 01 1 1307-1307
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98249-038-0 01 1 1307-1312
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98240-998-0 01 1 1401-1404
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98276-158-1 01 1 1405-1507
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98305-333-1 01 1 1508-
262 BOX ASM; SHIFT CONT
EXC. 14" CLUTCH(WF6) (A) 		8-98107-814-1 01 1 1307-1307
262 BOX ASM; SHIFT CONT
EXC. 14" CLUTCH(WF6) (A) 		8-98241-122-1 01 1 1307-1411
262 BOX ASM; SHIFT CONT
EXC. 14" CLUTCH(WF6) (A) 		8-98296-530-0 01 1 1412-1509
262 BOX ASM; SHIFT CONT
EXC. 14" CLUTCH(WF6) (A) 		8-98331-686-0 01 1 1510-
273 PIN; SPR,STOPPER
14" CLUTCH(WF6) D=4.2 L=25 		8-97103-142-0 01 1 1307-
285 BREATHER; AIR,QUAD BOX
14" CLUTCH(WF6) 		1-33149-003-0 01 1 1307-1404
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (A) 		8-97305-662-0 01 1 1307-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (B) 		8-97363-225-0 01 1 1307-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (C) 		1-09625-600-0 01 1 1307-
298 SHAFT; SHIFT LEVER
14" CLUTCH(WF6) 		8-98097-117-0 01 1 1307-1507
298 SHAFT; SHIFT LEVER
14" CLUTCH(WF6) 		8-98305-343-0 01 1 1508-
298 SHAFT; SHIFT LEVER
EXC. 14" CLUTCH(WF6) 		8-97379-978-0 01 1 1307-
306 BOLT; SHIFT ASSISTOR
14" CLUTCH(WF6) M10X50 FLANGE 		0-28051-050-0 03 1 1307-
317 BUSHING; LEVER
14" CLUTCH(WF6) 		1-09330-119-0 02 1 1307-
317 BUSHING; LEVER
EXC. 14" CLUTCH(WF6) 		8-97379-997-0 02 1 1307-
322 WASHER; LK
14" CLUTCH(WF6) 		8-98031-750-0 01 1 1307-
333 WASHER; PL,LEVER
14" CLUTCH(WF6) ID=10.5 		0-91610-710-0 01 1 1307-
346 HOSE; AIR
EXC. 14" CLUTCH(WF6) (A) 		8-97309-855-0 01 1 1307-1404
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405-
346 HOSE; AIR
EXC. 14" CLUTCH(WF6) (B) 		8-97373-381-0 01 1 1307-
398 SWITCH; REV LAMP 8-98023-050-0 01 1 1307-1312
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401-
535 SPRING; LEVER
14" CLUTCH(WF6) 		8-97385-713-0 02 1 1307-
548 CLIP; HOSE
EXC. 14" CLUTCH(WF6) 		8-97031-674-0 01 1 1307-1404
548 CLIP; HOSE 8-97031-674-0 01 1 1405-
549 ROD; LINK
14" CLUTCH(WF6) 		8-98023-095-0 01 1 1307-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1307-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1307-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1307-
551 PIN; SPRING
EXC. 14" CLUTCH(WF6) (D) L=30 OD=4 		1-09748-031-0 02 1 1307-
551 PIN; SPRING
EXC. 14" CLUTCH(WF6) (E) OD=5 		8-97184-905-0 03 1 1307-
551 PIN; SPRING
EXC. 14" CLUTCH(WF6) (F) 		8-97379-991-0 01 1 1307-
554 STUD; CONT BOX
14" CLUTCH(WF6) M8X15,M8X25 L=49 		8-97365-378-0 02 1 1307-
559 PIPE; BREATHER
14" CLUTCH(WF6) 		8-97358-318-0 01 1 1405-
559 PIPE; BREATHER
EXC. 14" CLUTCH(WF6) 		8-98020-710-0 01 1 1307-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1307-
631 STOPPER; SPRING
14" CLUTCH(WF6) 		8-98014-158-0 01 1 1307-
631 STOPPER; SPRING
EXC. 14" CLUTCH(WF6) 		8-97379-984-0 01 1 1307-
645 DETENT ASM
14" CLUTCH(WF6) 		8-98019-536-0 01 1 1307-

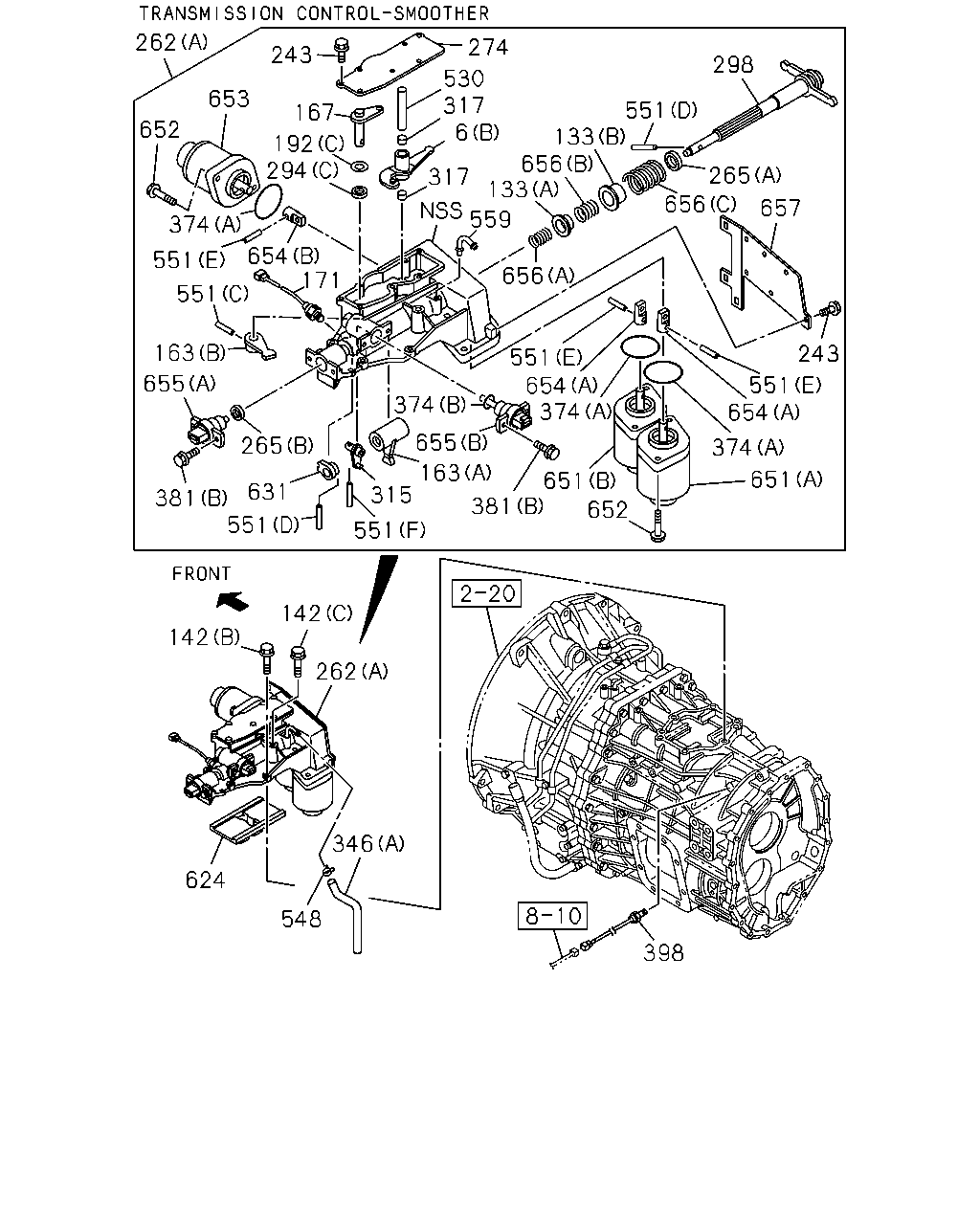

çizim 366891
398 346 548 624 262 142 142 651 652 381 551 551 381 631 315 651 374 654 551 243 347 163 265 655 163 551 551 655 374 654 551 656 657 656 265 298 551 133 656 133 559 317 171 654 374 294 6 317 530 274 243 653 262 652 192 167
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 1307-
6 LEVER; RELAY
14" CLUTCH(WF6) (C) 		8-98014-157-1 01 1 1307-
6 LEVER; RELAY
EXC. 14" CLUTCH(WF6) (B) 		8-97379-995-0 01 1 1307-
133 SEAT; SPR
EXC. 14" CLUTCH(WF6) (A) 		8-97379-988-0 01 1 1307-
133 SEAT; SPR
EXC. 14" CLUTCH(WF6) (B) 		8-97379-989-0 01 1 1307-
142 BOLT; QUAD BOX
14" CLUTCH(WF6) (A) M8X22 FLANGE 		8-97365-376-0 04 1 1307-
142 BOLT; QUAD BOX
EXC. 14" CLUTCH(WF6) (B) M8X35 FLANGE 		8-98020-384-0 03 1 1307-
142 BOLT; QUAD BOX
EXC. 14" CLUTCH(WF6) (C) M8X75 FLANGE 		8-98020-385-0 03 1 1307-
163 LEVER; SELECT,INTERNAL
14" CLUTCH(WF6) (C) 		8-97305-663-0 01 1 1307-
163 LEVER; SELECT,INTERNAL
EXC. 14" CLUTCH(WF6) (A) 		8-97379-979-0 01 1 1307-
163 LEVER; SELECT,INTERNAL
EXC. 14" CLUTCH(WF6) (B) 		8-97379-990-0 01 1 1307-
167 LEVER; SELECT,EXTERNAL
14" CLUTCH(WF6) 		8-98021-489-0 01 1 1307-
167 LEVER; SELECT,EXTERNAL
EXC. 14" CLUTCH(WF6) 		8-97379-994-0 01 1 1307-
171 SWITCH; NEUTRAL
EXC. 14" CLUTCH(WF6) 		8-98242-172-0 01 1 1307-1312
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510-
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1307-1307
171 SWITCH; NEUTRAL
14" CLUTCH(WF6) 		8-98023-050-0 01 1 1307-1312
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 1307-
192 WASHER; PL
14" CLUTCH(WF6) (B) 		8-97305-661-0 02 1 1307-
192 WASHER; PL
EXC. 14" CLUTCH(WF6) (C) 		1-09503-280-0 01 1 1307-
243 BOLT; COVER
14" CLUTCH(WF6) M6X12 FLANGE 		1-33739-842-0 01 1 1307-
243 BOLT; COVER
EXC. 14" CLUTCH(WF6) M6X12 FLANGE 		1-33739-842-0 11 1 1307-
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98207-563-0 01 1 1307-1307
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98249-038-0 01 1 1307-1312
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98240-998-0 01 1 1401-1404
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98276-158-1 01 1 1405-1507
262 BOX ASM; SHIFT CONT
14" CLUTCH(WF6) (B) 		8-98305-333-1 01 1 1508-
262 BOX ASM; SHIFT CONT
EXC. 14" CLUTCH(WF6) (A) 		8-98107-814-1 01 1 1307-1307
262 BOX ASM; SHIFT CONT
EXC. 14" CLUTCH(WF6) (A) 		8-98241-122-1 01 1 1307-1411
262 BOX ASM; SHIFT CONT
EXC. 14" CLUTCH(WF6) (A) 		8-98296-530-0 01 1 1412-1509
262 BOX ASM; SHIFT CONT
EXC. 14" CLUTCH(WF6) (A) 		8-98331-686-0 01 1 1510-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A) 		8-97363-225-0 01 1 1307-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B) 		8-97379-981-0 01 1 1307-
274 COVER; SHAFT,QUAD BOX
EXC. 14" CLUTCH(WF6) 		8-98020-711-0 01 1 1307-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (A) 		8-97305-662-0 01 1 1307-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (B) 		8-97363-225-0 01 1 1307-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (C) 		1-09625-600-0 01 1 1307-
298 SHAFT; SHIFT LEVER
14" CLUTCH(WF6) 		8-98097-117-0 01 1 1307-1507
298 SHAFT; SHIFT LEVER
14" CLUTCH(WF6) 		8-98305-343-0 01 1 1508-
298 SHAFT; SHIFT LEVER
EXC. 14" CLUTCH(WF6) 		8-97379-978-0 01 1 1307-
315 LEVER; SELECT
EXC. 14" CLUTCH(WF6) 		8-97379-998-0 01 1 1307-1411
315 LEVER; SELECT
EXC. 14" CLUTCH(WF6) 		8-98296-526-0 01 1 1412-
317 BUSHING; LEVER
14" CLUTCH(WF6) 		1-09330-119-0 02 1 1307-
317 BUSHING; LEVER
EXC. 14" CLUTCH(WF6) 		8-97379-997-0 02 1 1307-
346 HOSE; AIR
EXC. 14" CLUTCH(WF6) (A) 		8-97309-855-0 01 1 1307-1404
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405-
346 HOSE; AIR
EXC. 14" CLUTCH(WF6) (B) 		8-97373-381-0 01 1 1307-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A) 		8-97349-571-0 03 1 1307-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B) 		8-97349-573-0 01 1 1307-
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1307-
381 BOLT
EXC. 14" CLUTCH(WF6) (B) M6X12 FLANGE 		1-33739-842-0 04 1 1307-
398 SWITCH; REV LAMP 8-98023-050-0 01 1 1307-1312
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401-
530 SHAFT; SELECT
EXC. 14" CLUTCH(WF6) 		8-97379-996-0 01 1 1307-
548 CLIP; HOSE
EXC. 14" CLUTCH(WF6) 		8-97031-674-0 01 1 1307-1404
548 CLIP; HOSE 8-97031-674-0 01 1 1405-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1307-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1307-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1307-
551 PIN; SPRING
EXC. 14" CLUTCH(WF6) (D) L=30 OD=4 		1-09748-031-0 02 1 1307-
551 PIN; SPRING
EXC. 14" CLUTCH(WF6) (E) OD=5 		8-97184-905-0 03 1 1307-
551 PIN; SPRING
EXC. 14" CLUTCH(WF6) (F) 		8-97379-991-0 01 1 1307-
559 PIPE; BREATHER
14" CLUTCH(WF6) 		8-97358-318-0 01 1 1405-
559 PIPE; BREATHER
EXC. 14" CLUTCH(WF6) 		8-98020-710-0 01 1 1307-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1307-
631 STOPPER; SPRING
14" CLUTCH(WF6) 		8-98014-158-0 01 1 1307-
631 STOPPER; SPRING
EXC. 14" CLUTCH(WF6) 		8-97379-984-0 01 1 1307-
651 SOLENOID ASM; SHIFT
EXC. 14" CLUTCH(WF6) (A) 		8-98048-497-1 01 1 1307-
651 SOLENOID ASM; SHIFT
EXC. 14" CLUTCH(WF6) (B) 		8-98048-498-1 01 1 1307-
652 BOLT; SORENOID
EXC. 14" CLUTCH(WF6) M10X25 FLANGE 		0-28151-025-0 06 1 1307-
653 SOLENOID ASM; SELECT
EXC. 14" CLUTCH(WF6) 		8-98002-761-0 01 1 1307-
654 JOINT; SOLENOID,CASE
EXC. 14" CLUTCH(WF6) (A) 		8-97349-473-0 02 1 1307-
654 JOINT; SOLENOID,CASE
EXC. 14" CLUTCH(WF6) (B) 		8-97380-419-0 01 1 1307-
655 SENSOR; STROKE
EXC. 14" CLUTCH(WF6) (A) 		8-98107-823-0 01 1 1307-
655 SENSOR; STROKE
EXC. 14" CLUTCH(WF6) (B) 		8-98107-824-0 01 1 1307-
656 SPRING; SHAFT
EXC. 14" CLUTCH(WF6) (A) 		8-97379-985-0 01 1 1307-
656 SPRING; SHAFT
EXC. 14" CLUTCH(WF6) (B) 		8-97379-986-0 01 1 1307-
656 SPRING; SHAFT
EXC. 14" CLUTCH(WF6) (C) 		8-97379-987-0 01 1 1307-
657 PLATE; SIDE
EXC. 14" CLUTCH(WF6) 		8-98020-712-0 01 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
