2-20 — MANUAL TRANSMISSION ASM AND CASE (#123838) — 89 parça

282 283 647

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

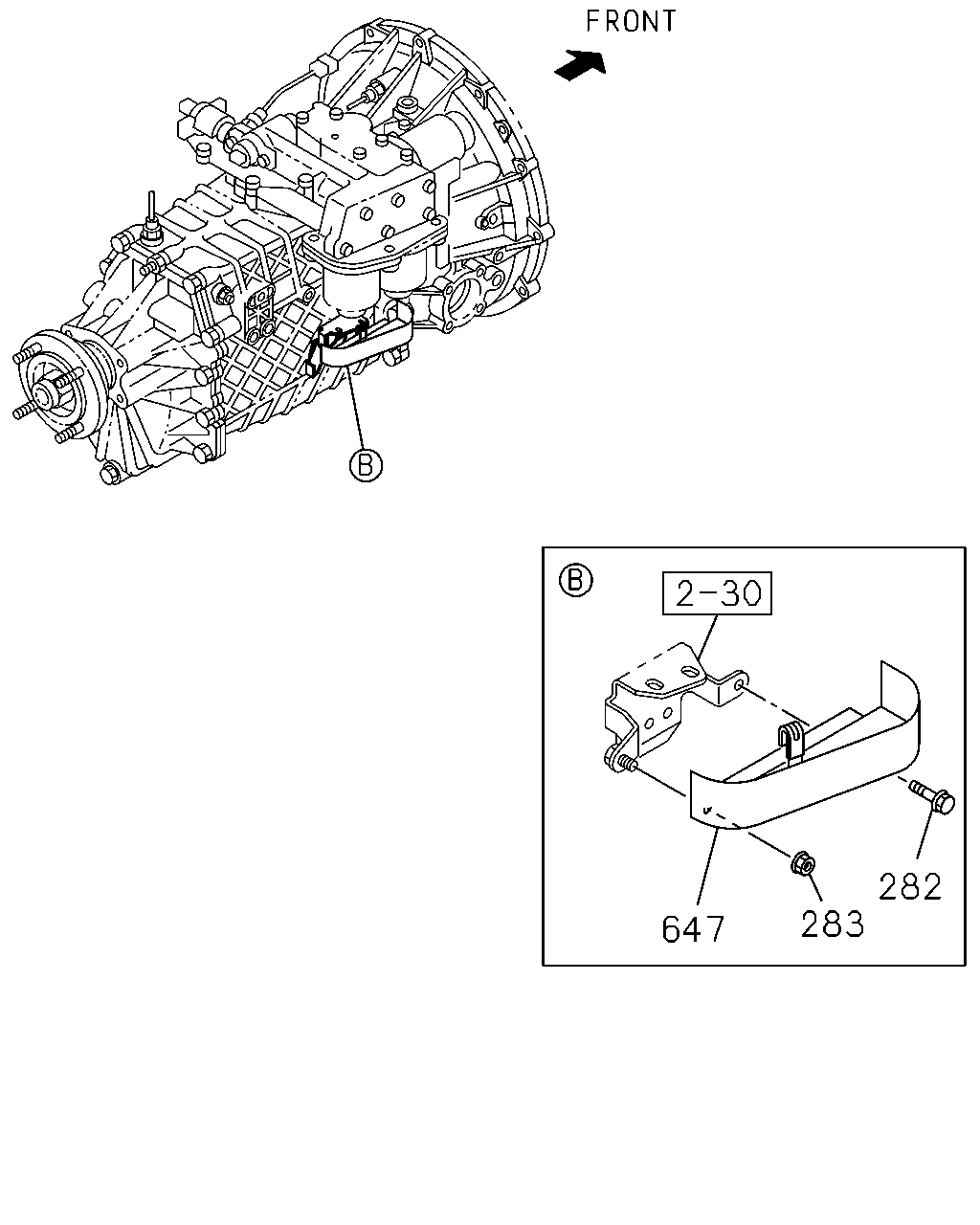

282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	1307-

257 257 257 257 523 265 271

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

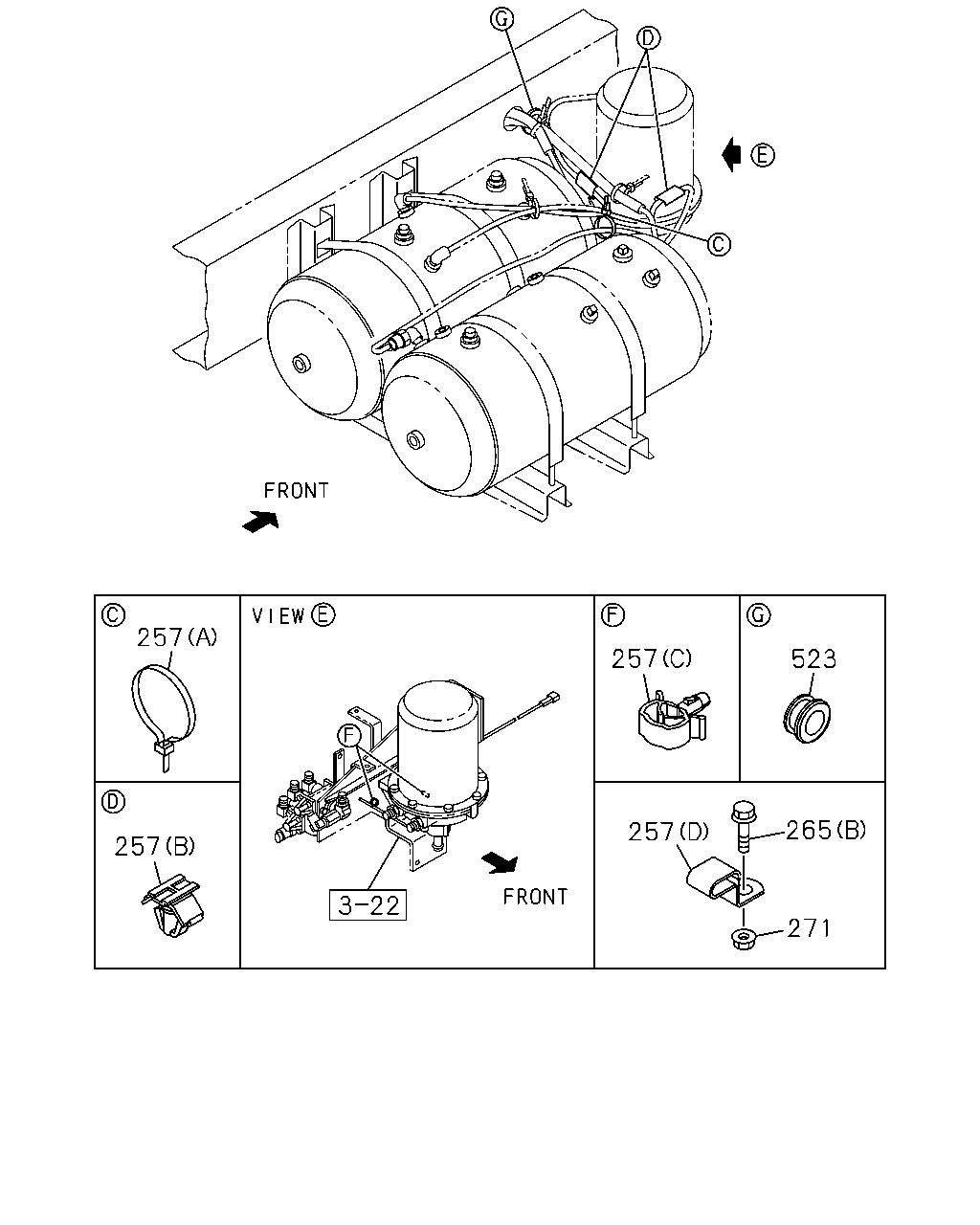

	257	CLIP; HARNESS EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),14" CLUTCH(WF6) ID=8	8-97329-633-0	01	1	1307-
	265	BOLT; CLIP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),14" CLUTCH(WF6) M10X16 FLANGE	0-28151-016-0	01	1	1307-

593 594 592 254 255 591 595 630 627 628 597 596 261 595 594 630 684 628 629 629 598 599 561 604 605 607 602 600 603 601 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

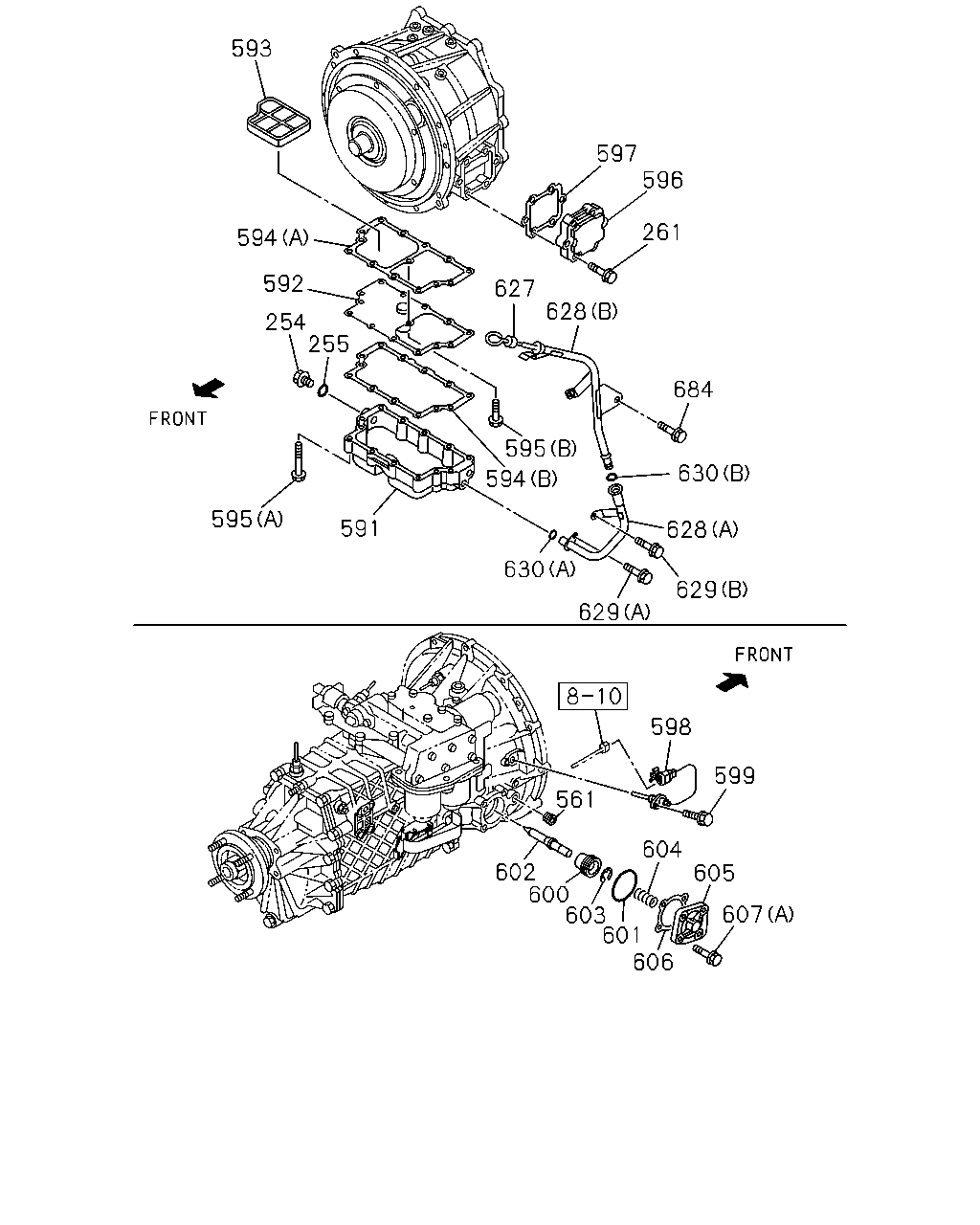

254	PLUG; DRAIN,OIL EXC. 14" CLUTCH(WF6)	8-97365-374-0	01	1	1307-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) ID=17	8-97115-712-0	01	1	1307-
261	BOLT; COVER EXC. 14" CLUTCH(WF6) M6X35 FLANGE	0-28650-635-0	06	1	1307-
561	PLUG EXC. 14" CLUTCH(WF6)	8-97320-204-0	01	1	1307-
591	PAN; OIL EXC. 14" CLUTCH(WF6)	8-97256-429-2	01	1	1307-
592	COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97289-771-1	01	1	1307-
593	FILTER; STRAINER EXC. 14" CLUTCH(WF6)	8-97256-438-1	01	1	1307-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A)	8-97256-430-1	01	1	1307-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B)	8-97289-772-0	01	1	1307-
595	BOLT; OIL PAN EXC. 14" CLUTCH(WF6) (B) M6X16 FLANGE	0-28650-616-0	01	1	1307-
595	BOLT; OIL PAN EXC. 14" CLUTCH(WF6) (A) M6X35 FLANGE	0-28650-635-0	13	1	1307-
596	COVER; OIL PAN EXC. 14" CLUTCH(WF6)	8-97289-773-0	01	1	1307-
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97289-774-0	01	1	1307-
598	SENSOR; TURBINE EXC. 14" CLUTCH(WF6)	8-97316-495-1	01	1	1307-
599	BOLT; SENSOR EXC. 14" CLUTCH(WF6) M6X16 FLANGE	0-28650-616-0	01	1	1307-
600	PISTON; BRAKE EXC. 14" CLUTCH(WF6)	8-97254-652-1	01	1	1307-
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97254-755-0	01	1	1307-
602	PLUNGER; BRAKE EXC. 14" CLUTCH(WF6)	8-98009-306-1	01	1	1307-
603	RING; SNAP EXC. 14" CLUTCH(WF6) ID=8	9-09185-008-0	01	1	1307-
604	SPRING; PISTON EXC. 14" CLUTCH(WF6)	8-97371-467-0	01	1	1307-
605	COVER; CYLINDER EXC. 14" CLUTCH(WF6)	8-97254-756-0	01	1	1307-
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97254-757-0	01	1	1307-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1307-
607	BOLT; COVER EXC. 14" CLUTCH(WF6) (A) M8X30 FLANGE	0-28650-830-0	04	1	1307-
627	GAUGE; OIL LEVEL EXC. 14" CLUTCH(WF6)	8-98024-423-2	01	1	1307-
628	TUBE; OIL FILLER EXC. 14" CLUTCH(WF6) (A)	8-98003-673-0	01	1	1307-
628	TUBE; OIL FILLER EXC. 14" CLUTCH(WF6) (B)	8-98005-326-2	01	1	1307-
629	BOLT; OIL FILLER EXC. 14" CLUTCH(WF6) (B) M10X16 FLANGE	0-28151-016-0	01	1	1307-
629	BOLT; OIL FILLER EXC. 14" CLUTCH(WF6) (A) M6X16 FLANGE	0-28650-616-0	01	1	1307-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A) ID=15.8	8-97305-656-0	01	1	1307-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B) ID=12.3	8-97313-558-0	01	1	1307-
684	BOLT; OIL FILLER TUBE EXC. 14" CLUTCH(WF6) M10X16 FLANGE	0-28151-016-0	01	1	1307-

11 651 651 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

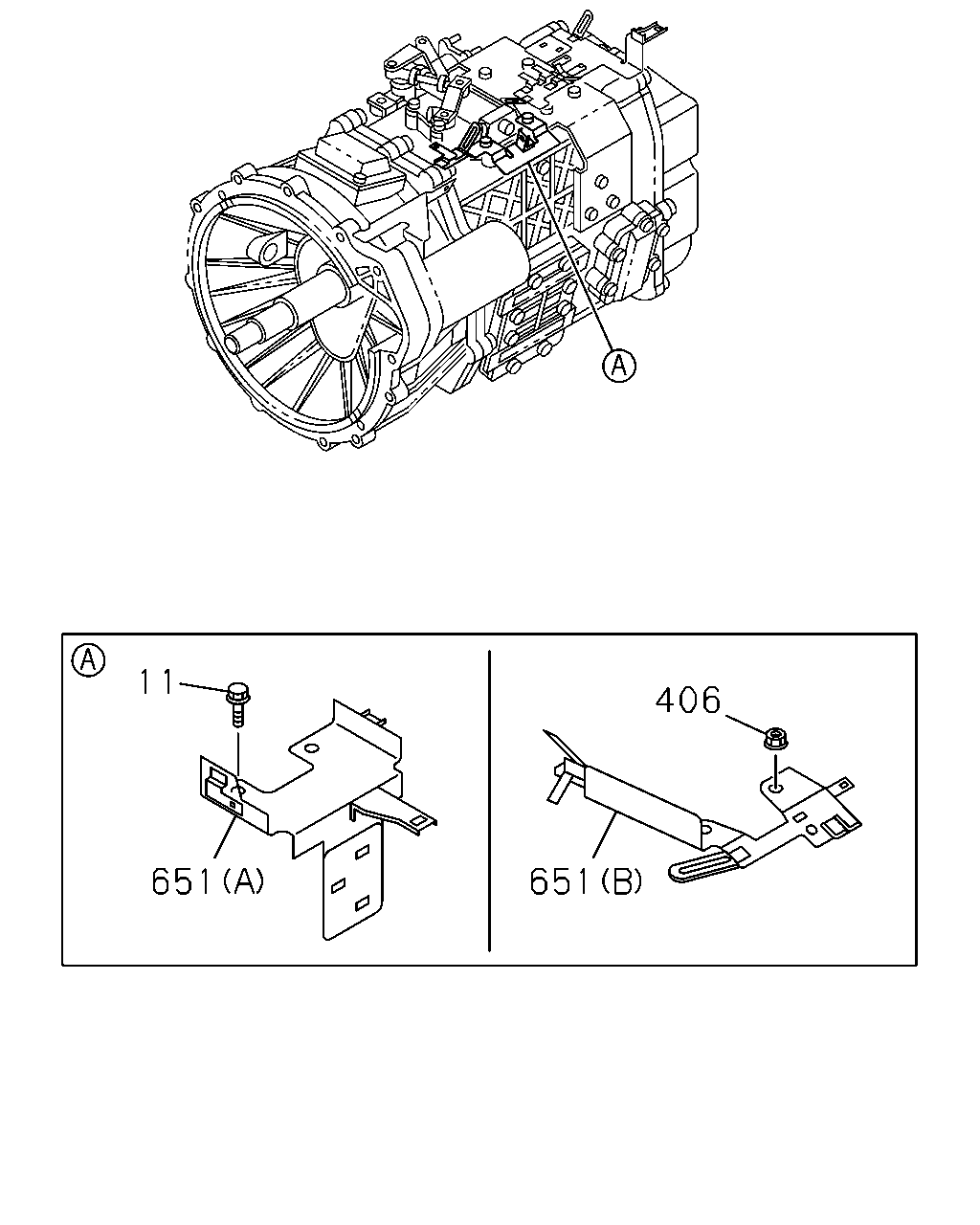

11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	1307-
406	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1307-
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	1307-
651	BRACKET; T/M HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97609-800-3	01	1	1307-

587 691 202 24 27 685 607 33 435 688 316 434 41 692 692 256 45 50 417 430 692 686 421 86 90 97 86 692 315 119 121 117 72 257 265 71 609 434 688 33 316 33 607 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

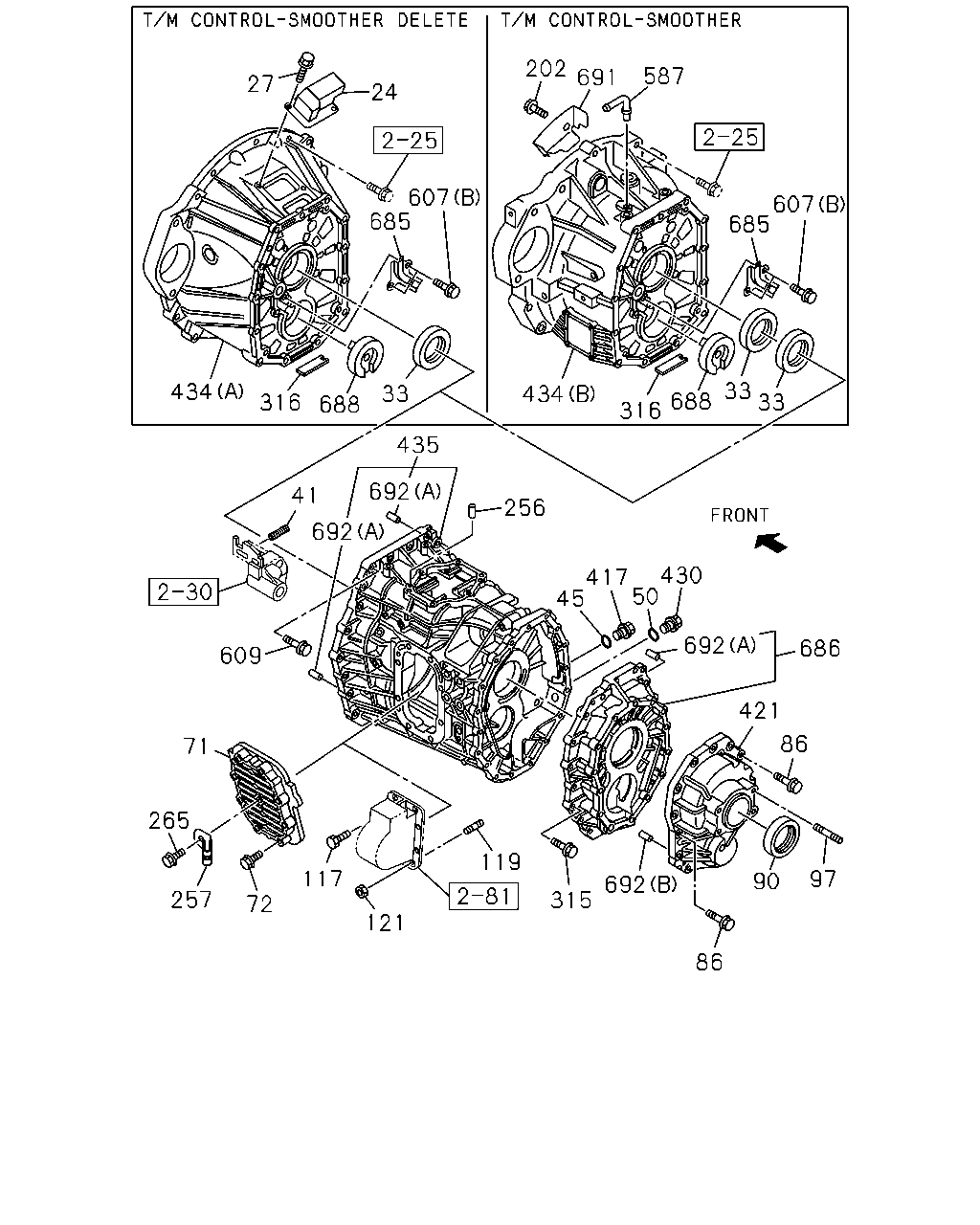

24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6)	1-31131-041-0	01	1	1307-1410
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG 14" CLUTCH(WF6) M8X12 FLANGE	0-28050-812-0	02	1	1307-1410
27	BOLT; COVER TO CLU HSG 14" CLUTCH(WF6) M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	8-97377-947-0	01	1	1307-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97255-187-0	02	1	1307-
41	SPRING; DETENT BALL EXC. 14" CLUTCH(WF6)	8-98071-140-0	01	1	1307-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1307-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1307-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-318-0	01	1	1307-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1307-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1307-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1307-
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1307-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1307-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1307-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1307-
202	BOLT; PLATE EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	01	1	1307-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1307-
257	CLIP; HARNESS EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),14" CLUTCH(WF6) ID=8	8-97329-633-0	01	1	1307-
265	BOLT; CLIP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),14" CLUTCH(WF6) M10X16 FLANGE	0-28151-016-0	01	1	1307-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1307-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1307-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1307-
421	COVER; RR,TRANS	8-98051-477-0	01	1	1307-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1307-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU 14" CLUTCH(WF6) (A)	8-98004-507-2	01	1	1307-
434	HOUSING; CLU EXC. 14" CLUTCH(WF6) (B)	8-98100-981-1	01	1	1307-
435	CASE; TRANS	8-98186-449-0	01	1	1307-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
587	PIPE; BREATHER EXC. 14" CLUTCH(WF6)	8-97358-318-0	01	1	1307-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1307-
607	BOLT; COVER EXC. 14" CLUTCH(WF6) (A) M8X30 FLANGE	0-28650-830-0	04	1	1307-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1307-
685	COVER; OIL PORT	8-98018-864-1	01	1	1307-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1307-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1307-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
691	PLATE; BREATHER EXC. 14" CLUTCH(WF6)	8-98044-428-0	01	1	1307-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1307-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1307-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

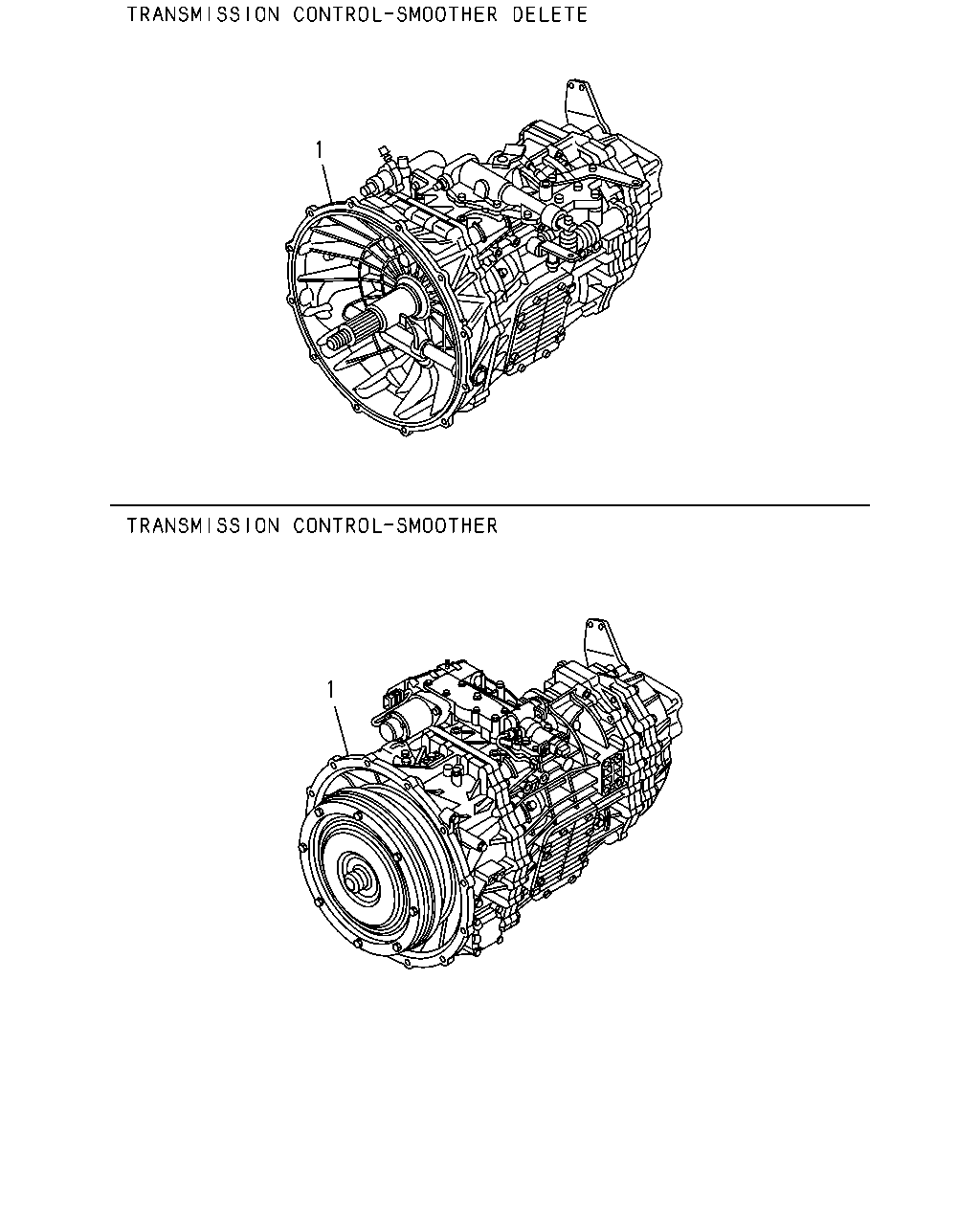

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6)	8-98134-586-0	01	1	1307-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. 14" CLUTCH(WF6)	8-98134-616-0	01	1	1307-
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),14" CLUTCH(WF6)	8-98134-616-0	01	1	1307-
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1307-
