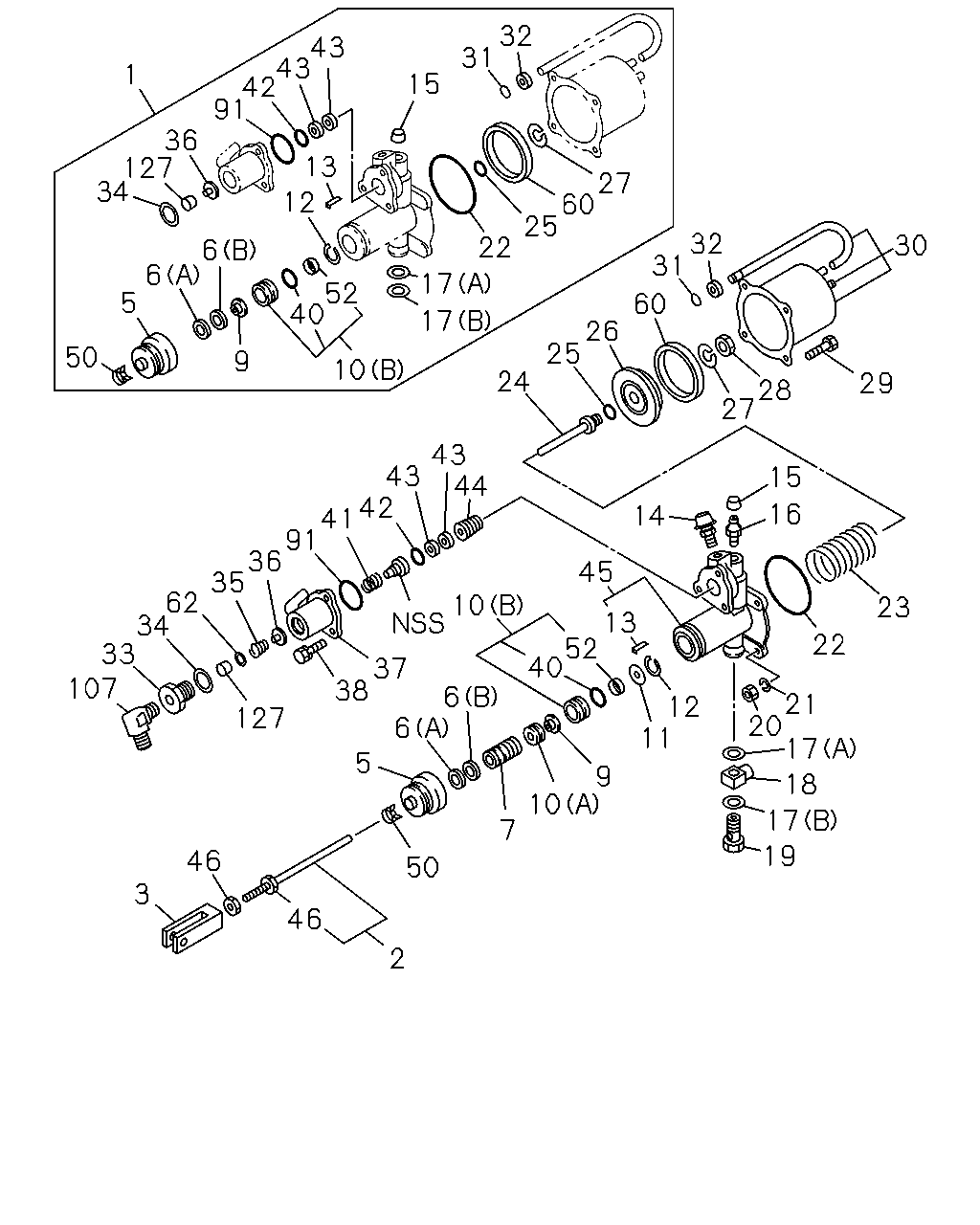

2-07 — CLUTCH BOOSTER; MINIPACK (#123835) — 53 parça

19 2 46 17 50 46 3 5 7 6 10 4 9 18 11 17 12 20 22 21 23 13 52 40 16 15 29 28 27 14 45 10 37 38 127 107 30 32 31 60 26 25 24 44 43 43 42 41 91 36 35 62 34 33 27 60 25 22 17 17 10 9 40 52 32 31 15 43 13 12 6 6 5 50 34 127 36 91 42 43 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-602-0	01	1	1307-
2	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31824-240-0	01	1	1307-
3	CLEVIS; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-186-1	01	1	1307-
5	GUARD; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-503-0	01	1	1307-
6	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6) (B)	1-31829-498-0	01	1	1307-
6	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6) (A)	1-31829-499-0	01	1	1307-
7	PISTON; CLU BOOSTER 14" CLUTCH(WF6)	1-31821-047-0	01	1	1307-
9	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-003-0	01	1	1307-
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (B)	1-31829-107-0	01	1	1307-
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (A)	1-31829-108-0	01	1	1307-
11	WASHER; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-105-0	01	1	1307-
12	RING; RET,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-315-0	01	1	1307-
13	PIN; SPR 14" CLUTCH(WF6)	1-31829-109-0	01	1	1307-
14	COVER; EXH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-564-0	01	1	1307-
15	PROTECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83335-044-0	01	1	1307-
16	PLUG; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83331-704-0	01	1	1307-
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (A)	9-09920-267-0	01	1	1307-
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (B)	9-09920-268-0	01	1	1307-
18	CONNECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-248-0	01	1	1307-
19	BOLT; EYE,END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-047-0	01	1	1307-
20	NUT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-085-0	04	1	1307-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6) ID=8.2	9-09150-508-0	04	1	1307-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-327-0	01	1	1307-
23	SPRING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-358-0	01	1	1307-
24	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-112-0	01	1	1307-
25	GASKET; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-321-0	01	1	1307-
26	PISTON; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31821-083-0	01	1	1307-
27	SPRING; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-111-0	01	1	1307-
28	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	9-88510-365-0	01	1	1307-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-015-0	04	1	1307-
30	SHELL; CYL,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-123-0	01	1	1307-
31	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-113-0	01	1	1307-
32	BUSHING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-114-0	01	1	1307-
33	CONNECTOR; UPR,VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-212-0	01	1	1307-
34	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-053-0	01	1	1307-
35	SPRING; POPPET VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-537-0	01	1	1307-
36	VALVE; POPPET,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-536-0	01	1	1307-
37	BODY; UPR,VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-146-0	01	1	1307-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 14" CLUTCH(WF6)	9-83315-113-0	03	1	1307-
40	GASKET; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-037-0	01	1	1307-
41	SPRING; DIAPH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-545-0	01	1	1307-
42	GASKET; FITTING,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-507-0	01	1	1307-
43	GASKET; UPR VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-060-0	02	1	1307-
44	PISTON; UPR VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31821-051-0	01	1	1307-
45	PLATE; END,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-142-0	01	1	1307-
46	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6) M10	9-09111-410-0	02	1	1307-
50	CLAMP; PISTON GUARD,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-504-0	01	1	1307-
52	SEAL; OIL,END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-118-0	01	1	1307-
60	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-535-0	01	1	1307-
62	RETAINER; POPPET 14" CLUTCH(WF6)	1-31829-489-0	01	1	1307-
91	GASKET; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-103-0	01	1	1307-
107	CONNECTOR; ELBOW 14" CLUTCH(WF6)	1-09650-358-1	01	1	1307-
127	FILTER; POPPET 14" CLUTCH(WF6)	1-31829-495-0	01	1	1307-
