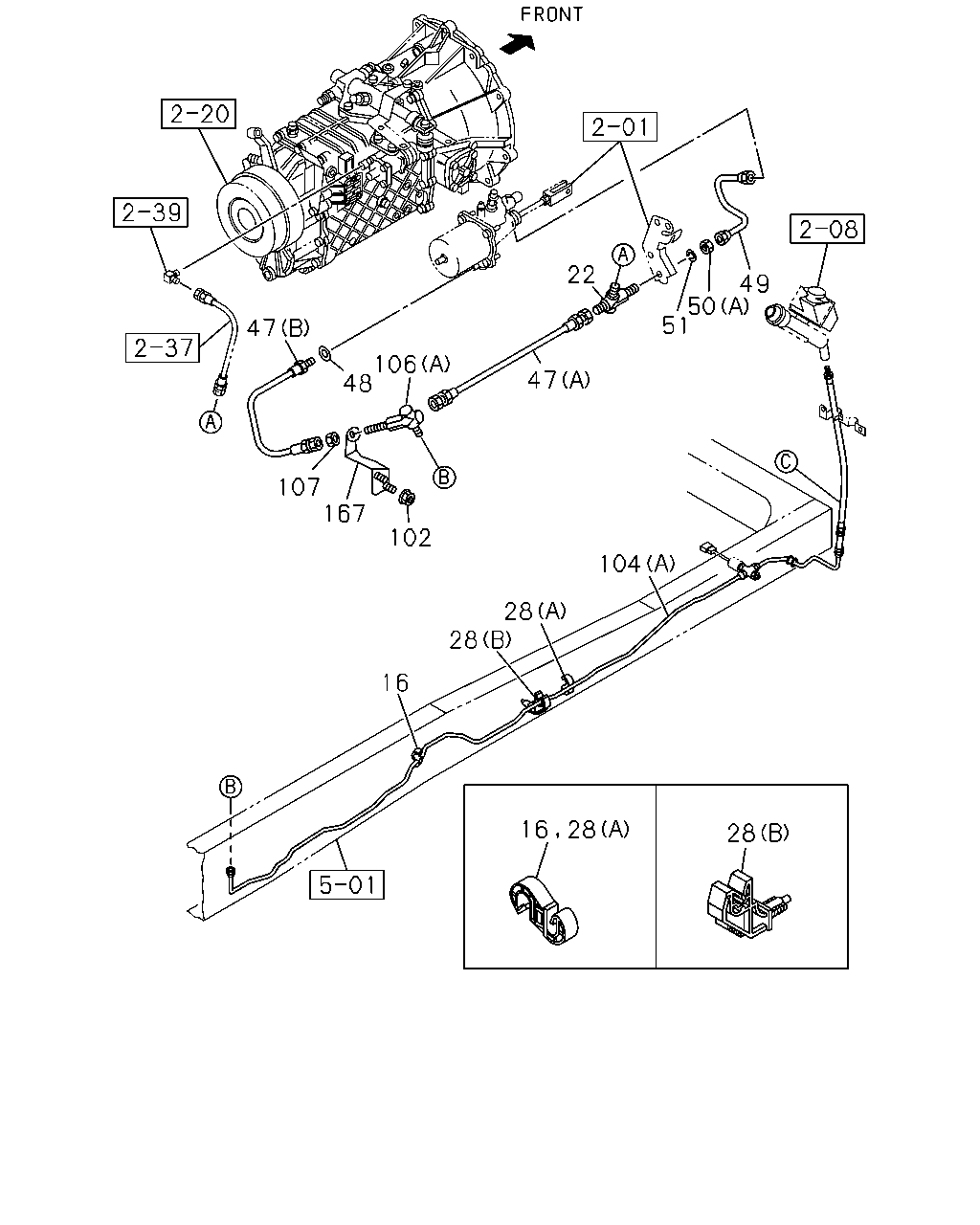

2-05 — CLUTCH PIPING (#123834) — 69 parça

48 101 50 239 106 184 104 23 50 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	GROMMET; CLU PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1307-1312	●
23	GROMMET; CLU PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1401-	●	●
48	GASKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	01	1	1307-1312	●
48	GASKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	01	1	1307-1312	●
48	GASKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	01	1	1401-	●	●
48	GASKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	01	1	1401-	●	●
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1307-1312	●
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1401-	●	●
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12	9-09840-280-0	01	1	1307-1312	●
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1307-1312	●
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12	9-09840-280-0	01	1	1401-	●	●
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440	8-98072-346-0	01	1	1307-1312	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440	8-98072-346-0	01	1	1401-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2046 SERVICED BY L=2200	1-47428-740-0	01	1	1307-1312	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2046 SERVICED BY L=2200	1-47428-740-0	01	1	1401-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336	8-98067-058-0	01	1	1307-1312	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336	8-98067-058-0	01	1	1401-	●	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY	8-98051-113-0	01	1	1307-1312	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY	8-98051-113-0	01	1	1401-	●	●
106	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 ELBOW	0-92125-206-0	01	1	1307-1312	●
106	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 ELBOW	0-92125-206-0	01	1	1401-	●	●
184	UNION; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1307-1312	●
184	UNION; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1401-	●	●
239	UNION; CLU HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5	0-92113-306-0	01	1	1307-1312	●
239	UNION; CLU HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5	0-92113-306-0	01	1	1401-	●	●

28 28 16 16 28 28 104 49 50 51 47 102 167 107 22 106 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> ID=10 & 12	1-09709-278-1	01	1	1307-1312	●
16	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> ID=10 & 12	1-09709-278-1	01	1	1401-	●
16	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12	1-09709-278-1	01	1	1401-		●
22	UNION; CLU PIPE 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1307-1312	●
22	UNION; CLU PIPE 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1401-	●	●
28	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35	1-09701-247-1	01	1	1307-1312	●
28	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35	1-09701-247-1	01	1	1401-	●	●
28	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1307-1312	●
28	CLIP; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1401-	●	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=620	1-09363-705-0	01	1	1307-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) L=660	1-09363-971-0	01	1	1307-1312	●
47	HOSE; FLEX,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) L=660	1-09363-971-0	01	1	1401-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=660	1-09363-971-0	01	1	1401-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=390	8-98080-980-0	01	1	1307-1312	●
47	HOSE; FLEX,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=390	8-98080-980-0	01	1	1401-	●	●
48	GASKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	01	1	1307-1312	●
48	GASKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	01	1	1307-1312	●
48	GASKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	01	1	1401-	●	●
48	GASKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	01	1	1401-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> L=204	1-49117-400-0	01	1	1307-1312	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> L=204	1-49117-400-0	01	1	1401-	●	●
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1307-1312	●
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1401-	●	●
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12	9-09840-280-0	01	1	1307-1312	●
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1307-1312	●
50	NUT; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12	9-09840-280-0	01	1	1401-	●	●
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1401-	●	●
51	WASHER; LK 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1307-1312	●
51	WASHER; LK 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1401-	●	●
102	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
102	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2046 SERVICED BY L=2200	1-47428-740-0	01	1	1307-1312	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2046 SERVICED BY L=2200	1-47428-740-0	01	1	1401-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336	8-98067-058-0	01	1	1307-1312	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336	8-98067-058-0	01	1	1401-	●	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY	8-98051-113-0	01	1	1307-1312	●
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY	8-98051-113-0	01	1	1401-	●	●
106	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 ELBOW	0-92125-206-0	01	1	1307-1312	●
106	UNION; OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 ELBOW	0-92125-206-0	01	1	1401-	●	●
107	NUT; UNION,OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1307-1312	●
107	NUT; UNION,OIL PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1401-	●	●
167	BRACKET; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98078-147-0	01	1	1307-1312	●
167	BRACKET; UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98078-147-0	01	1	1401-	●	●
