Isuzu WW
▶
TRUCKS
▶
FRR
▶
11549 - FRR AUST/NZ EURO5 SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#123832) — 69 parça
◀

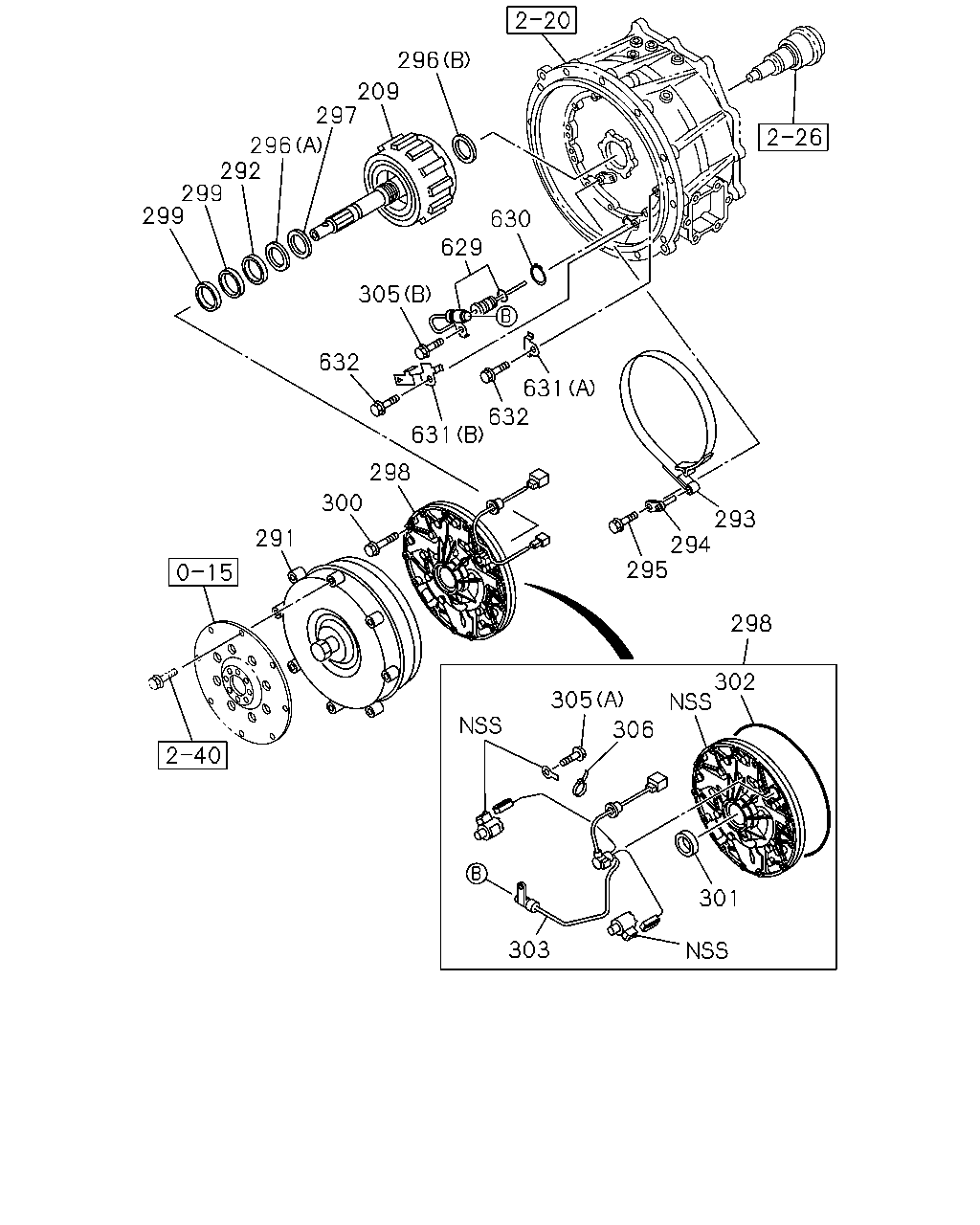

[201A] TRANSMISSION CONTROL-SMOOTHER (25 parça)
[201A] T/M CONTROL-SMOOTHER DELETE NO.2 (18 parça)
[201A] T/M CONTROL-SMOOTHER DELETE NO.1 (26 parça)
▶
296
209
297
296
292
299
299
630
629
305
632
631
632
631
298
300
291
293
294
295
298
302
306
305
301
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
209
CLUTCH ASM
EXC. 14" CLUTCH(WF6)
8-98044-527-3
01
1
1307-1412
209
CLUTCH ASM
EXC. 14" CLUTCH(WF6)
8-98275-315-0
01
1
1501-
291
COUPLING; FLUID
EXC. 14" CLUTCH(WF6)
8-98009-304-2
01
1
1307-1308
291
COUPLING; FLUID
EXC. 14" CLUTCH(WF6)
8-98248-559-1
01
1
1309-
292
RING; SEAL
EXC. 14" CLUTCH(WF6)
8-97255-329-0
01
1
1307-
293
BAND; BRAKE
EXC. 14" CLUTCH(WF6)
8-97254-651-0
01
1
1307-
294
PIN; ANCHOR
EXC. 14" CLUTCH(WF6)
8-97255-703-0
01
1
1307-
295
BOLT; ANCHOR PIN
EXC. 14" CLUTCH(WF6) M8X20 FLANGE
0-28650-820-0
01
1
1307-
296
BEARING; THRUST
EXC. 14" CLUTCH(WF6) (A)
8-97255-688-0
01
1
1307-
296
BEARING; THRUST
EXC. 14" CLUTCH(WF6) (B)
8-97255-689-0
01
1
1307-
297
WASHER; THRUST
EXC. 14" CLUTCH(WF6)
8-97300-070-0
01
1
1307-
298
PUMP ASM; OIL
EXC. 14" CLUTCH(WF6)
8-98107-925-2
01
1
1307-
299
RING; SEAL
EXC. 14" CLUTCH(WF6)
8-97255-330-0
02
1
1307-
300
BOLT; OIL PUMP
EXC. 14" CLUTCH(WF6) M8X45 FLANGE
0-28050-845-0
11
1
1307-
301
SEAL; OIL PUMP
EXC. 14" CLUTCH(WF6)
8-97289-811-0
01
1
1307-
302
RING; OIL PUMP
EXC. 14" CLUTCH(WF6)
8-97255-188-0
01
1
1307-
303
HARNESS ASM; OIL PUMP
EXC. 14" CLUTCH(WF6)
8-98020-613-1
01
1
1307-
305
BOLT; BRACKET
EXC. 14" CLUTCH(WF6) (A) M6X12 FLANGE
0-28050-612-0
01
1
1307-
305
BOLT; BRACKET
EXC. 14" CLUTCH(WF6) (B) M6X16 FLANGE
0-28650-616-0
01
1
1307-
306
CLIP; BAND
EXC. 14" CLUTCH(WF6) L=100
8-94279-939-0
02
1
1307-
629
SENSOR; OIL TEMP
EXC. 14" CLUTCH(WF6)
8-98021-895-0
01
1
1307-
630
RING; SNAP
EXC. 14" CLUTCH(WF6) ID=17.5
9-09180-019-0
01
1
1307-
631
PLATE; HARNESS
EXC. 14" CLUTCH(WF6) (A)
8-98021-285-0
02
1
1307-
631
PLATE; HARNESS
EXC. 14" CLUTCH(WF6) (B)
8-98023-254-0
01
1
1307-
632
BOLT; HARNESS
EXC. 14" CLUTCH(WF6) M8X20 FLANGE
0-28650-820-0
03
1
1307-
125
128
128
244
290
57
131
290
244
130
118
155
154
161
157
164
148
161
165
220
161
157
125
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

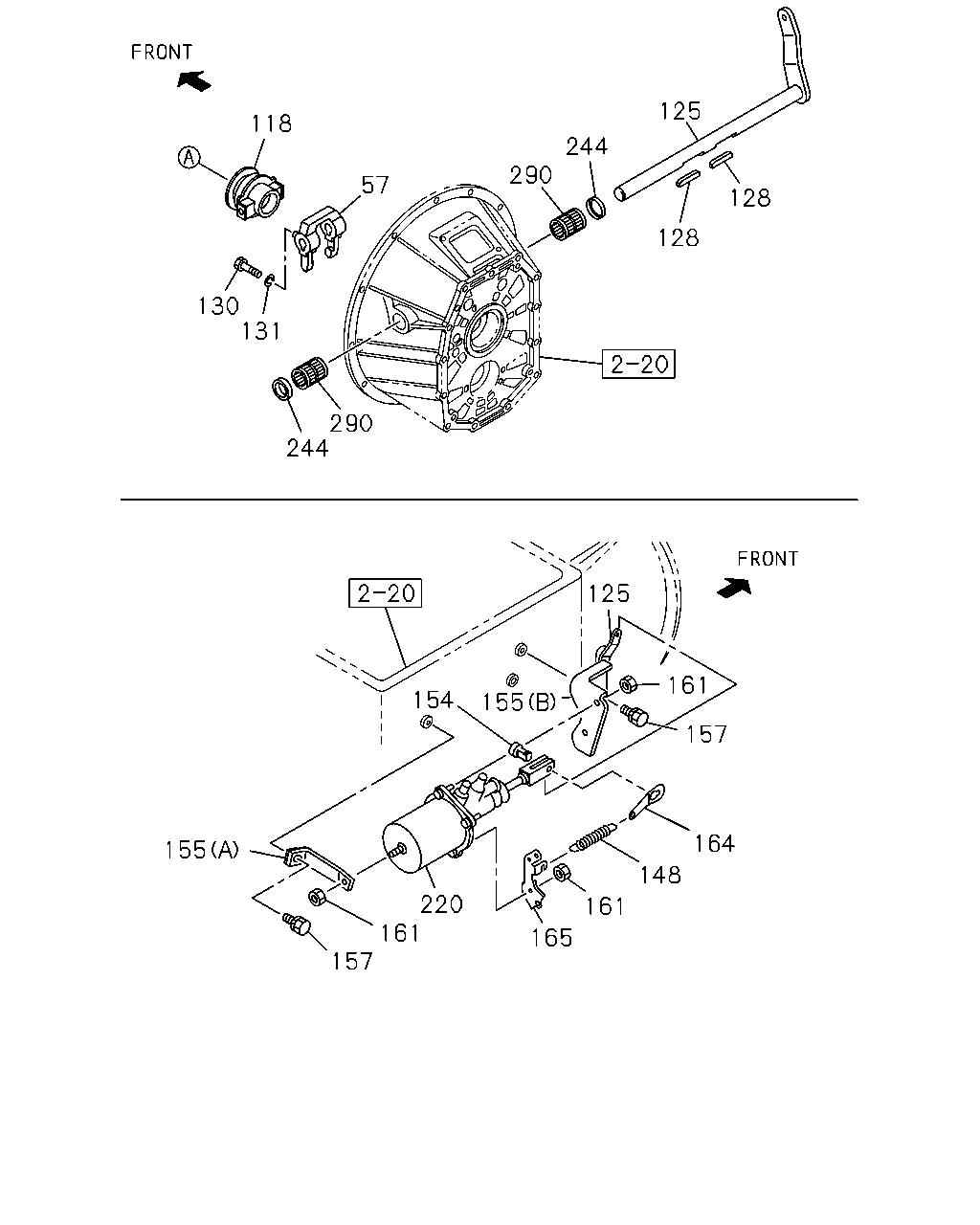

57
FORK; SHIFT,CLU
14" CLUTCH(WF6)
1-31341-048-2
01
1
1307-
118
BEARING; CLU RELEASE
14" CLUTCH(WF6) BEST VALUE PARTS
1-87610-109-0
01
1
1307-
118
BEARING; CLU RELEASE
14" CLUTCH(WF6)
1-31310-026-0
01
1
1307-
125
SHAFT; CLU
14" CLUTCH(WF6)
1-31342-335-0
01
1
1307-
128
KEY; FEATHER,CLU SHAFT
14" CLUTCH(WF6)
9-09867-008-0
02
1
1307-
130
SCREW; SHIFT FORK
14" CLUTCH(WF6) M8X14
0-61200-814-0
01
1
1307-
131
WASHER; LK,SHIFT FORK
14" CLUTCH(WF6) ID=8.2
0-91510-508-0
01
1
1307-
148
SPRING; CLU RETURN
14" CLUTCH(WF6) L=135
1-09583-305-0
01
1
1307-
154
PIN; JAW JOINT
14" CLUTCH(WF6)
1-31424-009-0
01
1
1307-
155
BRACKET; MINIPACK
14" CLUTCH(WF6) (A)
1-31429-474-1
01
1
1307-
155
BRACKET; MINIPACK
14" CLUTCH(WF6) (B)
1-31429-477-0
01
1
1307-
157
BOLT; BRKT
14" CLUTCH(WF6) M10X25 FLANGE
0-28751-025-0
03
1
1307-
161
NUT; BRKT
14" CLUTCH(WF6) M8 FLANGE
0-91180-208-0
05
1
1307-
164
EYE; SPRING
14" CLUTCH(WF6)
1-31426-041-0
01
1
1307-
165
BRACKET; SPR EYE,MINIPACK,FLEX TUBE
14" CLUTCH(WF6)
1-47477-789-0
01
1
1307-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)
1-31800-510-2
01
1
1307-
244
SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)
1-09625-002-0
02
1
1307-
290
BEARING; NEEDLE
14" CLUTCH(WF6) NTN
1-09811-002-1
02
1
1307-
102
101
106
105
96
96
85
85
101
102
172
91
91
92
88
89
89
109
105
106
107
106
222
102
101
96
96
85
85
101
102
2
84
1
140
98
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

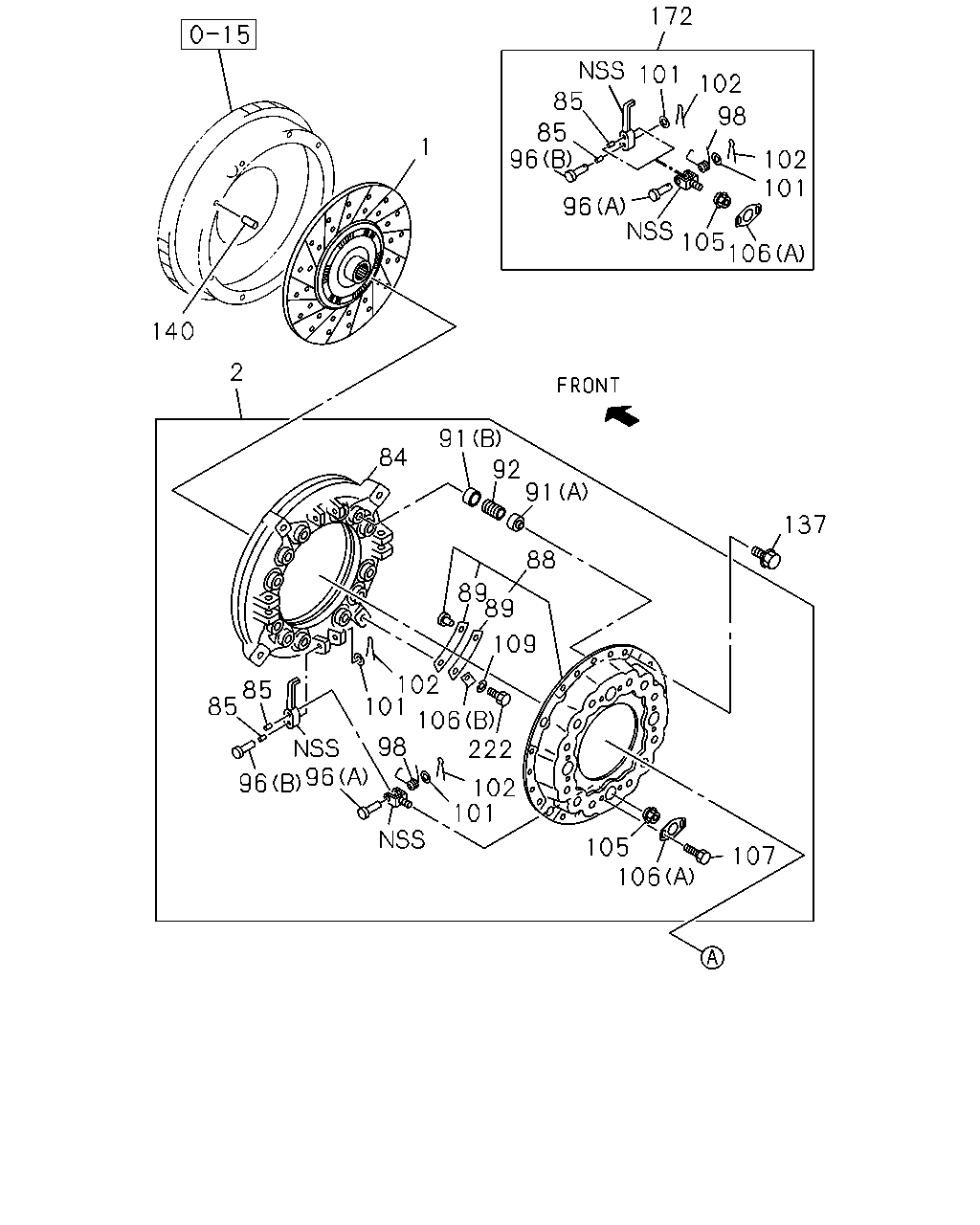

1
DISC; CLUTCH
14" CLUTCH(WF6) 14"
1-31240-971-1
01
1
1307-1401
1
DISC; CLUTCH
14" CLUTCH(WF6) 14"
1-31260-040-1
01
1
1402-
1
DISC; CLUTCH
14" CLUTCH(WF6) BEST VALUE PARTS
1-87610-140-0
01
1
1411-
2
PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6)
1-31220-411-0
01
1
1307-
2
PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) BEST VALUE PARTS
1-87610-147-0
01
1
1307-
84
PLATE; PRESSURE
14" CLUTCH(WF6) 14"
1-31221-136-0
01
1
1307-
85
BUSHING; RELEASE LEVER
14" CLUTCH(WF6)
9-31239-116-0
08
1
1307-
88
COVER SUB ASM; CLU
14" CLUTCH(WF6)
1-31211-038-0
01
1
1307-
89
PLATE; STRAP
14" CLUTCH(WF6)
1-31229-001-0
08
1
1307-
91
SEAT; SPR
14" CLUTCH(WF6) (A) ID=37 H=25
1-31219-012-0
08
1
1307-
91
SEAT; SPR
14" CLUTCH(WF6) (B) ID=37 H=15
1-31219-013-0
08
1
1307-
92
SPRING; CLU
14" CLUTCH(WF6)
1-31214-095-0
08
1
1307-
96
PIN; RELEASE LEVER
14" CLUTCH(WF6) (A) L=49.0
1-31232-005-0
04
1
1307-
96
PIN; RELEASE LEVER
14" CLUTCH(WF6) (B) L=57.0
1-31232-014-0
04
1
1307-
98
SPRING; RETURN
14" CLUTCH(WF6)
1-31233-003-0
04
1
1307-
101
WASHER; RELEASE LEVER
14" CLUTCH(WF6)
1-31239-058-0
08
1
1307-
102
PIN; SPLIT,RELEASE LEVER
14" CLUTCH(WF6) OD=2.7 L=22
9-08113-022-0
08
1
1307-
105
NUT; SUPPORT
14" CLUTCH(WF6)
1-31235-014-0
04
1
1307-
106
PLATE; LK,LEVER SUPPORT
14" CLUTCH(WF6) (B)
1-31235-008-0
04
1
1307-
106
PLATE; LK,LEVER SUPPORT
14" CLUTCH(WF6) (A)
1-31239-019-0
04
1
1307-
107
BOLT; LK PLATE
14" CLUTCH(WF6)
1-31239-061-0
08
1
1307-
109
WASHER; LK,STRAP
14" CLUTCH(WF6) ID=10.2
0-91510-510-0
04
1
1307-
137
BOLT; CLU COVER
14" CLUTCH(WF6) M10X20 FLANGE
0-28151-020-0
12
1
1307-
140
PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25
8-94410-361-0
02
1
1307-
172
LEVER KIT; RELEASE,CLU
14" CLUTCH(WF6)
1-87831-170-1
01
1
1307-
222
BOLT; STRAP
14" CLUTCH(WF6)
1-31239-059-0
04
1
1307-
