◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#123829) — 271 parça

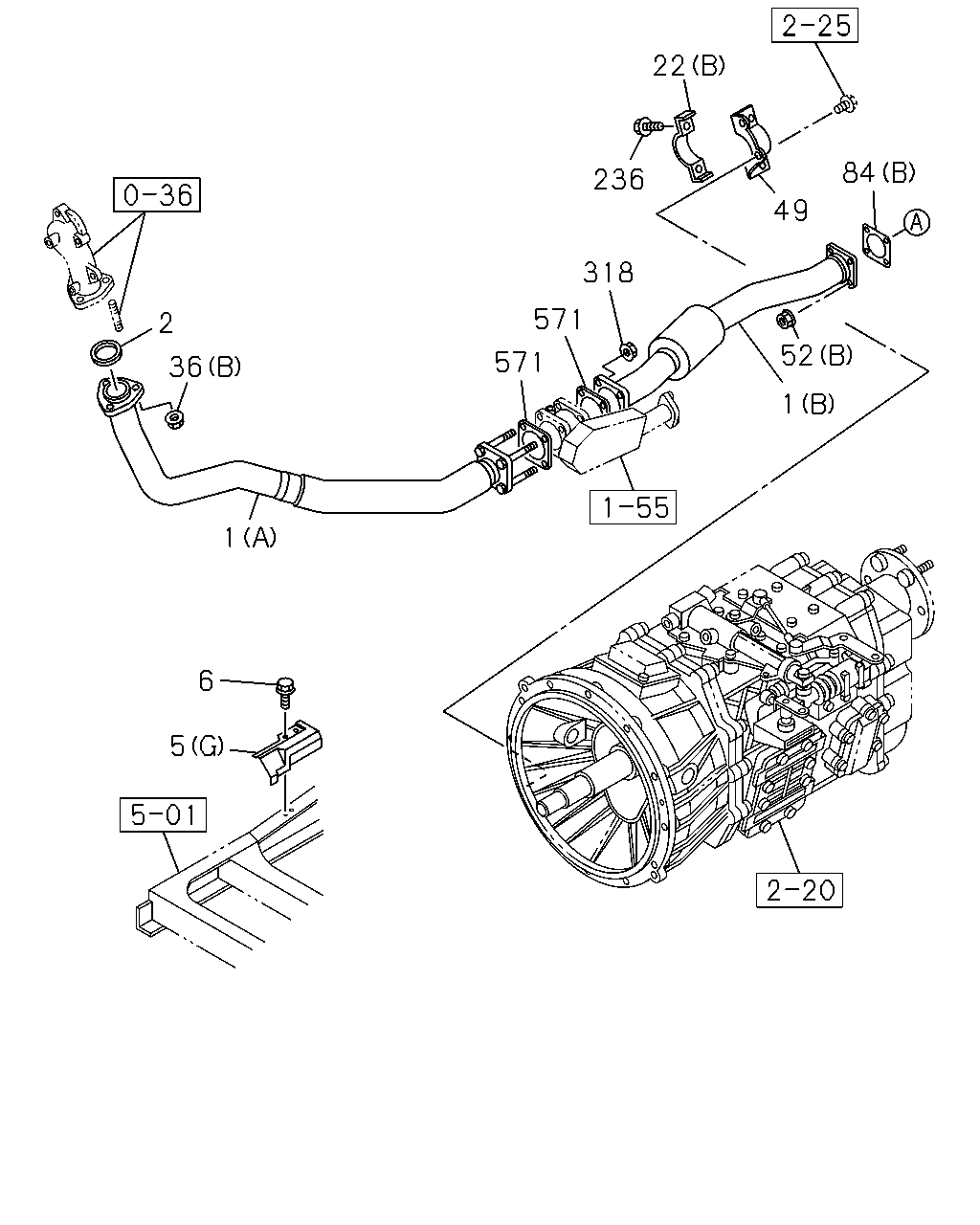

çizim 362875
2 1 36 6 5 571 571 318 22 236 49 1 52 84
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-98243-547-0 01 1 1307- ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-98243-546-0 01 1 1307-1312 ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-98243-546-0 01 1 1401- ●
1 PIPE; EXH
(A) 		8-98243-546-0 01 1 1401- ●
1 PIPE; EXH
POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-98198-853-0 01 1 1307- ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-98198-849-0 01 1 1307-1312 ●
1 PIPE; EXH
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-98198-849-0 01 1 1401- ●
1 PIPE; EXH
(B) 		8-98198-849-0 01 1 1401- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1307-1312 ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98044-122-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98044-122-0 01 1 1401- ● ●
6 BOLT; HEAT PROTECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
6 BOLT; HEAT PROTECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1307-1312 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1307-1312 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1401- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1401- ● ●
22 CLAMP; EXH PIPE
(B) 		1-22133-295-0 01 1 1307-1309 ●
22 CLAMP; EXH PIPE
(B) 		8-97646-674-0 01 1 1310-1312 ●
22 CLAMP; EXH PIPE
(B) 		8-97646-674-0 01 1 1401- ● ●
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 1307-1312 ●
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 1401- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1307-1312 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1401- ● ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98234-531-0 01 1 1307- ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98234-530-0 01 1 1307-1312 ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98234-530-0 01 1 1401- ●
49 BRACKET; EXH PIPE TO TRANS 8-98234-530-0 01 1 1401- ●
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 1307-1312 ●
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 1401- ● ●
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1307-1312 ●
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1401- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1307-1312 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1401- ● ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 1307-1312 ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 1401- ● ●
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1307-1312 ●
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1401- ● ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1307-1312 ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1401- ● ●
571 GASKET
ID=64 		8-97373-108-0 02 1 1307-1312 ●
571 GASKET
ID=64 		8-97373-108-0 02 1 1401- ● ●

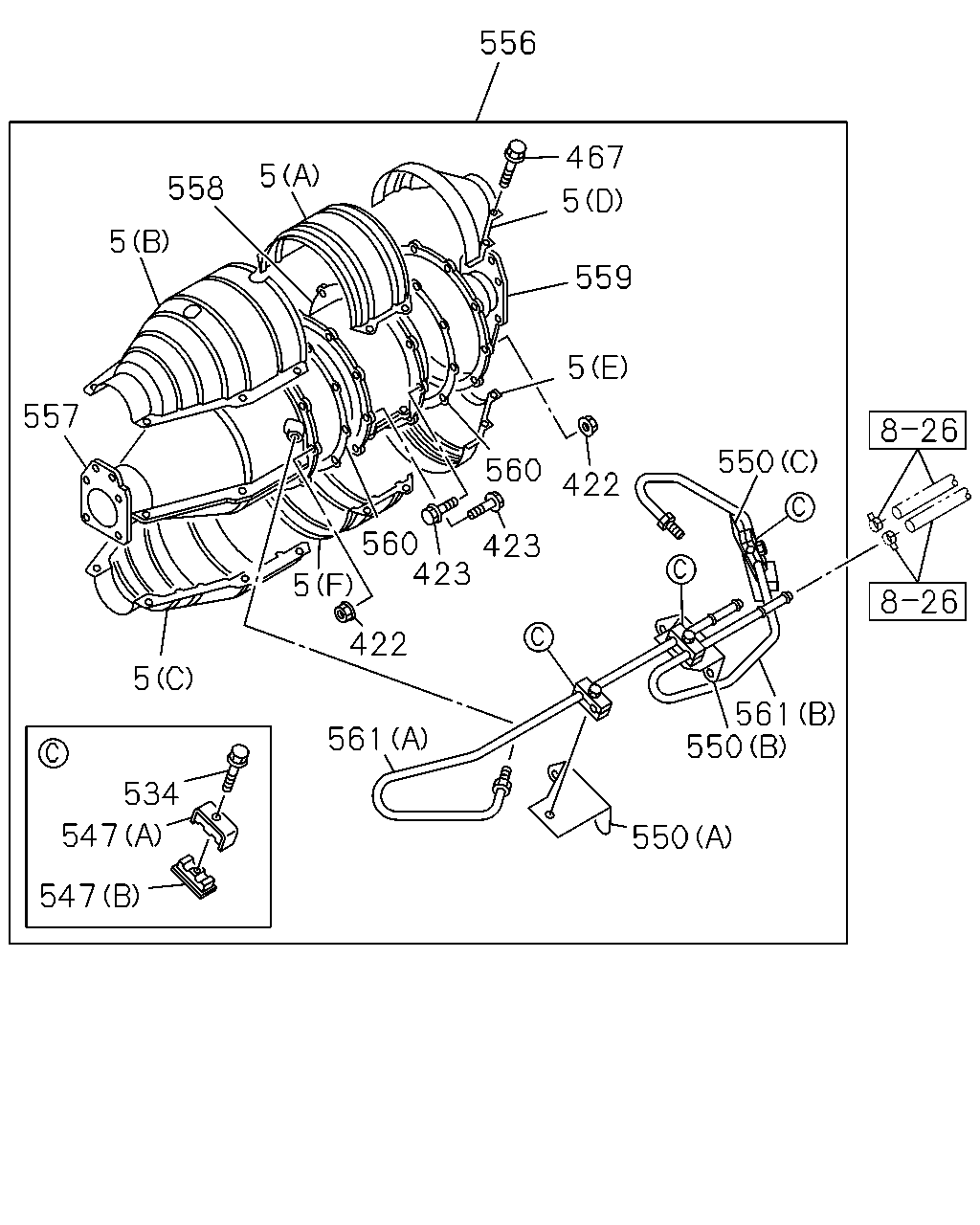

çizim 362913
550 561 550 550 561 422 560 5 423 423 422 560 5 559 5 467 556 5 558 5 557 5 534 547 547
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98044-122-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98044-122-0 01 1 1401- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1307-1312 ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1401- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1307-1312 ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1401- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1307-1312 ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1401- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1307-1312 ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1401- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1307-1312 ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1401- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1307-1312 ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1401- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1307-1312 ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1401- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1307-1312 ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1401- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1307-1312 ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1401- ● ●
556 DPD ASM 8-97622-883-4 01 1 1307-1312 ●
556 DPD ASM 8-97622-883-4 01 1 1401- ● ●
557 CATALYST ASM 8-97608-055-8 01 1 1307-1312 ●
557 CATALYST ASM 8-97608-055-8 01 1 1401- ● ●
558 FILTER ASM 8-97608-057-3 01 1 1307-1312 ●
558 FILTER ASM 8-97608-057-3 01 1 1401- ● ●
559 COVER; RR 8-97622-887-0 01 1 1307-1312 ●
559 COVER; RR 8-97622-887-0 01 1 1401- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 1307-1312 ●
560 GASKET; DPD 8-97611-080-0 02 1 1401- ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1307-1312 ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1401- ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1307-1312 ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1401- ● ●

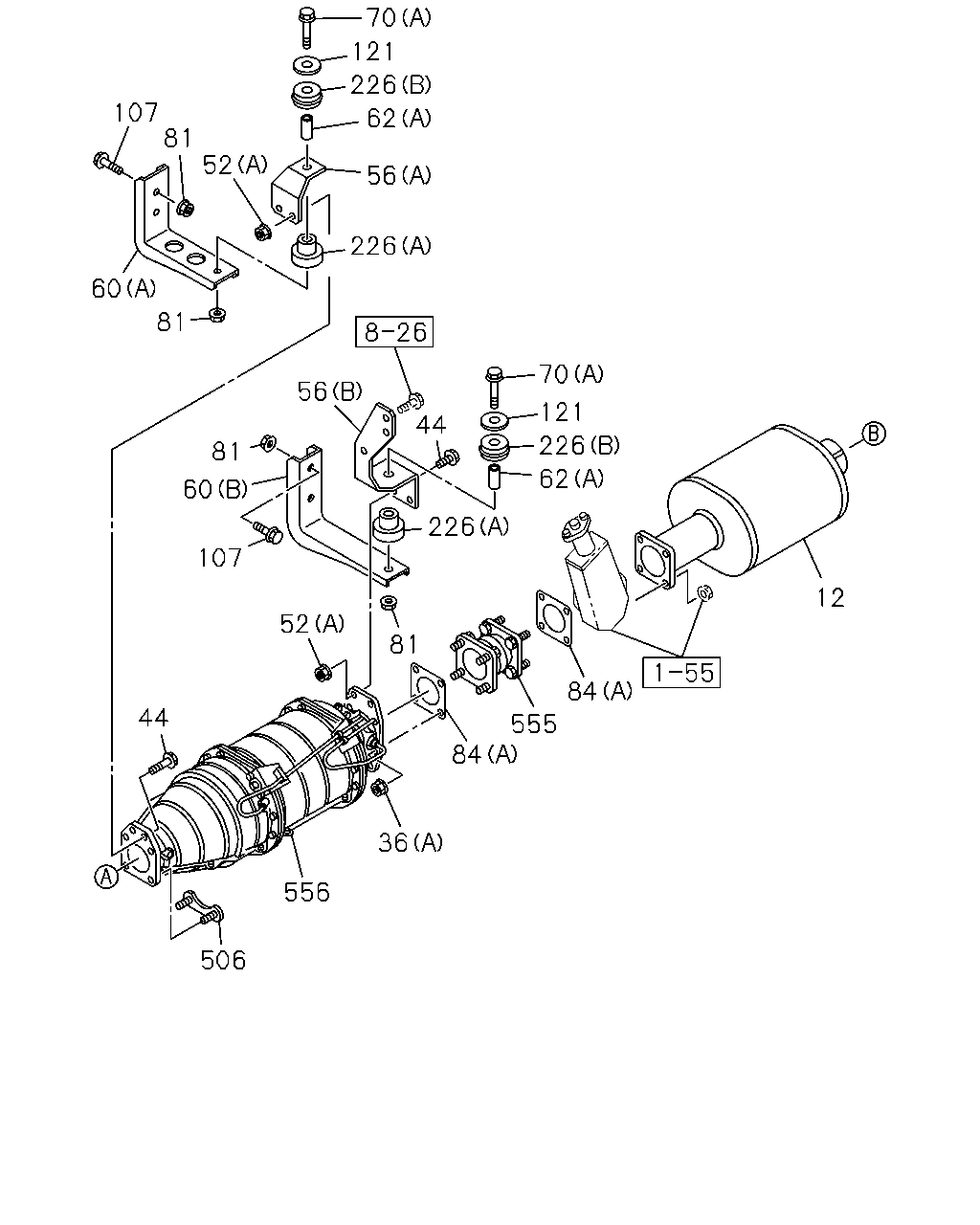

çizim 363275
107 70 121 226 62 56 226 81 60 56 81 60 107 226 226 121 70 44 12 84 555 84 36 556 506 44 52 81 52 81 62
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98041-921-0 01 1 1307-1312 ●
12 SILENCER ASM; EXH 8-98041-921-0 01 1 1401- ● ●
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 1307-1312 ●
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 1401- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1307-1312 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1401- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1307-1312 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1401- ● ●
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 1307-1312 ●
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 1401- ● ●
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1307-1312 ●
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 1307-1309 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-824-1 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-824-1 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-825-0 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-825-0 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-757-1 01 1 1307- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98059-755-0 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98059-755-0 01 1 1401- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 1401- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-274-1 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-274-1 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98059-712-1 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98059-712-1 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 1307-1309 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310-1312 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (E) 		1-22152-305-2 01 1 1307- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (D) 		8-98059-753-1 01 1 1307-1309 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (D) 		8-98245-530-0 01 1 1310-1312 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (D) 		8-98245-530-0 01 1 1401- ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-530-0 01 1 1401- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1307-1312 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1401- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1307-1312 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1401- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1307-1312 ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1401- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1307-1312 ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1401- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1307-1312 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1401- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1307-1312 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1307-1310 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1311-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1311-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1310 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1311-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1311-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1307-1310 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1307-1312 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1401- ● ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 1307-1312 ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 1401- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1307-1310 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1311-1312 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1311-1312 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1307-1312 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1401- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1307-1312 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1401- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1307-1312 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1401- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1307-1312 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1401- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1307-1312 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1401- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1307-1312 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1401- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1307-1312 ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1401- ● ●
555 PIPE; EXH,DPD 8-98060-847-0 01 1 1307-1312 ●
555 PIPE; EXH,DPD 8-98060-847-0 01 1 1401- ● ●
556 DPD ASM 8-97622-883-4 01 1 1307-1312 ●
556 DPD ASM 8-97622-883-4 01 1 1401- ● ●

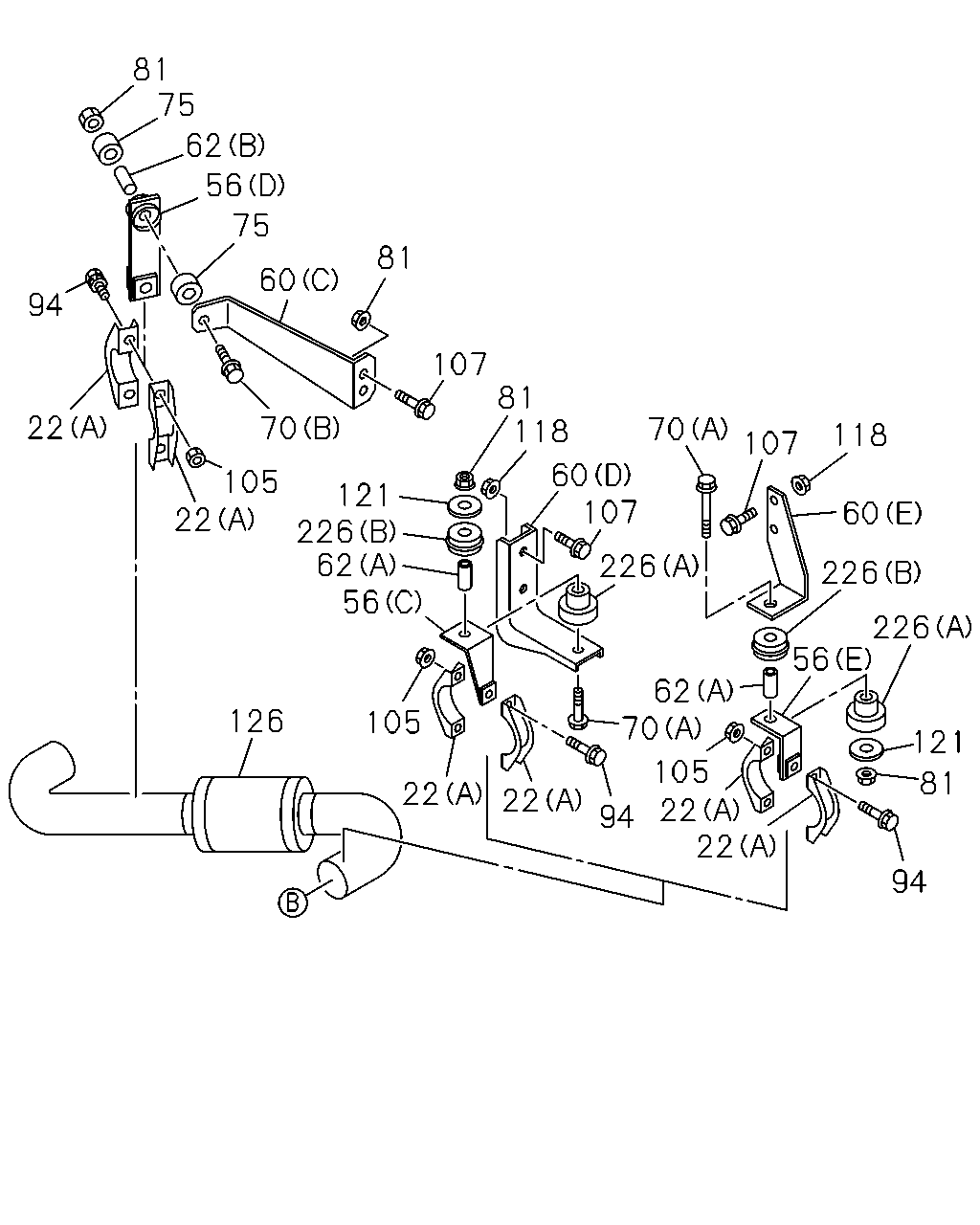

çizim 366427
81 75 62 56 75 60 81 107 81 70 94 22 105 22 121 118 70 107 118 60 226 56 226 62 121 81 94 22 94 22 105 70 22 22 105 126 56 62 226 107 226 60
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1307-1312 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1307-1312 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1401- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1401- ● ●
22 CLAMP; EXH PIPE
(B) 		1-22133-295-0 01 1 1307-1309 ●
22 CLAMP; EXH PIPE
(B) 		8-97646-674-0 01 1 1310-1312 ●
22 CLAMP; EXH PIPE
(B) 		8-97646-674-0 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 1307-1309 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-824-1 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-824-1 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-825-0 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-825-0 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-757-1 01 1 1307- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98059-755-0 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98059-755-0 01 1 1401- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 1401- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-274-1 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-274-1 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98059-712-1 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98059-712-1 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 1307-1309 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310-1312 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (E) 		1-22152-305-2 01 1 1307- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (D) 		8-98059-753-1 01 1 1307-1309 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (D) 		8-98245-530-0 01 1 1310-1312 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (D) 		8-98245-530-0 01 1 1401- ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-530-0 01 1 1401- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1307-1312 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1401- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1307-1312 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1401- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1307-1312 ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1401- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1307-1312 ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1401- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1307-1312 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1401- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1307-1312 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1401- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1307-1312 ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1307-1310 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1311-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1311-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1310 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1311-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1311-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1307-1310 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1307-1312 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1307-1312 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1401- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1401- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1307-1310 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1311-1312 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1311-1312 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1307-1312 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1401- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1307-1312 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1401- ● ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 1307-1309 ●
126 PIPE; EXH,RR 8-98245-503-0 01 1 1310-1312 ●
126 PIPE; EXH,RR 8-98245-503-0 01 1 1401- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1307-1312 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1401- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1307-1312 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1401- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1307-1312 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1401- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1307-1312 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
