Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#123827) — 323 parça

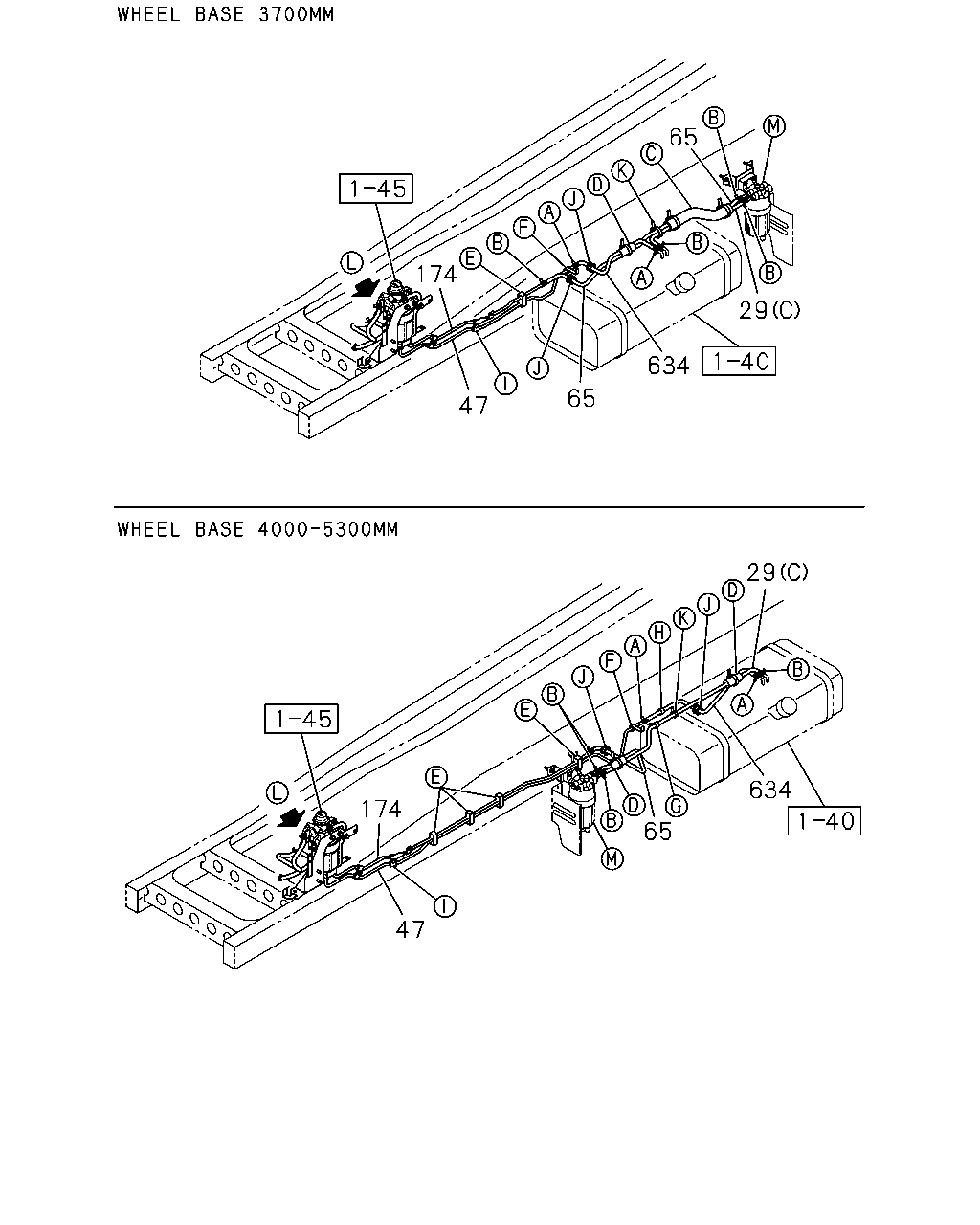

174 47 65 634 29 29 174 47 65 634 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=900 SERVICED BY L=3000	0-01859-300-0	01	1	1307-	●
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C)	8-98233-239-0	01	1	1307-	●
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C)	8-98233-948-0	01	1	1307-1312	●
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C)	8-98233-948-0	01	1	1401-	●	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W) (C)	8-98233-283-0	01	1	1307-1312	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W) (C)	8-98233-283-0	01	1	1401-	●	●
29	HOSE; FUEL (A)	8-98147-183-0	01	1	1307-1312	●
29	HOSE; FUEL (A)	8-98147-183-0	01	1	1401-	●	●
29	HOSE; FUEL (B)	8-98156-676-0	01	1	1307-1312	●
29	HOSE; FUEL (B)	8-98156-676-0	01	1	1401-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2467	8-98240-658-0	01	1	1307-1312	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2467	8-98240-658-0	01	1	1401-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) L=3005	8-98240-659-0	01	1	1307-1312	●
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) L=3005	8-98240-659-0	01	1	1401-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1606	8-98183-073-0	01	1	1307-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2465	8-98233-332-0	01	1	1307-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W)	8-98240-475-0	01	1	1307-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) L=800 SERVICED BY L=3000	0-01859-300-0	01	1	1307-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) L=450 SERVICED BY L=3000	0-01859-300-0	01	1	1307-1312	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) L=450 SERVICED BY L=3000	0-01859-300-0	01	1	1401-	●
65	HOSE; FUEL,DELIVERY PIPE L=450 SERVICED BY L=3000	0-01859-300-0	01	1	1401-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W)	8-98169-375-0	01	1	1307-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W)	8-98233-236-0	01	1	1307-1312	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W)	8-98233-236-0	01	1	1401-	●
174	PIPE; FUEL,FEED,FRT	8-98233-236-0	01	1	1401-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=490 SERVICED BY L=3000	0-01558-300-0	01	1	1307-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=560 SERVICED BY L=3000	0-01558-300-0	01	1	1307-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1307-1312	●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1401-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) L=760 SERVICED BY L=3000	0-01558-300-0	01	1	1307-1312	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) L=760 SERVICED BY L=3000	0-01558-300-0	01	1	1401-	●	●

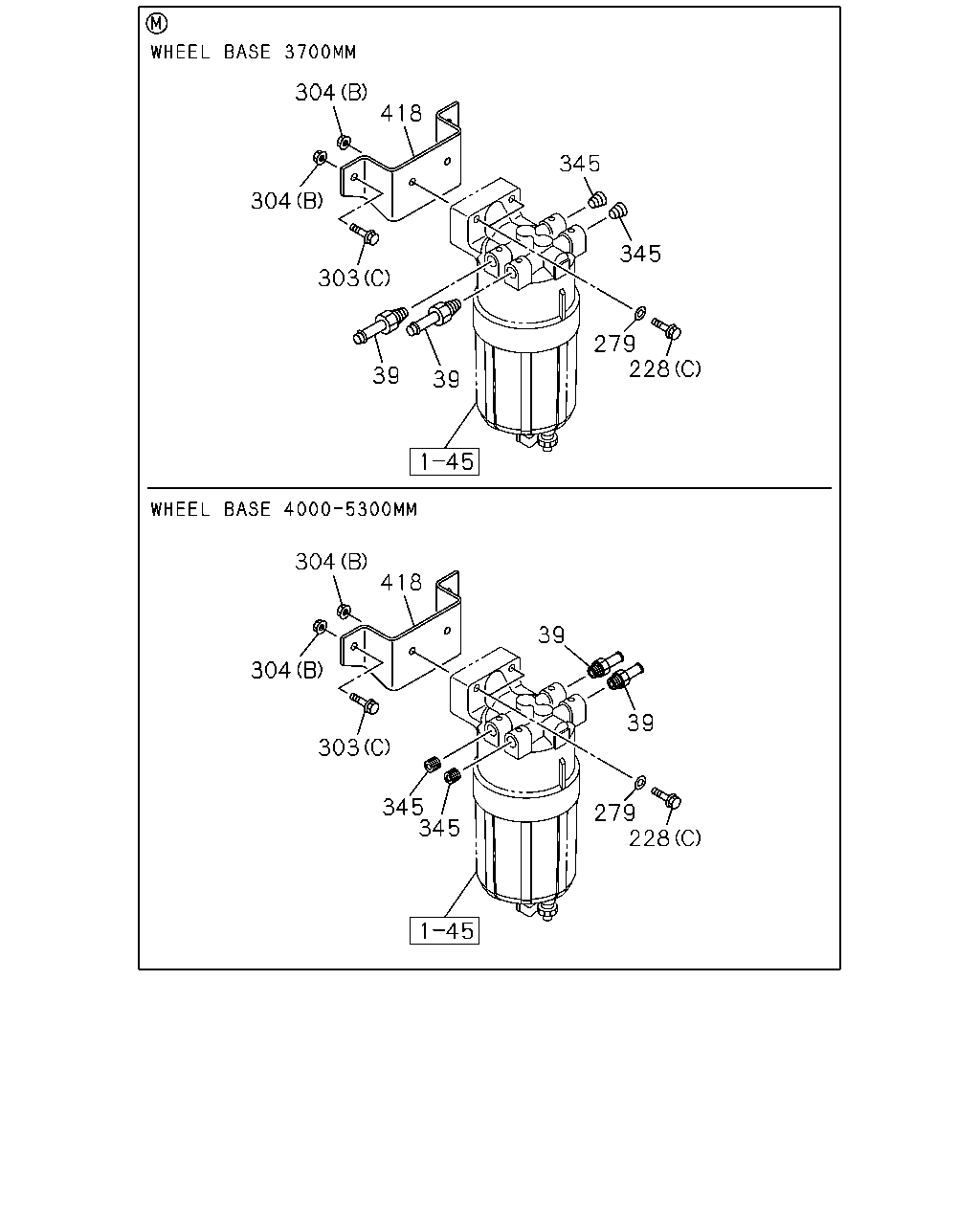

304 304 303 39 39 228 279 345 345 418 304 418 304 303 345 345 228 279 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1307-1312	●
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1307-1312	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1401-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1401-	●	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1307-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1401-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT WHEEL BASE 4000MM(40W) (B) M10 FLANGE	0-91180-210-0	03	1	1307-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1307-1312	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1401-	●	●
418	BRACKET; PRE FUEL FILTER	8-98114-787-0	01	1	1307-1312	●
418	BRACKET; PRE FUEL FILTER	8-98114-787-0	01	1	1401-	●	●

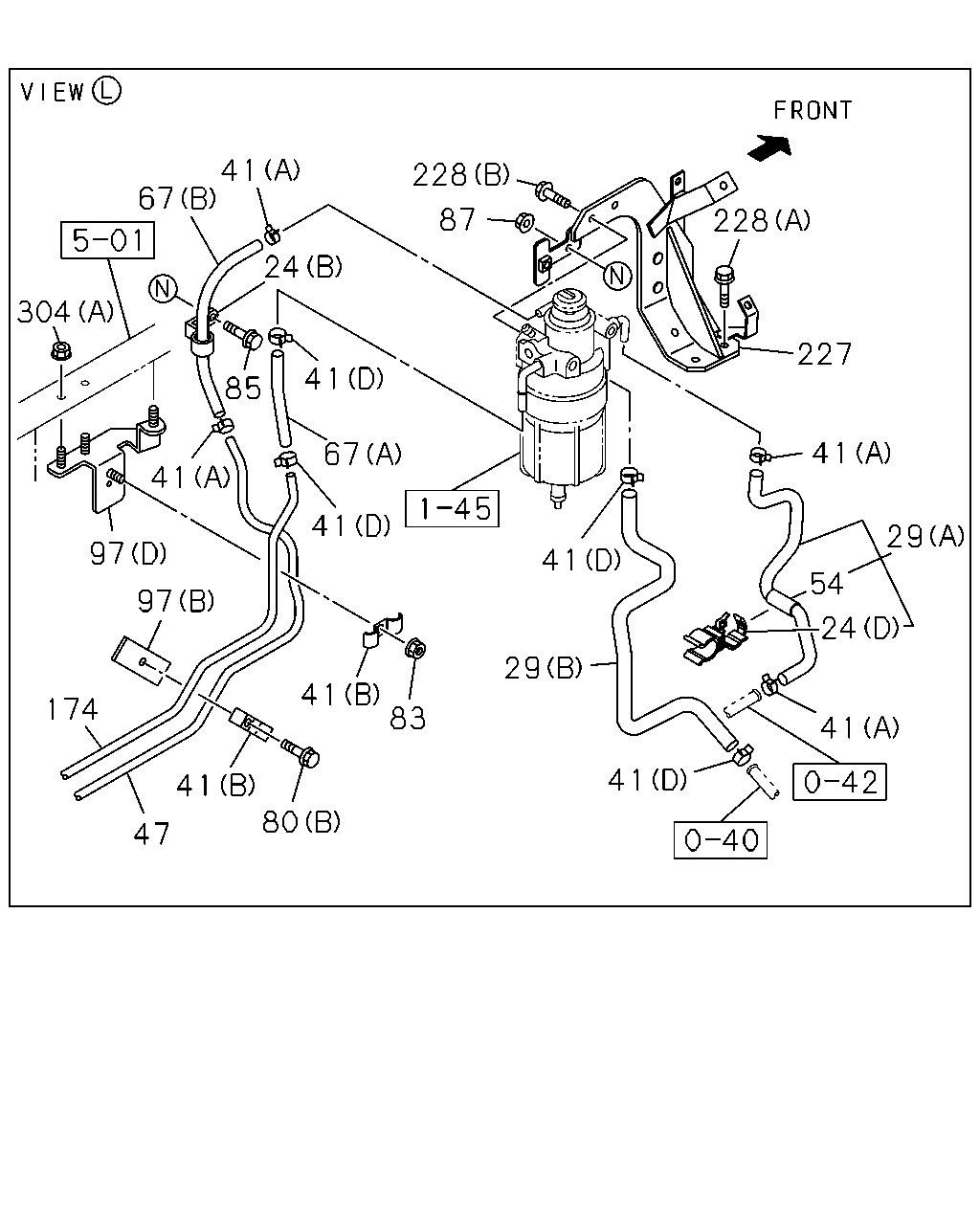

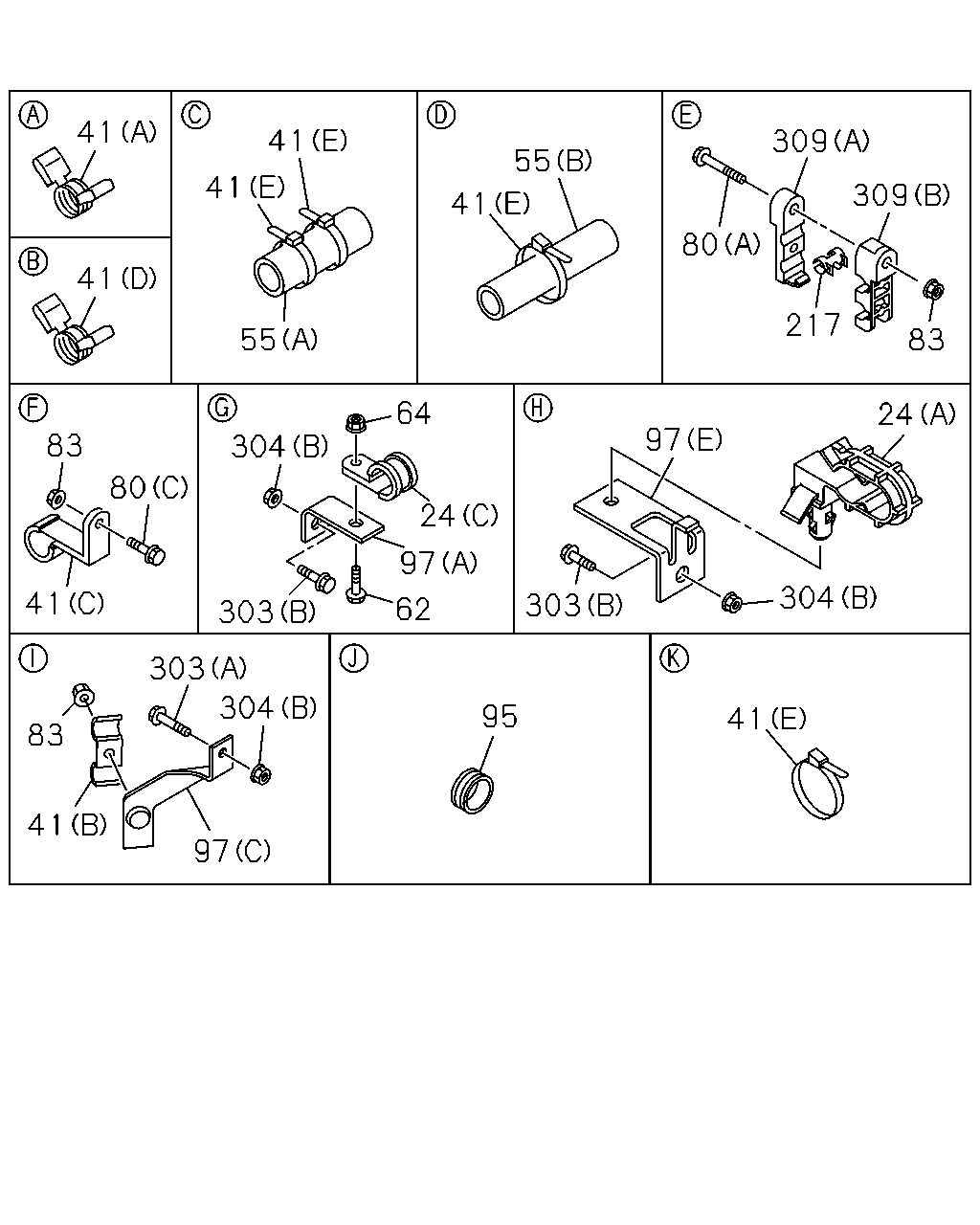

41 67 304 41 97 174 41 47 80 41 29 83 41 41 24 54 29 41 41 67 41 85 24 228 228 87 227 41 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1401-	●	●
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1401-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1401-	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1401-		●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (C) ID=21 L=24	8-98019-191-0	03	1	1307-	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1401-	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1401-		●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1401-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=900 SERVICED BY L=3000	0-01859-300-0	01	1	1307-	●
29	HOSE; FUEL WHEEL BASE 4000MM(40W) (C)	8-98233-239-0	01	1	1307-	●
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C)	8-98233-948-0	01	1	1307-1312	●
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (C)	8-98233-948-0	01	1	1401-	●	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W) (C)	8-98233-283-0	01	1	1307-1312	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W) (C)	8-98233-283-0	01	1	1401-	●	●
29	HOSE; FUEL (A)	8-98147-183-0	01	1	1307-1312	●
29	HOSE; FUEL (A)	8-98147-183-0	01	1	1401-	●	●
29	HOSE; FUEL (B)	8-98156-676-0	01	1	1307-1312	●
29	HOSE; FUEL (B)	8-98156-676-0	01	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (E) L=250	5-09707-030-1	02	1	1307-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	05	1	1307-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1401-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1401-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1401-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1401-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	03	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	03	1	1401-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1401-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2467	8-98240-658-0	01	1	1307-1312	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2467	8-98240-658-0	01	1	1401-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) L=3005	8-98240-659-0	01	1	1307-1312	●
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) L=3005	8-98240-659-0	01	1	1401-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1606	8-98183-073-0	01	1	1307-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2465	8-98233-332-0	01	1	1307-	●
54	SPACER; CLIP,FUEL PIPE	8-98148-172-0	01	1	1307-1312	●
54	SPACER; CLIP,FUEL PIPE	8-98148-172-0	01	1	1401-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1307-1312	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1401-	●	●
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1307-1312	●
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1401-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) (A) M8X50 FLANGE	0-28050-850-0	01	1	1307-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1401-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (C) M8X25 FLANGE	0-28650-825-0	03	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (C) M8X25 FLANGE	0-28650-825-0	03	1	1401-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) (C) M8X25 FLANGE	0-28650-825-0	03	1	1401-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) M8X50 FLANGE	0-28050-850-0	03	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) M8X50 FLANGE	0-28050-850-0	03	1	1401-	●
80	BOLT; CLIP,FUEL TANK (A) M8X50 FLANGE	0-28050-850-0	03	1	1401-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	05	1	1307-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	06	1	1307-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1307-1312	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1401-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	09	1	1307-1312	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	09	1	1401-	●	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1307-1312	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1401-	●	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1307-1312	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1401-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1307-1312	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1401-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1401-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1401-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (A) L=55	1-47476-177-0	03	1	1307-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1401-	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1401-		●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1401-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W)	8-98169-375-0	01	1	1307-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W)	8-98233-236-0	01	1	1307-1312	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W)	8-98233-236-0	01	1	1401-	●
174	PIPE; FUEL,FEED,FRT	8-98233-236-0	01	1	1401-		●
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1307-1312	●
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT WHEEL BASE 4000MM(40W) (B) M10 FLANGE	0-91180-210-0	03	1	1307-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●

41 41 55 41 41 309 309 80 217 83 41 304 64 24 97 24 304 303 303 41 80 83 62 41 97 304 303 83 41 97 95 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1401-	●	●
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1401-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1401-	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1401-		●
24	CLIP; FUEL HOSE WHEEL BASE 4000MM(40W) (C) ID=21 L=24	8-98019-191-0	03	1	1307-	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1401-	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1401-		●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (E) L=250	5-09707-030-1	02	1	1307-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	05	1	1307-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1401-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1401-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1401-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1401-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	03	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	03	1	1401-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1401-		●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) L=800	1-09361-018-0	01	1	1307-	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1307-	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1307-1312	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1401-	●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1401-		●
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	01	1	1401-		●
62	BOLT; CLIP FIX WHEEL BASE 4000MM(40W) M8X20 FLANGE	0-28650-820-0	03	1	1307-	●
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
64	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
64	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1401-	●
64	NUT; CLIP WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1401-		●
64	NUT; CLIP WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	03	1	1307-	●
64	NUT; CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
64	NUT; CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) (A) M8X50 FLANGE	0-28050-850-0	01	1	1307-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1401-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (C) M8X25 FLANGE	0-28650-825-0	03	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (C) M8X25 FLANGE	0-28650-825-0	03	1	1401-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) (C) M8X25 FLANGE	0-28650-825-0	03	1	1401-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) M8X50 FLANGE	0-28050-850-0	03	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) M8X50 FLANGE	0-28050-850-0	03	1	1401-	●
80	BOLT; CLIP,FUEL TANK (A) M8X50 FLANGE	0-28050-850-0	03	1	1401-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	05	1	1307-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	06	1	1307-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1307-1312	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1401-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	09	1	1307-1312	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	09	1	1401-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1307-1312	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1401-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1307-1312	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1401-	●	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1307-1312	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1401-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1307-1312	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1401-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1401-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1401-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W) (A) L=55	1-47476-177-0	03	1	1307-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1401-	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1401-		●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1401-	●	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) ID=8	1-47459-011-0	01	1	1307-	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) ID=8	1-47459-011-0	03	1	1307-1312	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) ID=8	1-47459-011-0	03	1	1401-	●
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	03	1	1401-		●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1401-	●	●
303	BOLT; BRKT WHEEL BASE 4000MM(40W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1307-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1401-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT WHEEL BASE 4000MM(40W) (B) M10 FLANGE	0-91180-210-0	03	1	1307-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (A) ID=10 & 10	1-09709-241-0	01	1	1307-	●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (B) ID=10 & 10	1-09709-243-0	01	1	1307-	●
309	CLIP; PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) ID=10 & 10	1-09709-241-0	03	1	1307-1312	●
309	CLIP; PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) ID=10 & 10	1-09709-241-0	03	1	1401-	●
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	03	1	1401-		●
309	CLIP; PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) ID=10 & 10	1-09709-243-0	03	1	1307-1312	●
309	CLIP; PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (B) ID=10 & 10	1-09709-243-0	03	1	1401-	●
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	03	1	1401-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
