Isuzu WW
▶
TRUCKS
▶
FRR
▶
11549 - FRR AUST/NZ EURO5 SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#123824) — 64 parça
◀

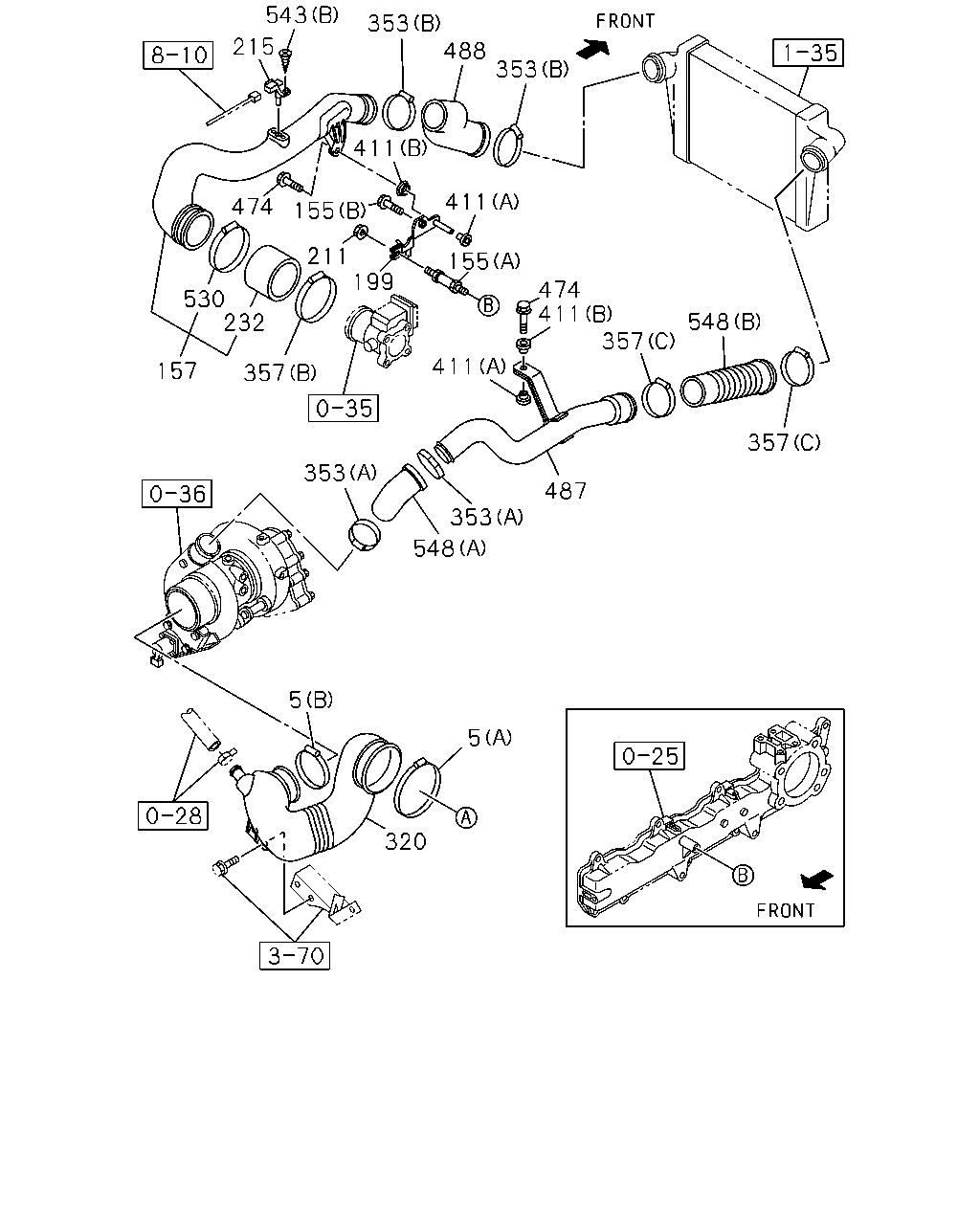

[131A] PIPING (26 parça)
[131A] DUCT FIXING (38 parça)
▶
215
543
353
411
488
353
411
155
474
530
157
232
357
353
5
5
320
411
487
353
548
357
548
357
155
474
411
199
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-139-0
01
1
1307-
5
CLIP; AIR DUCT
(B) ID=77-99
1-09707-141-0
01
1
1307-
155
BOLT; BRKT
(B) M10X110 FLANGE
0-28156-011-0
01
1
1307-
155
BOLT; BRKT
(A) M10X17,M10X30 L=105
8-97233-428-0
01
1
1307-
157
PIPE; AIR
8-98096-274-1
01
1
1307-
199
BRACKET; PIPE
8-98109-137-1
01
1
1307-1403
199
BRACKET; PIPE
8-98252-223-0
01
1
1404-
211
NUT; BRKT
M10 FLANGE
0-91180-210-0
01
1
1307-
215
SENSOR; MAP
8-98009-418-0
01
1
1307-
232
HOSE; CONN
8-98128-293-0
01
1
1307-
320
HOSE; CONN,ACL
8-98010-643-3
01
1
1307-
353
CLIP; RUBBER HOSE
(B) ID=58-79
1-09707-136-0
02
1
1307-
353
CLIP; RUBBER HOSE
(A) ID=60-65
8-98096-418-0
02
1
1307-
357
CLIP; RUBBER HOSE
(C) ID=58-79
1-09707-136-0
02
1
1307-
357
CLIP; RUBBER HOSE
(A) ID=24
8-98025-921-0
02
1
1307-
357
CLIP; RUBBER HOSE
(B) ID=68-85
8-98096-592-0
01
1
1307-
411
RUBBER; CUSHION
(A) OD=32
8-94395-766-0
02
1
1307-
411
RUBBER; CUSHION
(B) OD=23
8-97105-689-6
02
1
1307-
474
BOLT; PIPE
M8X40 FLANGE
0-28650-840-0
02
1
1307-
487
PIPE; TURBO TO CHARGE AIR COOLER
8-98038-759-3
01
1
1307-
488
HOSE; RUBBER,PIPE
8-98010-723-0
01
1
1307-
530
CLAMP; AIR DUCT
ID=65-85
8-98133-350-0
01
1
1307-
543
SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1307-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1307-
548
HOSE; RUBBER,TURBO TO INL PIPE
(A)
8-98061-809-1
01
1
1307-
548
HOSE; RUBBER,TURBO TO INL PIPE
(B)
8-98061-810-0
01
1
1307-
49
242
58
49
56
56
56
56
49
58
245
242
58
61
58
48
560
26
49
242
252
113
450
316
71
543
357
225
424
174
180
179
357
379
159
180
210
209
515
159
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1307-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1307-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1307-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1307-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1307-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1307-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1307-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1307-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1307-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1307-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1307-
113
BOLT; RESONATOR
M6X16 W/PL WASHER
8-98094-071-0
03
1
1307-
159
BOLT; AIR PIPE
(A) M6X16 FLANGE
0-28050-616-0
02
1
1307-
159
BOLT; AIR PIPE
(B) M8X25 FLANGE
0-28650-825-0
01
1
1307-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1307-
179
HOSE; AIR INT
8-98063-233-0
01
1
1307-
180
CLIP; AIR INT HOSE
ID=24
8-98025-921-0
02
1
1307-
209
BRACKET; ACL
8-98010-343-4
01
1
1307-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1307-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1307-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1307-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1307-
242
BRACKET; AIR DUCT
(A)
8-98019-303-1
01
1
1307-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1307-
252
DUCT; AIR INT
8-98095-778-0
01
1
1307-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1307-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1307-
357
CLIP; RUBBER HOSE
(C) ID=58-79
1-09707-136-0
02
1
1307-
357
CLIP; RUBBER HOSE
(A) ID=24
8-98025-921-0
02
1
1307-
357
CLIP; RUBBER HOSE
(B) ID=68-85
8-98096-592-0
01
1
1307-
379
HOSE; RUBBER
POWER TAKE OFF-FLYWHEEL<6SZ>
8-98078-741-0
01
1
1307-
379
HOSE; RUBBER
EXC. POWER TAKE OFF-FLYWHEEL<6SZ>
8-98062-621-1
01
1
1307-
424
PIPE; AIR,INL
8-98081-835-0
01
1
1307-
450
CLAMP; HOSE
9-09915-504-1
01
1
1307-
515
PIPE; AIR,SUCTION
8-98061-569-1
01
1
1307-
543
SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1307-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1307-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1307-
