8-80 — WINDSHIELD WIPER AND WASHER (#123784) — 86 parça

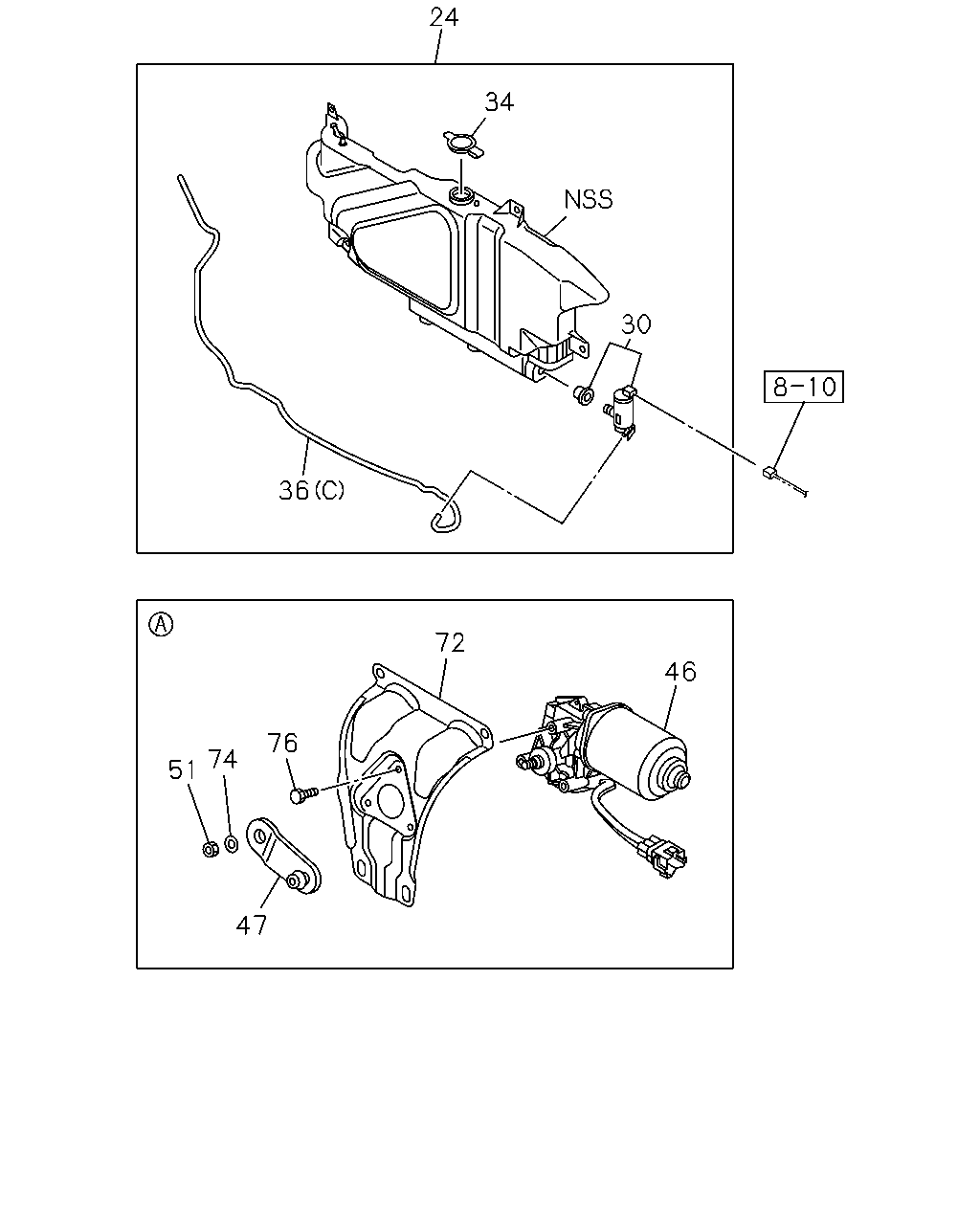

çizim 364118
24 34 30 36 72 46 76 74 51 47
BalonParca AdiParca NoAdetTipApplied Date A B C
24 TANK ASM; WASHER 8-98039-661-4 01 1 1307-1312 ● ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 1401- ● ● ●
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 1307-1312 ● ●
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 1401- ● ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 1307-1312 ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 1401- ● ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1307-1312 ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1401- ● ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1307-1312 ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1401- ● ● ●
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1307-1312 ● ●
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1401- ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-806-1 01 1 1307-1312 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-806-1 01 1 1401- ● ● ●
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 1307-1312 ● ●
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 1401- ● ● ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 1307-1312 ● ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 1401- ● ● ●
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 1307-1312 ● ●
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 1401- ● ● ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 1307-1312 ● ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 1401- ● ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 1307-1312 ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 1401- ● ● ●

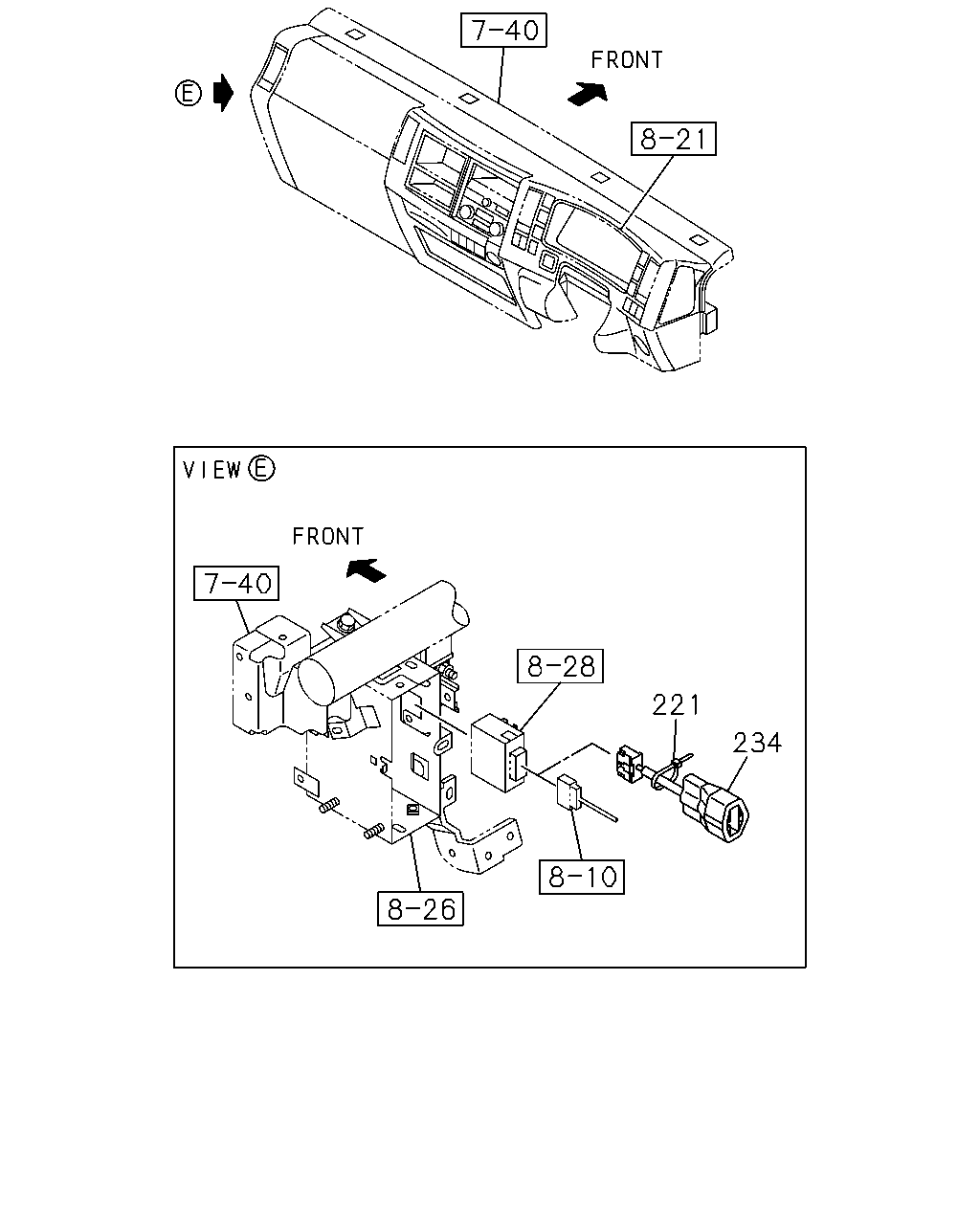

çizim 364129
221 234
BalonParca AdiParca NoAdetTipApplied Date A B C
221 CLIP
L=140 		5-09707-031-1 01 1 1307-1308 ● ●
234 HARNESS; EXT,WIPER 8-98236-609-0 01 1 1307-1308 ● ●

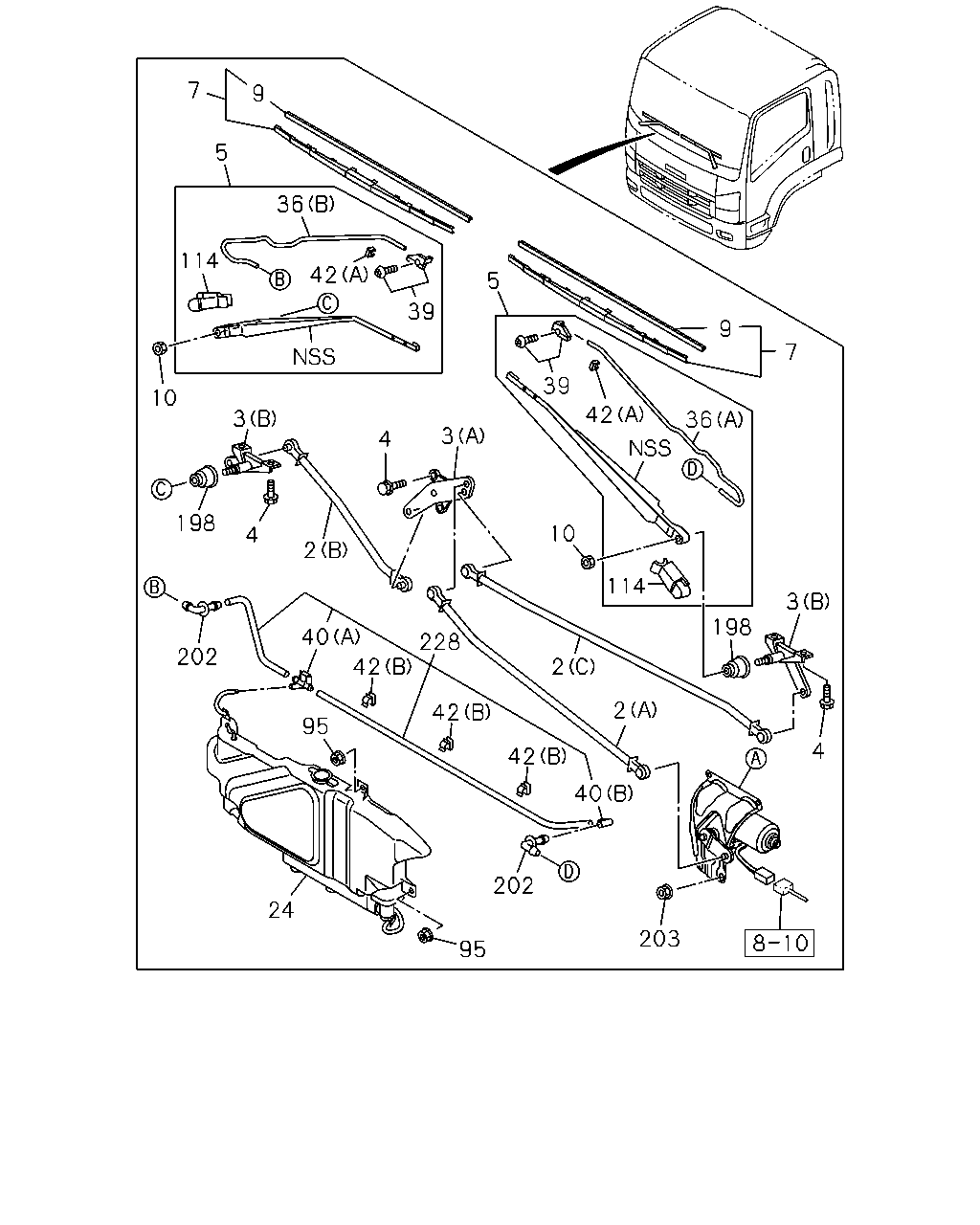

çizim 366778
7 9 5 36 114 42 39 10 3 198 4 2 4 3 202 40 42 95 228 42 24 95 202 40 42 2 2 203 4 3 198 114 10 42 36 9 7 39 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LINK; FRT WIPER
(C) 		8-98078-809-0 01 1 1307-1312 ● ●
2 LINK; FRT WIPER
(C) 		8-98078-809-0 01 1 1401- ● ● ●
2 LINK; FRT WIPER
(B) 		8-98078-810-1 01 1 1307-1312 ● ●
2 LINK; FRT WIPER
(B) 		8-98078-810-1 01 1 1401- ● ● ●
2 LINK; FRT WIPER
(A) 		8-98078-811-0 01 1 1307-1312 ● ●
2 LINK; FRT WIPER
(A) 		8-98078-811-0 01 1 1401- ● ● ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-815-0 01 1 1307-1312 ● ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-815-0 01 1 1401- ● ● ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-816-1 02 1 1307-1312 ● ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-816-1 02 1 1401- ● ● ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 07 1 1307-1312 ● ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 07 1 1401- ● ● ●
5 ARM; WIPER 8-98078-819-1 01 1 1307-1312 ● ●
5 ARM; WIPER 8-98078-819-1 01 1 1401- ● ● ●
5 ARM; WIPER 8-98078-820-1 01 1 1307-1312 ● ●
5 ARM; WIPER 8-98078-820-1 01 1 1401- ● ● ●
7 BLADE; WIPER 1-83315-045-2 01 1 1307-1312 ● ●
7 BLADE; WIPER 1-83315-045-2 01 1 1401- ● ● ●
7 BLADE; WIPER 1-83315-046-2 01 1 1307-1312 ● ●
7 BLADE; WIPER 1-83315-046-2 01 1 1401- ● ● ●
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-035-0 02 1 1307-1312 ● ●
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-035-0 02 1 1401- ● ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 1307-1312 ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 1401- ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 1307-1312 ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 1401- ● ● ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 1307-1312 ● ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 1401- ● ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1307-1312 ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1401- ● ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1307-1312 ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1401- ● ● ●
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1307-1312 ● ●
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1401- ● ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 01 1 1307-1312 ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 01 1 1401- ● ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 01 1 1307-1312 ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 01 1 1401- ● ● ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 01 1 1307-1312 ● ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 01 1 1401- ● ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1307-1312 ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1401- ● ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 1307-1312 ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 1401- ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1307-1312 ● ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1401- ● ● ●
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 1307-1312 ● ●
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 1401- ● ● ●
114 COVER; FRT WIPER ARM 1-83318-126-0 01 1 1307-1312 ● ●
114 COVER; FRT WIPER ARM 1-83318-126-0 01 1 1401- ● ● ●
114 COVER; FRT WIPER ARM 1-83318-127-0 01 1 1307-1312 ● ●
114 COVER; FRT WIPER ARM 1-83318-127-0 01 1 1401- ● ● ●
198 COVER; PIVOT,WIPER 8-98038-892-1 02 1 1307-1312 ● ●
198 COVER; PIVOT,WIPER 8-98038-892-1 02 1 1401- ● ● ●
202 GROMMET; WIPER 1-86815-003-2 02 1 1307-1312 ● ●
202 GROMMET; WIPER 1-86815-003-2 02 1 1401- ● ● ●
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 1307-1312 ● ●
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 1401- ● ● ●
228 HOSE ASM; WASHER 8-98039-704-0 01 1 1307-1312 ● ●
228 HOSE ASM; WASHER 8-98039-704-0 01 1 1401- ● ● ●
