8-71 — COMPRESSOR; AIR CONDITIONING (#123781) — 17 parça

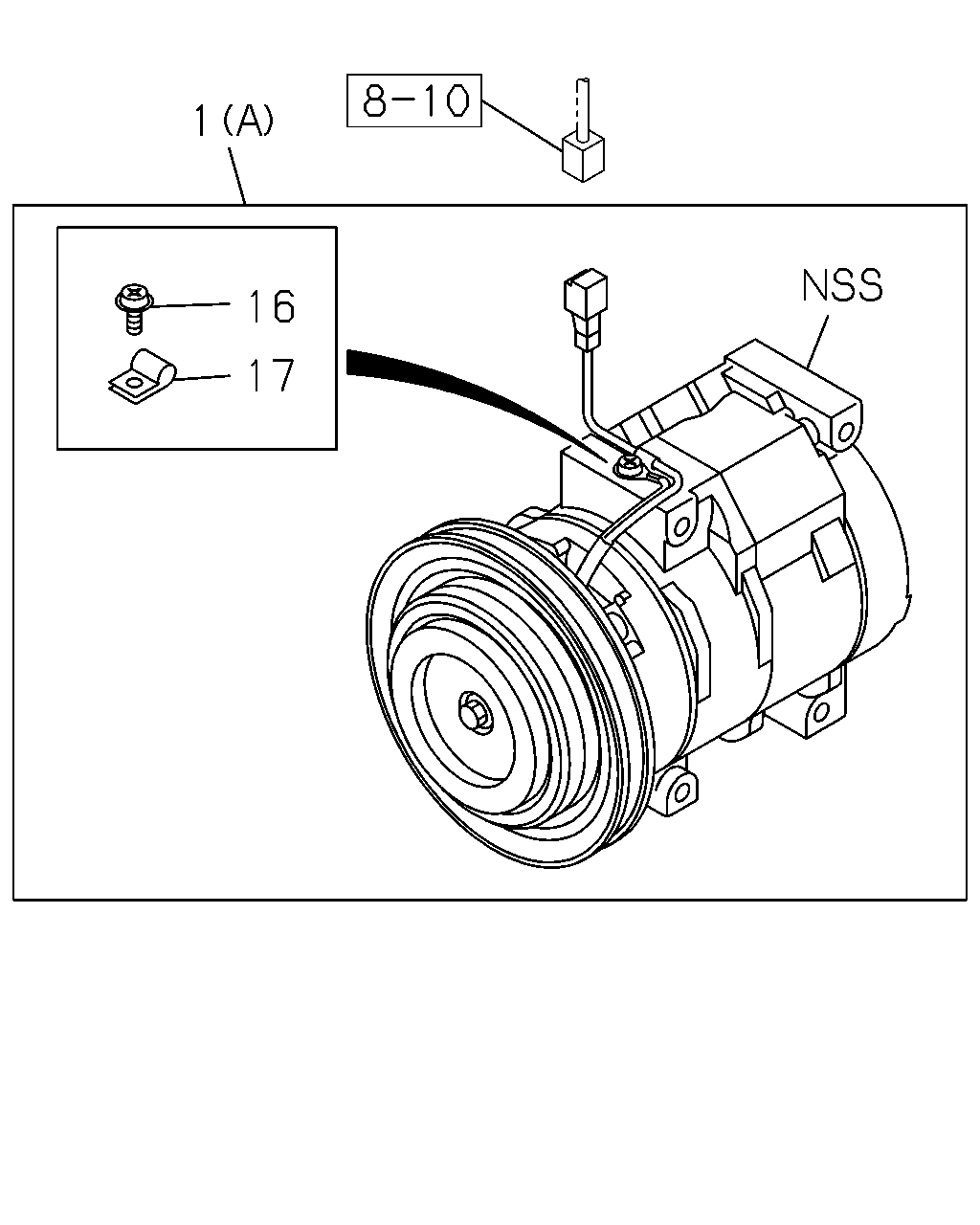

çizim 364039
1 16 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COMPRESSOR ASM; A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 1307-1312 ● ●
1 COMPRESSOR ASM; A/C
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 1401- ● ● ●
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-326-1 01 1 1307- ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 1307-1312 ● ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 1401- ● ● ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 1307-1312 ● ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 1401- ● ● ●
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1307- ●

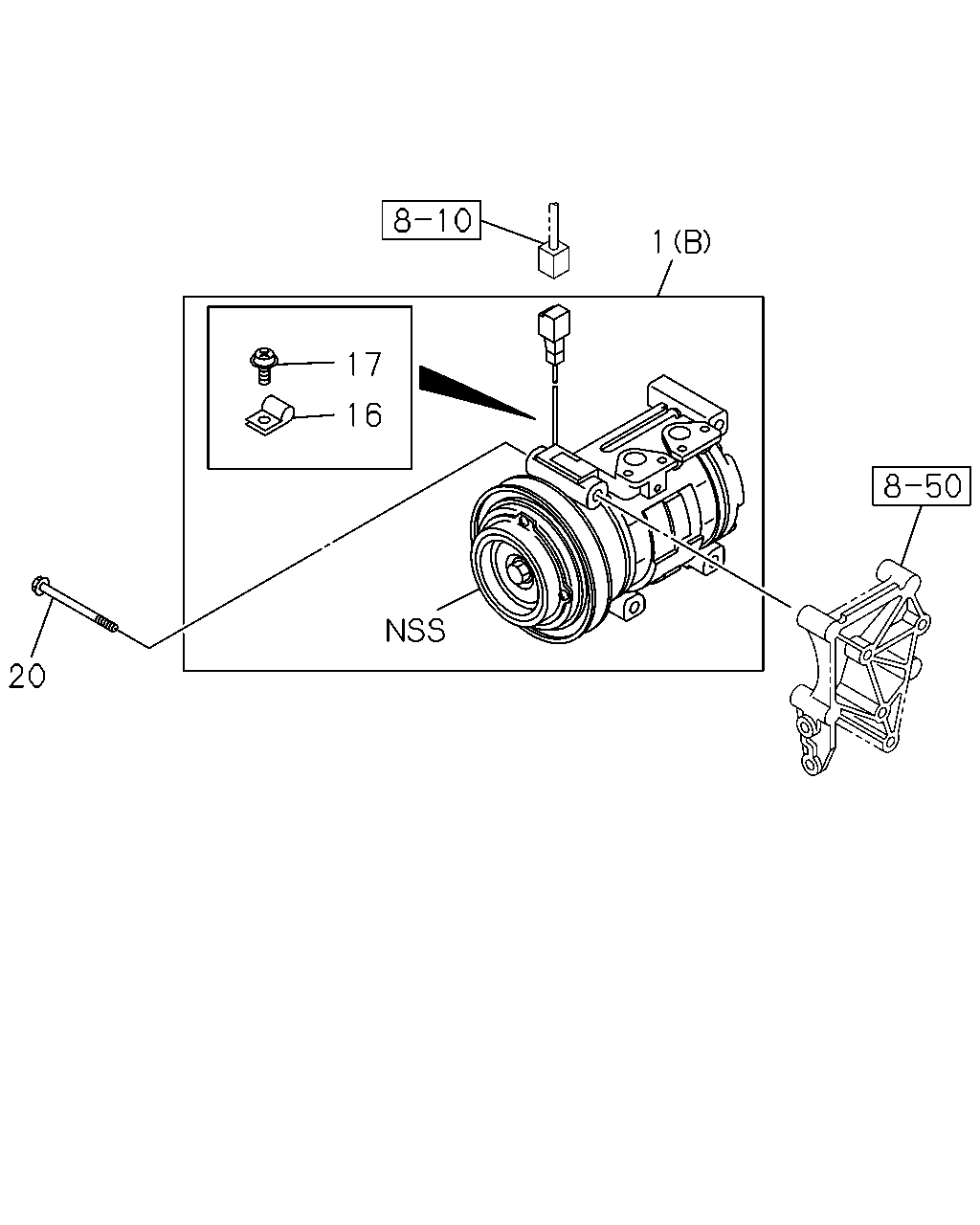

çizim 366552
20 1 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COMPRESSOR ASM; A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 1307-1312 ● ●
1 COMPRESSOR ASM; A/C
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 1401- ● ● ●
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-326-1 01 1 1307- ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 1307-1312 ● ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 1401- ● ● ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 1307-1312 ● ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 1401- ● ● ●
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1307- ●
20 BOLT; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X75 FLANGE 		1-09044-073-0 04 1 1307- ●
