◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#123772) — 168 parça

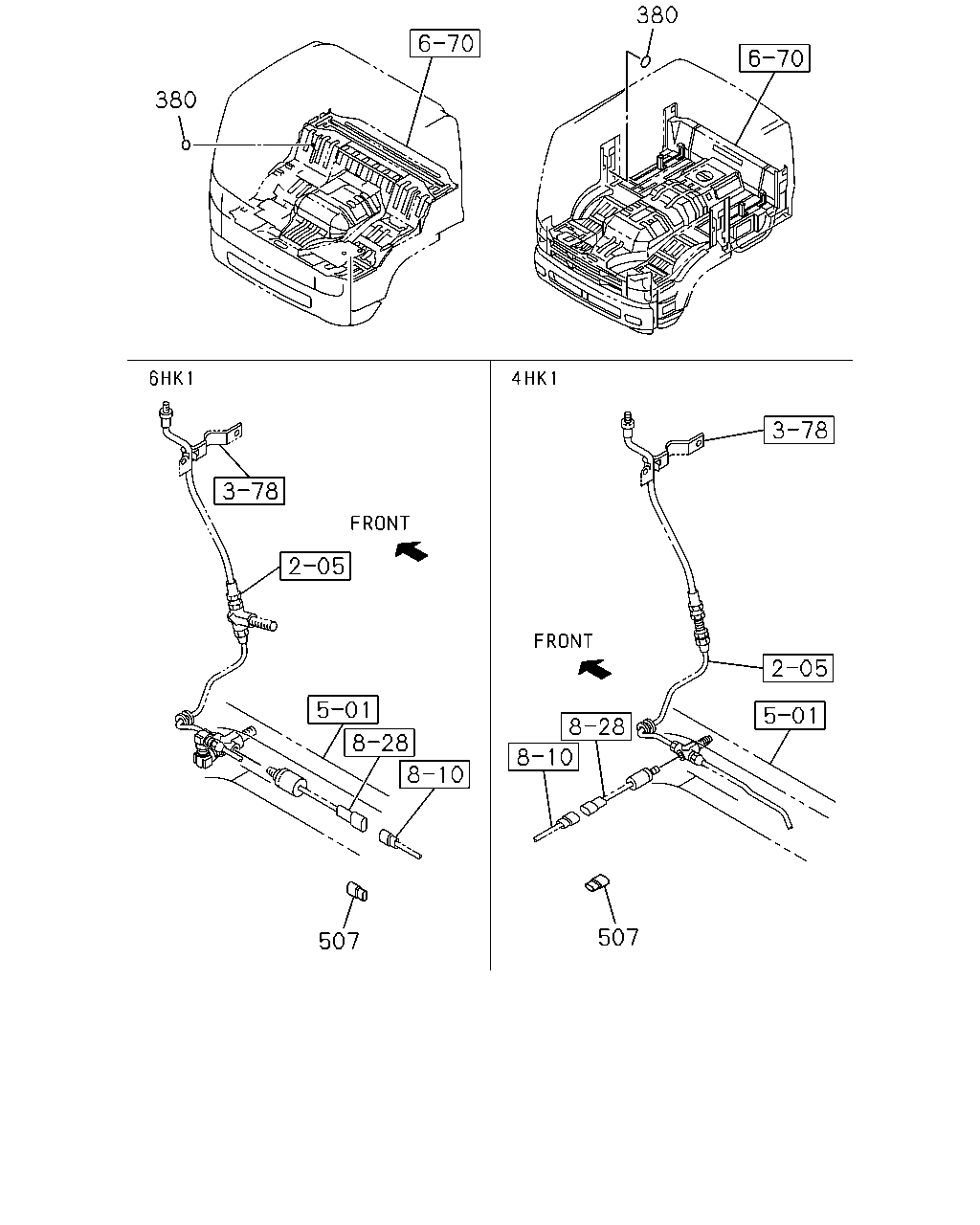

çizim 363694
380 507 507 380
BalonParca AdiParca NoAdetTipApplied Date A B C
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLORGERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BOD Y COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAYORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=25 BLACK 		1-76798-019-0 01 1 1307-1312 ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLORGERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BOD Y COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAYORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=25 BLACK 		1-76798-019-0 01 1 1401-1404 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1405- ● ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609) ,BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARABEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BOD Y COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989) ,BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1307- ●
380 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1307- ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1307-1312 ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1401- ● ● ●

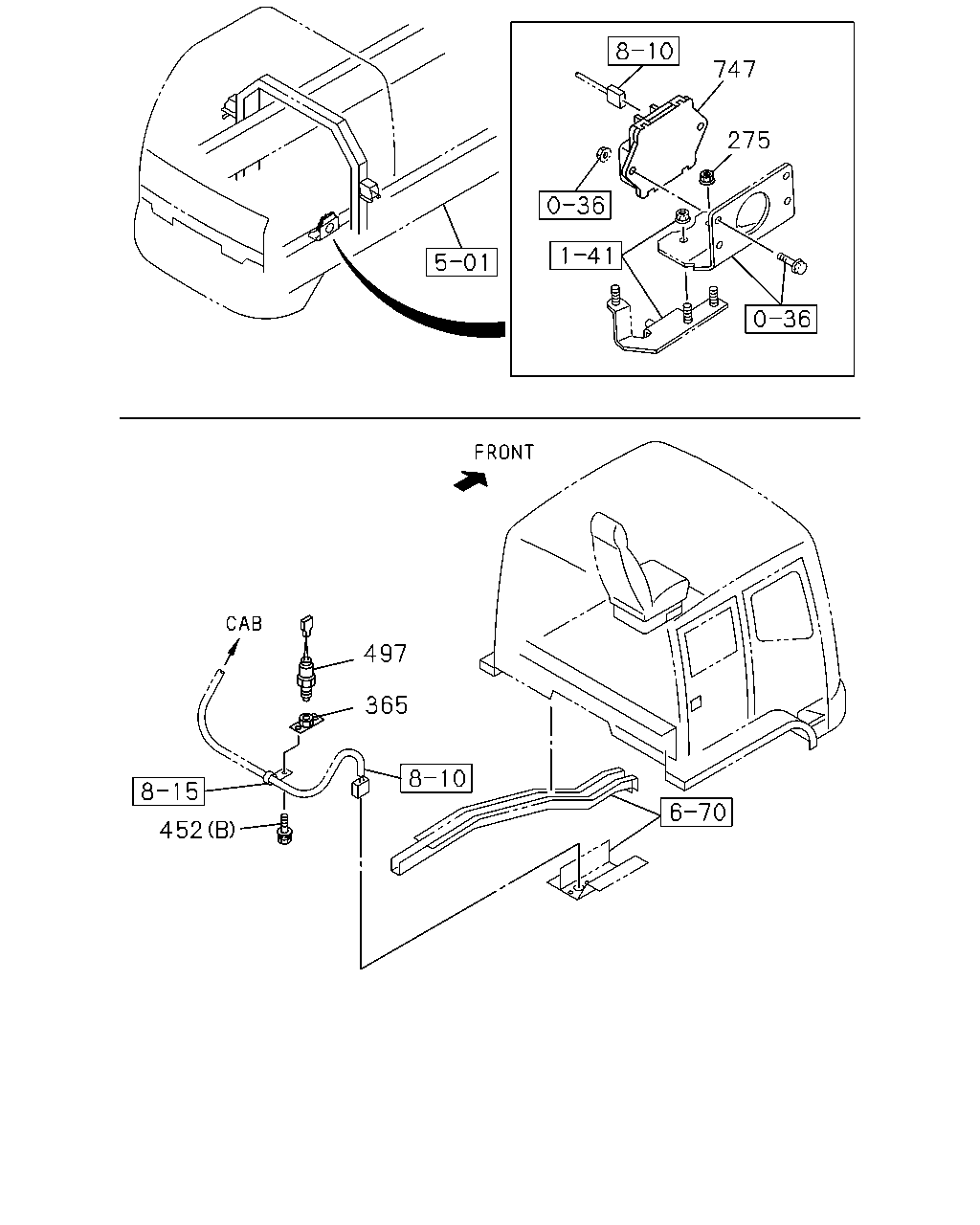

çizim 363735
497 365 452 275 747
BalonParca AdiParca NoAdetTipApplied Date A B C
275 NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 1307- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307- ●
497 SWITCH; CAB TILT
STAMP NC 		1-82380-125-1 01 1 1307- ●
747 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1307- ●

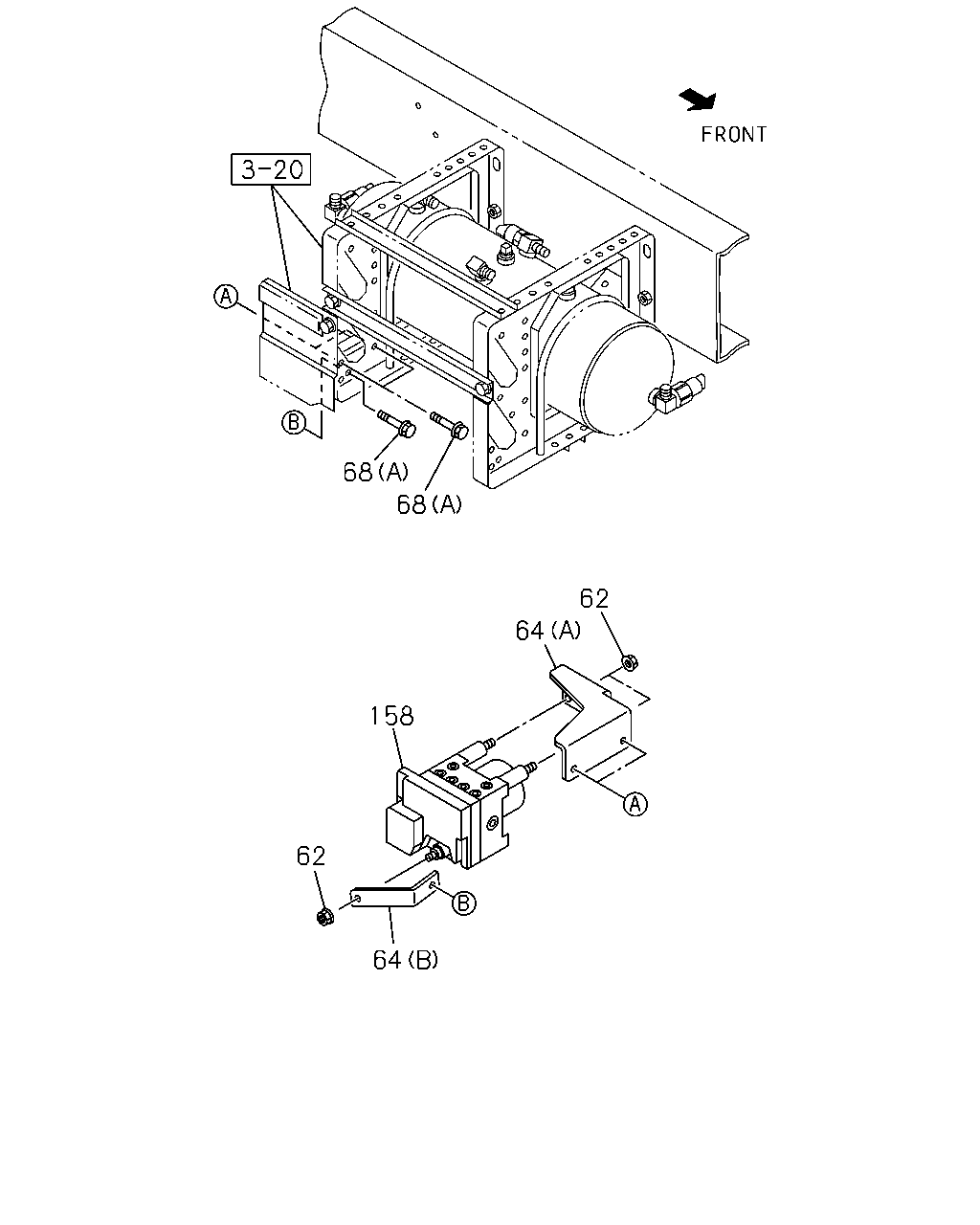

çizim 363793
68 62 64 158 64 62 68
BalonParca AdiParca NoAdetTipApplied Date A B C
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1307-1312 ● ●
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1401- ● ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 1307-1312 ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 1401- ● ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 1307-1312 ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 1401- ● ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1307-1312 ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1307-1312 ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1401- ● ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1307-1312 ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1401- ● ● ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1307-1312 ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1401- ● ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1307-1312 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) 		8-98157-992-1 01 1 1307-1312 ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1401- ● ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) 		8-98157-992-1 01 1 1401- ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) 		8-98157-993-1 01 1 1307- ●

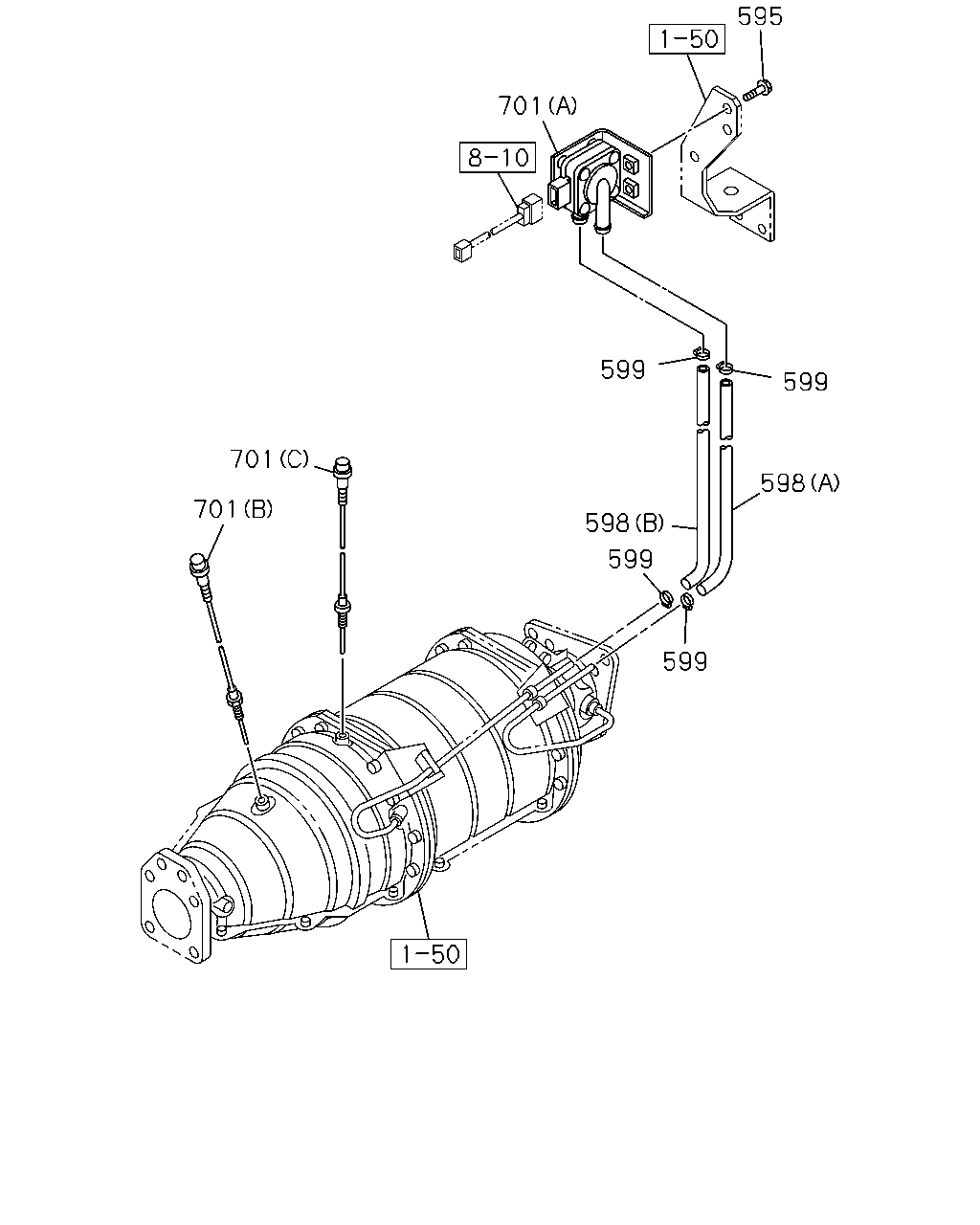

çizim 363832
599 595 701 599 598 598 599 599 701 701
BalonParca AdiParca NoAdetTipApplied Date A B C
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-178-1 01 1 1307-1312 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCN ENG(82L) (B) 		8-98060-178-1 01 1 1307-1312 ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-178-1 01 1 1401- ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCN ENG(82L) (B) 		8-98060-178-1 01 1 1401- ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98080-054-0 01 1 1307-1312 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCN ENG(82L) (A) 		8-98080-054-0 01 1 1307-1312 ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98080-054-0 01 1 1401- ● ●
598 HOSE; RUBBER,SENSOR
6HK1-TCN ENG(82L) (A) 		8-98080-054-0 01 1 1401- ●
598 HOSE; RUBBER,SENSOR
4HK1-TCS ENG(RJS) (B) 		8-98060-174-1 01 1 1307- ●
598 HOSE; RUBBER,SENSOR
4HK1-TCS ENG(RJS) (A) 		8-98077-342-0 01 1 1307- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1307-1312 ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1401- ● ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1307-1312 ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1401- ● ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1307-1312 ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1401- ● ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1307-1312 ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1401- ● ● ●

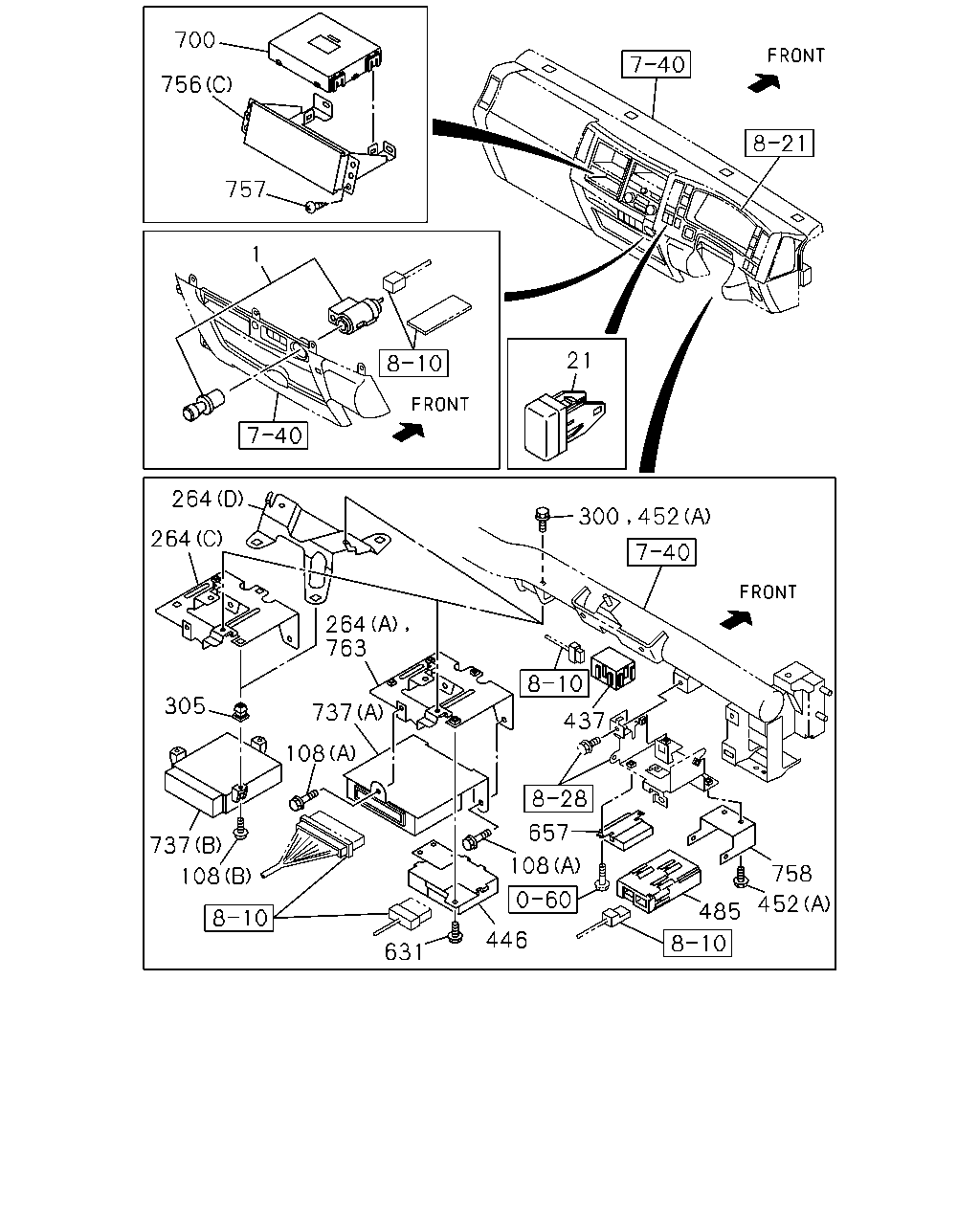

çizim 365161
700 756 757 1 21 264 264 264 763 305 737 108 737 108 631 300 452 446 108 657 485 758 452 437
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1307-1312 ● ●
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1401- ● ● ●
21 COVER; HOLE
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98025-954-1 01 1 1307-1312 ● ●
21 COVER; HOLE
MIR O/S RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98025-954-1 01 1 1401- ● ● ●
108 BOLT; TRANS CONT MODULE
LCT2500 A/T ALLISON(Y5W) (B) M6X20 TAPPING 		0-72180-620-0 03 1 1307-1312 ●
108 BOLT; TRANS CONT MODULE
LCT2500 A/T ALLISON(Y5W) (B) M6X20 TAPPING 		0-72180-620-0 03 1 1401- ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 03 1 1307-1312 ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 03 1 1401- ● ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (C) 		8-98246-552-0 01 1 1307-1312 ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (C) 		8-98246-552-0 01 1 1401-1405 ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (D) 		8-98252-197-0 01 1 1406- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1307-1312 ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1401- ● ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307- ● ●
300 BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ● ●
300 BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ● ●
305 NUT; CONT UNIT
LCT2500 A/T ALLISON(Y5W) D=9.7X9.7 L=8 		8-94222-314-0 03 1 1307-1312 ●
305 NUT; CONT UNIT
LCT2500 A/T ALLISON(Y5W) D=9.7X9.7 L=8 		8-94222-314-0 03 1 1401- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1307- ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-318-1 01 1 1307-1312 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-318-1 01 1 1401- ● ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307- ●
485 CONTROL UNIT; SPEED SENSOR
LCT2500 A/T ALLISON(Y5W) 		1-80190-061-0 01 1 1307-1312 ●
485 CONTROL UNIT; SPEED SENSOR
LCT2500 A/T ALLISON(Y5W) 		1-80190-061-0 01 1 1401- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 1307-1312 ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 1401-1401 ● ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1402- ● ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1307-1312 ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1401- ● ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98232-634-0 01 1 1401-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98272-173-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98282-914-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
LCT2500 A/T ALLISON(Y5W) (B) 		8-98244-909-0 01 1 1307-1312 ●
737 CONTROL UNIT; TRANSMISSION
LCT2500 A/T ALLISON(Y5W) (B) 		8-98244-909-0 01 1 1401-1409 ● ●
737 CONTROL UNIT; TRANSMISSION
LCT2500 A/T ALLISON(Y5W) (B) 		8-98275-787-0 01 1 1410- ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98232-635-0 01 1 1307-1404 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98272-174-0 01 1 1405-1411 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98282-915-0 01 1 1412- ● ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98232-633-0 01 1 1307-1404 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98272-172-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98282-913-0 01 1 1412- ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1312 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1401-1507 ● ● ●
756 BRACKET; ECU,BCM
(C) 		8-98203-991-0 01 1 1508- ● ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1307-1312 ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1401- ● ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1307-1312 ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1401- ● ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307-1312 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1401- ● ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
LCT2500 A/T ALLISON(Y5W) 		8-98048-743-1 01 1 1307-1312 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
LCT2500 A/T ALLISON(Y5W) 		8-98048-743-1 01 1 1401- ● ●
763 BRACKET; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-901-0 01 1 1307-1312 ● ●
763 BRACKET; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-901-0 01 1 1401- ● ● ●

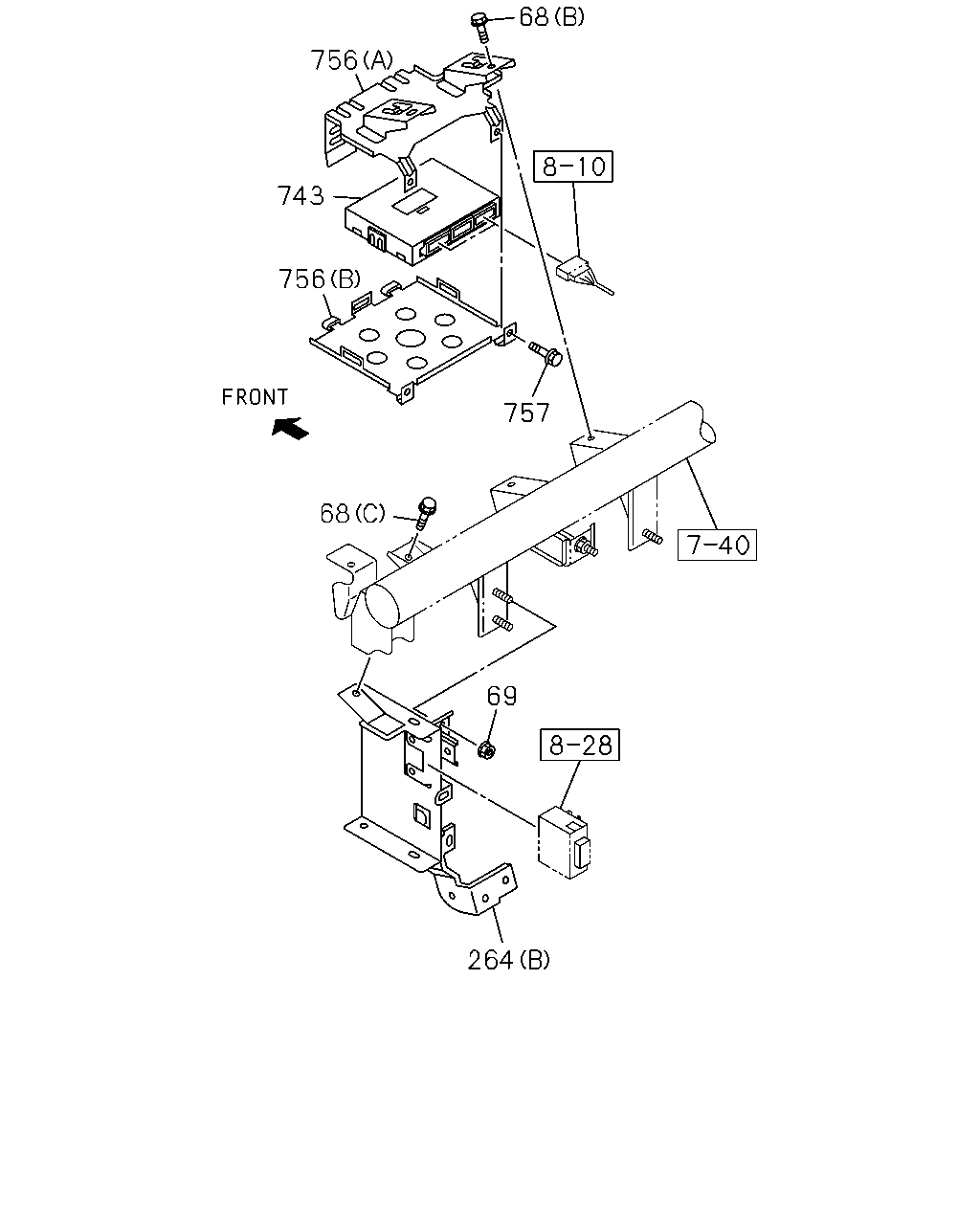

çizim 366304
68 756 743 756 757 68 69 264
BalonParca AdiParca NoAdetTipApplied Date A B C
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1307-1312 ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1307-1312 ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1401- ● ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1307-1312 ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1401- ● ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1307-1312 ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1401- ● ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (C) 		8-98246-552-0 01 1 1307-1312 ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (C) 		8-98246-552-0 01 1 1401-1405 ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (D) 		8-98252-197-0 01 1 1406- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1307-1312 ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1401- ● ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1307-1312 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1401- ● ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1312 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1401-1507 ● ● ●
756 BRACKET; ECU,BCM
(C) 		8-98203-991-0 01 1 1508- ● ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1307-1312 ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1401- ● ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1307-1312 ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1401- ● ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307-1312 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1401- ● ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ● ●

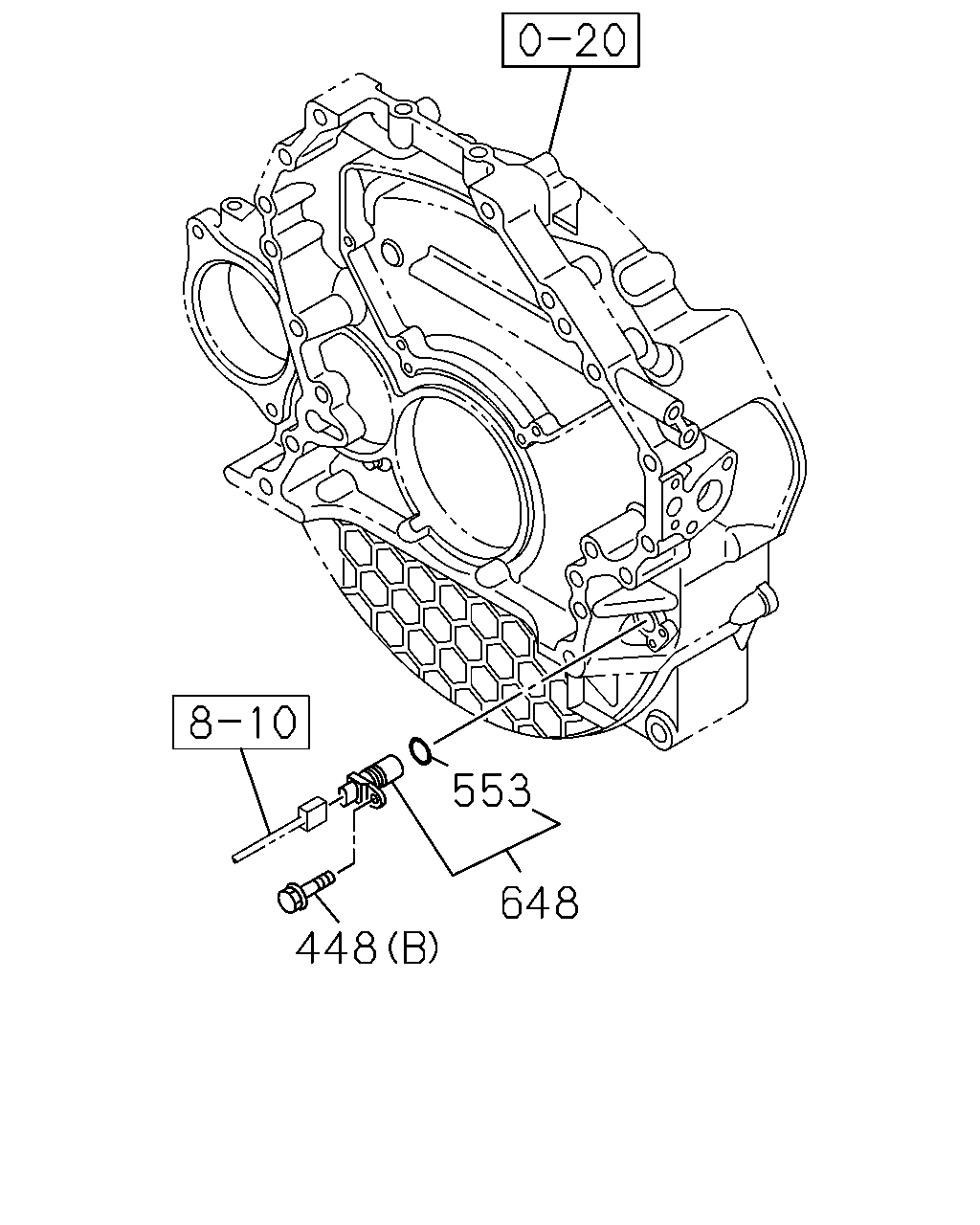

çizim 366329
553 648 448
BalonParca AdiParca NoAdetTipApplied Date A B C
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1307-1312 ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1401- ● ● ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE 		0-28050-616-0 01 1 1307- ●
553 GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8 		8-97369-404-0 01 1 1307- ●
648 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1307- ●

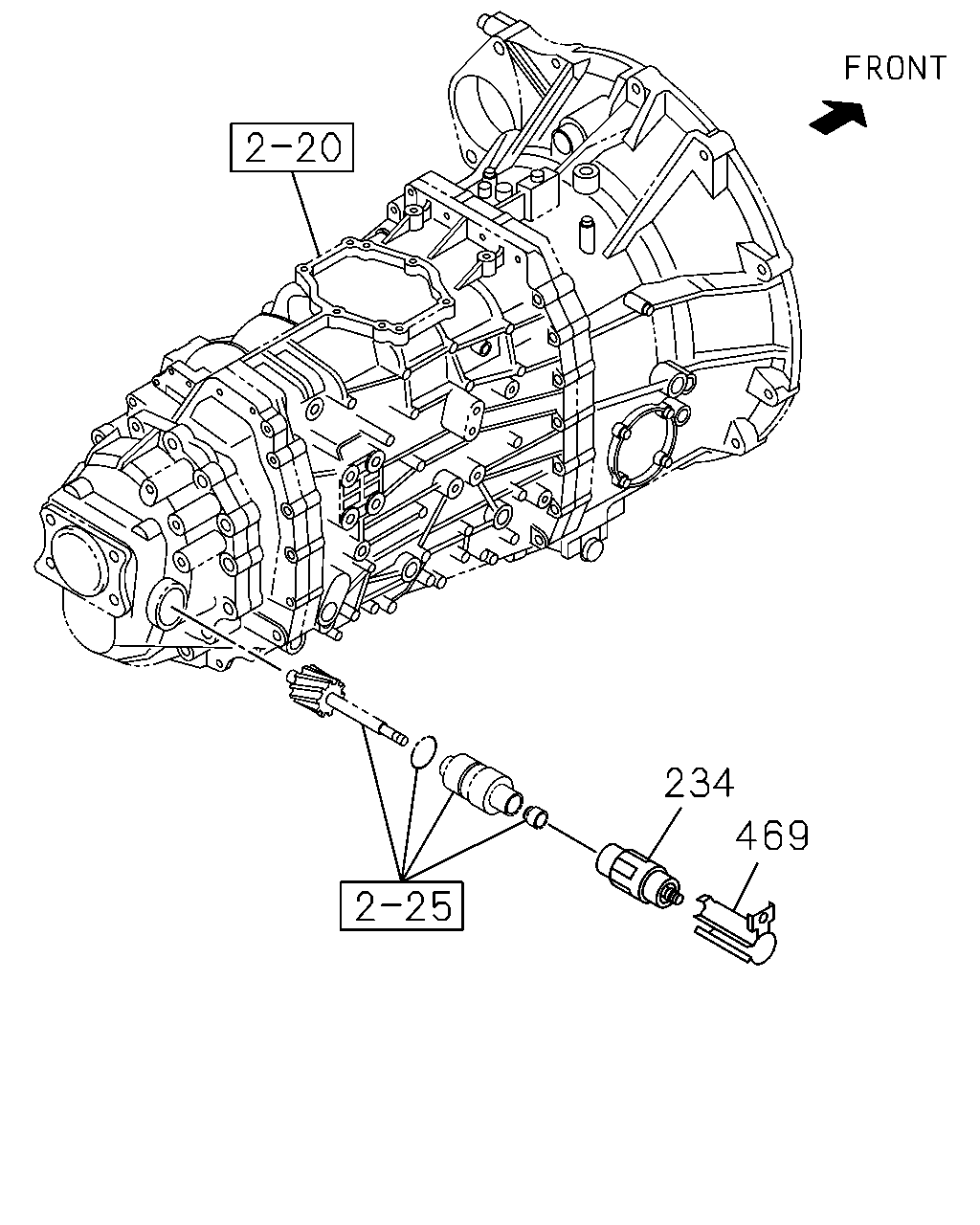

çizim 366720
234 469
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1307-1312 ● ●
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1401- ● ● ●
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98119-901-0 01 1 1307-1312 ● ●
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98119-901-0 01 1 1401- ● ● ●

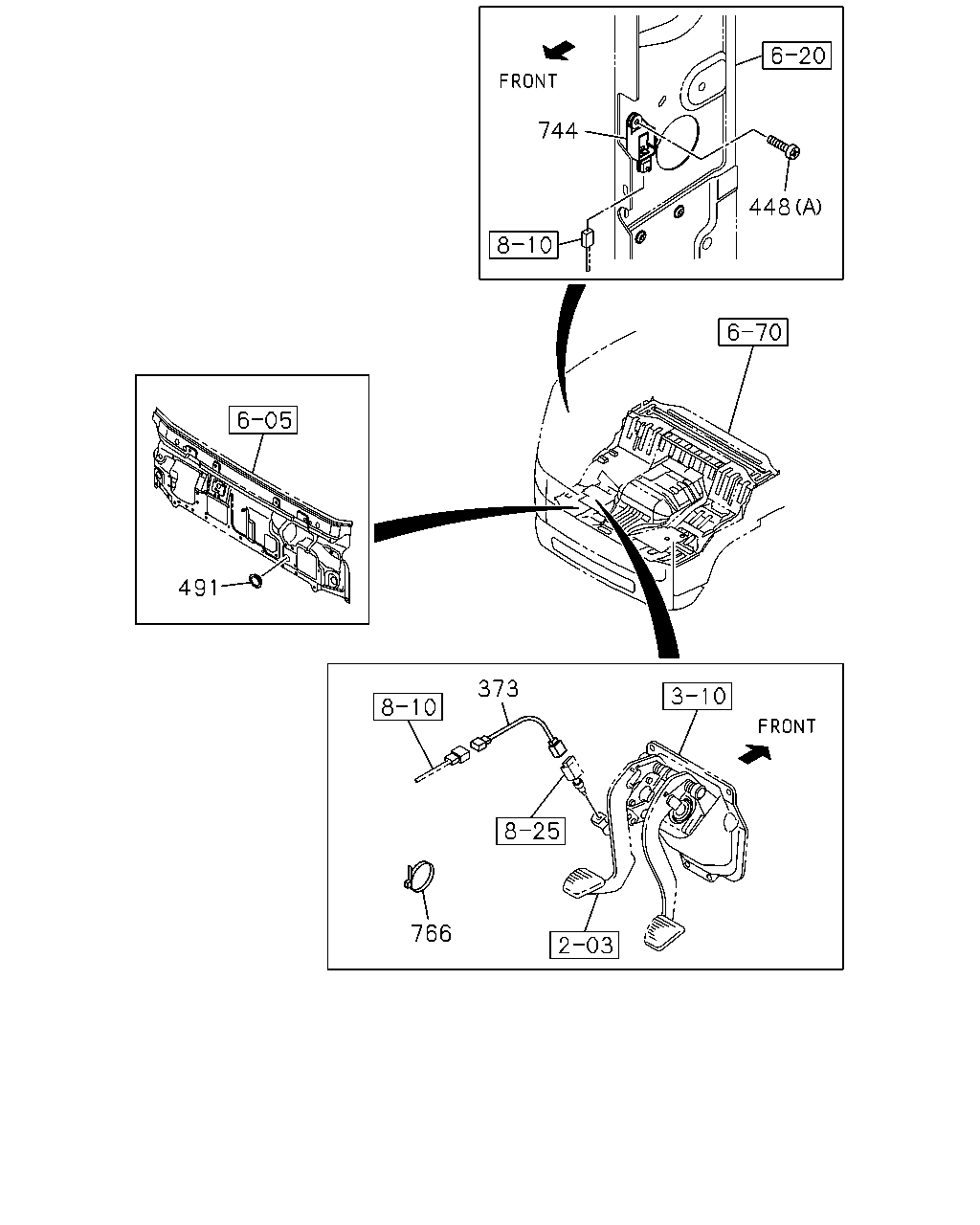

çizim 367110
744 448 373 766 491
BalonParca AdiParca NoAdetTipApplied Date A B C
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-419-2 01 1 1307-1312 ● ●
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-419-2 01 1 1401- ● ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1307-1312 ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1401- ● ● ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE 		0-28050-616-0 01 1 1307- ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1307-1312 ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1401- ● ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1307-1312 ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1401- ● ● ●
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1307-1312 ● ●
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
